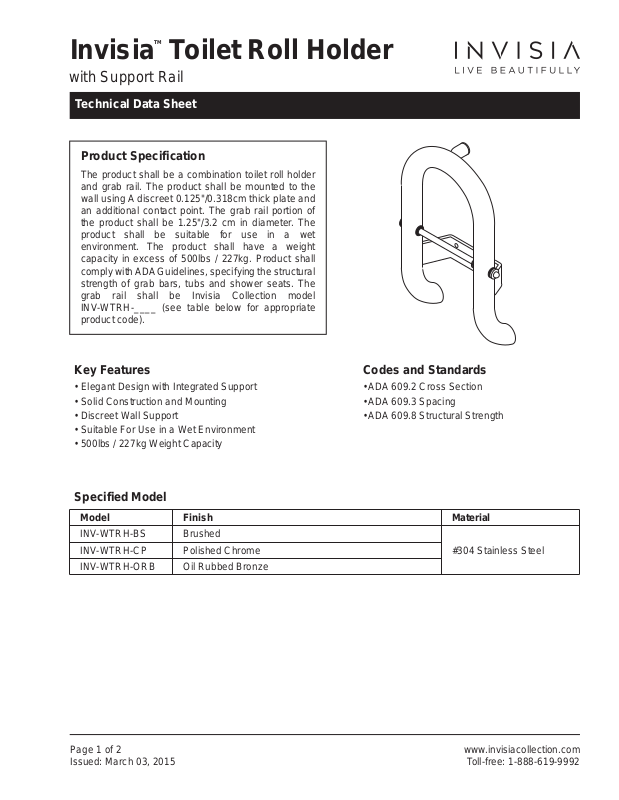

InvisiaTM Toilet Roll Holder
with Support Rail
Technical Data Sheet
Product Specification
The product shall be a combination toilet roll holder
and grab rail. The product shall be mounted to the
wall using A discreet 0.125"/0.318cm thick plate and
an additional contact point. The grab rail portion of
the product shall be 1.25"/3.2 cm in diameter. The
product shall be suitable for use in a wet
environment. The product shall have a weight
capacity in excess of 500lbs / 227kg. Product shall
comply with ADA Guidelines, specifying the structural
strength of grab bars, tubs and shower seats. The
grab rail shall be Invisia Collection model
INV-WTRH-____ (see table below for appropriate
product code).
Key Features
• Elegant Design with Integrated Support
• Solid Construction and Mounting
• Discreet Wall Support
• Suitable For Use in a Wet Environment
• 500lbs / 227kg Weight Capacity
Specified Model
Finish
INV-WTRH-BS
INV-WTRH-CP
INV-WTRH-ORB
Brushed
Polished Chrome
Oil Rubbed Bronze
Codes and Standards
• ADA 609.2 Cross Section
• ADA 609.3 Spacing
• ADA 609.8 Structural Strength
MaterialModel
#304 Stainless Steel
Page 1 of 2
Issued: March 03, 2015
www.invisiacollection.com
Toll-free: 1-888-619-9992
Page 2
InvisiaTM Toilet Roll Holder
with Support Rail
Technical Data Sheet
Product Dimensions
3"
(7.6)
13"
(33cm)
.62"
(1.6cm)
Shipping Dimensions
Model
WTRH
Height (H)
3.5" / 8.9cm
7.25"
(18.4cm)
Width (W)
22.5" / 57.15cm
1.5"
(3.8cm)
W
Depth (D)
7.75" / 19.69cm
Weight
3lbs / 1.5kg
Page 2 of 2
Issued: March 03, 2015
H
D
