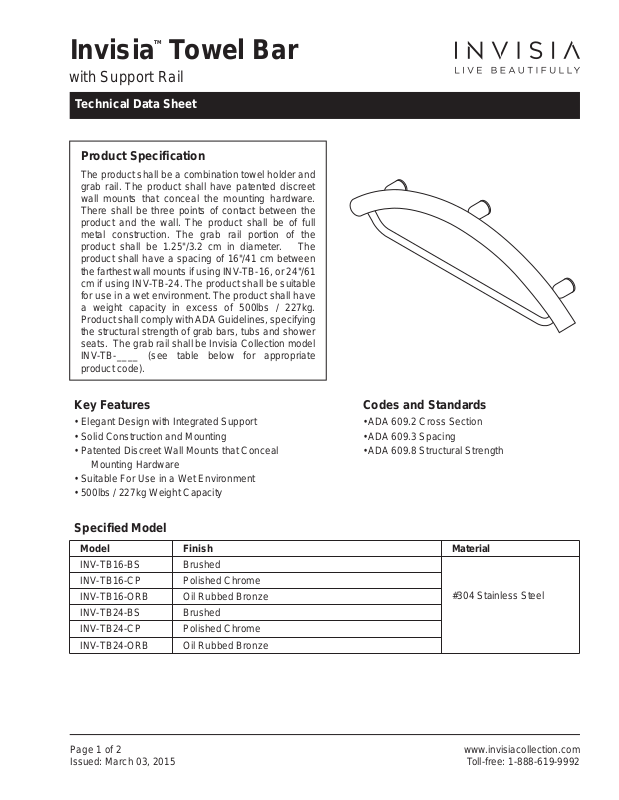

InvisiaTM Towel Bar
with Support Rail
Technical Data Sheet
Product Specification
The product shall be a combination towel holder and
grab rail. The product shall have patented discreet
wall mounts that conceal the mounting hardware.
There shall be three points of contact between the
product and the wall. The product shall be of full
metal construction. The grab rail portion of the
product shall be 1.25"/3.2 cm in diameter. The
product shall have a spacing of 16"/41 cm between
the farthest wall mounts if using INV-TB-16, or 24"/61
cm if using INV-TB-24. The product shall be suitable
for use in a wet environment. The product shall have
a weight capacity in excess of 500lbs / 227kg.
Product shall comply with ADA Guidelines, specifying
the structural strength of grab bars, tubs and shower
seats. The grab rail shall be Invisia Collection model
INV-TB-____ (see table below for appropriate
product code).
Key Features
• Elegant Design with Integrated Support
• Solid Construction and Mounting
• Patented Discreet Wall Mounts that Conceal
Mounting Hardware
• Suitable For Use in a Wet Environment
• 500lbs / 227kg Weight Capacity
Specified Model
Model Finish
INV-TB16-BS
INV-TB16-CP
INV-TB16-ORB
INV-TB24-BS
INV-TB24-CP
INV-TB24-ORB
Brushed
Polished Chrome
Oil Rubbed Bronze
Brushed
Polished Chrome
Oil Rubbed Bronze
Codes and Standards
• ADA 609.2 Cross Section
• ADA 609.3 Spacing
• ADA 609.8 Structural Strength
Material
#304 Stainless Steel
Page 1 of 2
Issued: March 03, 2015
www.invisiacollection.com
Toll-free: 1-888-619-9992
InvisiaTM Towel Bar
with Support Rail
Technical Data Sheet
Product Dimensions
Model
TB-16
TB-24
ø 1.25"/
3.2cm
A (Support Spacing)
16" / 41cm
24" / 61cm
4.625"/
11.7cm
ø 1.00"/
2.5cm
A
B
B (Total Length)
20.625" / 52.3cm
29.2" / 74.2cm
Weight
3lbs / 1.4kg
5lbs / 2.3kg
2.25"/
5.7cm
1.5"/
3.8cm
ø 0.5"/
1.3cm
Shipping Dimensions
Model
TB-16
TB-24
Page 2 of 2
Issued: March 03, 2015
Height (H)
3.5” / 8.9cm
Width (W) Weight
30.5” 77.5cm
Depth (D)
6.5” / 16.5cm
4lbs / 1.8kg
6lbs / 2.7kg
W
H
D
