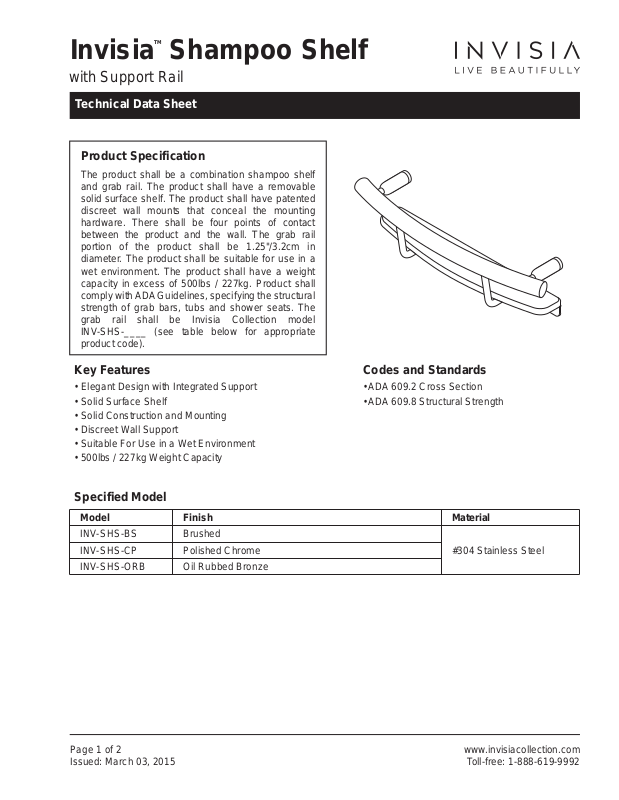

Page 1
InvisiaTM Shampoo Shelf
with Support Rail
Technical Data Sheet
Product Specification
The product shall be a combination shampoo shelf
and grab rail. The product shall have a removable
solid surface shelf. The product shall have patented
discreet wall mounts that conceal the mounting
hardware. There shall be four points of contact
between the product and the wall. The grab rail
portion of the product shall be 1.25"/3.2cm in
diameter. The product shall be suitable for use in a
wet environment. The product shall have a weight
capacity in excess of 500lbs / 227kg. Product shall
comply with ADA Guidelines, specifying the structural
strength of grab bars, tubs and shower seats. The
grab rail shall be Invisia Collection model
INV-SHS-____ (see table below for appropriate
product code).
Key Features
• Elegant Design with Integrated Support
• Solid Surface Shelf
• Solid Construction and Mounting
• Discreet Wall Support
• Suitable For Use in a Wet Environment
• 500lbs / 227kg Weight Capacity
Specified Model
Finish
INV-SHS-BS
INV-SHS-CP
INV-SHS-ORB
Brushed
Polished Chrome
Oil Rubbed Bronze
Codes and Standards
• ADA 609.2 Cross Section
• ADA 609.8 Structural Strength
MaterialModel
#304 Stainless Steel
Page 1 of 2
Issued: March 03, 2015
www.invisiacollection.com
Toll-free: 1-888-619-9992
Page 2
InvisiaTM Shampoo Shelf
with Support Rail
Technical Data Sheet
Product Dimensions
9"
(22.9cm)
16"
(40.6cm)
19.75"
(50.2cm)
ø 1.25"/
3.18cm
(40.6cm)
Shipping Dimensions
Model
SHS
Height (H)
6" / 15.2cm
16"
Width (W)
22" / 55.9cm
W
5.25"
(13.3cm)
Depth (D)
8" / 20.3cm
4.00"
(10.2cm)
5.05"
(12.8cm)
Weight
7lbs / 3.18kg
Page 2 of 2
Issued: March 03, 2015
H
D
www.invisiacollection.com
Toll-free: 1-888-619-9992
