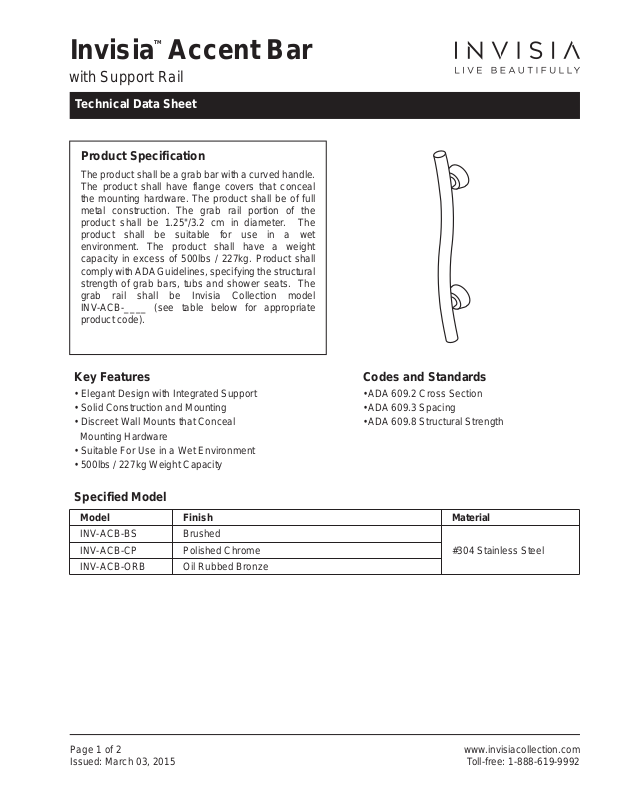

Page 1
InvisiaTM Accent Bar
with Support Rail
Technical Data Sheet
Product Specification
The product shall be a grab bar with a curved handle.
The product shall have flange covers that conceal
the mounting hardware. The product shall be of full
metal construction. The grab rail portion of the
product shall be 1.25"/3.2 cm in diameter. The
product shall be suitable for use in a wet
environment. The product shall have a weight
capacity in excess of 500lbs / 227kg. Product shall
comply with ADA Guidelines, specifying the structural
strength of grab bars, tubs and shower seats. The
grab rail shall be Invisia Collection model
INV-ACB-____ (see table below for appropriate
product code).
Key Features
• Elegant Design with Integrated Support
• Solid Construction and Mounting
• Discreet Wall Mounts that Conceal
Mounting Hardware
• Suitable For Use in a Wet Environment
• 500lbs / 227kg Weight Capacity
Specified Model
Model
INV-ACB-BS
INV-ACB-CP
INV-ACB-ORB
Finish
Brushed
Polished Chrome
Oil Rubbed Bronze
Codes and Standards
• ADA 609.2 Cross Section
• ADA 609.3 Spacing
• ADA 609.8 Structural Strength
Material
#304 Stainless Steel
Page 1 of 2
Issued: March 03, 2015
www.invisiacollection.com
Toll-free: 1-888-619-9992
Page 2
InvisiaTM Accent Bar
with Support Rail
Technical Data Sheet
Product Dimensions
24"
(40.6cm)
16"
(61cm)
ø 1.25"/
3.18cm
1.50"/
3.81cm
Shipping Dimensions
Model
ACB
Page 2 of 2
Issued: March 03, 2015
Height (H)
3.25" / 8.3cm
Width (W)
26.25" / 66.7cm
W
Depth (D)
3.75" / 9.5cm
H
D
Weight
3lbs / 1.4kg
www.invisiacollection.com
Toll-free: 1-888-619-9992
