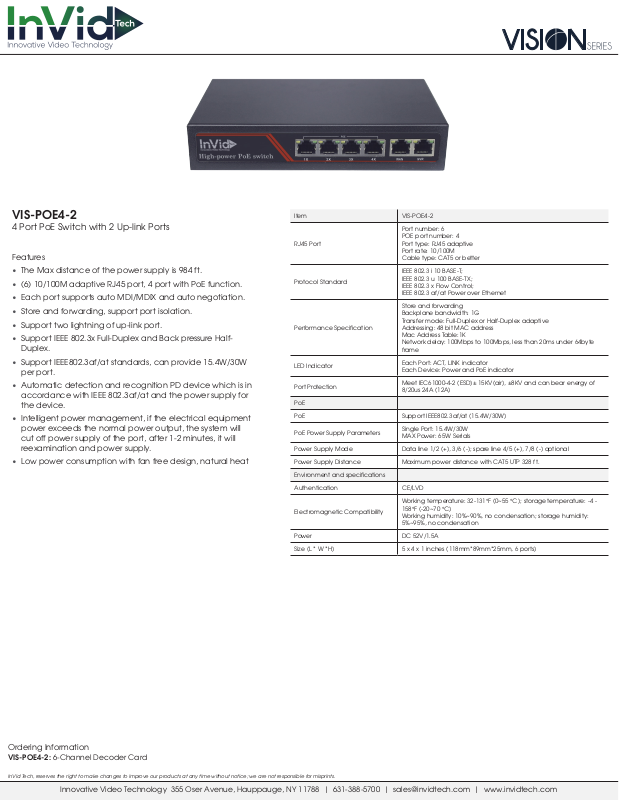

VIS-POE4-2
4 Port PoE Switch with 2 Up-link Ports
Features
• The Max distance of the power supply is 984 ft.
• (6) 10/100M adaptive RJ45 port, 4 port with PoE function.
• Each port supports auto MDI/MDIX and auto negotiation.
• Store and forwarding, support port isolation.
• Support two lightning of up-link port.
• Support IEEE 802.3x Full-Duplex and Back pressure Half-
Duplex.
• Support IEEE802.3af/at standards, can provide 15.4W/30W
per port.
• Automatic detection and recognition PD device which is in
accordance with IEEE 802.3af/at and the power supply for
the device.
• Intelligent power management, if the electrical equipment
power exceeds the normal power output, the system will
cut o power supply of the port, after 1-2 minutes, it will
reexamination and power supply.
• Low power consumption with fan free design, natural heat
Item VIS-POE4-2
Port number: 6
RJ45 Port
Protocol Standard
Performance Specication
LED Indicator
Port Protection
PoE
PoE Support IEEE802.3af/at (15.4W/30W)
PoE Power Supply Parameters
Power Supply Mode Data line 1/2 (+), 3/6 (-); spare line 4/5 (+), 7/8 (-) optional
Power Supply Distance Maximum power distance with CAT5 UTP 328 ft.
Environment and specications
Authentication CE/LVD
Electromagnetic Compatibility
Power DC 52V/1.5A
Size (L * W *H) 5 x 4 x 1 inches (118mm*89mm*25mm, 6 ports)
POE port number: 4
Port type: RJ45 adaptive
Port rate: 10/100M
Cable type: CAT5 or better
IEEE 802.3 i 10 BASE-T;
IEEE 802.3 u 100 BASE-TX;
IEEE 802.3 x Flow Control;
IEEE 802.3 af/at Power over Ethernet
Store and forwarding
Backplane bandwidth: 1G
Transfer mode: Full-Duplex or Half-Duplex adaptive
Addressing: 48 bit MAC address
Mac Address Table:1K
Network delay: 100Mbps to 100Mbps, less than 20ms under 64byte
frame
Each Port: ACT, LINK indicator
Each Device: Power and PoE indicator
Meet IEC61000-4-2 (ESD)± 15KV(air), ±8KV and can bear energy of
8/20us 24A (12A)
Single Port: 15.4W/30W
MAX Power: 65W Serials
Working temperature: 32-131°F (0~55 ℃); storage temperature: -4 158°F (-20~70 ℃)
Working humidity: 10%~90%, no condensation; storage humidity:
5%~95%, no condensation
Ordering Information
VIS-POE4-2: 6-Channel Decoder Card
InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
