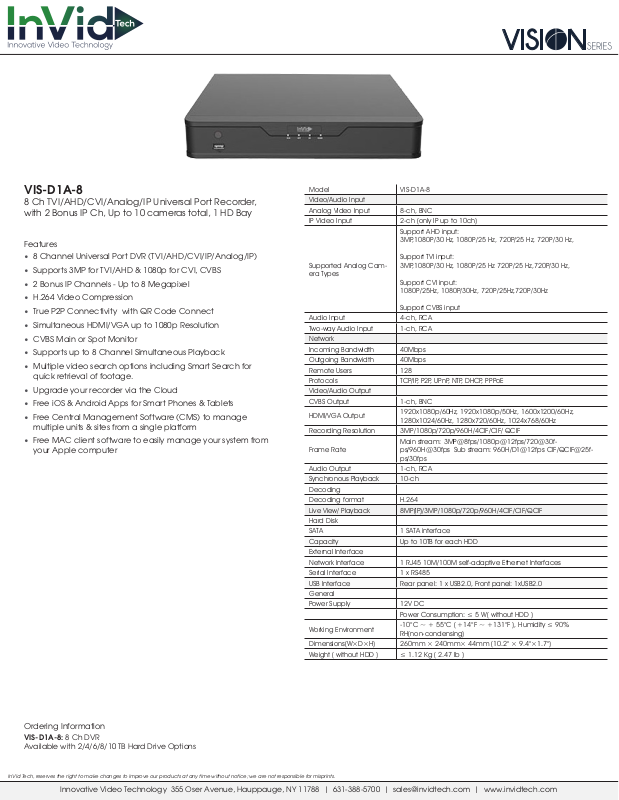

InVid VIS-D1A-8 Specsheet

VIS-D1A-8

8 Ch TVI/AHD/CVI/Analog/IP Universal Port Recorder,
with 2 Bonus IP Ch, Up to 10 cameras total, 1 HD Bay

Features

• 8 Channel Universal Port DVR (TVI/AHD/CVI/IP/Analog/IP)

• Supports 3MP for TVI/AHD & 1080p for CVI, CVBS

• 2 Bonus IP Channels - Up to 8 Megapixel

• H.264 Video Compression

• True P2P Connectivity with QR Code Connect

• Simultaneous HDMI/VGA up to 1080p Resolution

• CVBS Main or Spot Monitor

• Supports up to 8 Channel Simultaneous Playback

• Multiple video search options including Smart Search for

quick retrieval of footage.

• Upgrade your recorder via the Cloud

• Free iOS & Android Apps for Smart Phones & Tablets

• Free Central Management Software (CMS) to manage

multiple units & sites from a single platform

• Free MAC client software to easily manage your system from

your Apple computer

Model VIS-D1A-8

Video/Audio Input

Analog Video Input 8-ch, BNC

IP Video Input 2-ch (only IP up to 10ch)

Support AHD input:
3MP,1080P/30 Hz, 1080P/25 Hz, 720P/25 Hz, 720P/30 Hz,

Supported Analog Cam­era Types

Audio Input 4-ch, RCA

Two-way Audio Input 1-ch, RCA

Network

Incoming Bandwidth 40Mbps

Outgoing Bandwidth 40Mbps

Remote Users 128

Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

CVBS Output 1-ch, BNC

HDMI/VGA Output

Recording Resolution 3MP/1080p/720p/960H/4CIF/CIF/ QCIF

Frame Rate

Audio Output 1-ch, RCA

Synchronous Playback 10-ch

Decoding

Decoding format H.264

Live View/ Playback 8MP(IP)/3MP/1080p/720p/960H/4CIF/CIF/QCIF

Hard Disk

SATA 1 SATA interface

Capacity Up to 10TB for each HDD

External Interface

Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interfaces

Serial Interface 1 x RS485

USB Interface Rear panel: 1 x USB2.0, Front panel: 1xUSB2.0

General

Power Supply 12V DC

Working Environment

Dimensions(W×D×H) 260mm × 240mm× 44mm (10.2" × 9.4"×1.7")

Weight ( without HDD ) ≤ 1.12 Kg ( 2.47 lb )

Support TVI input:
3MP,1080P/30 Hz, 1080P/25 Hz 720P/25 Hz,720P/30 Hz,

Support CVI input:
1080P/25Hz, 1080P/30Hz, 720P/25Hz,720P/30Hz

Support CVBS input

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,
1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Main stream: 3MP@8fps/1080p@12fps/720@30f­ps/960H@30fps Sub stream: 960H/D1@12fps CIF/QCIF@25f­ps/30fps

Power Consumption: ≤ 5 W( without HDD )

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90%

RH(non-condensing)

Ordering Information

VIS-D1A-8: 8 Ch DVR
Available with 2/4/6/8/10 TB Hard Drive Options

InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
