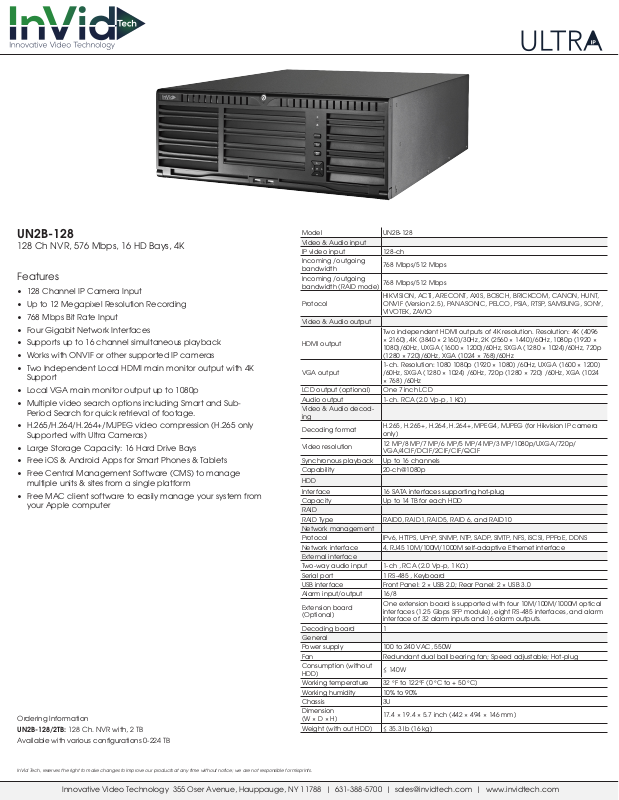

InVid UN2B-128 Specsheet

UN2B-128

128 Ch NVR, 576 Mbps, 16 HD Bays, 4K

Features

• 128 Channel IP Camera Input

• Up to 12 Megapixel Resolution Recording

• 768 Mbps Bit Rate Input

• Four Gigabit Network Interfaces

• Supports up to 16 channel simultaneous playback

• Works with ONVIF or other supported IP cameras

• Two Independent Local HDMI main monitor output with 4K
Support

• Local VGA main monitor output up to 1080p

• Multiple video search options including Smart and Sub­Period Search for quick retrieval of footage.

• H.265/H.264/H.264+/MJPEG video compression(H.265 only
Supported with Ultra Cameras)

• Large Storage Capacity: 16 Hard Drive Bays

• Free iOS & Android Apps for Smart Phones & Tablets

• Free Central Management Software (CMS) to manage
multiple units & sites from a single platform

• Free MAC client software to easily manage your system from
your Apple computer

Ordering Information

UN2B-128/2TB: 128 Ch. NVR with, 2 TB

Available with various congurations 0-224 TB

Model UN2B-128
Video & Audio input
IP video input 128-ch
Incoming /outgoing

bandwidth
Incoming /outgoing

bandwidth (RAID mode)

Protocol

Video & Audio output

HDMI output

VGA output

LCD output (optional) One 7 inch LCD
Audio output 1-ch. RCA (2.0 Vp-p, 1 KΩ)
Video & Audio decod-

ing

Decoding format

Video resolution

Synchronous playback Up to 16 channels
Capability 20-ch@1080p

HDD

Interface 16 SATA interfaces supporting hot-plug
Capacity Up to 14 TB for each HDD
RAID
RAID Type RAID0, RAID1, RAID5, RAID 6, and RAID10
Network management
Protocol IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Network interface 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
External interface
Two-way audio input 1-ch , RCA (2.0 Vp-p, 1 KΩ)
Serial port 1 RS-485 , Keyboard
USB interface Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
Alarm input/output 16/8

Extension board
(Optional)

Decoding board 1
General
Power supply 100 to 240 VAC, 550W
Fan Redundant dual ball bearing fan; Speed adjustable; Hot-plug
Consumption (without

HDD)
Working temperature 32 °F to 122°F (0 °C to + 50 °C)
Working humidity 10% to 90%
Chassis 3U
Dimension

(W × D × H)
Weight (with out HDD) ≤ 35.3 lb (16 kg)

768 Mbps/512 Mbps

768 Mbps/512 Mbps

HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT,
ONVIF (Version 2.5), PANASONIC, PELCO, PSIA, RTSP, SAMSUNG, SONY,
VIVOTEK, ZAVIO

Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096
× 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 ×

1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p
(1280 × 720)/60Hz, XGA (1024 × 768)/60Hz

1-ch. Resolution: 1080 1080p (1920 × 1080) /60Hz, UXGA (1600 × 1200)
/60Hz, SXGA (1280 × 1024) /60Hz, 720p (1280 × 720) /60Hz, XGA (1024
× 768) /60Hz

H.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision IP camera
only)

12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/
VGA/4CIF/DCIF/2CIF/CIF/QCIF

One extension board is supported with four 10M/100M/1000M optical
interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm
interface of 32 alarm inputs and 16 alarm outputs.

≤ 140W

17.4 × 19.4 × 5.7 inch (442 × 494 × 146 mm)

InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.

Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | [e-mail] | www.invidtech.com
