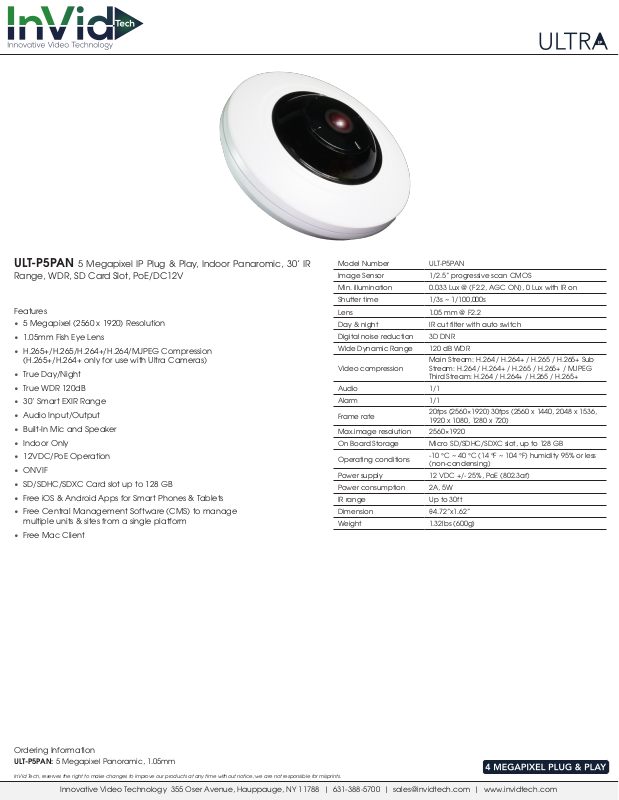

InVid ULT-P5PAN Specsheet

ULT-P5PAN 5 Megapixel IP Plug & Play, Indoor Panaromic, 30’ IR

Range, WDR, SD Card Slot, PoE/DC12V

Features

• 5 Megapixel (2560 x 1920) Resolution

• 1.05mm Fish Eye Lens

• H.265+/H.265/H.264+/H.264/MJPEG Compression

(H.265+/H.264+ only for use with Ultra Cameras)

• True Day/Night

• True WDR 120dB

• 30’ Smart EXIR Range

• Audio Input/Output

• Built-In Mic and Speaker

• Indoor Only

• 12VDC/PoE Operation

• ONVIF

• SD/SDHC/SDXC Card slot up to 128 GB

• Free iOS & Android Apps for Smart Phones & Tablets

• Free Central Management Software (CMS) to manage

multiple units & sites from a single platform

• Free Mac Client

Model Number ULT-P5PAN

Image Sensor 1/2.5” progressive scan CMOS

Min. illumination 0.033 Lux @ (F2.2, AGC ON), 0 Lux with IR on

Shutter time 1/3s ~ 1/100,000s

Lens 1.05 mm @ F2.2

Day & night IR cut lter with auto switch

Digital noise reduction 3D DNR

Wide Dynamic Range 120 dB WDR

Video compression

Audio 1/1

Alarm 1/1

Frame rate

Max.image resolution 2560×1920

On Board Storage Micro SD/SDHC/SDXC slot, up to128 GB

Operating conditions

Power supply 12 VDC +/- 25%, PoE (802.3af)

Power consumption 2A, 5W

IR range Up to 30ft

Dimension θ4.72”x1.62”

Weight 1.32lbs (600g)

Main Stream: H.264 / H.264+ / H.265 / H.265+ Sub
Stream: H.264 / H.264+ / H.265 / H.265+ / MJPEG
ThirdStream: H.264 / H.264+ / H.265 / H.265+

20fps (2560×1920) 30fps (2560 x 1440, 2048 x 1536,
1920 x 1080, 1280 x 720)

-10 °C ~ 40 °C (14 °F ~ 104 °F) humidity 95% or less
(non-condensing)

Ordering Information

ULT-P5PAN: 5 Megapixel Panoramic, 1.05mm
