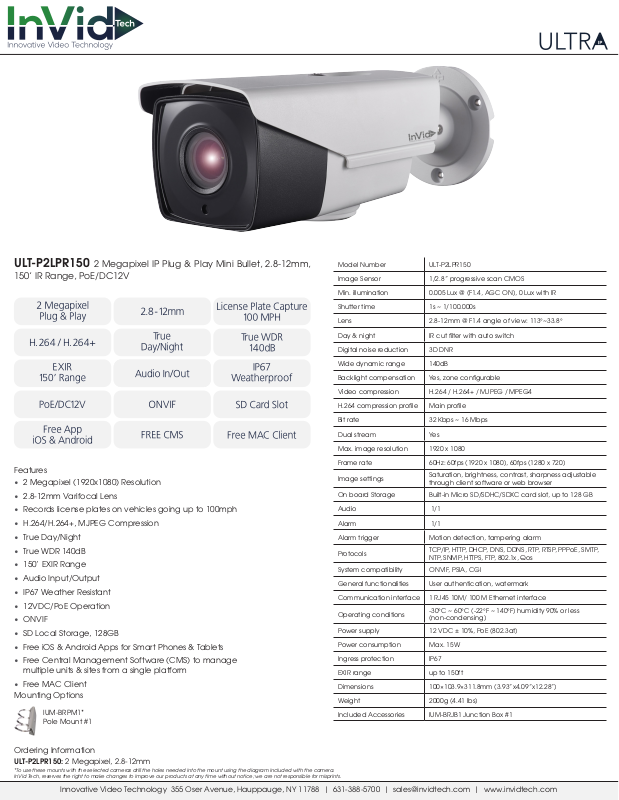

InVid ULT-P2LPR150 Specsheet
ULT-P2LPR150 2 Megapixel IP Plug & Play Mini Bullet, 2.8-12mm,
150’ IR Range, PoE/DC12V
Features
• 2 Megapixel (1920x1080) Resolution
• 2.8-12mm Varifocal Lens
• Records license plates on vehicles going up to 100mph
• H.264/H.264+, MJPEG Compression
• True Day/Night
• True WDR 140dB
• 150’ EXIR Range
• Audio Input/Output
• IP67 Weather Resistant
• 12VDC/PoE Operation
• ONVIF
• SD Local Storage, 128GB
• Free iOS & Android Apps for Smart Phones & Tablets
• Free Central Management Software (CMS) to manage
multiple units & sites from a single platform
• Free MAC Client
Mounting Options
IUM-BRPM1*
Pole Mount #1
Model Number ULT-P2LPR150
Image Sensor 1/2.8” progressive scan CMOS
Min. illumination 0.005 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time 1s ~ 1/100.000s
Lens 2.8-12mm @ F1.4 angle of view: 113°~33.8°
Day & night IR cut lter with auto switch
Digital noise reduction 3D DNR
Wide dynamic range 140dB
Backlight compensation Yes, zone congurable
Video compression H.264 / H.264+ / MJPEG / MPEG4
H.264 compression prole Main prole
Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. image resolution 1920 x 1080
Frame rate 60Hz: 60fps (1920 x 1080), 60fps (1280 x 720)
Image settings
On board Storage Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Audio 1/1
Alarm 1/1
Alarm trigger Motion detection, tampering alarm
Protocols
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark
Communication interface 1 RJ45 10M/ 100 M Ethernet interface
Operating conditions
Power supply 12 VDC ± 10%, PoE (802.3at)
Power consumption Max.15W
Ingress protection IP67
EXIR range up to150ft
Dimensions 100×103.9×311.8mm (3.93”x4.09”x12.28”)
Weight 2000g (4.41 lbs)
Included Accessories IUM-BRJB1 Junction Box #1
Saturation, brightness, contrast, sharpness adjustable
through client software or web browser
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP,
NTP, SNMP, HTTPS, FTP, 802.1x, Qos
-30°C ~ 60°C (-22°F ~ 140°F)humidity 90% or less
(non-condensing)
Ordering Information
ULT-P2LPR150: 2 Megapixel, 2.8-12mm
*To use these mounts with the selected cameras drill the holes needed into the mount using the diagram included with the camera.
InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | sales@invidtech.com | www.invidtech.com
