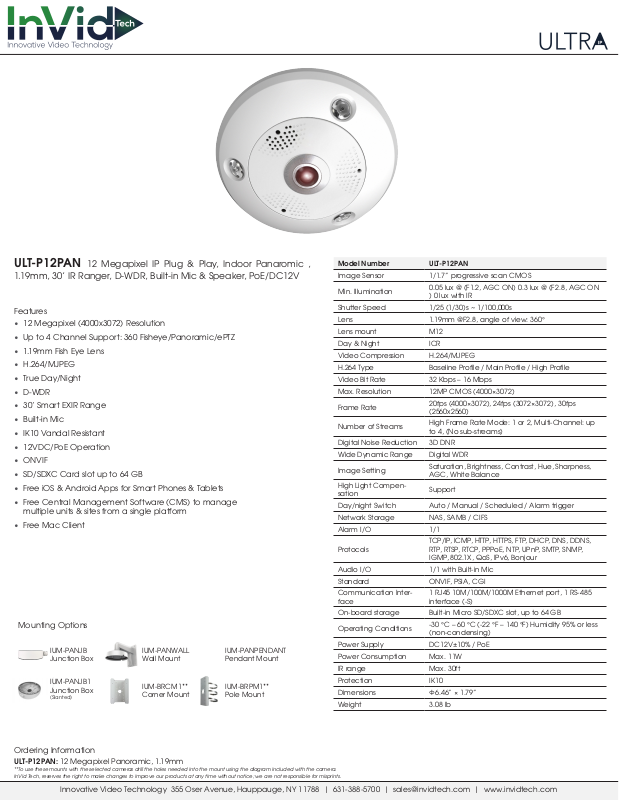

InVid ULT-P12PAN Specsheet
ULT-P12PAN 12 Megapixel IP Plug & Play, Indoor Panaromic ,
1.19mm, 30’ IR Ranger, D-WDR, Built-in Mic & Speaker, PoE/DC12V
Features
• 12 Megapixel (4000x3072) Resolution
• Up to 4 Channel Support: 360 Fisheye/Panoramic/ePTZ
• 1.19mm Fish Eye Lens
• H.264/MJPEG
• True Day/Night
• D-WDR
• 30’ Smart EXIR Range
• Built-in Mic
• IK10 Vandal Resistant
• 12VDC/PoE Operation
• ONVIF
• SD/SDXC Card slot up to 64 GB
• Free iOS & Android Apps for Smart Phones & Tablets
• Free Central Management Software (CMS) to manage
multiple units & sites from a single platform
• Free Mac Client
Mounting Options
IUM-PANJB
Junction Box
IUM-PANJB1
Junction Box
(Slanted)
IUM-PANWALL
Wall Mount
IUM-BRCM1**
Corner Mount
IUM-PANPENDANT
Pendant Mount
IUM-BRPM1**
Pole Mount
Model Number ULT-P12PAN
Image Sensor 1/1.7” progressive scan CMOS
Min. Illumination
Shutter Speed 1/25 (1/30)s ~ 1/100,000s
Lens 1.19mm @F2.8, angle of view: 360°
Lens mount M12
Day & Night ICR
Video Compression H.264/MJPEG
H.264 Type Baseline Prole / Main Prole / High Prole
Video Bit Rate 32 Kbps – 16 Mbps
Max. Resolution 12MP CMOS (4000×3072)
Frame Rate
Number of Streams
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Image Setting
High Light Compensation
Day/night Switch Auto / Manual / Scheduled / Alarm trigger
Network Storage NAS, SAMB / CIFS
Alarm I/O 1/1
Protocols
Audio I/O 1/1 with Built-in Mic
Standard ONVIF, PSIA, CGI
Communication Interface
On-board storage Built-in Micro SD/SDXC slot, up to 64 GB
Operating Conditions
Power Supply DC12V±10% / PoE
Power Consumption Max. 11W
IR range Max. 30ft
Protection IK10
Dimensions Φ6.46” × 1.79”
Weight 3.08 lb
0.05 lux @ (F1.2, AGC ON) 0.3 lux @ (F2.8, AGC ON
) 0 lux with IR
20fps (4000×3072), 24fps (3072×3072), 30fps
(2560x2560)
High Frame Rate Mode: 1 or2, Multi-Channel: up
to 4, (No sub-streams)
Saturation, Brightness, Contrast, Hue, Sharpness,
AGC, White Balance
Support
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485
interface (-S)
-30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less
(non-condensing)
Ordering Information
ULT-P12PAN: 12 Megapixel Panoramic, 1.19mm
**To use these mounts with the selected cameras drill the holes needed into the mount using the diagram included with the camera.
InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | sales@invidtech.com | www.invidtech.com
