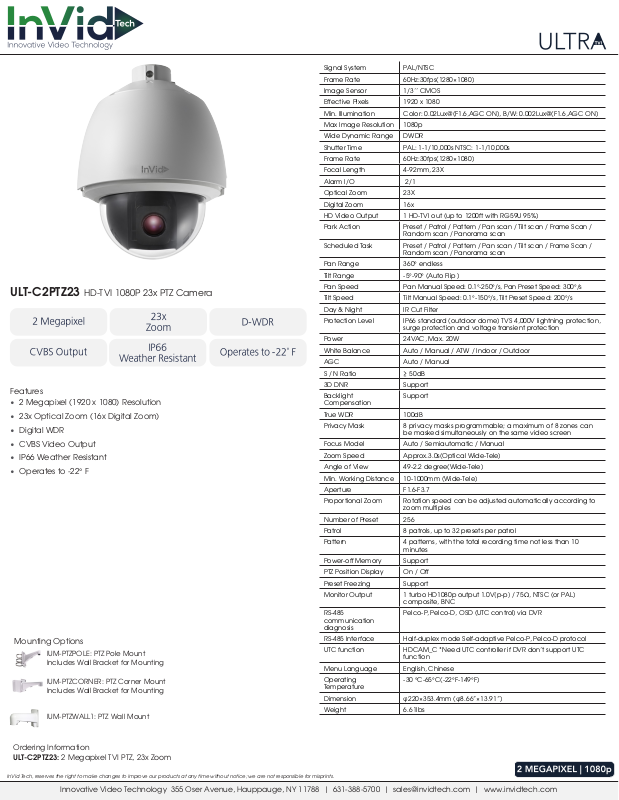

InVid ULT-C2PTZ23 Specsheet

ULT-C2PTZ23 HD-TVI 1080P 23x PTZ Camera

Features

• 2 Megapixel (1920 x 1080) Resolution

• 23x Optical Zoom (16x Digital Zoom)

• Digital WDR

• CVBS Video Output

• IP66 Weather Resistant

• Operates to -22° F

Mounting Options

IUM-PTZPOLE: PTZ Pole Mount
Includes Wall Bracket for Mounting

IUM-PTZCORNER: PTZ Corner Mount
Includes Wall Bracket for Mounting

IUM-PTZWALL1: PTZ Wall Mount

Signal System PAL/NTSC

Frame Rate 60Hz:30fps(1280×1080)

Image Sensor 1/3’’ CMOS

Eective Pixels 1920 x 1080

Min. Illumination Color: 0.02Lux@(F1.6,AGC ON), B/W: 0.002Lux@(F1.6,AGC ON)

Max Image Resolution 1080p

Wide Dynamic Range DWDR

Shutter Time PAL: 1-1/10,000s NTSC: 1-1/10,000s

Frame Rate 60Hz:30fps(1280×1080)

Focal Length 4-92mm, 23X

Alarm I/O 2/1

Optical Zoom 23X

Digital Zoom 16x

HD Video Output 1 HD-TVI out (up to 1200ft with RG59U 95%)

Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan /

Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan /

Pan Range 360° endless

Tilt Range -5°-90° (Auto Flip )

Pan Speed Pan Manual Speed: 0.1°-250°/s, Pan Preset Speed: 300°/s

Tilt Speed Tilt Manual Speed: 0.1°-150°/s, Tilt Preset Speed: 200°/s

Day & Night IR Cut Filter

Protection Level IP66 standard (outdoor dome) TVS 4,000V lightning protection,

Power 24VAC, Max. 20W

White Balance Auto / Manual / ATW / Indoor / Outdoor

AGC Auto / Manual

S / N Ratio ≥ 50dB

3D DNR Support

Backlight
Compensation

True WDR 100dB

Privacy Mask 8 privacy masks programmable; a maximum of 8 zones can

Focus Model Auto / Semiautomatic / Manual

Zoom Speed Approx.3.0s(Optical Wide-Tele)

Angle of View 49-2.2 degree(Wide-Tele)

Min. Working Distance 10-1000mm (Wide-Tele)

Aperture F1.6-F3.7

Proportional Zoom Rotation speed can be adjusted automatically according to

Number of Preset 256

Patrol 8 patrols, up to 32 presets per patrol

Pattern 4 patterns, with the total recording time not less than 10

Power-o Memory Support

PTZ Position Display On / O

Preset Freezing Support

Monitor Output 1 turbo HD1080p output 1.0V[p-p] / 75Ω, NTSC (or PAL)

RS-485
communication
diagnosis

RS-485 Interface Half-duplex mode Self-adaptive Pelco-P, Pelco-D protocol

UTC function HDCAM_C *Need UTC controller if DVR don’t support UTC

Menu Language English, Chinese

Operating
Temperature

Dimension φ220×353.4mm (φ8.66”×13.91”)

Weight 6.61Ibs

Random scan / Panorama scan

Random scan / Panorama scan

surge protection and voltage transient protection

Support

be masked simultaneously on the same video screen

zoom multiples

minutes

composite, BNC

Pelco-P, Pelco-D, OSD (UTC control) via DVR

function

-30 °C-65°C(-22°F-149°F)

Ordering Information
ULT-C2PTZ23: 2 Megapixel TVI PTZ, 23x Zoom

InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
