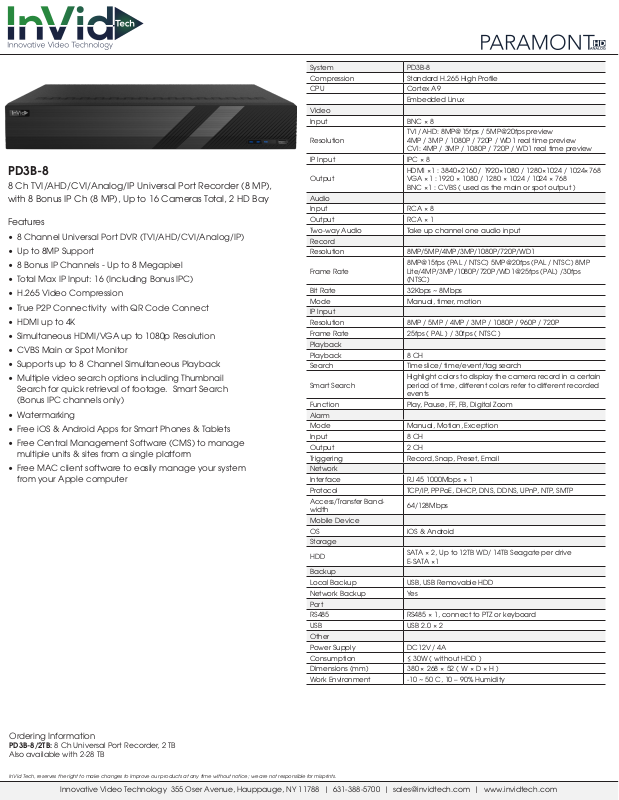

InVid PD3B-8 Specsheet
PD3B-8
8 Ch TVI/AHD/CVI/Analog/IP Universal Port Recorder (8 MP),
with 8 Bonus IP Ch (8 MP), Up to 16 Cameras Total, 2 HD Bay
Features
• 8 Channel Universal Port DVR (TVI/AHD/CVI/Analog/IP)
• Up to 8MP Support
• 8 Bonus IP Channels - Up to 8 Megapixel
• Total Max IP Input: 16 (Including Bonus IPC)
• H.265 Video Compression
• True P2P Connectivity with QR Code Connect
• HDMI up to 4K
• Simultaneous HDMI/VGA up to 1080p Resolution
• CVBS Main or Spot Monitor
• Supports up to 8 Channel Simultaneous Playback
• Multiple video search options including Thumbnail
Search for quick retrieval of footage. Smart Search
(Bonus IPC channels only)
• Watermarking
• Free iOS & Android Apps for Smart Phones & Tablets
• Free Central Management Software (CMS) to manage
multiple units & sites from a single platform
• Free MAC client software to easily manage your system
from your Apple computer
System PD3B-8
Compression Standard H.265 High Prole
CPU Cortex A9
Embedded Linux
Video
Input BNC × 8
Resolution
IP Input IPC × 8
Output
Audio
Input RCA × 8
Output RCA × 1
Two-way Audio Take up channel one audio input
Record
Resolution 8MP/5MP/4MP/3MP/1080P/720P/WD1
Frame Rate
Bit Rate 32Kbps ~ 8Mbps
Mode Manual, timer, motion
IP Input
Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
Frame Rate 25fps ( PAL ) / 30fps ( NTSC )
Playback
Playback 8 CH
Search Time slice/ time/event/tag search
Smart Search
Function Play, Pause, FF, FB, Digital Zoom
Alarm
Mode Manual, Motion, Exception
Input 8 CH
Output 2 CH
Triggering Record, Snap, Preset, Email
Network
Interface RJ 45 1000Mbps × 1
Protocol TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Access/Transfer Bandwidth
Mobile Device
OS iOS & Android
Storage
HDD
Backup
Local Backup USB, USB Removable HDD
Network Backup Yes
Port
RS485 RS485 × 1, connect to PTZ or keyboard
USB USB 2.0 × 2
Other
Power Supply DC12V / 4A
Consumption ≤ 30W ( without HDD )
Dimensions (mm) 380 × 268 × 52 ( W × D × H )
Work Environment -10 ~ 50 C, 10 – 90% Humidity
TVI /AHD: 8MP@15fps / 5MP@20fps preview
4MP / 3MP / 1080P / 720P / WD1 real time preview
CVI: 4MP / 3MP / 1080P / 720P / WD1 real time preview
HDMI ×1 : 3840×2160 / 1920×1080 / 1280×1024 / 1024×768
VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
BNC ×1 : CVBS ( used as the main or spot output )
8MP@15fps (PAL / NTSC) 5MP@20fps (PAL / NTSC) 8MP
Lite/4MP/3MP/1080P/720P/WD1@25fps (PAL) /30fps
(NTSC)
Highlight colors to display the camera record in a certain
period of time, dierent colors refer to dierent recorded
events
64/128Mbps
SATA × 2, Up to 12TB WD/ 14TB Seagate per drive
E-SATA ×1
Ordering Information
PD3B-8/2TB: 8 Ch Universal Port Recorder, 2 TB
Also available with 2-28 TB
InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | sales@invidtech.com | www.invidtech.com
