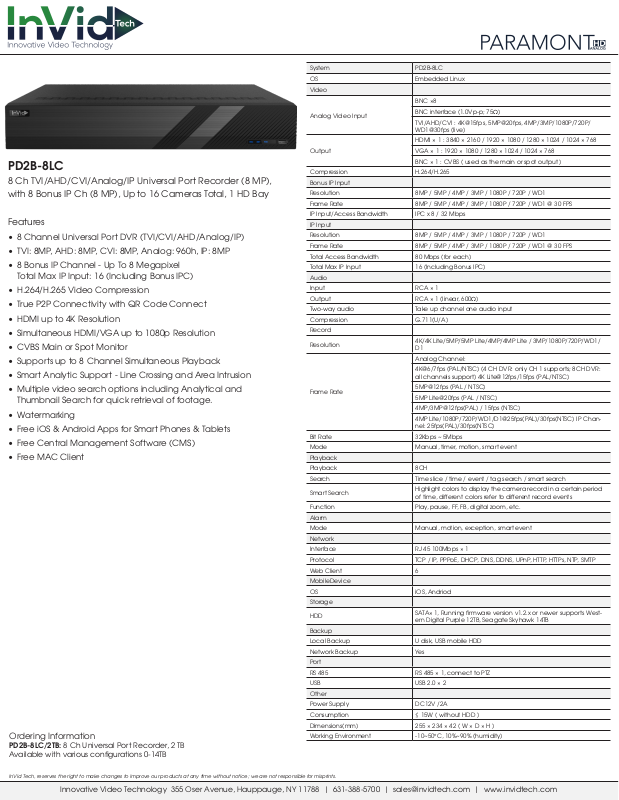

InVid PD2B-8LC-2TB, PD2B-8LC-4TB Specsheet

PD2B-8LC

8 Ch TVI/AHD/CVI/Analog/IP Universal Port Recorder (8 MP),
with 8 Bonus IP Ch (8 MP), Up to 16 Cameras Total, 1 HD Bay

Features

• 8 Channel Universal Port DVR (TVI/CVI/AHD/Analog/IP)

• TVI: 8MP, AHD: 8MP, CVI: 8MP, Analog: 960h, IP: 8MP

• 8 Bonus IP Channel - Up To 8 Megapixel
Total Max IP Input: 16 (Including Bonus IPC)

• H.264/H.265 Video Compression

• True P2P Connectivity with QR Code Connect

• HDMI up to 4K Resolution

• Simultaneous HDMI/VGA up to 1080p Resolution

• CVBS Main or Spot Monitor

• Supports up to 8 Channel Simultaneous Playback

• Smart Analytic Support - Line Crossing and Area Intrusion

• Multiple video search options including Analytical and
Thumbnail Search for quick retrieval of footage.

• Watermarking

• Free iOS & Android Apps for Smart Phones & Tablets

• Free Central Management Software (CMS)

• Free MAC Client

Ordering Information

PD2B-8LC/2TB: 8 Ch Universal Port Recorder, 2 TB
Available with various congurations 0-14TB

System PD2B-8LC

OS Embedded Linux

Video

BNC ×8

Analog Video Input

Output

Compression H.264/H.265

Bonus IP Input

Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1

Frame Rate 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 @ 30 FPS

IP Input/Access Bandwidth IPC x 8 / 32 Mbps

IP Input

Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1

Frame Rate 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 @ 30 FPS

Total Access Bandwidth 80 Mbps (for each)

Total Max IP Input 16 (Including Bonus IPC)

Audio

Input RCA × 1

Output RCA × 1 (linear, 600Ω)

Two-way audio Take up channel one audio input

Compression G.711(U/A)

Record

Resolution

Frame Rate

Bit Rate 32Kbps ~ 5Mbps

Mode Manual, timer, motion, smart event

Playback

Playback 8CH

Search Time slice / time / event / tag search / smart search

Smart Search

Function Play, pause, FF, FB, digital zoom, etc.

Alarm

Mode Manual, motion, exception, smart event

Network

Interface RJ 45 100Mbps × 1

Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP

Web Client 6

MobileDevice

OS iOS, Andriod

Storage

HDD

Backup

Local Backup U disk, USB mobile HDD

Network Backup Yes

Port

RS 485 RS 485 × 1, connect to PTZ

USB USB 2.0 × 2

Other

Power Supply DC12V /2A

Consumption ≤ 15W ( without HDD )

Dimensions(mm) 255 × 234 × 42 ( W × D × H )

Working Environment -10~50°C, 10%~90% (humidity)

BNC interface (1.0Vp-p; 75Ω)

TVI/AHD/CVI : 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/
WD1@30fps (live)

HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768

VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

BNC × 1 : CVBS ( used as the main or spot output )

4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1/
D1

Analog Channel:

4K@6/7fps (PAL/NTSC) (4 CH DVR: only CH 1 supports; 8CH DVR:
all channels support) 4K Lite@12fps/15fps (PAL/NTSC)

5MP@12fps (PAL / NTSC)

5MP Lite@20fps (PAL / NTSC)

4MP/3MP@12fps(PAL) / 15fps (NTSC)

4MPLite/1080P/720P/WD1/D1@25fps(PAL)/30fps(NTSC) IP Chan­nel: 25fps(PAL)/30fps(NTSC)

Highlight colors to display the camera record in a certain period
of time, dierent colors refer to dierent record events

SATA× 1, Running rmware version v1.2.x or newer supports West­ern Digital Purple 12TB, Seagate Skyhawk 14TB

InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
