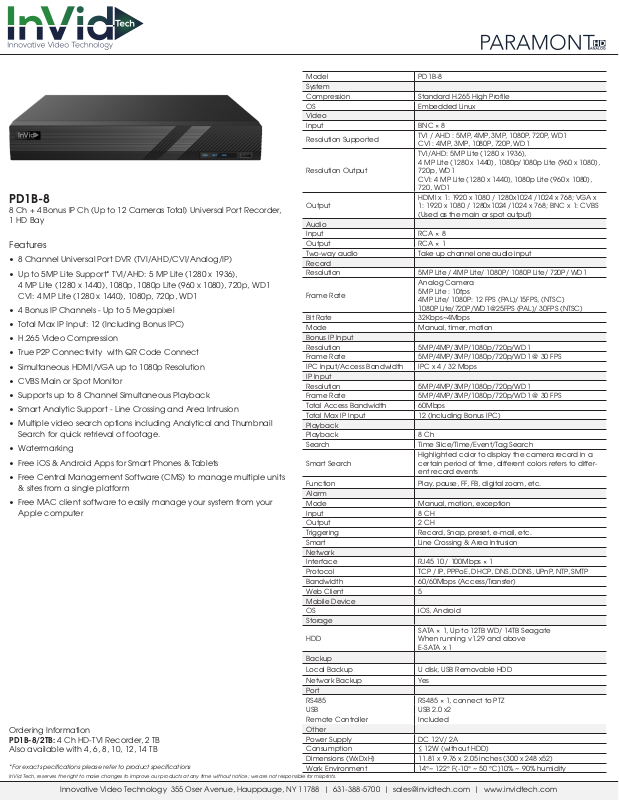

InVid PD1B-8 Specsheet

Model PD1B-8
System
Compression Standard H.265 High Prole
OS Embedded Linux
Video
Input BNC × 8

Resolution Supported

Resolution Output

PD1B-8

8 Ch + 4 Bonus IP Ch (Up to 12 Cameras Total) Universal Port Recorder,
1 HD Bay

Features

• 8 Channel Universal Port DVR (TVI/AHD/CVI/Analog/IP)

• Up to 5MP Lite Support* TVI/AHD: 5 MP Lite (1280 x 1936),

Output

Audio
Input RCA × 8
Output RCA × 1
Two-way audio Take up channel one audio input
Record
Resolution 5MP Lite / 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1

4 MP Lite (1280 x 1440), 1080p, 1080p Lite (960 x 1080), 720p, WD1
CVI: 4 MP Lite (1280 x 1440), 1080p, 720p, WD1

• 4 Bonus IP Channels - Up to 5 Megapixel

• Total Max IP Input: 12 (Including Bonus IPC)

• H.265 Video Compression

• True P2P Connectivity with QR Code Connect

• Simultaneous HDMI/VGA up to 1080p Resolution

• CVBS Main or Spot Monitor

• Supports up to 8 Channel Simultaneous Playback

• Smart Analytic Support - Line Crossing and Area Intrusion

• Multiple video search options including Analytical and Thumbnail
Search for quick retrieval of footage.

• Watermarking

• Free iOS & Android Apps for Smart Phones & Tablets

• Free Central Management Software (CMS) to manage multiple units
& sites from a single platform

• Free MAC client software to easily manage your system from your
Apple computer

Ordering Information
PD1B-8/2TB: 4 Ch HD-TVI Recorder, 2 TB
Also available with 4, 6, 8, 10, 12, 14 TB

*For exact specications please refer to product specications

InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.

Frame Rate

Bit Rate 32Kbps~4Mbps
Mode Manual, timer, motion
Bonus IP Input
Resolution 5MP/4MP/3MP/1080p/720p/WD1
Frame Rate 5MP/4MP/3MP/1080p/720p/WD1 @ 30 FPS
IPC Input/Access Bandwidth IPC x 4 / 32 Mbps
IP Input
Resolution 5MP/4MP/3MP/1080p/720p/WD1
Frame Rate 5MP/4MP/3MP/1080p/720p/WD1 @ 30 FPS
Total Access Bandwidth 60Mbps
Total Max IP Input 12 (Including Bonus IPC)
Playback
Playback 8 Ch
Search Time Slice/Time/Event/Tag Search

Smart Search

Function Play, pause, FF, FB, digital zoom, etc.

Alarm
Mode Manual, motion, exception
Input 8 CH
Output 2 CH
Triggering Record, Snap, preset, e-mail, etc.
Smart Line Crossing & Area Intrusion
Network
Interface RJ45 10 / 100Mbps × 1
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Bandwidth 60/60Mbps (Access/Transfer)
Web Client 5
Mobile Device
OS iOS, Android
Storage

HDD

Backup

Local Backup U disk, USB Removable HDD

Network Backup Yes
Port
RS485 RS485 × 1, connect to PTZ
USB USB 2.0 x2
Remote Controller Included
Other
Power Supply DC 12V/ 2A
Consumption ≤ 12W (without HDD)
Dimensions (WxDxH) 11.81 x 9.76 x 2.05 inches (300 x 248 x52)
Work Environment 14°~ 122° F(-10° ~ 50 ℃)10% ~ 90% humidity

Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | [e-mail] | www.invidtech.com

TVI / AHD : 5MP, 4MP, 3MP, 1080P, 720P, WD1
CVI : 4MP, 3MP, 1080P, 720P, WD1

TVI/AHD: 5MP Lite (1280 x 1936),
4 MP Lite (1280 x 1440), 1080p/1080p LIte (960 x 1080),
720p, WD1
CVI: 4 MP Lite (1280 x 1440), 1080p Lite (960 x 1080),
720, WD1

HDMI x 1: 1920 x 1080 / 1280x1024 /1024 x 768; VGA x
1: 1920 x 1080 / 1280x1024 /1024 x 768; BNC x 1: CVBS
(Used as the main or spot output)

Analog Camera
5MP Lite : 10fps
4MP Lite/ 1080P: 12 FPS (PAL)/15FPS, (NTSC)
1080P Lite/720P/WD1@25FPS (PAL)/ 30FPS (NTSC)

Highlighted color to display the camera record in a
certain period of time, dierent colors refers to dier­ent record events

SATA × 1, Up to 12TB WD/ 14TB Seagate
When running v1.29 and above
E-SATA x 1
