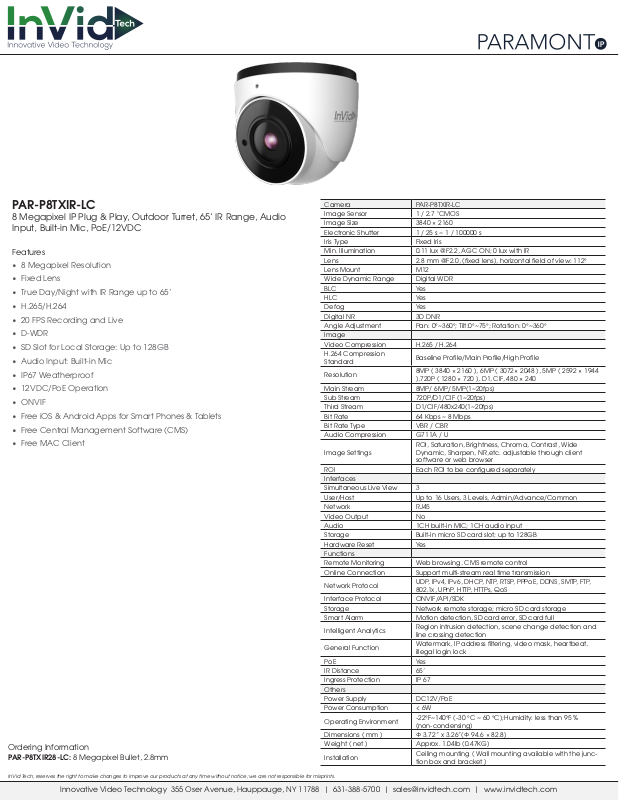

InVid PAR-P8TXIR-LC Specsheet

PAR-P8TXIR-LC

8 Megapixel IP Plug & Play, Outdoor Turret, 65’ IR Range, Audio
Input, Built-in Mic, PoE/12VDC

Features

• 8 Megapixel Resolution

• Fixed Lens

• True Day/Night with IR Range up to 65’

• H.265/H.264

• 20 FPS Recording and Live

• D-WDR

• SD Slot for Local Storage: Up to 128GB

• Audio Input: Built-in Mic

• IP67 Weatherproof

• 12VDC/PoE Operation

• ONVIF

• Free iOS & Android Apps for Smart Phones & Tablets

• Free Central Management Software (CMS)

Camera PAR-P8TXIR-LC
Image Sensor 1 / 2.7 "CMOS
Image Size 3840 × 2160
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illumination 0.11 lux @F2.2, AGC ON; 0 lux with IR
Lens 2.8 mm @F2.0, (xed lens), horizontal eld of view: 112°
Lens Mount M12
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°
Video Compression H.265 / H.264
H.264 Compression

Standard

Resolution

Main Stream 8MP/ 6MP/ 5MP(1~20fps)
Sub Stream 720P/D1/CIF (1~20fps)
Third Stream D1/CIF/480x240(1~20fps)
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U

• Free MAC Client

Image Settings

ROI Each ROI to be congured separately
Interfaces
Simultaneous Live View 3
User/Host Up to 16 Users, 3 Levels, Admin/Advance/Common
Network RJ45
Video Output No
Audio 1CH built-in MIC; 1CH audio input
Storage Built-in micro SD card slot; up to 128GB
Hardware Reset Yes
Functions
Remote Monitoring Web browsing, CMS remote control
Online Connection Support multi-stream real time transmission

Network Protocol

Interface Protocol ONVIF/API/SDK
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection, SD card error, SD card full

Intelligent Analytics

General Function

PoE Ye s
IR Distance 65’
Ingress Protection IP 67
Others
Power Supply DC12V/PoE
Power Consumption < 6W

Operating Environment

Dimensions ( mm ) Φ 3.72” x 3.26”(Φ 94.6 × 82.8)

Ordering Information

PAR-P8TXIR28-LC: 8 Megapixel Bullet, 2.8mm

InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.

Weight ( net ) Approx. 1.04lb (0.47KG)

Installation

Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | [e-mail] | www.invidtech.com

Baseline Prole/Main Prole/High Prole

8MP ( 3840 × 2160 ), 6MP ( 3072× 2048 ), 5MP ( 2592 × 1944
),720P ( 1280 × 720 ), D1, CIF, 480 × 240

ROI, Saturation, Brightness, Chroma, Contrast, Wide
Dynamic, Sharpen, NR,etc. adjustable through client
software or web browser

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP,

802.1x, UPnP, HTTP, HTTPs, QoS

Region intrusion detection, scene change detection and
line crossing detection

Watermark, IP address ltering, video mask, heartbeat,
illegal login lock

-22°F~140°F (-30 °C ~ 60 °C);Humidity: less than 95 %
(non-condensing)

Ceiling mounting ( Wall mounting available with the junc­tion box and bracket )
