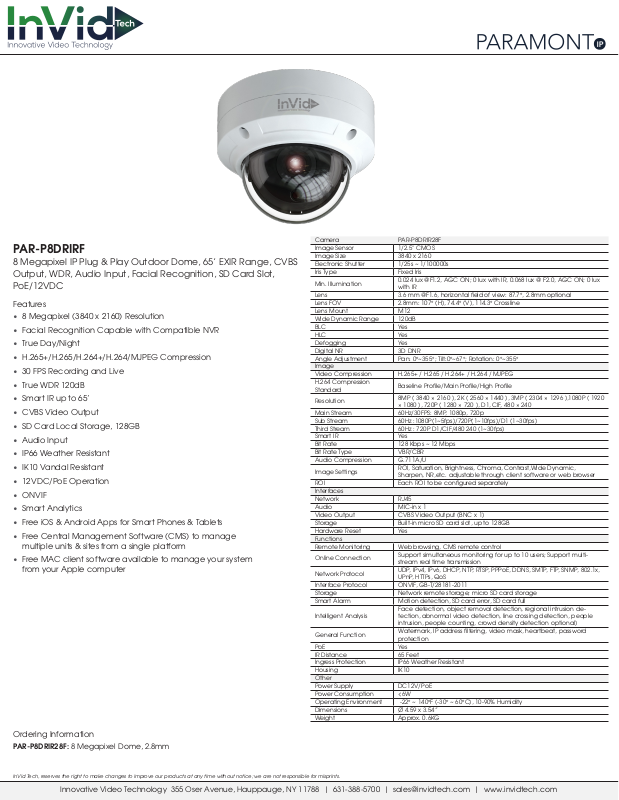

InVid PAR-P8DRIR28F Specsheet

PAR-P8DRIRF

8 Megapixel IP Plug & Play Outdoor Dome, 65’ EXIR Range, CVBS
Output, WDR, Audio Input, Facial Recognition, SD Card Slot,
PoE/12VDC

Features

• 8 Megapixel (3840 x 2160) Resolution

• Facial Recognition Capable with Compatible NVR

• True Day/Night

• H.265+/H.265/H.264+/H.264/MJPEG Compression

• 30 FPS Recording and Live

• True WDR 120dB

• Smart IR up to 65’

• CVBS Video Output

• SD Card Local Storage, 128GB

• Audio Input

• IP66 Weather Resistant

• IK10 Vandal Resistant

• 12VDC/PoE Operation

• ONVIF

• Smart Analytics

• Free iOS & Android Apps for Smart Phones & Tablets

• Free Central Management Software (CMS) to manage

multiple units & sites from a single platform

• Free MAC client software available to manage your system

from your Apple computer

Camera PAR-P8DRIR28F
Image Sensor 1/2.5" CMOS
Image Size 3840 x 2160
Electronic Shutter 1/25s ~ 1/100000s
Iris Type Fixed Iris

Min. Illumination

Lens 3.6 mm @F1.6, horizontal eld of view: 87.7°, 2.8mm optional
Lens FOV 2.8mm: 107° (H), 74.4° (V), 114.3° Crossline
Lens Mount M12
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defogging Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~355°; Tilt:0°~67°; Rotation: 0°~355°
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression
Standard

Resolution

Main Stream 60Hz/30FPS: 8MP, 1080p, 720p
Sub Stream 60Hz :1080P(1~5fps)/720P(1~10fps)/D1 (1~30fps)
Third Stream 60Hz : 720P D1/CIF/480 240 (1~30fps)
Smart IR Yes
Bit Rate 128 Kbps ~ 12 Mbps
Bit Rate Type VBR/CBR
Audio Compression G.711A/U

Image Settings

ROI Each ROI to be congured separately
Interfaces
Network RJ45
Audio MIC-in x 1
Video Output CVBS Video Output (BNC x 1)
Storage Built-in micro SD card slot, up to 128GB
Hardware Reset Yes
Functions
Remote Monitoring Web browsing, CMS remote control

Online Connection

Network Protocol

Interface Protocol ONVIF, GB-T/28181-2011
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection, SD card error, SD card full

Intelligent Analysis

General Function

PoE Yes
IR Distance 65 Feet
Ingress Protection IP66 Weather Resistant
Housing IK10
Other
Power Supply DC12V/PoE
Power Consumption <6W
Operating Environment -22° ~ 140°F (-30° ~ 60°C), 10-90% Humidity
Dimensions Ø 4.59 x 3.54”
Weight Approx. 0.6KG

0.024 lux @F1.2, AGC ON; 0 lux with IR, 0.068 lux @ F2.0, AGC ON; 0 lux
with IR

Baseline Prole/Main Prole/High Prole

8MP ( 3840 × 2160 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),1080P ( 1920
× 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240

ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic,
Sharpen, NR,etc. adjustable through client software or web browser

Support simultaneous monitoring for up to 10 users; Support multi­stream real time transmission
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x,
UPnP, HTTPs, QoS

Face detection, object removal detection, regional intrusion de­tection, abnormal video detection, line crossing detection, people
intrusion, people counting, crowd density detection optional)
Watermark, IP address ltering, video mask, heartbeat, password
protection

Ordering Information

PAR-P8DRIR28F: 8 Megapixel Dome, 2.8mm
