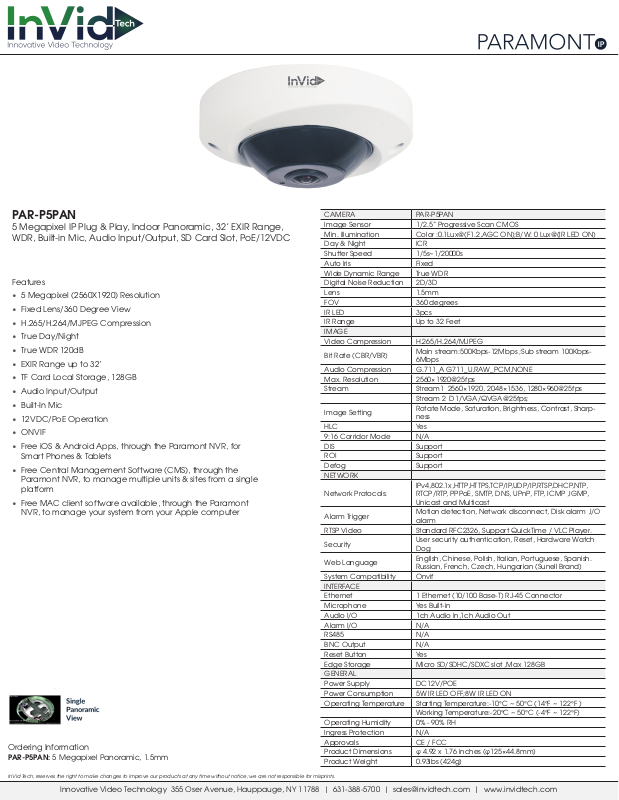

InVid PAR-P5PAN Specsheet

PAR-P5PAN

5 Megapixel IP Plug & Play, Indoor Panoramic, 32’ EXIR Range,
WDR, Built-in Mic, Audio Input/Output, SD Card Slot, PoE/12VDC

Features

• 5 Megapixel (2560X1920) Resolution

• Fixed Lens/360 Degree View

• H.265/H.264/MJPEG Compression

• True Day/Night

• True WDR 120dB

• EXIR Range up to 32’

• TF Card Local Storage, 128GB

• Audio Input/Output

• Built-In Mic

• 12VDC/PoE Operation

• ONVIF

• Free iOS & Android Apps, through the Paramont NVR, for

Smart Phones & Tablets

• Free Central Management Software (CMS), through the

Paramont NVR, to manage multiple units & sites from a single
platform

CAMERA PAR-P5PAN
Image Sensor 1/2.5” Progressive Scan CMOS
Min. illumination Color :0.1Lux@(F1.2,AGC ON);B/W: 0 Lux@(IR LED ON)
Day & Night ICR
Shutter Speed 1/5s~1/20000s
Auto Iris Fixed
Wide Dynamic Range True WDR
Digital Noise Reduction 2D/3D
Lens 1.5mm
FOV 360 degrees
IR LED 3pcs
IR Range Up to 32 Feet
Video Compression H.265/H.264/MJPEG

Bit Rate (CBR/VBR)

Audio Compression G.711_A G711_U,RAW_PCM,NONE
Max. Resolution 2560×1920@25fps
Stream Stream1 2560×1920, 2048×1536, 1280×960@25fps

Image Setting

HLC Yes
9:16 Corridor Mode N/A
DIS Support
ROI Support
Defog Support
NETWORK

Network Protocols:

• Free MAC client software available, through the Paramont

NVR, to manage your system from your Apple computer

Ordering Information

PAR-P5PAN: 5 Megapixel Panoramic, 1.5mm

InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.

Alarm Trigger

RTSP Video Standard RFC2326, Support QuickTime / VLC Player.

Security

Web Language

System Compatibility Onvif
INTERFACE
Ethernet 1 Ethernet (10/100 Base-T) RJ-45 Connector
Microphone Yes（Built-in（
Audio I/O 1ch Audio In,1ch Audio Out
Alarm I/O N/A
RS485 N/A
BNC Output N/A
Reset Button Yes
Edge Storage Micro SD/SDHC/SDXC slot ,Max 128GB
GENERAL
Power Supply DC12V/POE
Power Consumption 5W IR LED OFF;8W IR LED ON
Operating Temperature Starting Temperature:-10°C ~ 50°C (14°F ~ 122°F )

Operating Humidity 0% - 90% RH
Ingress Protection N/A
Approvals CE / FCC
Product Dimensions φ 4.92 x 1.76 inches (φ125×44.8mm)
Product Weight 0.93lbs (424g)

Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | [e-mail] | www.invidtech.com

Main stream:500Kbps-12Mbps ;Sub stream 100Kbps­6Mbps

Stream 2 D1/VGA/QVGA@25fps;
Rotate Mode, Saturation, Brightness, Contrast, Sharp-

ness

IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP,
RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP,
Unicast and Multicast

Motion detection, Network disconnect, Disk alarm ,I/O
alarm

User security authentication, Reset, Hardware Watch
Dog

English, Chinese, Polish, Italian, Portuguese, Spanish.
Russian, French, Czech, Hungarian (Sunell Brand)

Working Temperature:-20°C ~ 50°C (-4°F ~ 122°F)
