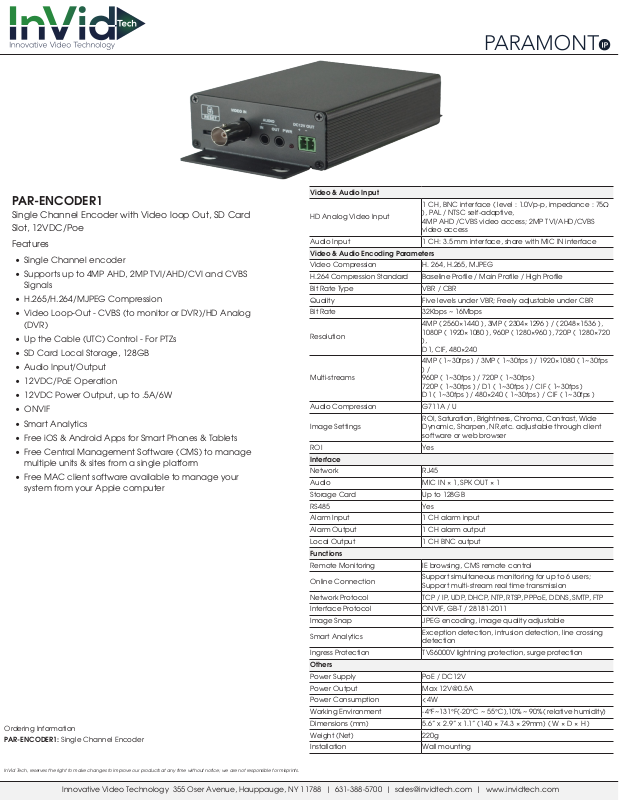

InVid PAR-ENCODER1 Specsheet

PAR-ENCODER1

Single Channel Encoder with Video loop Out, SD Card
Slot, 12VDC/Poe

Features

• Single Channel encoder

• Supports up to 4MP AHD, 2MP TVI/AHD/CVI and CVBS
Signals

• H.265/H.264/MJPEG Compression

• Video Loop-Out - CVBS (to monitor or DVR)/HD Analog
(DVR)

• Up the Cable (UTC) Control - For PTZs

• SD Card Local Storage, 128GB

• Audio Input/Output

• 12VDC/PoE Operation

• 12VDC Power Output, up to .5A/6W

• ONVIF

• Smart Analytics

• Free iOS & Android Apps for Smart Phones & Tablets

• Free Central Management Software (CMS) to manage
multiple units & sites from a single platform

• Free MAC client software available to manage your
system from your Apple computer

Ordering Information

PAR-ENCODER1: Single Channel Encoder

Video & Audio Input

1 CH, BNC interface ( level : 1.0Vp-p, impedance : 75Ω

HD Analog Video Input

Audio Input 1 CH: 3.5 mm interface, share with MIC IN interface

Video & Audio Encoding Parameters

Video Compression H. 264, H.265, MJPEG

H.264 Compression Standard Baseline Prole / Main Prole / High Prole

Bit Rate Type VBR / CBR

Quality Five levels under VBR; Freely adjustable under CBR

Bit Rate 32Kbps ~ 16Mbps

Resolution

Multi-streams

Audio Compression G711A / U

Image Settings

ROI Yes

Interface

Network RJ45

Audio MIC IN × 1, SPK OUT × 1

Storage Card Up to 128GB

RS485 Yes

Alarm Input 1 CH alarm input

Alarm Output 1 CH alarm output

Local Output 1 CH BNC output

Functions

Remote Monitoring IE browsing, CMS remote control

Online Connection

Network Protocol TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP

Interface Protocol ONVIF, GB-T / 28181-2011

Image Snap JPEG encoding, image quality adjustable

Smart Analytics

Ingress Protection TVS6000V lightning protection, surge protection

Others

Power Supply PoE / DC12V

Power Output Max 12V@0.5A

Power Consumption <4W

Working Environment -4°F~131°F(-20℃ ~ 55℃),10% ~ 90%( relative humidity)

Dimensions (mm) 5.6” x 2.9” x 1.1” (140 × 74.3 × 29mm) ( W × D × H )

Weight (Net) 220g

Installation Wall mounting

), PAL / NTSC self-adaptive,
4MP AHD /CVBS video access; 2MP TVI/AHD/CVBS
video access

4MP ( 2560×1440 ), 3MP ( 2304×1296 ) / ( 2048×1536 ),
1080P ( 1920×1080 ), 960P ( 1280×960 ), 720P ( 1280×720
),
D1, CIF, 480×240

4MP ( 1~30fps ) / 3MP ( 1~30fps ) / 1920×1080 ( 1~30fps
) /
960P ( 1~30fps ) / 720P ( 1~30fps )
720P ( 1~30fps ) / D1 ( 1~30fps ) / CIF ( 1~30fps )
D1 ( 1~30fps ) / 480×240 ( 1~30fps ) / CIF ( 1~30fps )

ROI, Saturation, Brightness, Chroma, Contrast, Wide
Dynamic, Sharpen, NR,etc. adjustable through client
software or web browser

Support simultaneous monitoring for up to 6 users;
Support multi-stream real time transmission

Exception detection, intrusion detection, line crossing
detection

InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
