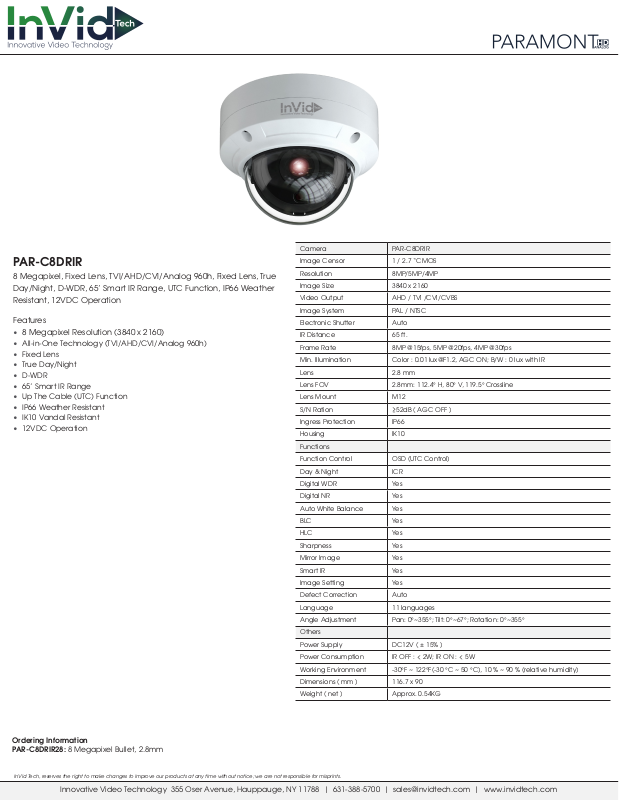

InVid PAR-C8DRIR28 Specsheet
PAR-C8DRIR
8 Megapixel, Fixed Lens, TVI/AHD/CVI/Analog 960h, Fixed Lens, True
Day/Night, D-WDR, 65’ Smart IR Range, UTC Function, IP66 Weather
Resistant, 12VDC Operation
Features
• 8 Megapixel Resolution (3840 x 2160)
• All-in-One Technology (TVI/AHD/CVI/Analog 960h)
• Fixed Lens
• True Day/Night
• D-WDR
• 65’ Smart IR Range
• Up The Cable (UTC) Function
• IP66 Weather Resistant
• IK10 Vandal Resistant
• 12VDC Operation
Camera PAR-C8DRIR
Image Censor 1 / 2.7 “CMOS
Resolution 8MP/5MP/4MP
Image Size 3840 x 2160
Video Output AHD / TVI /CVI/CVBS
Image System PAL / NTSC
Electronic Shutter Auto
IR Distance 65 ft.
Frame Rate 8MP @15fps, 5MP @20fps, 4MP @30fps
Min. Illumination Color : 0.01 lux@F1.2, AGC ON; B/W : 0 lux with IR
Lens 2.8 mm
Lens FOV 2.8mm: 112.4° H, 80° V, 119.5° Crossline
Lens Mount M12
S/N Ration ≥52dB ( AGC OFF )
Ingress Protection IP66
Housing IK10
Functions
Function Control OSD (UTC Control)
Day & Night ICR
Digital WDR Yes
Digital NR Yes
Auto White Balance Yes
BLC Yes
HLC Yes
Sharpness Ye s
Mirror Image Yes
Smart IR Yes
Image Setting Yes
Defect Correction Auto
Language 11 languages
Angle Adjustment Pan: 0°~355°; Tilt: 0°~67°; Rotation: 0°~355°
Others
Power Supply DC12V ( ± 15% )
Power Consumption IR OFF : < 2W; IR ON : < 5W
Working Environment -30°F ~ 122°F(-30 °C ~ 50 °C), 10 % ~ 90 % (relative humidity)
Dimensions ( mm ) 116.7 x 90
Weight ( net ) Approx. 0.54KG
Ordering Information
PAR-C8DRIR28: 8 Megapixel Bullet, 2.8mm
InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | sales@invidtech.com | www.invidtech.com
