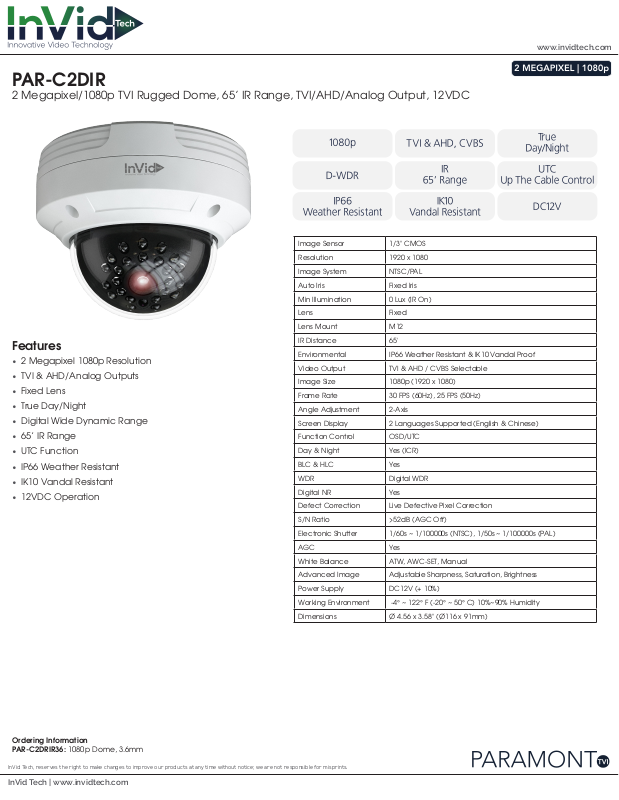

InVid PAR-C2DIR36 Specsheet

PAR-C2DIR

2 Megapixel/1080p TVI Rugged Dome, 65’ IR Range, TVI/AHD/Analog Output, 12VDC

Image Sensor 1/3" CMOS

Resolution 1920 x 1080

Image System NTSC/PAL

Auto Iris Fixed Iris

Min Illumination 0 Lux (IR On)

Lens Fixed

Lens Mount M12

Features

• 2 Megapixel 1080p Resolution

• TVI & AHD/Analog Outputs

• Fixed Lens

• True Day/Night

• Digital Wide Dynamic Range

• 65’ IR Range

• UTC Function

• IP66 Weather Resistant

• IK10 Vandal Resistant

• 12VDC Operation

IR Distance 65'

Environmental IP66 Weather Resistant & IK10 Vandal Proof

Video Output TVI & AHD / CVBS Selectable

Image Size 1080p (1920 x 1080)

Frame Rate 30 FPS (60Hz), 25 FPS (50Hz)

Angle Adjustment 2-Axis

Screen Display 2 Languages Supported (English & Chinese)

Function Control OSD/UTC

Day & Night Yes (ICR)

BLC & HLC Yes

WDR Digital WDR

Digital NR Yes

Defect Correction Live Defective Pixel Correction

S/N Ratio >52dB (AGC O)

Electronic Shutter 1/60s ~ 1/100000s (NTSC), 1/50s ~ 1/100000s (PAL)

AGC Yes

White Balance ATW, AWC-SET, Manual

Advanced Image Adjustable Sharpness, Saturation, Brightness

Power Supply DC12V (+ 10%)

Working Environment -4° ~ 122° F (-20° ~ 50° C) 10%~90% Humidity

Dimensions Ø 4.56 x 3.58" (Ø116 x 91mm)

www.invidtech.com

Ordering Information
PAR-C2DRIR36: 1080p Dome, 3.6mm

InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.

InVid Tech | www.invidtech.com
