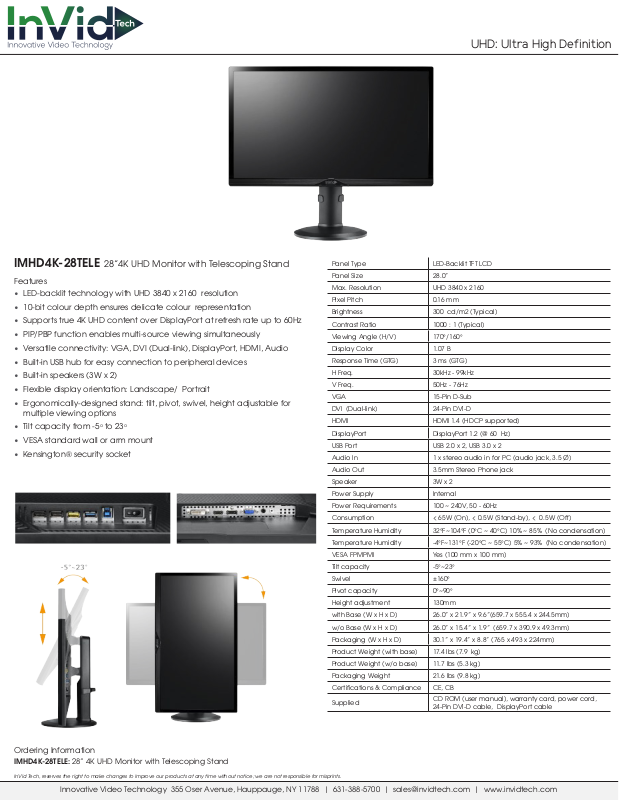

InVid IMHD4K-28TELE Specsheet
UHD: Ultra High Definition
IMHD4K-28TELE 28”4K UHD Monitor with Telescoping Stand
Features
• LED-backlit technology with UHD 3840 x 2160 resolution
• 10-bit colour depth ensures delicate colour representation
• Supports true 4K UHD content over DisplayPort at refresh rate up to 60Hz
• PIP/PBP function enables multi-source viewing simultaneously
• Versatile connectivity: VGA, DVI (Dual-link), DisplayPort, HDMI, Audio
• Built-in USB hub for easy connection to peripheral devices
• Built-in speakers (3W x 2)
• Flexible display orientation: Landscape/ Portrait
• Ergonomically-designed stand: tilt, pivot, swivel, height adjustable for
multiple viewing options
o
• Tilt capacity from -5
• VESA standard wall or arm mount
• Kensington® security socket
to 23
o
Panel Type LED-Backlit TFT LCD
Panel Size 28.0”
Max. Resolution UHD 3840 x 2160
Pixel Pitch 0.16 mm
Brightness 300 cd/m2 (Typical)
Contrast Ratio 1000 : 1 (Typical)
Viewing Angle (H/V) 170°/160°
Display Color 1.07 B
Response Time (GTG) 3 ms (GTG)
H Freq. 30kHz - 99kHz
V Freq. 50Hz - 76Hz
VGA 15-Pin D-Sub
DVI (Dual-link) 24-Pin DVI-D
HDMI HDMI 1.4 (HDCP supported)
DisplayPort DisplayPort 1.2 (@ 60 Hz)
USB Port USB 2.0 x 2, USB 3.0 x 2
Audio In 1 x stereo audio in for PC (audio jack, 3.5 Ø)
Audio Out 3.5mm Stereo Phone jack
Speaker 3W x 2
Power Supply Internal
Power Requirements 100 ~ 240V, 50 - 60Hz
Consumption < 65W (On), < 0.5W (Stand-by), < 0.5W (O)
Temperature Humidity 32°F~104°F (0°C ~ 40°C) 10% ~ 85% (No condensation)
Temperature Humidity -4°F~131°F (-20°C ~ 55°C) 5% ~ 93% (No condensation)
VESA FPMPMI Yes (100 mm x 100 mm)
Tilt capacity -5°~23°
Swivel ±160°
Pivot capacity 0°~90°
Height adjustment 130mm
with Base (W x H x D) 26.0” x 21.9” x 9.6”(659.7 x 555.4 x 244.5mm)
w/o Base (W x H x D) 26.0” x 15.4” x 1.9” (659.7 x 390.9 x 49.3mm)
Packaging (W x H x D) 30.1” x 19.4” x 8.8” (765 x 493 x 224mm)
Product Weight (with base) 17.4 lbs (7.9 kg)
Product Weight (w/o base) 11.7 lbs (5.3 kg)
Packaging Weight 21.6 lbs (9.8 kg)
Certications & Compliance CE, CB
Supplied
CD ROM (user manual), warranty card, power cord,
24-Pin DVI-D cable, DisplayPort cable
Ordering Information
IMHD4K-28TELE: 28” 4K UHD Monitor with Telescoping Stand
