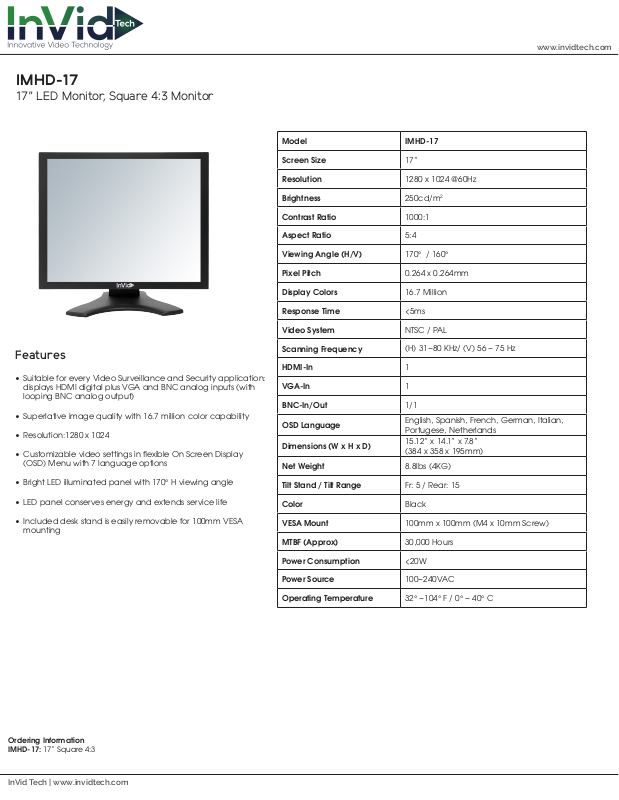

InVid IMHD-17 Specsheet

IMHD-17

17” LED Monitor, Square 4:3 Monitor

www.invidtech.com

Model IMHD-17

Features

• Suitable for every Video Surveillance and Security application:
displays HDMI digital plus VGA and BNC analog inputs (with
looping BNC analog output)

• Superlative image quality with 16.7 million color capability

• Resolution:1280 x 1024

• Customizable video settings in exible On Screen Display
(OSD) Menu with 7 language options

• Bright LED illuminated panel with 170° H viewing angle

• LED panel conserves energy and extends service life

• Included desk stand is easily removable for 100mm VESA
mounting

Screen Size

Resolution

Brightness

Contrast Ratio

Aspect Ratio

Viewing Angle (H/V)

Pixel Pitch

Display Colors

Response Time

Video System

Scanning Frequency

HDMI-In

VGA-In

BNC-In/Out

OSD Language

Dimensions (W x H x D)

Net Weight

Tilt Stand / Tilt Range

Color

VESA Mount

MTBF (Approx)

17”

1280 x 1024 @60Hz

250cd/m

1000:1

5:4

170° / 160°

0.264 x 0.264mm

16.7 Million

<5ms

NTSC / PAL

(H) 31~80 KHz/ (V) 56 ~ 75 Hz

1

1

1/1

English, Spanish, French, German, Italian,
Portugese, Netherlands

15.12” x 14.1” x 7.8”
(384 x 358 x 195mm)

8.8lbs (4KG)

Fr: 5 / Rear: 15

Black

100mm x 100mm (M4 x 10mm Screw)

30,000 Hours

2

Ordering Information
IMHD-17: 17” Square 4:3

InVid Tech | www.invidtech.com

Power Consumption

Power Source

Operating Temperature

<20W

100~240VAC

32° ~104° F / 0° ~ 40° C
