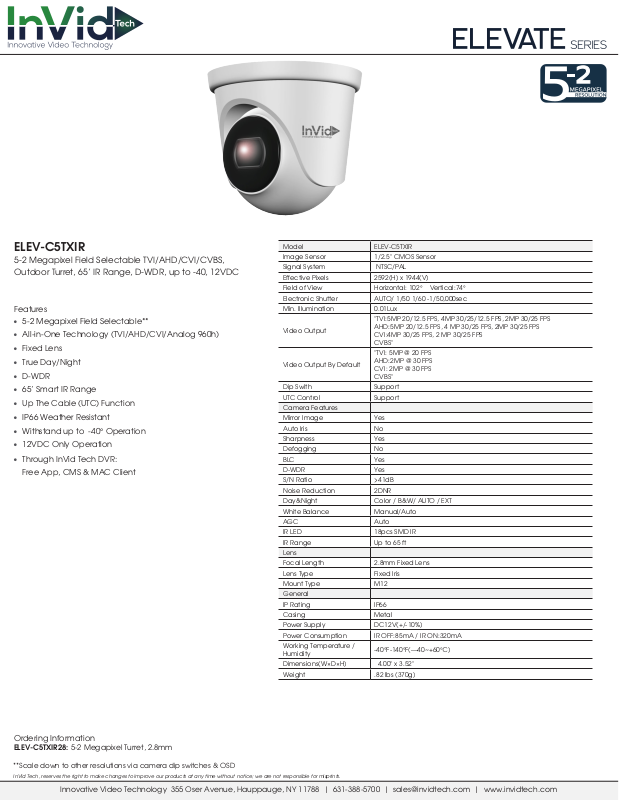

InVid ELEVI-C5TXIR28 Specsheet
ELEV-C5TXIR
5-2 Megapixel Field Selectable TVI/AHD/CVI/CVBS,
Outdoor Turret, 65’ IR Range, D-WDR, up to -40, 12VDC
Features
• 5-2 Megapixel Field Selectable**
• All-in-One Technology (TVI/AHD/CVI/Analog 960h)
• Fixed Lens
• True Day/Night
• D-WDR
• 65’ Smart IR Range
• Up The Cable (UTC) Function
• IP66 Weather Resistant
• Withstand up to -40° Operation
• 12VDC Only Operation
• Through InVid Tech DVR:
Free App, CMS & MAC Client
Model ELEV-C5TXIR
Image Sensor 1/2.5" CMOS Sensor
Signal System NTSC/PAL
Eective Pixels 2592(H) x 1944(V)
Field of View Horizontal: 102° Vertical:74°
Electronic Shutter AUTO/ 1/50（1/60（-1/50,000sec
Min. IIIumination 0.01Lux
"TVI:5MP 20/12.5 FPS, 4MP 30/25/12.5 FPS, 2MP 30/25 FPS
Video Output
Video Output By Default
Dip Swith Support
UTC Control Support
Camera Features
Mirror Image Yes
Auto Iris No
Sharpness Yes
Defogging No
BLC Yes
D-WDR Yes
S/N Ratio >41dB
Noise Reduction 2DNR
Day&Night Color / B&W/ AUTO / EXT
White Balance Manual/Auto
AGC Auto
IR LED 18pcs SMD IR
IR Range Up to 65 ft
Lens
Focal Length 2.8mm Fixed Lens
Lens Type Fixed Iris
Mount Type M12
General
IP Rating IP66
Casing Metal
Power Supply DC12V(+/-10%)
Power Consumption IR OFF:85mA / IR ON:320mA
Working Temperature /
Humidity
Dimensions(W×D×H) （ 4.00" x 3.52"
Weight .82 lbs (370g)
AHD:5MP 20/12.5 FPS, 4 MP 30/25 FPS, 2MP 30/25 FPS
CVI:4MP 30/25 FPS, 2 MP 30/25 FPS
CVBS"
"TVI: 5MP @ 20 FPS
AHD:2MP @ 30 FPS
CVI: 2MP @ 30 FPS
CVBS"
-40°F-140°F(—40~+60℃)
Ordering Information
ELEV-C5TXIR28: 5-2 Megapixel Turret, 2.8mm
**Scale down to other resolutions via camera dip switches & OSD
InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | sales@invidtech.com | www.invidtech.com
