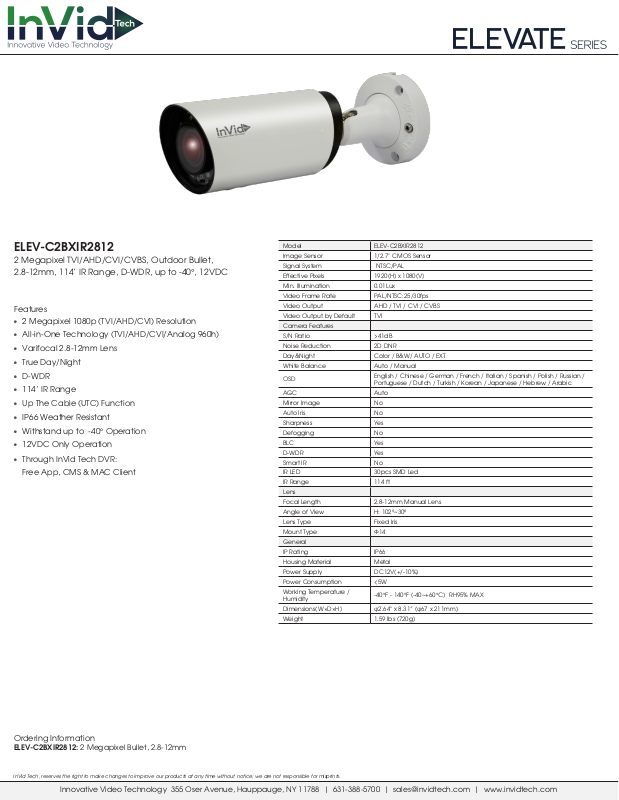

InVid ELEV-C2BXIR2812 Specsheet
ELEV-C2BXIR2812
2 Megapixel TVI/AHD/CVI/CVBS, Outdoor Bullet, 2.8-12mm, 114’ IR Range, D-WDR, up to -40°, 12VDC
Features
•2 Megapixel 1080p (TVI/AHD/CVI) Resolution
•All-in-One Technology (TVI/AHD/CVI/Analog 960h)
•Varifocal 2.8-12mm Lens
•True Day/Night
•D-WDR
•114’ IR Range
•Up The Cable (UTC) Function
•IP66 Weather Resistant
•Withstand up to -40° Operation
•12VDC Only Operation
•Through InVid Tech DVR: Free App, CMS & MAC Client
Model |
ELEV-C2BXIR2812 |
|
Image Sensor |
1/2.7" CMOS Sensor |
|
Signal System |
NTSC/PAL |
|
Effective Pixels |
1920(H) x 1080(V) |
|
Min. IIIumination |
0.01Lux |
|
Video Frame Rate |
PAL/NTSC:25/30fps |
|
Video Output |
AHD / TVI / CVI / CVBS |
|
Video Output by Default |
TVI |
|
Camera Features |
|
|
S/N Ratio |
>41dB |
|
Noise Reduction |
2D DNR |
|
Day&Night |
Color / B&W/ AUTO / EXT |
|
White Balance |
Auto / Manual |
|
OSD |
English / Chinese / German / French / Italian / Spanish / Polish / Russian / |
|
Portuguese / Dutch / Turkish / Korean / Japanese / Hebrew / Arabic |
||
|
||
AGC |
Auto |
|
Mirror Image |
No |
|
Auto Iris |
No |
|
Sharpness |
Yes |
|
Defogging |
No |
|
BLC |
Yes |
|
D-WDR |
Yes |
|
Smart IR |
No |
|
IR LED |
30pcs SMD Led |
|
IR Range |
114 ft |
|
Lens |
|
|
Focal Length |
2.8-12mm Manual Lens |
|
Angle of View |
H: 102º~30º |
|
Lens Type |
Fixed Iris |
|
Mount Type |
Φ14 |
|
General |
|
|
IP Rating |
IP66 |
|
Housing Material |
Metal |
|
Power Supply |
DC12V(+/-10%) |
|
Power Consumption |
<5W |
|
Working Temperature / |
-40°F - 140°F (-40~+60 ) RH95% MAX |
|
Humidity |
||
|
||
Dimensions(W×D×H) |
φ2.64" x 8.31” (φ67 x 211mm) |
|
Weight |
1.59 lbs (720g) |
Ordering Information
ELEV-C2BXIR2812: 2 Megapixel Bullet, 2.8-12mm
InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Innovative Video Technology 355 Oser Avenue, Hauppauge, NY 11788 | 631-388-5700 | sales@invidtech.com | www.invidtech.com
