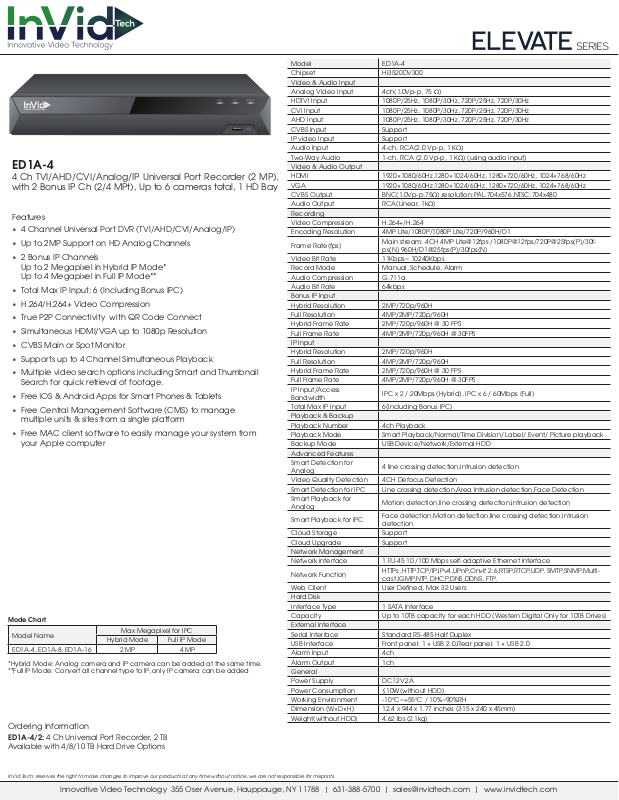

InVid ED1A-4-1TB Specsheet
ED1A-4
4 Ch TVI/AHD/CVI/Analog/IP Universal Port Recorder (2 MP),
with 2 Bonus IP Ch (2/4 MPt), Up to 6 cameras total, 1 HD Bay
Features
• 4 Channel Universal Port DVR (TVI/AHD/CVI/Analog/IP)
• Up to 2MP Support on HD Analog Channels
• 2 Bonus IP Channels
Up to 2 Megapixel in Hybrid IP Mode*
Up to 4 Megapixel in Full IP Mode**
• Total Max IP Input: 6 (Including Bonus IPC)
• H.264/H.264+ Video Compression
• True P2P Connectivity with QR Code Connect
• Simultaneous HDMI/VGA up to 1080p Resolution
• CVBS Main or Spot Monitor
• Supports up to 4 Channel Simultaneous Playback
• Multiple video search options including Smart and Thumbnail
Search for quick retrieval of footage.
• Free iOS & Android Apps for Smart Phones & Tablets
• Free Central Management Software (CMS) to manage
multiple units & sites from a single platform
• Free MAC client software to easily manage your system from
your Apple computer
Mode Chart
Model Name
ED1A-4, ED1A-8, ED1A-16 2 MP 4 MP
*Hybrid Mode: Analog camera and IP camera can be added at the same time.
**Full IP Mode: Convert all channel type to IP, only IP camera can be added
Ordering Information
ED1A-4/2: 4 Ch Universal Port Recorder, 2 TB
Available with 4/8/10 TB Hard Drive Options
Max Megapixel for IPC
Hybrid Mode Full IP Mode
Model ED1A-4
Chipset Hi3520DV300
Video & Audio Input
Analog Video Input 4ch(1.0Vp-p, 75 Ω)
HDTVI Input 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
CVI Input 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
AHD Input 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
CVBS Input Support
IP video Input Support
Audio Input 4-ch, RCA(2.0 Vp-p, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video & Audio Output
HDMI 1920×1080/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA 1920×1080/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
CVBS Output BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Audio Output RCA(Linear, 1kΩ)
Recording
Video Compression H.264+/H.264
Encoding Resolution 4MP Lite/1080P/1080P Lite/720P/960H/D1
Frame Rate(fps)
Video Bit Rate 11Kbps~ 10240Kbps
Record Mode Manual, Schedule, Alarm
Audio Compression G.711a
Audio Bit Rate 64kbps
Bonus IP Input
Hybrid Resolution 2MP/720p/960H
Full Resolution 4MP/2MP/720p/960H
Hybrid Frame Rate 2MP/720p/960H @ 30 FPS
Full Frame Rate 4MP/2MP/720p/960H @ 30FPS
IP Input
Hybrid Resolution 2MP/720p/960H
Full Resolution 4MP/2MP/720p/960H
Hybrid Frame Rate 2MP/720p/960H @ 30 FPS
Full Frame Rate 4MP/2MP/720p/960H @ 30FPS
IP Input/Access
Bandwidth
Total Max IP Input 6(including Bonus IPC)
Playback & Backup
Playback Number 4ch Playback
Playback Mode Smart Playback/Normal/Time Division/ Label/ Event/ Picture playback
Backup Mode USB Device/Network/External HDD
Advanced Features
Smart Detection for
Analog
Video Quality Detection 4CH Defocus Detection
Smart Detection for IPC Line crossing detection,Area Intrusion detection,Face Detection
Smart Playback for
Analog
Smart Playback for IPC
Cloud Storage Support
Cloud Upgrade Support
Network Management
Network interface 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
Network Function
Web Client User Dened, Max 32 Users
Hard Disk
Interface Type 1 SATA Interface
Capacity Up to 10TB capacity for each HDD (Western Digital Only for 10TB Drives)
External Interface
Serial Interface Standard RS-485 Half Duplex
USB Interface Front panel: 1 × USB 2.0,Rear panel: 1 × USB 2.0
Alarm Input 4ch
Alarm Output 1ch
General
Power Supply DC12V,2A
Power Consumption ≤10W(without HDD)
Working Environment -10°C~+55°C / 10%~90%RH
Dimension (W×D×H) 12.4 x 944 x 1.77 inches (315 x 240 x 45mm)
Weight(without HDD) 4.62 lbs (2.1kg)
Main stream: 4CH 4MP Lite@12fps /1080P@12fps/720P@25fps(P)/30fps(N) 960H/D1@25fps(P)/30fps(N)
IPC x 2 / 20Mbps (Hybrid), IPC x 6 / 60Mbps (Full)
4 line crossing detection,intrusion detection
Motion detection,line crossing detection,intrusion detection
Face detection,Motion detection,line crossing detection,intrusion
detection
HTTPs, HTTP,TCP/IP,IPv4,UPnP,Onvif 2.6,RTSP,RTCP,UDP, SMTP,SNMP,Multicast,IGMP,NTP, DHCP,DNS,DDNS, FTP,
