DIGITAL INPUTS –TERMINAL MODE (P-12 = 0, 3 or 4)
P-19 Input 1 function Input 2 function Input 3 function Additional Information
0
Open: Stop (disable)
Closed: Run (enable)
Open: Analog speed reference
Closed: Preset / Jog Speed 1
Open: Voltage analog input
Closed: Current analog input
The format of the current analog input is defined by P-16, if P-16 is set
to 0-10V a 4-20mA format will be assumed when input 3 closed
1
Open: Stop (disable)
Closed: Run (enable)
Open: Analog speed reference
Closed: Preset / Jog Speed 1 or 2,
selected by Digital Input 3
Open: Preset / Jog Speed 1
Closed: Preset / Jog Speed 2
2
Open: Stop (disable)
Closed: Run (enable)
Digital Input 2 Open + Digital Input 3 Open = Preset / Jog Speed 1
Digital Input 2 Closed + Digital Input 3 Open = Preset / Jog Speed 2
Digital Input 2 Open + Digital Input 3 Closed = Preset / Jog Speed 3
Digital Input 2 Closed + Digital Input 3 Closed = Preset / Jog Speed 4
Analog voltage input used as 4
th
digital input: if
5V<Vin<30V then preset speed is reversed
3
Open: Stop (disable)
Closed: Run (enable)
External trip input:
Open: TRIP; Closed: no trip.
Open: Analog speed reference
Closed: Preset / Jog Speed 1
4
Open: Stop (disable)
Closed: Run (enable)
Open: Run forward
Closed: Run reverse
Open: Analog speed reference
Closed: Preset / Jog Speed 1
5
Open: Fwd Stop (disable)
Closed: Fwd Run (enable)
Open: Reverse Stop (disable)
Closed: Reverse Run (enable)
Open: Analog speed reference
Closed: Preset / Jog Speed 1
Wire break mode. Fast stop (P-07) activated when input 1 & input 2
closed at same time.
6
Open: Stop (disable)
Closed: Run (enable)
Open: Run forward
Closed: Run reverse
External trip input:
Open: TRIP; Closed: no trip.
7
Open: Fwd Stop (disable)
Closed: Fwd Run (enable)
Open: Reverse Stop (disable)
Closed: Reverse Run (enable)
External trip input:
Open: TRIP; Closed: no trip.
Wire break mode. Fast stop (P-07) activated when input 1 & input 2
closed at same time.
8
Open: Stop (disable)
Closed: Run (enable)
Open: Run forward
Closed: Run reverse
Open: Preset / Jog Speed 1
Closed: Preset / Jog Speed 2
9
Open: Fwd Stop (disable)
Closed: Fwd Run (enable)
Open: Reverse Stop (disable)
Closed: Reverse Run (enable)
Open: Preset / Jog Speed 1
Closed: Preset / Jog Speed 2
Wire break mode. Fast stop (P-07) activated when input 1& 2 closed
together. Analog input is 4
th
digital input. When Vin > 5V, preset speeds
3 / 4 selected.
10
Normally Open (N.O.)
Momentary close to run fwd
Normally Closed (N.C.)
Momentary open to Stop (disable)
Open: Analog speed reference
Closed: Preset / Jog Speed 1
11
Normally Open (N.O.)
Momentary close to run fwd
Normally Closed (N.C.)
Momentary open to Stop (disable)
Normally Open (N.O.)
Momentary close to run reverse
12
Open: Stop (disable)
Closed: Run (enable)
Close to run
Open to activate fast stop (P-07)
Open: Analog speed reference
Closed: Preset / Jog Speed 1
Fast stop (P-07) activated when input 2 opened
TROUBLESHOOTING
TO CLEAR A TRIP CONDITION Remove the condition which caused the trip and press the STOP
key or re-enable the drive. The drive will restart according to the mode selecte d by P-30.If the motor is stop ped and
the display shows STOP, there is no fault; the drive output is disabled and the drive is ready to run.
Fault
Code
What has happened What to do
P-deF Default parameters loaded
Press STOP key, drive is ready to configure for particular
application
O-I
Over current on drive
output.
Excess load on the motor.
Over temperature on the
heatsink
Motor at constant speed: investigate overload or
malfunction. Motor starting: load stalled or jammed.
Check for star-delta motor wiring error.
Motor accelerating/decelerating: The accel/decel time too
short requiring too much power. If P-03 or P-04 cannot
be increased, a bigger drive is needed
O-Uolt Over voltage on DC bus Supply problem, or increase decel ramp time P-04.
U-Uolt Under voltage on DC bus
This occurs routinely when power is switched off. If it
occurs during running, check power supply voltage.
I.t-trP
The drive has tipped on
overload after delivering
greater than 100% load for a
period of time.
Check to see when the decimal points are flashing (drive
in overload) and either decrease acceleration rate or
load. Check cable length is within specification.
th-Flt
Faulty thermistor on
heatsink.
Refer to your IDL Authorised Distributor.
E-triP
External trip (on dig. input 2
or 3)
External trip on digital input – see P-19 (motor
thermistor?)
EE-F
EEPROM fault. Parameters
not saved, defaults
reloaded.
Try again. If problem recurs, refer to your IDL Authorised
Distributor.
PS-Trp Internal power stage fault
Check wiring to motor, look for ph-ph or ph-Earth short
circuit.
Check drive ambient temp, additional space or cooling
needed?
Check drive is not forced into overload.
O-t Heatsink over temperature
Check drive ambient temp. Additional space or cooling
needed?
Iin-F
Current analog input out of
range
Check input current in range defined by P-16
OPTIDRIVE DIMENSIONS - Control terminal torque settings : 0.5Nm
Size 1 Size 2 Size 3 Size 4 Size 5 Size 6 S6
Input
Choke
Length/mm 155 260 260 520 1045 280
Width/mm 80 100 171 340 340 280
Depth/mm 130 175 175 220 330 280
Weight/kg1.1 2.6 5.3 28 68 25
A
/ mm 72 92 163 320 160
B / mm 4 9.5 C / mm 25 50 D / mm 105 210 210 420 945 105
Fixings 2 * M4 4*M4 4 * M8 -
Terminal
torque setting 1 Nm 1 Nm 1 Nm 4 Nm 8 Nm 8 Nm
8Nm
ENCLOSURE ENCLOSURE
- NON VENTED DIMENSIONS – VENTED DIMENSIONS
VENTED UNIT FORCE VENTED (WIT H FAN)
DRIVE POWER
RATING
W H D W H D
Air Flow
Size 1 (1.5kW)
300 400 150 200 300 150 > 15m
3
/ h
Size 2 (4kW)
400 600 250 300
4
00 250 > 45m3 / h
Size 3 (15kW)
600 800 300 400 600 250 > 80m
3
/ h
Size 4 (22kW)
600
1000
300 600 800 300 > 300m3 / h
Size 4 (37kW)
N/A N/A N/A 600 800 300 > 3 00m
3
/ h
Size 5 (90kW)
N/A N/A N/A 800
1600
300 > 900m3 / h
Size 6 (160kW)
N/A N/A N/A 800
2000
300 > 1000m3 / h
SEALED UNIT
DRIVE POWER
RATING
W H D
Size 1 0.75kW
200V / 400V
250 300 200
Size 1 1.5kW
200V / 400V
300 400 250
Size 2 1.5kW
200V/ 2.2kW 400V
300 400 300
Size 2 2.2kW
200V / 4kW 400V
450 600 300
DIGITAL INPUTS –KEYPAD MODE (P-12 = 1 or 2)
P-19
Input 1
function
Input 2 function Input 3 function Additional Information
0,1,2,4,
5,8..12
Open: Stop
(disable)
Closed: Run
(enable)
Closed: remote
up pushbutton
Closed: remote
down
pushbutton
Closing inputs 2 & 3 at same
time starts the drive.
If P-12=2, closing inputs 2 & 3
reverses drive.
3
Open: Stop
(disable)
Closed: Run
(enable)
External trip
input:
Open: TRIP;
Closed: no trip
Open: Keypad
speed reference
Closed: Preset /
Jog Speed 1
Allows use of motor thermistor
in keypad mode. Speed
reference is set by pushbuttons.
6
Open: Stop
(disable)
Closed: Run
(enable)
Open: Run
forward
Closed: Run
reverse
External trip
input:
Open: TRIP;
Closed: no trip
Allows use of motor thermistor
in keypad mode. Speed
reference is set by pushbuttons.
7
Open: Stop
(disable)
Closed: Run
(enable)
Open: Reverse
Stop (disable)
Closed: Reverse
Run (enable)
External trip
input:
Open: TRIP;
Closed: no trip
Allows use of motor thermistor
in keypad mode. Fast stop (P-
07) activated when input 1 &
input 2 closed at same time.
Digital inputs are active high (positive logic) – active >8 volts, maximum 30 volts
V
oltage / Frequency (V/f) Characteristic
The V/f characteristic is defined by several parameters as shown.
Reducing the voltage at a particular frequency reduces the current in
the motor and hence the torque and power; for fans and certain types
of pump which require very little torque at low speed use fan/ pump
curve, P-06=1, HVAC.
The V/f curve can be further modified by using P-26 and P-29, where
P-26 determines the percentage increase or decrease of the voltage
applied to the motor at the frequency specified in P-29. This can be
useful if motor instability is experienced at certain frequencies, if this
is the case increase or decrease the voltage (P-26) at the speed of
instability (P-29).
P-29
Voltage
P-15
P-11
Boost
P-06 = 1 Fan/ Pump, HV AC
P-26
Frequency
P-09
Default
A
djusted
P-01
P-09/2 P-29
Voltage
P-15
P-11
Boost
P-06 = 0,Constant Torque, INDUSTRIAL
P-26
Frequency
P-09
Default
A
djusted
P-01
P-15/2
ELECTRICAL DAT
A
OPTIDRIVE SIZE 1
Model OD-xxxxx-IN 12037 12075 12150 14075 14150
Supply voltage +/- 10% 220-240 380-480
Phases 1 3
Motor output
ratin
g
kW
HP
0.37
0.5
0.75
1.0
1.5
2.0
0.75
1.0
1.5
2.0
Output current A 2.3 4.3 7.0 2.2 4.1
Fuse or MCB
A
10 10 20 5 10
Max ambient
temperature
o
C 8kHz
o
C 16kHz
o
C 32kHz
50
50
50
50
40
30
50
40
30
50
40
30
50
40
30
Motor cable size, Cu 75C mm2 1.0
Max motor cable length m 25 10
OPTIDRIVE SIZE 2 (INTEGRAL BRAKING TRANSISTOR)
Model OD-xxxxx-IN 22150 22220 24075 24150 24220 24400
Supply voltage +/- 10% 220-240 380-480
Phases 1 or 3 3
Motor output
rating
kW
HP
1.5 2 2.2 3 0.75 1 1.5 2 2.2 3 4
5.5
Output current A 7 10.5 2.2 4.1 5.8 9.5
Fuse or MCB rating A 20 30 5 10 10 16
Max ambient
temperature
o
C 8kHz
o
C 16kHz
o
C 32kHz
50
50
40
50
40
30
50
50
50
50
40
30
50
50
40
50
40
40
Motor cable size,Cu 75C mm2 1.5 1.5 1.0 1.0 1.5 1.5
Max motor cable length m 100 100 50 100 100 100
Min brake resistor
Ω
33 22 47 47 47 33
OPTIDRIVE SIZE 3 (INTEGRAL BRAKING TRANSISTOR)
Model OD-xxxxx-IN 32030 32040 32055 34055 34075 34110* 34150*
Supply voltage +/- 10% 220-240 380-480
Phases 1 (50% derating) or 3 3
Motor O/P rating
(industrial 150% )
kW
HP
3.0 4 4.0
5.5
5.5
7.5
5.5
7.5
7.5
10
11
15
15
20
Output Amps (industrial) A 14 18 25 14 18 25 29.5
Motor output (HVAC 110%) kW 4.0 5.5 7.5 7.5 11 15 Output Amps (HVAC) A 18 25 29.5 18 25 29.5 Fuse or MCB rating A 20 32 40 20 32 40 40
Max ambient
temperature
o
C 4kHz
o
C 8kHz
o
C 16kHz
50
40
30
50
30
20
50
30
-
50
40
30
50
30
20
40
30
-
40
30
Motor cable size,Cu 75C mm2 2.5 2.5 4 2.5 2.5 4 6
Max motor cable length m 100
Min brake resistor
Ω
15 22
* UL approval applies for supply voltage of 440 –480V with 75oC copper wire
OPTIDRIVE SIZE 4 (INTEGRAL LINE CHOKE, RFI FILTER & BRAKING TRANSISTOR)
Model OD-xxxxx-IN 42075 42110 42150 42185 44185 44220 44300 44370
Supply voltage +/- 10% 220-240 380-480
Phases 1 (50% derating) or 3 3
Motor O/P rating
(industrial 150%)
kW
HP
7.5
10
11
16
15
20
18.5
25
18.5
25
22
30
30
40
37
50
Output Amps (industrial) A 39 46 61 72 39 46 61 72
Motor output (HVAC 110%) kW 11 15 18.5 22 22 30 37 45
Output Amps (HVAC) A 46 61 72 89 46 61 72 89
Fuse or MCB rating A 50 60 80 100 50 60 80 100
Max ambient
temperature
o
C 4kHz
o
C 8kHz
50
40
50
30
50 - 40 - 50
40
50
30
50 - 40
Motor cable size,Cu 75C mm2 10 10 16 16 10 10 16 16
Max motor cable length m 100
Min brake resistor
Ω
6 12
OPTIDRIVE SIZE 5 (INTEGRAL LINE CHOKE, RFI FILTER & BRAKING TRANSISTOR)
Model OD-xxxxx-IN 52220 52300 52370 52450 54450 54550 54750 54900
Supply voltage +/- 10% 220-240 380-480
Phases 1 (50% derating) or 3 3
Motor O/P rating
(industrial 150%)
kW
HP
22
30
30
40
37
50
45
60
45
60
55
75
75
100
90
120
Output Amps (industrial) A 89 110 150 180 89 110 150 180
Motor output (HVAC 110%) kW 30 37 45 - 55 75 90 Output Amps (HVAC) A 110 150 180 - 110 150 180 Fuse or MCB rat ing A 150 180 220 220 150 180 220 220
Max ambient
temperature
o
C 4kHz
o
C 8kHz
50
50
50
40
50
30
40
20
50
50
50
40
50
30
40
20
Motor cable size,Cu 75C mm2 25 35 55 70 25 55 55 70
Max motor cable length m 100
Min brake resistor
Ω
3 6
OPTIDRIVE SIZE 6 (INTEGRAL LINE CHOKE, RFI FILTER & BRAKING TRANSISTOR)
Model OD-xxxxx-IN 64110 64132 64160
Supply voltage +/- 10% 380-480
Phases 3
Motor O/P rating
(industrial 150%)
kW
HP
110
145
132
175
160
210
Output Amps (industrial) A 202 240 300
Motor output (HVAC 110%) kW 132 160 Output Amps (HVAC) A 240 300 Fuse or MCB rating A 400 400 400
Max ambient
temperature
o
C 4kHz
o
C 8kHz
50
50
50
40
40
30
Motor cable size,Cu 75C mm2 90 120 170
Max motor cable length m 100
Min brake resistor
Ω
6

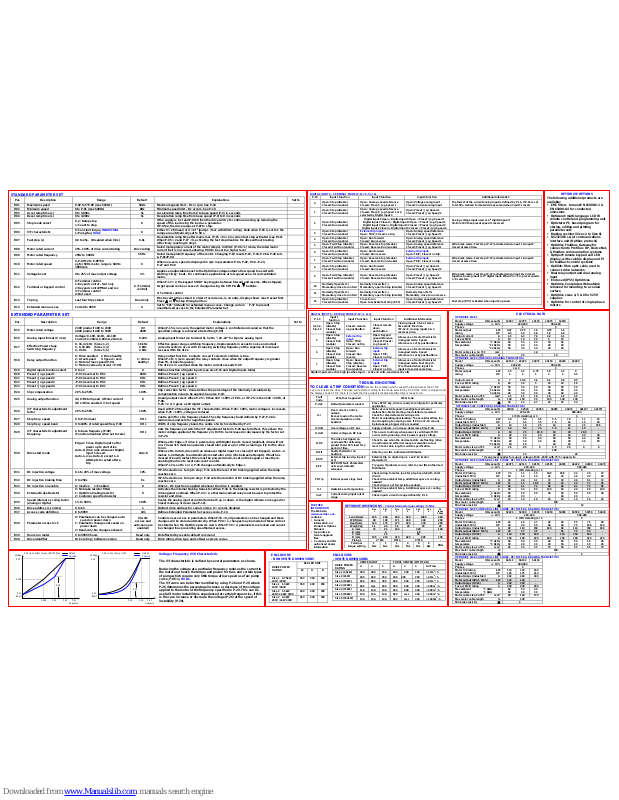

STANDARD PARAMETER SET
Par. Description Range Default
Explanations
Set to
P-01 Maximum speed P-02 to 5*P-09 (max 500Hz) 50Hz Maximum speed limit – Hz or rpm. See P-10
P-02 Minimum speed 0 to P-01 (max 500Hz) 0Hz Minimum speed limit – Hz or rpm. See P-10
P-03 Accel ramp time (s) 0 to 3,000s 5s Acceleration ramp time from 0 to base speed (P-9) in seconds
P-04 Decel ramp time (s) 0 to 3,000s 5s Deceleration ramp time from base speed (P-9) to 0 in seconds
P-05 Stop mode select
0, 2: Ramp stop
1: Coast to stop
0
If the supply is lost and P-05=0 then the drive will try to continue running by reducing the
speed of the load using the load as a generator.
If P-05=2, the drive ramps at P-07 to stop.
P-06 V/F characteristic
0: Constant torque, INDUSTRIAL
1: Pump/fan, HVAC
0
Either V = kf (linear) or V = kf
2
(pumps / fans with HVAC rating). Note when P-06 is set to 1 the
ramps are automatically set to 60 s.
P-07
Fast stop (s)
0.0 to 25s. (Disabled when 0.0s) 0.0s
Deceleration ramp time after mains loss (P-05 = 0 or 2) or when fast stop activated (see P-19).
When P-05 = 2 and P-07 = 0, activating the fast stop disables the drive without braking
(effectively coasting to stop).
P-08 Motor rated current 25% -100% of drive current rating Drive rating
Rated (nameplate) current of the motor (Amps). In HVAC (P-06 = 1) mode, the rated motor
current limit is increased, allowing P-08 to be set to a higher level
P-09 Motor rated frequency 25Hz to 500Hz
50 Hz Rated (nameplate) frequency of the motor. Changing P-09 resets P-02, P-10, P-26 & P-28 to 0,
& P-01=P-09.
P-10 Motor rated speed
0, P-09*12 to P-09*60
eg for 50Hz motor, range is 600 to
3000 rpm
0
When non-zero, speed is displayed in rpm in parameters P-01, P-02, P-20…P-23,
P-27 and P-28
P-11 Voltage boost 0 to 25% of max output voltage 3%
Applies an adjustable boost to the Optidrive voltage output at low speed to assist with
starting ‘sticky’ loads. For continuous applications at low speed use a forced ventilated
motor.
P-12 Terminal or Keypad control
0: Terminal control
1: Keypad control – fwd only
2: Keypad control − fwd and rev
3: Terminal control
4: Not used
0 (Terminal
control)
When P-12 = 2, the keypad START key toggles between forward and reverse. When stopped,
target speed can be accessed / changed using the STOP &
, buttons.
3: Terminal control
P-13 Trip log Last four trips stored Read only
Most recent 4 trips stored in order of occurrence, ie on entry, display shows most recent first.
Press
or to step through all four
P-14 Extended menu access Code 0 to 9999 0
Set to “101” (default) for extended menu access. Change code in P-37 to prevent
unauthorised access to the Extended Parameter Set
EXTENDED PARAMETER SET
Par. Description Range Default
Explanations
Set to
P-15 Motor rated voltage
230V product: 40V to 250V
400V product: 40V to 500V
0V
400V
When P-15 is non-zero, the applied motor voltage is controlled and scaled so that the
specified voltage is achieved at rated freq (P-09)
P-16 Analog input format (V / mA)
Voltage: 0-10V, 10-0V, -10-10V
Current: 4-20mA, 0-20mA, 20-4mA
0-10V Analog input format (on terminal 6). Set to “–10 -10” for bipolar analog input
P-17
Effective Power stage
Switching frequency
8, 16, 32 kHz (Sizes 1, 2)
4, 8, 16 kHz (Sizes 3, 4)
4, 8 kHz (Sizes 5, 6)
16 kHz
4 kHz
4 kHz
Effective power stage switching frequency. Improvements in acoustic noise and output
current waveform occur with increasing switching frequency at the expense of increased
losses within the drive
P-18 Relay output f unction
0: Drive enabled 1: Drive healthy
2: At set speed 3: Speed > zero
4: Motor at max speed (P-01)
5: Motor overload (current > P-08)
1 : (Drive
healthy)
Relay output function. Contacts closed if selected condition is true.
When P-18= 3, (zero speed), the relay contacts close when the output frequency is greater
than 5% of base frequency.
The drive is in overload when the motor current exceeds P-08
P-19 Digital inputs function select 0 to 12 0 Defines function of digital inputs (see also P-16 and Digital Inputs table)
P-20 Preset / Jog speed 1 -P-01 (reverse) to P-01 50Hz Defines Preset / Jog speed 1
P-21 Preset / Jog speed 2 -P-01 (reverse) to P-01 0 Hz Defines Preset / Jog speed 2
P-22 Preset / Jog speed 3 -P-01 (reverse) to P-01 0 Hz Defines Preset / Jog speed 3
P-23 Preset / Jog speed 4 -P-01 (reverse) to P-01 0 Hz Defines Preset / Jog speed 4
P-24 Slip compensation 20% to 250% 100%
Slip correction factor. Value defines the percentage of the internally calculated slip
compensation value to be applied. See also P-10.
P-25 Analog output function (A) 0:Motor Speed 1:Motor current
(D) 2:Drive enabled 3: Set speed
0
Analog output select. When P-25 = 0 then 10V = 100% of P-01, or if P-25 =1 then 10V = 200% of
P-08.
P-25 = 2 or 3 gives a 10V digital output.
P-26
V/F characteristic adjustment
factor
20% to 250% 100%
Used with P-29 to adjust the V/F characteristic. When P-26 > 100%, motor voltage is increased,
when P-26 < 100%, voltage is reduced
P-27 Skip freq / speed 0 to P-01 (max) 0 Hz
Centre point for skip frequency band. The skip frequency band defined by P-27, P-28 is
mirrored around zero for negative speeds.
P-28 Skip freq / speed band 0 to100% of rated speed/freq. P-09 0 Hz Width of skip frequency band, the centre of which is defined by P-27.
P-29
V/F characteristic adjustment
frequency
0 to base frequency (P-09)
(Function disabled when set to zero)
0 Hz
Sets the frequency at which the V/F adjustment factor in P-26 has full effect. This allows the
motor voltage applied at the frequency in P-29 to be increased or decreased by the factor set
in P-26.
P-30 Drive start mode
Edge-r: Close Digital input 1 after
power up to start drive
Auto-0: drive runs whenever Digital
input 1 closed.
Auto-1..4: as Auto-0, except 1..4
Attempts to restart after a
trip
Auto-0
When set to Edge-r, if drive is powered up with Digital Input 1 closed (enabled), drive will not
run. The switch must be opened & closed after power up or after a clearing a trip for the drive
to run.
When set to Auto-0, drive will run whenever digital input 1 is closed (if not tripped). Auto-1..4
makes 1..4 attempts to automatically restart after a trip (25s between attempts). If fault has
cleared drive will restart. Drive must be powered down, reset on the keypad or reset by re-
enabling the drive to reset auto-reset counter.
When P-12 is set to 1 or 2, P-30 changes automatically to Edge-r.
P-31 DC injection voltage 0.1 to 20% of max voltage 10%
If P-05 selection is ‘ramp to stop’, P-31 sets the level of DC braking applied when the ramp
reaches zero
P-32 DC injection braking time 0 to 250s 0s
If P-05 selection is ‘ramp to stop’, P-32 sets the duration of DC braking applied when the ramp
reaches zero
P-33
DC injection on enable
0: Inactive 1: Enabled 0 When 1, DC injection is applied whenever the drive is enabled
P-34 External Brake Resistor
0: No brake resistor fitted
1: Optidrive braking resistor
2: Customer specified resistor
0
Activates the internal braking transistor. When P-34 =1 the braking resistor is protected by the
drive against overload. When P-34 = 2, a thermal overload relay must be used to protect the
resistor and drive.
P-35
Speed reference scaling factor
(analog or digital)
1% to 500% 100%
Scales the analog input at control terminal 6 up or down, or the digital reference in keypad (or
Slave) mode up or down (see P-12).
P-36 Drive address (s-comms) 0 to 63 1 Dist i nct drive address for serial comms. 0 = comms disabled
P-37 Access code definition 0 to 9999 101 Defines Extended Parameter Set access code, P-14
P-38 Parameter access lock
0: Parameters can be changed, auto-
saved on power down
1: Parameter changes not saved on
power down
2: Read-only. No changes allowed.
0 (write
access and
auto-save are
enabled)
Controls user access to parameters. WhenP-38 = 0, all parameters can be changed and these
changes will be stored automatically. When P-38 = 1, changes may be made but these will not
be stored when the Optidrive powers down. When P-38 = 2, parameters are locked and cannot
be changed thus preventing unauthorised access.
P-39 Hours run meter 0 to 99999 hours Read only Not affected by reset-to-default command
P-40 Drive identifier Drive rating / Software version Read only Drive rating, drive type and software version codes
OPTIDRIVE OPTIONS
The following additional products are
available:
EMC filters to meet EN 61000-6-3 &
EN 61000-6-4 for conducted
emissions
Optiwand: multi-language LCD IR
remote control and programming unit
Optistore: PC based program for
storing, editing and printing
parameter sets
Braking resistor (Sizes 2 to Size 6).
RS232/485 serial communications
interface unit (Optibus protocol)
Optidrive Fieldbus Gateway for
connection to Profibus DP, DeviceNet,
& Modbus communication systems
Optiport: remote keypad and LED
display, with scalable display and PI
for feedback control systems
Optilink: fibre optic cable used to
connect drive networks.
Dual relay output and dual analog
input
Enclosed (IP55) Optidrives
Optidrive Coolplate with heatsink
removed for mounting to a cooled
surface
Optidrive sizes 4, 5 & 6 for 525V
supplies
Optidrive for control of single phase
motors
FURTHER
INFORMATION
The Website,
www.invertek.co.uk,
contains:
General
information, inc
Product & Options
Manuals
App.notes &
S/ware upgrade
files
Company and IDL
authorised dealer
information
OPERATING IN KEYPAD MODE
Set P-12 = 1(this allows the Optidrive to be
controlled from the keypad):
Enable the drive by closing digital input
1. The display will show StoP.
Press the START key. The display shows
H 0.0.
Press to increase speed
The drive will run forward, increasing
speed until is released. CAUTION: the
rate of acceleration is controlled by the
setting of P-03, check this before starting.
Either Press to decrease speed
The drive will decrease speed until τ is
released. The rate of deceleration is
limited by the setting in P-04
Or Press the STOP key. The drive will
decelerate to rest at the rate set in P-04.
The display will finally show StoP at
which point the drive is disabled
To preset a target speed prior to enable
press the stop key whilst the drive is
stopped. The display will show the target
speed, use the and to adjust as
required then press the Stop key to return
the display to StoP. Pressing the START
key will start the drive accelerating to the
target speed.
With P-12 set to 2:
Press the START key. The display
changes to H 0.0.
Press to increase speed
The drive will run forward, increasing
speed until is released. Acceleration is
limited by the setting in P-03. The
maximum speed is the speed set in P-01.
Press the START key again. The motor
will reverse its direction of rotation.
The operation of the keypad can be duplicated
using remote pushbuttons connected to the
control terminals, see Application Note AN21.
In this mode, if P30 is set to Auto-0..4, then
the drive will run as soon as the drive enable
is applied (terminal 1 & 2 is closed).
TO SAVE CHANGES to Parameter settings,
switch the power supply off and wait for the
drive to power down (screen blank) before
switching on.
NOTE that this assumes P-38 = 0 (default). If
P-38 = 1, changes are not saved.
STANDARDS CONFORMITY
The Optidrive conforms with the following standards
1) CE marked for low voltage directive
2) UL508C Power conversion equipment
3) IEC 664-1 Insulation coordination for equipment within low voltage systems
4) EN61800-3 Adjustable Speed electrical power drive systems – Part 3 (EMC)
5) EN 61000-6 / -2, -3, -4 Generic Immunity / Emissions standards (EMC)
Earth
L3
L2
Isolator
Contactor,
mcb or
Fuses
Optional
Filter
*
Screened motor
cable connects to
motor frame earth
L1
Optional
Braking
Resistor
U V W
Optidrive size 2
Help card
IR lens
Cable
management
tie-wrap
L1 L2 L3
U V W + BR
Each drive star
connected to system
earth point
To
other
drives
OPERATION – BASICS + GETTING STARTED
MOTOR TERMINAL BOX CONNECTIONS
Motors are connected in either STAR or DELTA. The motor
rating plate will indicate the voltage rating for the method
of connection, ensure that this matches the Optidrive
operating voltage.
CONTROL TERMINAL BLOCK -
Default Status
WARNING !
The STOP function does not remove potentially lethal high voltages. ISOLATE the drive and
wait 10 minutes before starting any work on it
Parameter P-01 can be set to operate the motor at up to 60,000 rpm, hence use this
parameter with care
If it is desired to operate the drive at any frequency/speed above the rated speed (P-09/ P-10)
of the motor, consult the manufacturers of the motor and the driven machine about suitability
for over-speed operation
The fan (if fitted) to the heatsink of the Optidrive starts automatically when the heatsink
temperature reaches approximately 40ºC. When the heatsink is at room temperature the fan
will be stopped.
MECHANICAL INSTALLATION
Optidrives can be installed side-by-side with their heatsink
flanges touching. This gives adequate ventilation space between
them. If the Optidrive is to be installed above another drive or
any other heat-producing device, the minimum vertical spacing
is 100mm. The enclosure should either be force-ventilated or
large enough to allow natural cooling (allow 0.1 m
3
per kW of
drive rating).
GROUNDING (EARTHING)
The ground terminal of each Optidrive should be individually
connected DIRECTLY to the site earth (ground) busbar (through
the filter if installed) as shown. Optidrive ground connections
should not loop from one drive to another, or to, or from any
other equipment. Ground loop impedance must conform to local
industrial safety regulations. To meet UL regulations, UL
approved ring crimp terminals should be used for all earth wiring
connections.
EASY START-UP
When delivered, the Optidrive is in the default state,
meaning that it is set to operate in terminal mode and
all parameters (P-xx) have the default values as
shown overleaf.
Connect a control switch between the control
terminals 1 and 2.
Connect a potentiometer (500 Ω min to 10 kΩ max)
between terminals 5 and 7, and wiper to terminal 6.
Set the control switch between pins 1 and 2 open
so that the drive is ‘disabled’.
With the potentiometer set to zero, switch on the
supply to the drive. The display will show StoP.
Close the control switch, terminals 1-2. The drive is
now ‘enabled’ and the output frequency/speed are
controlled by the potentiometer. The display shows
zero speed in Hz (H 0.0) with the potentiometer
turned to minimum.
Turn the potentiometer to maximum. The motor will
accelerate to 50Hz (the default value of P-01) under
the control of the accelerating ramp time P-03. The
display shows H 50.0 (50Hz) at max speed.
To display motor current (A), briefly press the
Navigate key ⇔.
Press ⇔ again to return to speed display.
To stop the motor, either turn the potentiometer back
to zero or disable the drive by opening the control
switch (terminals 1-2).
If the enable/disable switch is opened the drive will
decelerate to stop at which time the display will show
StoP. If the potentiometer is turned to zero and the
enable/disable is closed the display will show 0.0Hz, if
left like this for 20 seconds the drive will go into
standby mode, display shows Stndby, waiting for a
speed reference.
User Guide
All rights reserved. No part of this User Guide may be reproduced
or transmitted in any form or by any means, electrical or
mechanical including photocopying, recording or by any
information storage or retrieval system without permission in
writing from the publisher.
Copyright Invertek Drives Ltd © 2005
The manufacturer accepts no liability for any consequences
resulting from inappropriate, negligent or incorrect installation, or
adjustment of the optional operating parameters of the drive or
from mismatching of the drive to the motor.
The contents of this User Guide are believed to be correct at the
time of printing. In the interests of a commitment to a policy of
continuous improvement, the manufacturer reserves the right to
change the specification of the product or its performance or the
contents of the User Guide without notice.
SAFETY
This variable speed drive product (Optidrive) is intended for
professional incorporation into complete equipment or systems. If
installed incorrectly it may present a safety hazard. The Optidrive
uses high voltages and currents, carries a high level of stored
electrical energy, and is used to control mechanical plant that may
cause injury. Close attention is required to system design and
electrical installation to avoid hazards in either normal operation
or in the event of equipment malfunction.
System design, installation, commissioning and maintenance
must be carried out only by personnel who have the necessary
training and experience. They must read carefully this safety
information and the instructions in this Guide and follow all
information regarding transport, storage, installation and use of
the Optidrive, including the specified environmental limitations.
Please read the IMPORTANT SAFETY INFORMATION below, and
all Warning and Caution boxes elsewhere.
SAFETY NOTICES
WARNING is given where there is a hazard that could lead to injury
or death of personnel
CAUTION is given where there is a hazard that could lead to
damage to equipment
CAUTION
Carefully inspect the Optidrive before
installation to ensure it is undamaged
Store the Optidrive in its box until
required. Storage should be clean and
dry Temp. Range –40oC to +60oC
Install the Optidrive on a flat, vertical,
flame-resistant vibration-free mounting
within a suitable enclosure, according to
EN60529 if specific Ingress Protection
ratings are required. Installation required
in a pollution degree 2 environment.
Flammable material should not be
placed close to the drive
The entry of conductive or flammable
foreign bodies should be prevented
Max. ambient temperature 50
o
C, min. –
5oC. Refer to table on reverse side.
Relative humidity must be less than 95%
(non-condensing).
The Optidrive is suitable for use on a
circuit capable of delivering not more
than 5KA (50Hp) / 10KA (51-200HP)
symmetrical amperes, 480V maximum.
WARNING !
Optidrives should be installed only by qualified electrical persons and in accordance with
local and national regulations and codes of practice. The Optidrive has an Ingress Protection
rating of IP20. For higher IP ratings, use a suitable enclosure.
Electric shock hazard! Disconnect and ISOLATE the Optidrive before attempting any work on
it. High voltages are present at the terminals and within the drive for up to 10 minutes after
disconnection of the electrical supply
Where supply to the drive is through a plug and socket connector, do not disconnect until 10
minutes have elapsed after turning off the supply
Ensure correct earthing connections
The earth cable must be sufficient to carry the maximum supply fault current which normally
will be limited by the fuses or MCB
SAFETY NOTICES
It is the responsibility of the installer to
ensure that the equipment or system into
which the product is incorporated complies
with the EMC legislation of the country of
use. Within the European Union, equipment
into which this product is incorporated must
comply with 89/336/EEC,Electromagnetic
Compatibility.
WARRANTY
All Invertek Drives Ltd (IDL) products carry a
2-year warranty, valid from the date of
manufacture.
Complete Warranty Terms and Conditions
are available upon request from your IDL
Authorised Distributor.
WARNING!
The level of integrity offered by the
Optidrive control functions – for example
stop/start, forward/reverse and maximum
speed, is not sufficient for use in safetycritical applications without independent
channels of protection. All applications
where malfunction could cause injury or
loss of life must be subject to a risk
assessment and further protection
provided where needed. Within the
European Union, all machinery in which
this product is used must comply with
Directive 89/392/EEC, Safety of Machinery.
In particular, the electrical equipment
should comply with EN60204-1.

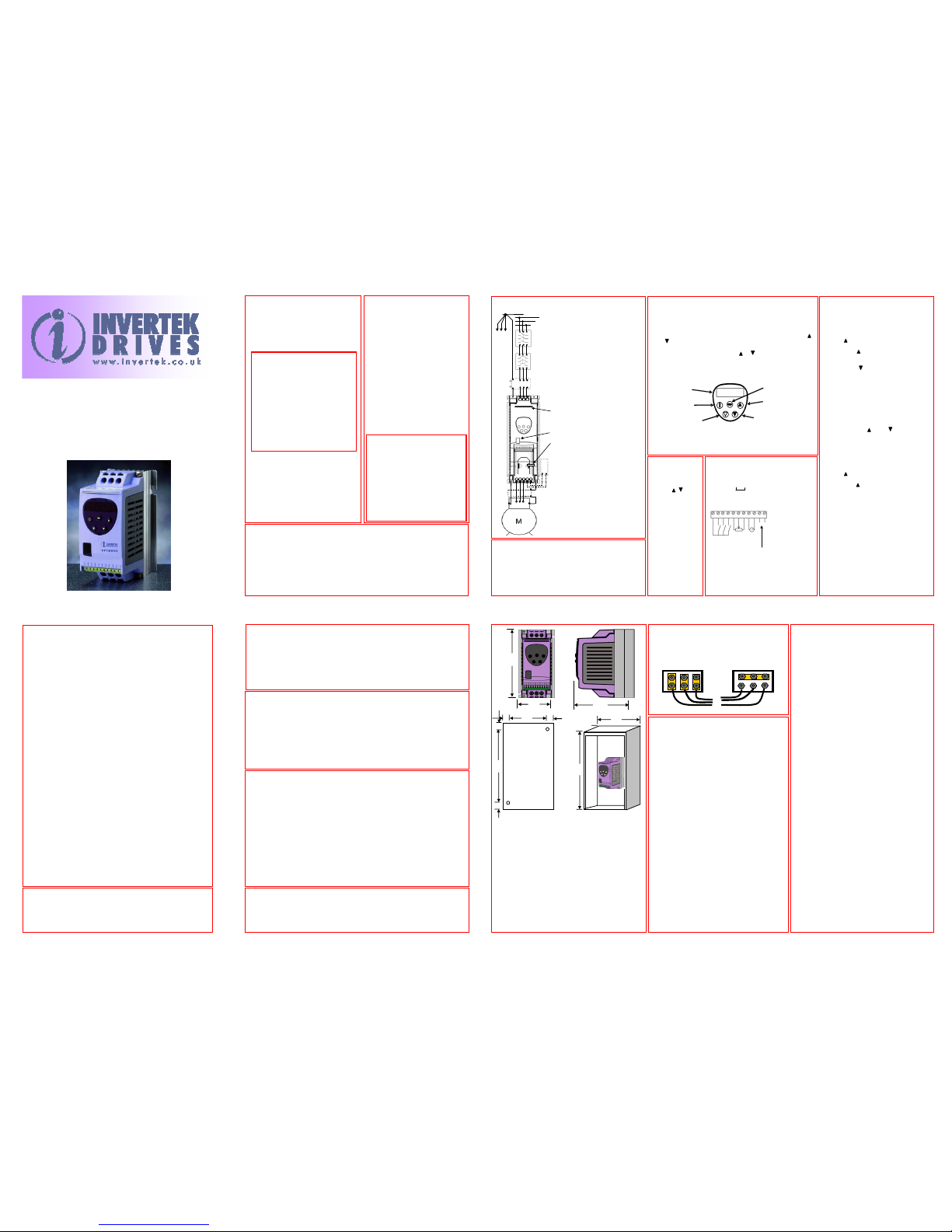

OPTIDRIVE
USER GUIDE
Inver tek D rive s Ltd Tel: +4 4 (0 ) 193 8 55 6868
Offa’ s Dyk e Bu sine ss Pa rk Fax: + 44 (0 ) 19 38 5 56869
Welshpool
Powys em ail: enquiry@invertek.co.uk
SY21 8JF Inter net:www.invertek.co.uk
UK Iss 1.01
ELECTRICAL INSTALLATION
Connect drive according to diagram (above), ensuring that
motor terminal box connections are correct (see diagram,
below).
Refer to the ELECTRICAL DATA overleaf for the sizes of
cabling and wiring.
It is recommended that the power cabling should be 3-core or
4-core PVC-insulated screened cable, laid in accordance with
local industrial regulations and codes of practice.
GENERAL TECHNICAL DAT
A
• Supply frequency 48 to 62 Hz.
• Max. permissible 3-phase supply
imbalance 3%.
• Max. ambient temperature 50 oC.
• Max. altitude 2000 m.
• Derate above 1000 m, 1% / 100 m.
• Derate output current 5%/ oC above
max. ambient temp up to 55oC
• I x t protection above 100% output
current.
• 150% overload protection for 60 sec.
• 175% overload allowable for 2 sec.
• Storage temperature -40 to +60 oC
CAUTION
Ensure that the supply voltage, frequency and no. of phases (1 or 3 phase) correspond to
the rating of the Optidrive as delivered.
An isolator should be installed between the power supply and the drive.
Never connect the mains power supply to the Output terminals U,V,W.
Protect the drive by using slow-blowing HRC fuses or MCB located in the mains supply of
the drive
Do not install any type of automatic switchgear between the drive and the motor
Wherever control cabling is close to power cabling, maintain a minimum separation of 100
mm and arrange crossings at 90o
Ensure that screening or armouring of power cables is effected in accordance with the
connections diagram below
Ensure that all terminals are tightened to the appropriate torque (see table)
W
D
ENCLOSURE
W
D
H
HOLE
POSITIONS
FOR
MOUNTING
A
B
B
C
D
C
OPERATION – USING THE KEYPAD
MANAGING THE KEYPAD
When the drive is delivered from the factory, only the Standard
Parameter Set (see overleaf) is accessible.
To access the Standard Parameter Set, press the Navigate key ⇔ for
>1 sec.
• Scroll through P-01 to P-14 (and roll over to P-01) by pressing
or
• To display the parameter value, press ⇔
• To edit the parameter value, press or
• To return to the parameter number, press ⇔
• To store a value and / or exit from edit mode, press ⇔ for >1 sec
or press no button for >20 sec.
To access the Extended Parameter Set, set P-14 = 101 and press ⇔
NOTE To restrict unauthorised access, make P-37 = any value from 0
to 9999.
• When in the Extended Parameter Set (except P-00), the display
will revert to normal if no button is pressed for >20 sec.
Refer to the
Digital Inputs
table overleaf
for details of
the digital input
functions 1 to 3
If screened
cabling is used
for the control
wiring, connect
the cable
screen to 0V of
drive, terminals
1,7 or 9.
Υ (STAR) connection
∆
(DELTA) connection
U V W Wires from Optidrive
IMPORTANT SAFETY INFORMATION
Safety of machinery, and safety-critical applications
Optidrive hardware and software are designed and tested to a high standard and failures are
unlikely.
Electromagnetic Compatibility (EMC)
Optidrive is designed to high standards of EMC. EMC data is provided in a separate EMC
Data Sheet, available on request. Under extreme conditions, the product might cause or
suffer disturbance due to electromagnetic interaction with other equipment. It is the
responsibility of the installer to ensure that the equipment or system into which the product
is incorporated complies with the EMC legislation of the country of use. Within the European
Union, equipment into which this product is incorporated must comply with 89/336/EEC,
Electromagnetic Compatibility.
When installed as recommended in this User Guide, the radiated emissions levels of all
Optidrives are less than those defined in the Generic radiated emissions standard EN610006-4. When correctly fitted with an Optifilter (Mains filter), the conducted emission levels are
less than those defined in the Generic radiated emissions standard EN61000-6-3 (class B)
for screened cable lengths of < 5m and with EN61000-6-4 (class A) for screened cable
lengths of < 25m.
SIMPLE PARAMETER ADJUSTMENTS
The factory-set default parameter values may give satisfactory
performance, however certain adjustments may be beneficial.
Maximum and Minimum Speeds P-01 & P-02
Set P-01 to the maximum speed and P-02 to the minimum speed for
your application. These limits are mirrored for negative speeds. If a
non-zero minimum speed is set in P-02, the motor will ramp (P-03) to
this minimum speed as soon as the drive is enabled.
Acceleration and Deceleration P-03 & P04
Ramps which are too short will cause the drive to deliver currents in
excess of full load current and may result in it tripping out or the
motor stalling
Stop Mode P-05
Select method of stopping required when drive is disabled. Ramp to
stop (P-05 = 0) decelerates the motor at the rate set by deceleration
ramp time P-04. Freewheel/ Coast to stop (P-05=1) disables the drive
output immediately, allowing the motor to decelerate naturally due
to friction or under the control of a mechanical brake
Torque/Speed Characteristic P-06
Certain loads such as fans and centrifugal pumps need very little
torque at low speed. Set P-06=1 to reduce power loss at low speeds
for this load type.
Rated Current, Rated Frequency and Rated Speed P-08, P-09, P-10.
Parameters P-08 and P-09 should to be set to correspond with the
rated current and frequency shown on the motor rating plate.
Parameter P-10 is optional. If this parameter is set to zero (default
state), speed will be displayed in Hz; if speed indication is required
in rpm, enter the motor rated speed (speed at full load) from the
motor rating plate.
Voltage Boost P-11
Any load which is ‘sticky’ to start will benefit from a voltage boost
on starting. P-11 permits a boost of up to 25% of full motor voltage
to be applied.
NOTE: Use of this parameter increases motor heating at low speeds
Terminal or Keypad Control P-12
Terminal control (P-12=0) is used when the drive needs to be
controlled from some remote point, such as a control panel
interface or machine system.
Keypad control (P12=1 or 2) is used for local, manual control and
commissioning
Extended Parameter Set P15 to P-40 and P-00
The Extended Parameter Set is intended for use by specialist drives
engineers and technicians and will not generally be required for
simple applications.
PARAMETER ZERO
• Provides a read only window into the motor control software
allowing
key internal values to be viewed. This is useful for following
signals
through the drive control system when troubleshooting.
• Access, scroll, change and exit are as for any other parameter.
The selected variable is at the left hand side of the display.
• There are 9 different windows listed below:
1 Unscaled analog input (%)
2 Speed ref. via scaled analog input (Hz)
3 Pre-ramp speed ref. (Hz)
4 Post-ramp speed ref. (Hz)
5 Not used
6 Stator field frequency (Hz)
7 Applied motor voltage (V)
8 DC bus voltage (V)
9 Internal thermistor (NTC) value
TO RESTORE ALL
DEFAULT VALUES,
stop the drive and
when display shows
StoP, press and
hold the , and
STOP keys
simultaneously for 1
second. The display
will show P-dEF.
Access code P-37
will revert to 101 but
the hours-run meter
P-39 is not affected.
Press STOP to
resume normal
operation.
NAVIGATE
DISPLAY
START
RESET/ STOP
UP
DOWN
H 5 0 . 0
0V
Digital I/P 1
Digital I/P 2
Digital I/P 3
+10V O/P
A
nalog I/P
0V
A
nalog O/P
0V
Relay contact
Relay common
Closed: Enable; Open: Disable
500
Ω
min.
0-10V
analog
O/P
Relay ratings
30V dc, 5A
240V ac, 5A
0-10V
4-20mA
1234567891011
Analog I/P - Closed: A; Open :
V
Closed: Preset 1; Open: Analog I/P
* If fitted, a filter should be
physically close to the Drive.
For maximum effectiveness,
the metal case of the filter
and the heat sink of the drive
should be electrically
connected, ie screw both to a
metal backplate and ensure
metal-to-metal contact.
Size 6 Input Choke
Connection – When
connecting the choke
observe the following :i) The order of the input
phases (L1,L2,L3) is not
important.
ii) The choke can be
mounted to suit the wiring,
either above the drive or
anywhere in the panel.
Either set of terminals can
be used for the Input or
Output.
iii) The choke should NOT
be connected directly to the
drive to stop any
mechanical stress on the
terminals of the drive.
Loading...
