Inventec WS9603 Users Manual

Wireless POS (Point Of Sale) MRT320 User manual Version 1.1

Confidential Date: 2006-09-12

MRT320 Wireless Hand-Held Retail Unit

User Manual

Wireless POS (Point Of Sale) MRT320 User manual Version 1.1

Confidential Date: 2006-09-12

Copyright

Please read this User Manual carefully before using the device. MP2 Solutions shall not be liable for technical, editorial errors, or omissions contained herein; Nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.

This document contains information protected by copyright. The information in this document is subject to change without notice. No part of this document may be photocopied or reproduced in any form without prior written consent from MP2 Solutions.

MRT320, MP2, and the MP2 logo are trademarks of MP2 Solutions. Microsoft, Win CE 5.0 are trademarks of Microsoft Corporation. All other product names mentioned herein may be trademarks of their respective companies.

Wireless POS (Point Of Sale) MRT320 User manual Version 1.1

Confidential Date: 2006-09-12

Preface

Welcome

Congratulations on your purchase of the MRT320 Wireless Hand-Held Retail Unit. This powerful, portable, and flexible device will change the way your enterprise accepts wireless payment transactions in the field, manages inventory, and incorporates mobility into retail operations.

Manual contents

This manual provides details and instructions on operating your device including how to connect your device to other machines, using optional devices, and troubleshooting.

Messages

Messages are used in this manual to bring important information to your attention. Each type of message is identified and shown below.

CAUTION: A caution informs you that improper use of the device or failure to follow instructions may cause data loss or damage to your device.

NOTE: Please read. A note is a hint or advice that helps you to make best use of your equipment.

Contact us

Please contact MP2 Solutions, Inc. for the latest and best in wireless technology and solutions.

MP2 Solutions Inc.

866 MPTWO22 (866-678-9622) 2811 Internet Blvd, Frisco TX, 75034

Email: support@mptwo.com

Wireless POS (Point Of Sale) MRT320 User manual Version 1.1

Confidential Date: 2006-09-12

Federal Communication Commission(FCC)

Product Name: Wireless Hand-Held Retail Unit Module Number: MRT320

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

 This device may not cause harmful interference.

 This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from that to which the receiver is



connected.

Consult the dealer or an experienced radio/TV technician for help.



CAUTION

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Wireless POS (Point Of Sale) MRT320 User manual Version 1.1

Confidential Date: 2006-09-12

Table of Contents

CHAPTER 1 THE GRAND TOUR…………………………………….…………………..…. 1

W

HAT IS IN THE BOX

S

………………………………………………………………………………..2

FRONT

T

B

L

R

B

USB C

I

NDICATORS

IDE

OP SIDE

OTTOM SIDE

EFT SIDE

IGHT SIDE

ACK SIDE

………………………………………………………………………………… .3

………………………………………………………………………………… 3

………………………………………………………………………….….....4

……………………………………………………………………………...…5

RADLE

…………………………………………………………………………….....7

………………………………………………………………………1

……………………………………………………………………………...3

……………………………………………………………………………...6

CHAPTER 2 OPERATING BASICS…………………………………………………………..… .8

T

URNING ON/OFF AND STANDBY

U

SING THE STYLUS

U

SING THE KEYPAD

C

HARGING YOUR DEVICE

R

EPLACING THE BAT T ER Y PACK

A

LIGNING THE SCREEN

R

ESETTING YOUR DEVICE

………………………………………………………………….…….9

…………………………………………………………….…….….10

……………………………………………………………….11

………………………………………………………………….14

…………………………………………………….…...8

…………………………………………………………12

………………………………………………………………15

CHAPTER 3 PERIPHERALS & EXPANSIONS……………………………………………….16

U

SING THE BAR CODE SCANNER

U

SING THE

U

SING THE THERMAL PRINTER

U

SING THE MEMORY CARD

MSR M

ODULE

…………………………………………………….. ...16

………………………………………………………………17

………………………………………………………….17

………………………………………………..……………19

Wireless POS (Point Of Sale) MRT320 User manual Version 1.1

Confidential Date: 2006-09-12

Surfing the internet…………………………………………………………………….20

CONNECT MRT

320

TO PCVIA ACTIVESYNC

………………………………………………20

CHAPTER 4 COMPANION PROGRAMS………………………………………………………23

OPERATING SYSTEM………………………………………….........………...23

APPENDIX SPECIFICATIONS…………………………………………………………………..25

Wireless POS (Point Of Sale) MRT320 User manual Version 1.1

Confidential Date: 2006-09-12

Chapter 1 The Grand Tour

This chapter will identify the components of the device and briefly explain how they function.

What is in the Box

Check to make sure you have all the following items:

 MRT320 Wireless Hand-Held Retail Unit (including stylus and hand strap)

 Charging Cradle

 AC Adaptor

 Power Cord

 USB Synch Cable

 Lithium-ion Battery Pack (with screw cover)

 Roll Paper

 Companion CD

1

Wireless POS (Point Of Sale) MRT320 User manual Version 1.1

Confidential Date: 2006-09-12

Front Side

Thermal Printer

1

Refer to the “Using the Thermal Printer” section in Chapter 3.

2

Magnetic Stripe Reader (MSR) Refer to the “Using the MSR Module” section in Chapter 3.

3

Speaker Produces sound generated by software as well as audio alarms and notification generated by the system.

4

Power Indicator (green/amber) Refer to the “Indicators” section below in this chapter.

2

Wireless POS (Point Of Sale) MRT320 User manual Version 1.1

Confidential Date: 2006-09-12

Top Side

1

Bar Code Scanner Refer to the “Using the Bar Code Scanner” section in Chapter 3.

Bottom Side

1

Docking Connector Use it to connect with the USB cradle.

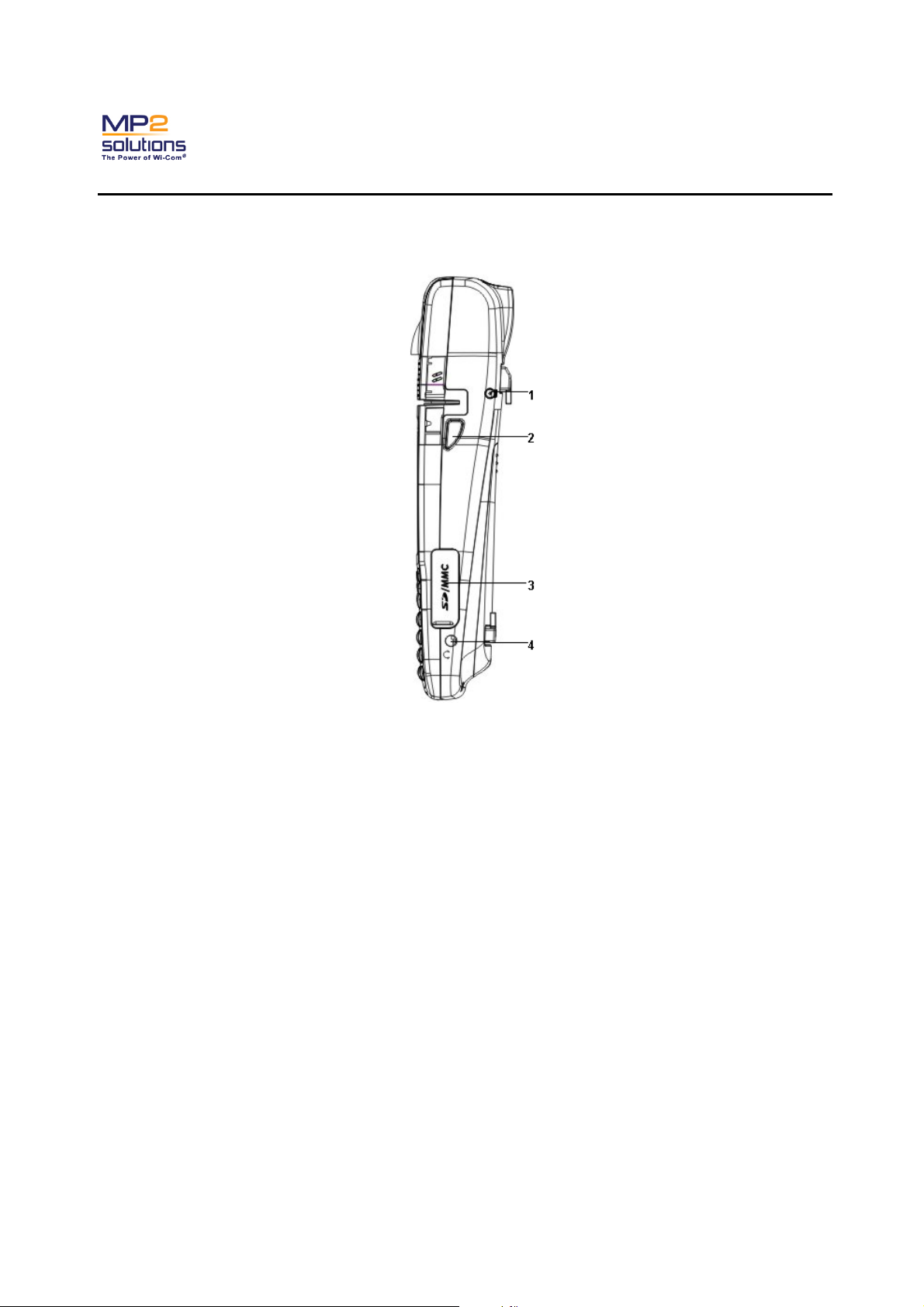

Left Side

Scan Button

1

Refer to the “Using the Bar Code Scanner” section in Chapter 3.

3
