INVACARE®
Storm Series®
Power Wheelchairs
®
™
CG
™
™
CG
Including Invacare® Formula
Powered Seating
Including:
• Invacare
®
Arrow
• Invacare® Ranger X
• Invacare® Torque™ SP
• Invacare® Torque™ 3
• Invacare® Formula
Powered Seating
• Invacare® MK6i™ Electronics
INVACARE®
Storm Series®
Power Wheelchairs
Including Formula
• Arrow
• Ranger X
• Torque™ SP
• Torque™ 3
• Formula
• MK6i™ Electronics
Table of Contents
Key Design Features .........................................................................3
®
Power Wheelchair................................................................4
Arrow
™
Ranger X
Torque
Torque
Formula
MK6i
TrueTrack Technology .....................................................................14
Transport Tie-Down Options ...........................................................15
Base Specifications ........................................................................16
Power Wheelchair ...........................................................5
™
SP Power Wheelchair .........................................................6
™
3 Power Wheelchair ...........................................................7
™
Powered Seating ...................................................... 8-11
CG
™
Electronics ..................................................................... 12-13
™
Powered Seating
CG
®
™
™
Powered Seating
CG
2
Key Design Features
H-Frame
TrueTrack
Invacare® MK6i™
Electronics
Adjustable ASBA
Rehab Seat
Rugged Invacare® Storm Series® H-frame design
provides a proven, durable construction.
The benefits of TrueTrack to switch drivers and
those with marginal control have been proven,
making these consumers more successful and
efficient drivers.
Built on the Invacare® MK
™
MK6i
electronics make programming intuitive
™
platform,
5
and set-up a breeze.
Seat frame is adjustable in width and depth
within a range to accommodate changing
consumer needs while maintaining the
same seat pan. Standard on all Storm
Series base models.
Suspension Options
Monroe® Spring Shock
Suspension
Rubber Element
Suspension
Shock Fork Suspension
(optional)
The Monroe Spring Shock Suspension allows
for up to 2" of movement to absorb impact
and provide maximum dampening. Standard
on the Invacare
®
Arrow® Wheelchair.
The Rubber Element Suspension is designed to
absorb significant jolts and impacts. Standard
on the Invacare
®
Ranger™ X, Torque™ SP and
Torque™ 3 Wheelchairs.
Utilizes elastomer dampeners that may be
changed to provide dampening for all weight
capabilities. Designed for 8" casters.
3
INVACARE
Arrow
®
STORM SERIES®
®
Power Wheelchair
The Invacare® Storm Series® Arrow® Power Wheelchair
with TrueTrack technology and Invacare® MK6i™ electronics
has the flexibility and function to accommodate a variety of
drivers with diverse needs.
• MK6 TT controller and Invacare® MPJ™+ joystick
• TrueTrack technology
• Invacare
• Monroe® independent rear suspension
• Adjustable ASBA rehab seat
Optional Features
• Transport Tie-Down options*
• Shock forks
• Van Seating
®
Gearless Brushless GB™ motors for improved battery range
*Please refer to page 15 for important details
3GAR (Group 4 Rehab Seat) K0868
3GAR HD (Group 4 Rehab Seat Heavy-Duty) K0870
3GAR-CG (Group 4 Multiple Power) K0884
3GAR-CG HD (Group 4 Multiple Power Heavy-Duty) K0886
4
INVACARE
Ranger X
®
STORM SERIES®
™
Power Wheelchair
The Invacare® Storm Series® Ranger X™ Power Wheelchair
with Heavy-Duty 4-pole motors and Invacare® MK6i™
electronics has the flexibility to maximize function through
a series of “a la carte” options and accessories, such as
TrueTrack technology, to accommodate a wide range of
clinical needs.
Standard Features
• MK690 controller and Invacare® MPJ™+ joystick
• Heavy-Duty 4-pole motors accommodating up to a 400 lb. weight capacity
• Rubber element rear wheel suspension
• Adjustable ASBA rehab seat
Optional Features
• TrueTrack technology
• Invacare
• Monroe® independent rear suspension
• Transport Tie-Down options*
• Shock forks
• Van Seating
*Please refer to page 15 for important details
®
Gearless Brushless GB™ motors for improved battery range
3GRX (Group 3 Rehab Seat Heavy-Duty) K0850
3GRX-CG (Group 3 Multiple-Power Heavy-Duty) K0862
5
INVACARE
®
STORM SERIES®
Torque™ SP
Power Wheelchair

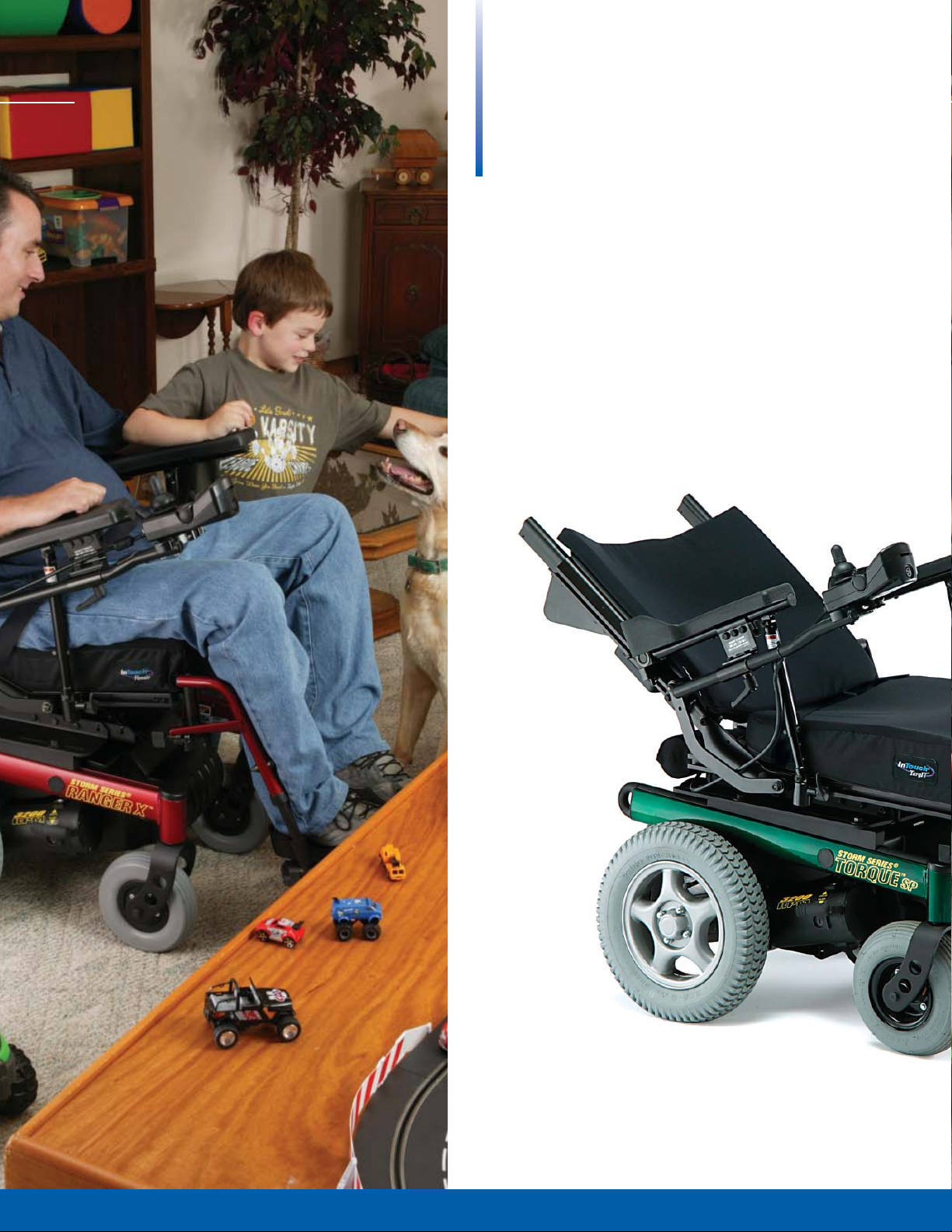

The Invacare® Storm Series® Torque™ SP Power Wheelchair
with performance 4-pole motors and Invacare® MK6i™
electronics offers many of the features and options found
on the other Storm Series models while maintaining a truly
affordable price.
Standard Features
• MK690 controller and Invacare® SPJ™+ joystick
• Performance 4-pole motors provide true gear reduction and higher torque
for many rehab needs
• Rubber element rear wheel suspension
• Adjustable ASBA rehab seat
Optional Features
• TrueTrack technology
• Invacare
• Monroe® independent rear suspension
• Transport Tie-Down options*
• Shock forks
• Van Seating
*Please refer to page 15 for important details
®
Gearless Brushless GB™ motors for improved battery range
*Please refer to page 15 for important details
3GTQSP (Group 4 Rehab Seat) K0868
3GTQ-CG (Group 4 Single Power) K0877
3GTQ-MCG (Group 4 Multiple Power) K0884
6
Torque 3 Wheelchair with Adjustable Rehab
Seat
INVACARE
®
STORM SERIES®
Torque™ 3
Power Wheelchair
The Invacare® Storm Series® Torque™ 3 Power Wheelchair
is a well-appointed entry model of the Storm Series
appropriately positioned in Group 3. With a maximum
weight capacity of 300 lbs., the Torque 3 Wheelchair meets
the needs of many rehab consumers and features rehab or
captain’s seating. The Torque 3 Wheelchair also features
single and multiple powered seating functions such as tilt,
recline, elevating seat and tilt/recline combination.
Standard Features
• Rugged Storm Series H-frame design provides a proven, durable
construction
• Maximum speed of 5.8 mph and accepts 22NF or Group 24 batteries
• MK690 controller and Invacare® SPJ™ joystick standard with the ability to
upgrade to expandable electronics
• 4 pole motors
• Adjustable rehab seat accommodates a changing consumer’s needs
efficiently. Width and depth adjustments can be made in
1" increments within a range while maintaining the same seat pan
• Captain’s seat
• Rubber element suspension
Torque 3 Wheelchair with Captain’s Seat
Optional Features
• TrueTrack technology
• Invacare® Gearless Brushless GB™ motors for improved battery range
• Monroe® independent rear suspension
• Transport Tie-Down options*
• Shock forks
*Please refer to page 15 for important details
3GTQ3 (Group 3 Rehab Seat) K0848
3GTQ3-GT (Group 3 Rehab Seat) K0848
3GTQ3V (Group 3 Captain’s Seat) K0844
3GTQ3-CG (Group 3 Single Power) K0856
3GTQ3-CG-GT (Group 3 Single Power) K0836
3GTQ3-MCG (Group 3 Multiple Power) K0861
3GTQ3-MCG-GT (Group 3 Multiple Power) K0861
7
INVACARE
®
STORM SERIES®
Formula
Power Seating
™
CG
The Invacare® Formula
available on all Storm Series® power wheelchairs. The
powered seating options available on this system include:
Tilt, Recline, Elevate and Tilt/Recline. In addition, multiple
seating styles are offered including Curv, Contoura™ and
Conventional Seating.
™
Powered Seating System is
CG
8
Invacare® Formula
™
Power Tilt
CG
The FormulaCG Power Tilt enhances comfort through positional and
pressure relief. Drive lock-out is achieved
at 20˚ of tilt for safety.
Features
• 55˚ of tilt with 300 lb. weight capacity
• 45˚ of tilt with 400 lb. weight capacity
• 17.75" starting seat-to-floor height at 0˚
• Curv or Invacare
• Standard with round canes
®
Contoura™ seating
Formula
Formula
Power Tilt with Curv Seating
CG
Power Recline with Conventional Seating
CG
Formula
Power Tilt with Curv
CG
Interchangeability of Back Styles
FormulaCG allows the flexibility of interchanging different back
styles on a Tilt only or Elevate only system. The round back
canes are universal and fit any of the following back styles: the
Curv, Contoura
™
, Back Post Only option and sling back (Elevate
seating). This interchangeability results in more options for the
user as conditions progress and also ease for the provider.
FormulaCG Power Recline
The FormulaCG Power Recline system has mechanical
shear reduction of 3".
Features
• Recline range of 170˚
• 17.75" starting seat-to-floor height at 0˚
• Conventional or Contoura seating
• 300 lb. or 400 lb. weight capacity (base dependent)
• 3" mechanical shear reduction based on a t-slot channel
design for interfacing aftermarket custom backs
9
Formula
Power Tilt and Recline with Conventional Back
CG
Invacare® Formula
™
Power Tilt and Recline
CG
The FormulaCG Power Tilt and Recline system combines
the pressure relief and positioning benefits of both tilt
and recline.
Features
• Tilt range of 55˚ with 300 lb. weight capacity and
45˚ with 400 lb. weight capacity
• Recline range of 170˚
• 17.75" starting seat-to-floor height at 0˚
• 3" mechanical shear reduction based on a t-slot channel
design for interfacing aftermarket custom backs
Storm Series
Tilt Recline Tilt/Recline Elevate
Weight capacity
300 lb. or 400 lb. 300 lb. or 400 lb. 300 lb. or 400 lb. 300 lb.
Seat-to-floor height
Low 17.75" 17.75" 17.75" 17.75"
Med 18.75" 18.75" 18.75" N/A
Tall 19.75" 19.75" 19.75" N/A
Range of motion
55˚ at 300 lb. 170˚ 55˚ of tilt at 300 lb. 7"
45˚ at 400 lb. 45˚ of tilt at 400 lb.
170˚ of recline
Seat sizes
Conventional 12" – 16" 16" – 24" 16" – 24" N/A
Contoura 16" – 24" 16" – 24" 16"– 24" 16" – 22"
Curv 16" – 24" N/A N/A 16" – 22"
Sling back N/A N/A N/A 16" – 22"
Back height
* Conventional N/A 20" – 26" 20" – 26" N/A
Contoura 22", 25" and 28" 25" and 28" 25" and 28" 22", 25" and 28"
Curv 16" – 24" N/A N/A 16" – 24"
Sling back N/A N/A N/A 16" – 24"
Limited warranty
Electronics actuator 12 months 12 months 12 months 12 months
Seat frame 36 months 36 months 36 months 36 months
®
With Formula
™
Powered Seating Specifications
CG
* Conventional back heights of 16"-20" only available in seat widths of 12"-15".
Product weight: Formula
system with Tilt/Recline, Group 24 batteries, and no front riggings = 350 lb.
CG
10
Invacare® Formula
The FormulaCG Power Elevating Seat is designed to
provide consumers with improved independence and
assistance to perform daily living activities, such as
transfer assistance or access to items that otherwise
would be out of reach.
™
Power Elevating Seat
CG
Features
• 7" elevate range
• 300 lb. max weight capacity
• 17.75" starting seat-to-floor height
• Sling back standard; Curv or Invacare® Contoura™
seating optional
FormulaCG Power Elevate with Sling Back
The adjustable seat frame is the foundation for the FormulaCG seating system. In order to accommodate changing consumer
needs efficiently, the FormulaCG system offers both width and depth adjustment while maintaining the same seat pan for each
range. There are numerous seating options available on the Formula
seating system: Curv, Contoura, Conventional and
CG
Sling Back (Elevating Seat).
Curv
• Available on Tilt and Elevate
• Curved Back design
• Width ranges from:
12"-16", 16"-20" and 20"-24"
• Depth ranges from:
16"-19" and 19"-22"
• Fixed back heights from:
16"-24"
Contoura Seating
• Available on Tilt, Recline,
Tilt/Recline and Elevate
• Leatherette Seating or
Breathable Mesh Upholstery
• Width ranges from:
16"-20" and 20"-24"
• Depth ranges from:
16"-19" and 19"-22"
• Three fixed back heights:
22", 25" and 28" for Tilt and Elevate
25" and 28" for Recline and Tilt/Recline
Conventional Seating
• Available on Recline and
Tilt/Recline
• Three-panel back design
• Width ranges from:
16"-20" and 20"-24"
• Depth ranges from: 12"-18",
16"-19" and 19"-22"
• Fixed back heights from: 16"-20"
for seat widths of 12"-15" and
20"-26" for adult seat widths
of 16"-24"
11
INVACARE
®
MK6i
Electronics
STORM SERIES®
™
MK Series electronics are the benchmark in power wheelchair
electronics. This is the result of Invacare’s many years of experience
in the design and manufacture of these electronics specifically for
the needs of wheelchair users.
MK6i electronics take the MK Series to the next level by offering features that are easier to use than any other MK Series electronics system.
Advantages of MK6i electronics include:
™
• Based on the Invacare
®
MK
programming logic, so users don’t need to learn
5
a new system
• Reduced set up and programming time with the memory card feature
• Improved simplicity with universal connectors
• Better information for programmers and technicians
Invacare® SPJ™+ Basic Joystick Invacare® MPJ™ + Rehab Joystick Personal Switch
Rehab Joystick
Standard Features
• Single Drive
• Push button on/off
• Push button up/down
• Push button horn
• LED battery & speed indicators
• Charger port
• Quick disconnect cord
Optional Features for Powered
Seating Applications
• 2 mono ports for operation of a single
actuator control outside joystick (left
for tilt or right for elevate)
• Mode button for operation of single
actuator control through the joystick
(shown)
12
Standard Features
• Color Display with Intuitive Icons
• Four Programmable Drives
• Real Time Clock
• Programmable Background Colors
• SD Card Reader
• Built in Mode Button
• 2 switch ports
Standard Features for Powered
Seating Applications
• Programmable switch port for single
actuator systems
• Mode button to access powered seating
through the joystick when enabled
• Programmable powered seating
control choices
Standard Features
• Four programmable drives
• Customized switch type and placement
• Customized front or rear placement of
joystick inductive
• LCD backlit graphics display
• Memory card reader
• Charger port
Standard Features for Powered
Seating Applications
• 2 standard programmable mono ports:
remote on/off and emergency stop/mode
or emergency stop/drive select
• Mode button for operation of powered
seating functions through the joystick
when multiple actuator control is
installed
MK6i™ Controllers
MK6i electronics take a different approach
to expandability. Under previous electronic
systems, the brain of the system was located
in the controller so the “expandability” of the
system was dependent upon the controller.
In MK6i electronics, the controller drives the
motors and the system memory is located in
options such as the driver controls
.
Invacare® MK6i™ Display Invacare® MK6i™
Handheld Programmer
Invacare® MK6i™
Memory Card
Invacare® MK6i™
Universal Connectors
Standard Features
• Four programmable drives
• Attendant toggle on/off
• Large LCD backlit graphics display
• Memory card reader
• Charger port
Standard Features for Powered
Seating Applications
• 2 standard programmable mono ports:
remote on/off and emergency stop/mode
or emergency stop/driver select/single
actuator control outside driver controller
Standard Features
• Large LCD backlit graphics display
allows you to see all drives at once
• Compatible with MK6i or MK5
electronics
• Memory card reader
• “Info” key for programming definitions
• Programmer remains on until turned off
or unplugged
Standard Features for Powered
Seating Applications
• All-powered seating programming is
through the handheld programmer with
MK6i system
Egg Switch with 611 Mount
4-Way Toggle Switch
4-Way Switch Box
4-push Button Switch
13
INVACARE
®
STORM SERIES®
TrueTrack
Technology
Gearless-Brushless GB™ Motors
Invacare® GB™ motors are not only a key component of the
TrueTrack technology, the design is 75% efficient resulting in 17%
more battery range than Invacare’s 4-pole motors. Battery range is
an important feature for active users and users requiring powered
seating systems.
TrueTrack Technology
The patented TrueTrack technology features GB motors and
motor controller. This feature helps keep the power wheelchair
on a true forward path – even on many slopes, thresholds and
uneven terrains. TrueTrack minimizes the need for veer correction,
diminishing fatigue for joystick and switch drivers.
TrueTrack Technology is beneficial for the client for the
following reasons:
• As the power wheelchair holds a truer course, the driver needs to
make fewer course corrections. This makes driving more efficient
by reducing the necessary amount of movement. Reducing the
required movement can increase overall speed (i.e. the client may
be able to move down a hallway faster, as less compensatory
movements are required), decrease fatigue and promote safety/
independence while driving, because the chair is not pulled off
course. This is true for drivers using a proportional control as well
as a digital or non-proportional system.
• This feature is critical for clients who fatigue
easily, as less compensatory movements are
required.
• This feature also is critical for clients who use a
non-proportional or digital access method (i.e. a
head array with proximity switches or pneumatic
sip-n-puff controls). Driving with switches can
be very tedious and inefficient. Making frequent
course corrections significantly increases the
effort, time and energy required. Fewer course
corrections translates to a more efficient, safer
driver.
14
INVACARE
®
STORM SERIES®
Transport Tie-Down Options
The Invacare transport tie-down options TRRO and TRBKTS go beyond the traditional
“securement” brackets on other wheelchair designs. The transport tie-down options
include four tie-down locations that are clearly marked for the caregiver to see.
The options also include a battery securement system that prevents batteries from
becoming dislodged in the case of an accident.
Invacare order forms will include two transport tie-down selections, TRRO* and
TRBKTS. All Invacare® wheelchairs with TRRO have been tested and passed the ANSI/
RESNA WC Vol. 1 Section 19 standard using a specific seating system and configura-
tion. TRBKTS includes four factory-installed wheelchair transport brackets. TRBKTS has not been crash-tested in accordance with WC 19.
Use these transport brackets only to secure an unoccupied wheelchair during transport. See order forms and the owners manual for more
information.
* TRRO includes four factory-installed transport brackets and a wheelchair anchored pelvic belt. TRRO has been crash-tested in accordance with ANSI/RESNA WC Vol 1. Section 19 Frontal Impact
Test requirements for wheelchairs with a 168 lb. crash dummy, which corresponds to a person with a weight of 114 to 209 lb.
As of this date, the U.S. Department of Transportation has not approved any tie-down systems for transportation of a user while in a wheelchair, in a moving vehicle of any type. It is Invacare’s
position that users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry. Invacare cannot
and does notrecommend any wheelchair transportation systems.
ANSI/RESNA WC Vol.1 Section 19.6.2 Presale Literature Notification – Storm Series
A. Minimum turning radius 31.9"
Minimum turn-around width 63.8"
B. Arrow®, Ranger X™, Torque™ SP and Torque™ 3 wheelchairs have
a maximum length of 41.5" or 1054 mm, meeting the ADA
definition of a common wheelchair and the maximum length
requirements of lifts on public transportation.
C. Total wheelchair mass = 322 lb. (146 kg) Arrow
296 lb. (134 kg) Ranger X
296 lb. (134 kg) Torque SP and Torque 3
including front riggings, wheel locks, TRO brackets, wheelchair-
anchored pelvic belt and seating.
D. Average lateral dummy displacement = approximately .48"
(121.3 mm)
E. Overall Score = 20 Overall Rating = A
F. i. The Arrow, Ranger X, Torque SP and Torque 3 wheelchairs
were sized to accommodate a 168 lb. test dummy
(17" x 17" x 18" high and 14" Rear-Wheel-Drive tires).
ii. The Arrow, Ranger X, Torque SP and Torque 3 wheelchairs
were tied down using four tie-down brackets – 2 brackets
located on the front of the base frame and 2 brackets
located on the rear of the base frame.
iii. The Arrow, Ranger X, Torque SP and Torque 3 wheelchairs
were tested with a 168 lb. test dummy.
iv. The Arrow, Ranger X, Torque SP and Torque 3 wheelchairs
tested used a wheelchair-anchored pelvic belt and vehicle-
anchored shoulder belt.
v. The Arrow, Ranger X, Torque SP and Torque 3 wheelchairs
tested comply with the performance requirements of
ANSI/RESNA WC 19 sec. 5.3.
G. For all types of vehicles, the Arrow, Ranger X, Torque SP and
Torque 3 require four SAE J2249-compliant tie-down strap assem-
blies for effective securement.
H. The Arrow, Ranger X, Torque SP and Torque 3 provide a location
for anchoring of an Invacare-provided pelvic belt. This belt has
been tested in accordance with ANSI/RESNA WC 19.
I. The wheelchair-anchored pelvic belt is supplied by Invacare.
15
Invacare® Storm Series® Specifications
Group 4 Group 3 Group 4 Group 3
Arrow
Motor package
Standard Motor Package True Track GB
Optional Motor Package N/A True Track GB motors True Track GB
Maximum speed
4-pole motor N/A N/A N/A 5.8 mph
Performance 4-pole motor N/A N/A 6 mph N/A
HD 4-pole motor (400 lb.) N/A 5 mph N/A N/A
TrueTrack GB motor 7 mph 7 mph 7 mph 7 mph
Maximum weight capacity
4-pole motor N/A 400 lb. 300 lb. 300 lb.
TrueTrack GB motor 400 lb. 400 lb. 300 lb. 300 lb.
Overall base width (with 14"x3" wheels)
4-pole motor N/A 25" 25" 25"
TrueTrack GB motor 24.75" 24.75" 24.75" 24.75"
Seat-to-floor height (at 0˚ tilt)
Low 17.5" 17.5" 17.5" 17.5"
Medium 19.5" 19.5" 19.5" 19.5"
Tall 21" 21" 21" 21"
Overall base length*
Short Base 28.5" 28.5" 28.5" 28.5"
Long Base 31.5" 31.5" 31.5" 31.5"
Seat adjustability
Width (1" increments) 12" to 24" 12" to 24" 12" to 22" 12" to 22"
Depth (1" increments) 12" to 22" 12" to 22" 12" to 22" 12" to 22"
Back Angle (5˚ increments) 85˚ to 105˚ 85˚ to 105˚ 85˚ to 105˚ 85˚ to 105˚
Seat Tilt (continuous adjustment) 0˚ to 10˚ 0˚ to 10˚ 0˚ to 10˚ 0˚ to 10˚
Arm height
Fixed 10" 10" 10" 10"
Adjustable 9.5" to 13.5" 9.5" to 13.5" 9.5" to 13.5" 9.5" to 13.5"
Drive w heels
Pneumatic (standard) 14" x 3" 14" x 3" 14" x 3" 14" x 3"
Foam-Filled (optional) 14" x 3" 14" x 3" 14" x 3" 14" x 3"
Pneumatic and foam-filled (optional)** N/A 14" x 4" 14" x 4" 14" x 4"
Free-wheel hub (optional) N/A Optional Optional Optional
Casters
Semi-pneumatic (standard) 8" x 2.25" 8" x 2.25" 8" x 2.25" 8" x 2.25"
Pneumatic (optional) 8" x 2.25" 8" x 2.25" 8" x 2.25" 8" x 2.25"
Pneumatic and foam-filled (optional) 9" x 3" 9" x 3" 9" x 3" 9" x 3"
Caster Suspension (optional)
Pneumatic and semi-pneumatic 8" 8" 8" 8"
Electronics
MK6i MK6 TT with MPJ
MK6i MK690 with MPJ+ (optional) MK690 with MPJ+ (optional)
Batteries***
22NF N/A N/A Standard Standard
Group 24 Standard Standard Optional Optional
Weight
18" x 18" seat size with Group 24 batteries
and no front riggings 292 lb. 266 lb. 266 lb. 266 lb.
* Measured from head tube to standard anti-tip wheel. ** 14"x14" adds 2" to overall width. Not available with TrueTrack GB motors. *** Sealed gel cell recommended.
®
Wheelchair Ranger X™ Wheelchair Torque™ SP Wheelchair Torque™ 3 Wheelchair
™
motors HD 4-pole motor Performance 4-pole motor 4-pole motor
motors True Track GB motors
™
+ MK690 with MPJ+ MK690 with SPJ+ (standard) MK690 with SPJ+ (standard)
Invacare Corporation www.invacare.com
USA
One Invacare Way
Elyria, Ohio
44035-4190
(800) 333-6900
Canada
570 Matheson Blvd. E.
Unit 8
Mississauga, Ontario
L4Z 4G4 Canada
(800) 668-5324
© 2010 Invacare Corporation.
All rights reserved. Trademarks are identified by the symbols ™ and ®.
All trademarks are owned by or licensed to Invacare Corporation unless
otherwise noted. Monroe is a registered trademark of Tenneco Automotive Inc.
Specifications are subject to change without notification.
Patent pending. Form No. 06-040 Rev. 05/10
16
Loading...
