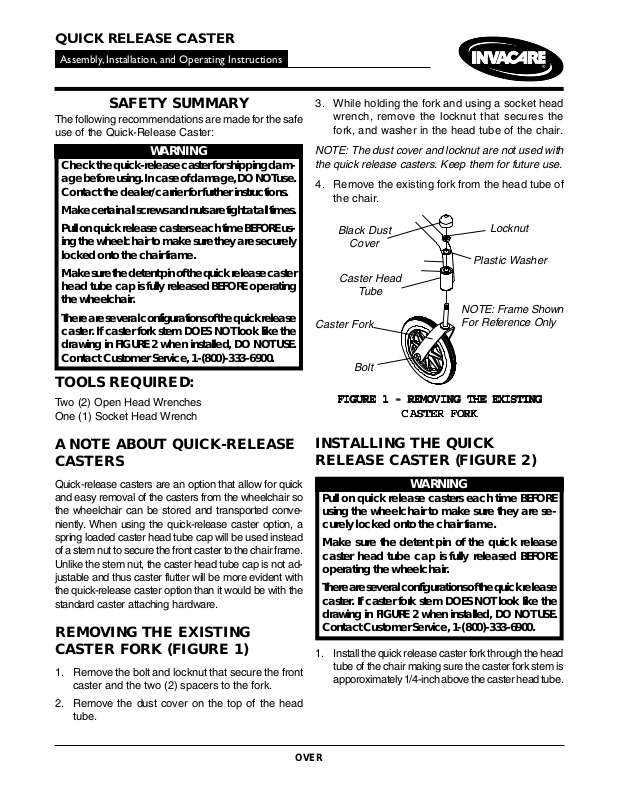

Invacare Quick Release Caster User Manual
QUICK RELEASE CASTER
Assembly, Installation, and Operating Instructions
SAFETY SUMMARY
The following recommendations are made for the safe
use of the Quick-Release Caster:
WARNING
Check the quick-release caster for shipping damage before using. In case of damage, DO NOT use.
Contact the dealer/carrier for further instructions.
Make certain all screws and nuts are tight at all times.
Pull on quick release casters each time BEFORE us-
ing the wheelchair to make sure they are securely
locked onto the chair frame.
Make sure the detent pin of the quick release caster
head tube cap is fully released BEFORE operating
the wheelchair.
There are several configurations of the quick release
caster. If caster fork stem DOES NOT look like the
drawing in FIGURE 2 when installed, DO NOT USE.
Contact Customer Service, 1-(800)-333-6900.
TOOLS REQUIRED:
Two (2) Open Head Wrenches
One (1) Socket Head Wrench
3. While holding the fork and using a socket head
wrench, remove the locknut that secures the
fork, and washer in the head tube of the chair.
NOTE: The dust cover and locknut are not used with
the quick release casters. Keep them for future use.
4. Remove the existing fork from the head tube of
the chair.
Black Dust
Cover
Caster Head
Tube
Caster Fork
Bolt
FIGURE 1 - REMOFIGURE 1 - REMO
FIGURE 1 - REMO
FIGURE 1 - REMOFIGURE 1 - REMO
VING VING
VING
VING VING
CC
ASTER FORKASTER FORK
C
ASTER FORK
CC
ASTER FORKASTER FORK
Locknut
Plastic Washer
NOTE: Frame Shown
For Reference Only
THE EXISTINGTHE EXISTING
THE EXISTING
THE EXISTINGTHE EXISTING
A NOTE ABOUT QUICK-RELEASE
CASTERS
Quick-release casters are an option that allow for quick
and easy removal of the casters from the wheelchair so
the wheelchair can be stored and transported conveniently. When using the quick-release caster option, a
spring loaded caster head tube cap will be used instead
of a stem nut to secure the front caster to the chair frame.
Unlike the stem nut, the caster head tube cap is not adjustable and thus caster flutter will be more evident with
the quick-release caster option than it would be with the
standard caster attaching hardware.
REMOVING THE EXISTING
CASTER FORK (FIGURE 1)
1. Remove the bolt and locknut that secure the front
caster and the two (2) spacers to the fork.
2. Remove the dust cover on the top of the head
tube.
INSTALLING THE QUICK
RELEASE CASTER (FIGURE 2)
WARNING
Pull on quick release casters each time BEFORE
using the wheelchair to make sure they are securely locked onto the chair frame.
Make sure the detent pin of the quick release
caster head tube cap is fully released BEFORE
operating the wheelchair.
There are several configurations of the quick release
caster. If caster fork stem DOES NOT look like the
drawing in FIGURE 2 when installed, DO NOT USE.
Contact Customer Service, 1-(800)-333-6900.
1. Install the quick release caster fork through the head
tube of the chair making sure the caster fork stem is
apporoximately 1/4-inch above the caster head tube.
OVER
2. Depress the detent pin of the quick release caster
head tube cap and install over the top of the quick
release caster fork stem.
3. Release the detent pin of the quick release caster
head tube cap and pull on the caster fork to make
sure the fork is securely attached to the chair.
Approximately
1/4-inch
Caster Fork
Stem
4. Reinstall and securely tighten the bolt and locknut
that secure the two (2) spacers and caster onto the
quick release caster fork.
5. Repeat this procedure for the opposite side.
WARNING
There are several configurations of the quick
release caster. If caster fork stem DOES NOT
look like the drawing in FIGURE 2 when installed, DO NOT USE. Contact Customer Service, 1-(800)-333-6900.
NOTE: When removing the quick release casters for
any reason, reinstall the quick release caster head
tube cap onto the fork stem so it can be located easily for future use.
Caster
Head
Tube
Detent Pin
NOTE: Frame Shown
For Reference Only
Bolt
Caster Head
Tube Cap
Caster Head
Tube
Invacare Corporation www.invacare.com
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
Technical Support
800-832-4707
FIGURE 2 - INSTFIGURE 2 - INST
FIGURE 2 - INST
FIGURE 2 - INSTFIGURE 2 - INST
Invacare is a registered trademark of Invacare Corporation
© 1999 Invacare Corporation
Form No. 94-150 P/N 1050205 Rev. A (1) - 11/99
ALLING ALLING
ALLING
ALLING ALLING
CC
ASTERASTER
C
ASTER
CC
ASTERASTER
THE QUICK-RELEASETHE QUICK-RELEASE
THE QUICK-RELEASE
THE QUICK-RELEASETHE QUICK-RELEASE
