Parts Catalog
Issued: Oct 9, 2012
AX3
Wheelchair
Yes, you can. ™
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
Parts Catalog Usage Guide
To order call toll free 1-800-333-6900, or www.invacare.com
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 07-076. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Examples:
A,B,C etc.
NOTE:
NLA
= Special Comments
= General information pertaining to that specific page
= No Longer Available
HARDWARE MEASUREMENTS
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
© 2012 Invacare Corporation, Elyria, Ohio. Invacare, the Medallion Design and Yes, you can. are registered trademarks of the Invacare Corporation.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
Information is subject to change without notification.
Form No. 07-076
1
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-076
Description
Accessories .............................................................................................................................. 53
Arms - Adjustable Swingaway Height ...................................................................................... 13
Arms - Fixed Height Swingaway .............................................................................................. 9
Arms - T-Arm Style ................................................................................................................... 6
Axles and Axle Mounting Plate Hardware ................................................................................ 17
Back Canes and Back Hardware ............................................................................................. 19

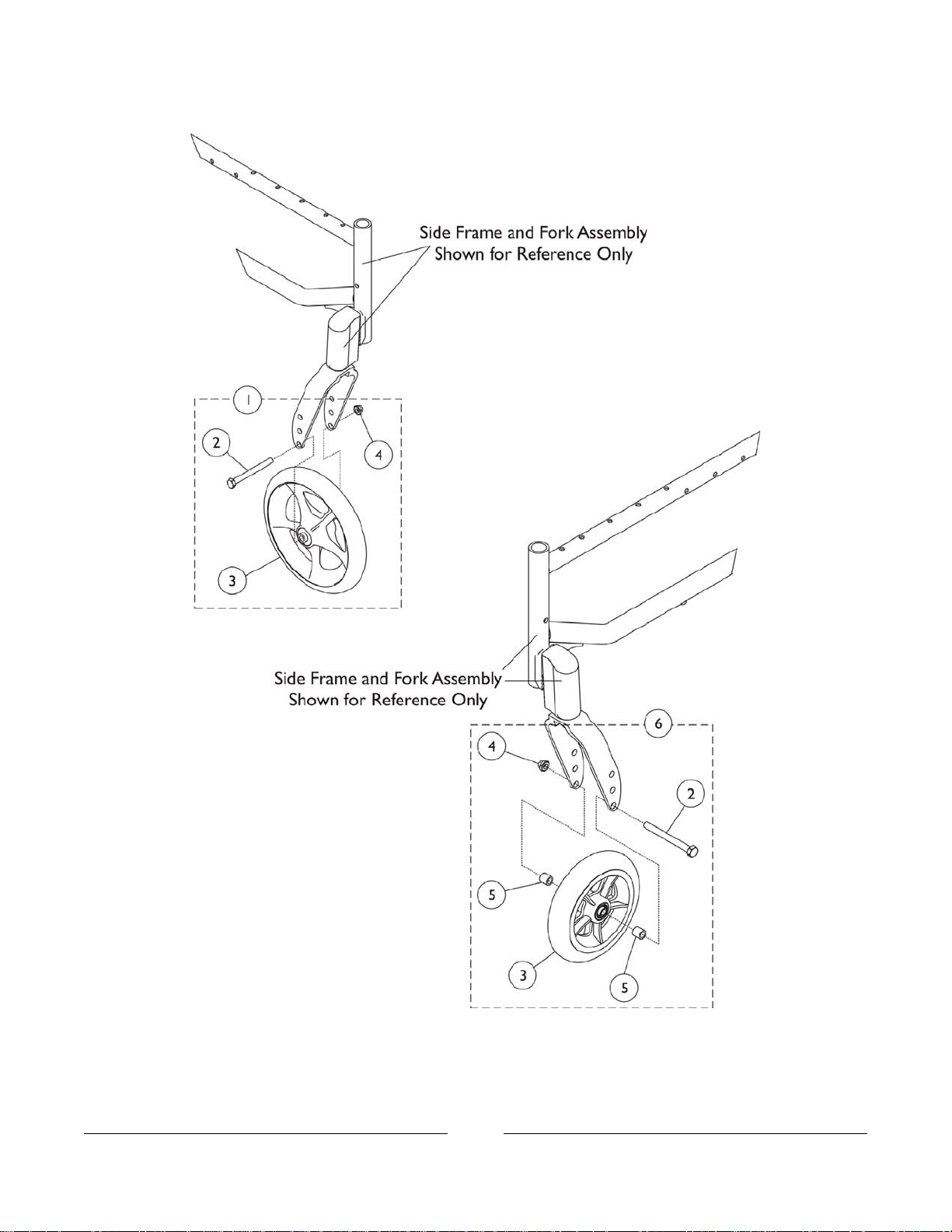

Casters - Front and Mounting Hardware .................................................................................. 30
Crossbraces and Hardware ...................................................................................................... 22

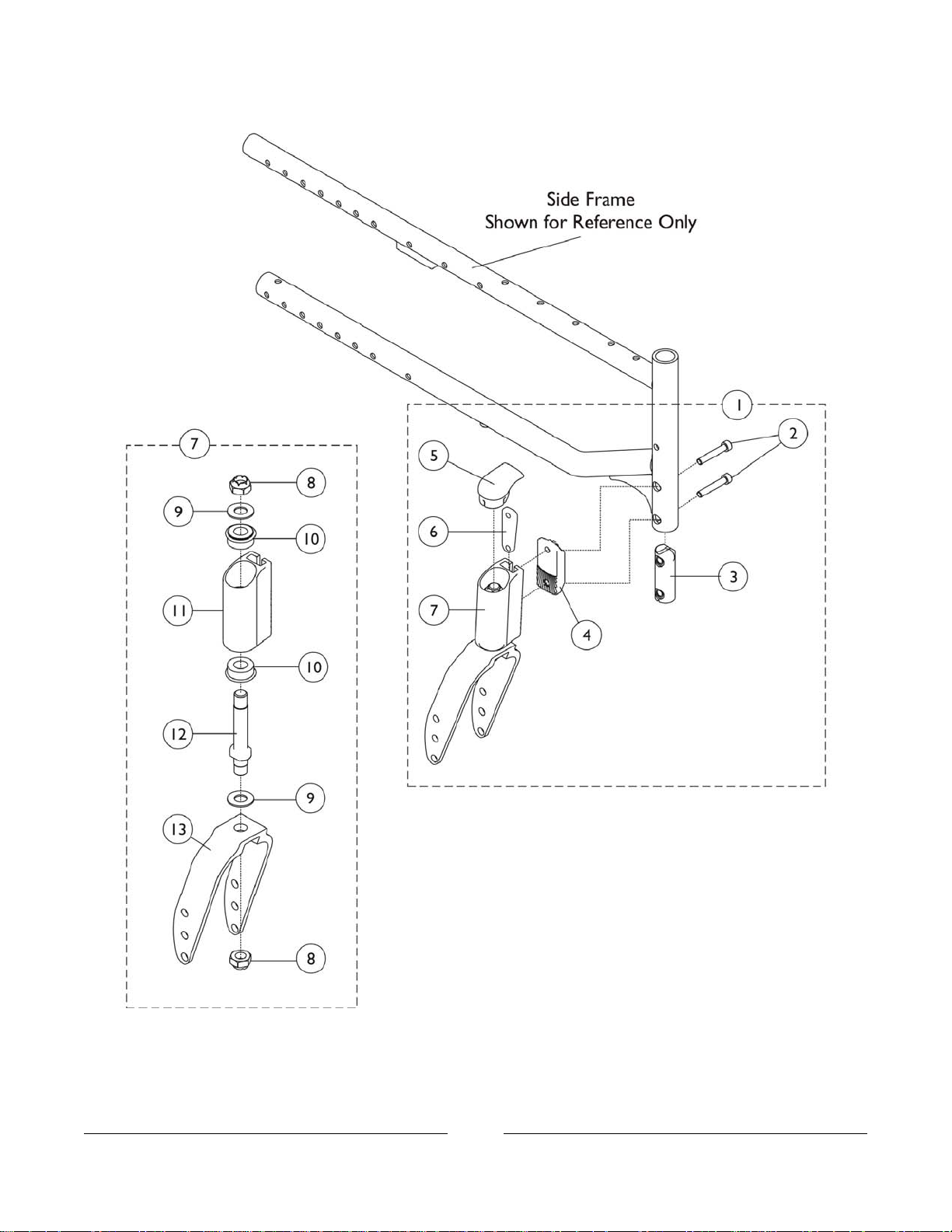

Forks and Headtube Hardware ................................................................................................ 25
Frame Finishes and Touch-Up Paint ........................................................................................ 4
Frame Hardware ...................................................................................................................... 27
Front Riggings - Adjustable Angle Footplate Assemblies - AT5543 ......................................... 40
Front Riggings - Elevating Legrest Support Assemblies - ELRSS ........................................... 35
Front Riggings - Footplate and Pivot Tube Assemblies - 1651 Composite .............................. 43
Front Riggings - Legrest Calf Pads .......................................................................................... 34
Front Riggings - Swing-In-Out Footrest .................................................................................... 32
Packaging and Literature ......................................................................................................... 5
Rigidizer Bar ............................................................................................................................. 51
Upholstery - Back ..................................................................................................................... 46
Upholstery - Seat ...................................................................................................................... 47
Wheel Locks, Push to Lock & Push to Lock Extended ............................................................. 49
2
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 07-076
Description

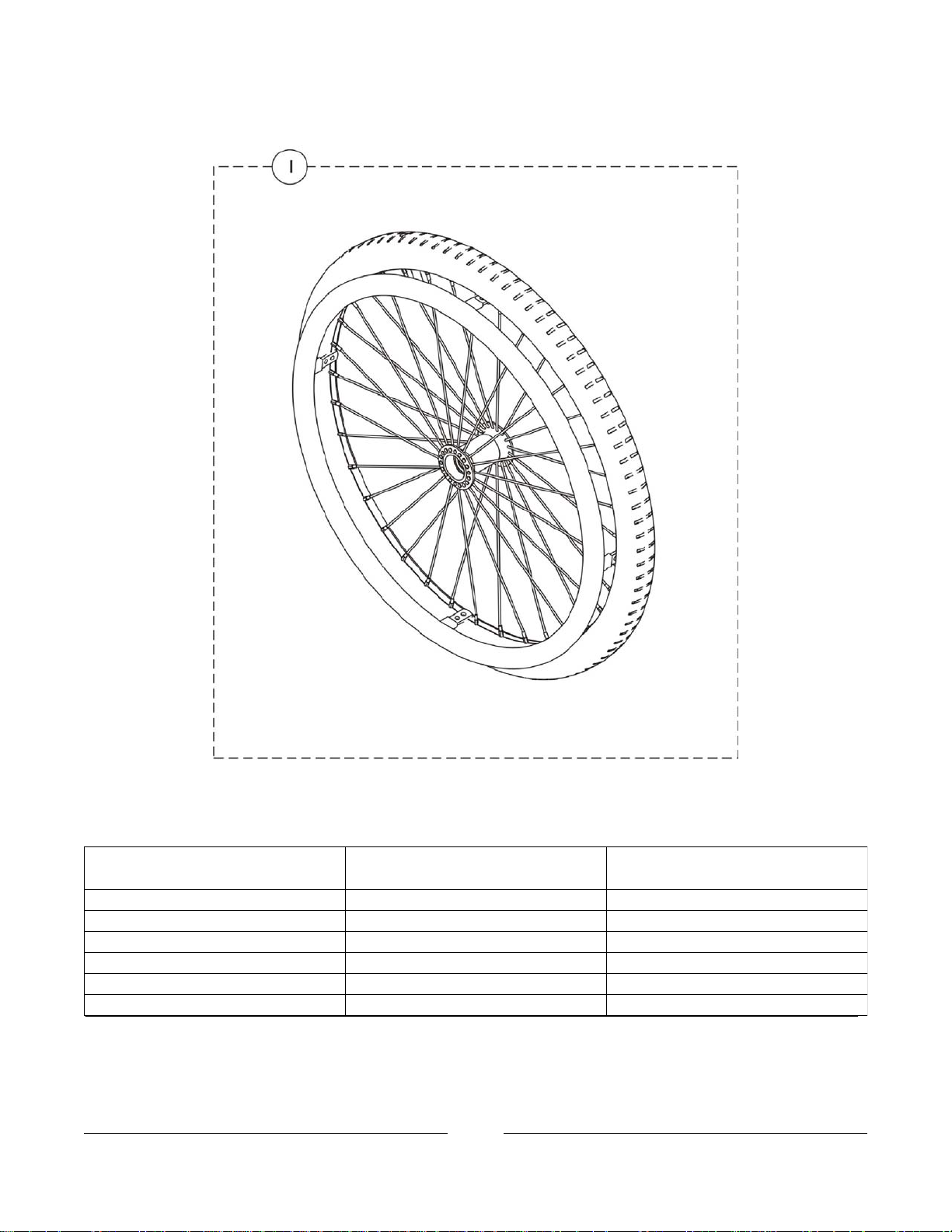

Wheels - Rear with Handrims ................................................................................................... 29
3
Contemporary Color Numbers Touch-Up Paint (.6 oz.) Color
Black Prism1133371115P
Midnight Blue1101326105P
Silver Metallic110131860P
Silver VeinN/A71P
Wet Black103145024P
ColorTouch-Up Paint (.6 oz.)Too Hot Color Numbers
Bubblegum Pink1133375119P
Electric Red104632161P
Grape Madness1133376120P
Sunny Yellow107416730P
ColorTouch-Up Paint (.6 oz.)Way Cool Color Numbers
Cosmic Blue1133378122P
Electric Blue104632062P
Electric Teal1101316104P
Emerald Green1133381125P
Grasshopper Green1133383127P
Lolly Pop Blue1133377121P
Frame Finishes and Touch-Up Paint
Form No. 07-076
4
To order call toll free 1-800-333-6900, or www.invacare.com
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1147644 Packaging, AX3 1 1
Bag, Poly (26" L x 15" W) 1 1
Carton 1 1
Kit, Enclosure - AX3 1 1
Insert, Carton 1 1
Insert, Top Carton 1 1
Bag, Poly 1 1
1143216-NLA NLA - Owner's Manual, AX3 1 1
Packaging and Literature
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
5
T-Arm Style Arms
Form No. 07-076
6
To order call toll free 1-800-333-6900, or www.invacare.com
T-Arm Style Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1428596-0601 Armrest, T-Arm, Adjustable Height, Desk - Right 1 11 A
Arm Pad, Desk Length 1 12
Plug Button, Black (3/4") 1 23
Screw, Socket Button Head (M6 x 1 x 12mm) 1 34
Guard, Clothing - Right/Left 1 15
Locknut (M6 x 1) 1 56
Support, Armrest 1 17
Screw, Socket Head (1/4-20 x 1") 1 28
Tube, Armrest - Right 1 19
Screw, Socket, Button Head (M5 x 35mm) 1 210
1428597-0601 Armrest, T-Arm, Adjustable Height, Desk - Left 1 11 A
Arm Pad, Desk Length 1 12
Plug Button, Black (3/4") 1 23
Screw, Socket Button Head (M6 x 1 x 12mm) 1 34
Guard, Clothing - Right/Left 1 15
Locknut (M6 x 1) 1 56
Support, Armrest 1 17
Screw, Socket Head (1/4-20 x 1") 1 28
Tube, Armrest, Black - Left 1 19
Screw, Socket, Button Head (M5 x 35mm) 1 210
1428598-0601 Armrest, T-Arm, Adjustable Height, Full - Right 1 111 B
Arm Pad, Full Length 1 12
Plug Button, Black (3/4") 1 23
Screw, Socket Button Head (M6 x 1 x 12mm) 1 34
Guard, Clothing - Right/Left 1 15
Locknut (M6 x 1) 1 56
Support, Armrest 1 17
Screw, Socket Head (1/4-20 x 1") 1 28
Tube, Armrest - Right 1 19
Tube, Support, Armpad, Full Length 1 112
Button, Plug (22mm) 1 113
Screw, Socket Head, Torx (K50 x 30mm) 1 114
Screw, Socket, Button Head (M5 x 35mm) 1 215
Washer (.250 x .562 x .065/036) 1 216
1428599-0601 Armrest, T-Arm, Adjustable Height, Full - Left 1 111 B
Arm Pad, Full Length 1 12
Plug Button, Black (3/4") 1 23
Screw, Socket Button Head (M6 x 1 x 12mm) 1 34
Guard, Clothing - Right/Left 1 15
Locknut (M6 x 1) 1 56
Support, Armrest 1 17
Screw, Socket Head (1/4-20 x 1") 1 28
Tube, Armrest, Black - Left 1 19
Tube, Support, Armpad, Full Length 1 112
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
7
T-Arm Style Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Button, Plug (22mm) 1 113
Screw, Socket Head, Torx (K50 x 30mm) 1 114
Screw, Socket, Button Head (M5 x 35mm) 1 215
Washer (.250 x .562 x .065/036) 1 216
1151420 Arm Pad w/Hardware, Full Length 1 1C
Pad, Arm, Full Length 1 12
Screw, Socket Head, Torx (K50 x 30mm) 1 114
Screw, Socket Head, Torx (K50 x 35mm) 1 215
Washer (.250 x .562 x .065/036) 1 216
1151386 Armpad Kit w/Hardware, Desk Length 1 1D
Arm Pad, Desk Length 1 12
Screw, Socket Head, Torx (K50 x 30mm) 1 214
1151387 Clothing Guard Kit 1 1E
Screw, Socket Button Head (M6 x 1 x 12mm) 1 34
Guard, Clothing - Right/Left 1 15
Locknut (M6 x 1) 1 36
1151388 Clamp Kit, Arm 1 1F
Locknut (M6 x 1) 1 26
Support, Armrest 1 17
Screw, Socket Head (1/4-20 x 1") 1 28
1151389 Package, Plug Button, Black (3/4") 10 13 G
1151390 Package, Plug Button, Black (22mm) 10 113 G
A - Includes items 2 - 10.
B - Includes items 2 - 9, and 12 - 16.
C - Includes items 2, 14, 15 and 16.
D - Includes items 2 and 10.
E - Includes items 4 - 6.
F - Includes 6 - 8.
G - Includes a packet of 10 plug buttons.
NOTE:
Form No. 07-076
8
To order call toll free 1-800-333-6900, or www.invacare.com
Fixed Height Swingaway Arms
Form No. 07-076
9
To order call toll free 1-800-333-6900, or www.invacare.com
Fixed Height Swingaway Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881147703-NLANLA - Armrest, Swingaway, Fixed Height, Desk,
Right
1 11 A
Arm Pad, Desk Length 1 12
Tube, Armrest, Color 1 13
Grip, Foam Armrest 1 14
Spring, Torsion with Button Lock 1 15
Screw, Socket Button Head (M6 x 40mm) 1 16
Socket, Armrest, Front 1 17
Plug, Armrest 1 19
Guard, Clothing, Desk Length - Right 1 110
Screw, Socket Head, Torx (K50 x 35mm) 1 311
Support, Armrest 1 112
Bushing (6mmx 9.4mm x 10mm) 1 113
Washer (.250 x .562 x .065/036) 1 114
Screw, Countersunk (M4.8 x 15mm) 1 115
Washer (.250 x .562 x .065/036) 1 216
Screw (M6 x 1 x 35mm) 1 120
8881147704-NLANLA - Armrest, Swingaway, Fixed Height, Desk, Left 1 11 A
Arm Pad, Desk Length 1 12
Tube, Armrest, Color 1 13
Grip, Foam Armrest 1 14
Spring, Torsion with Button Lock 1 15
Screw, Socket Button Head (M6 x 40mm) 1 16
Socket, Armrest, Front 1 17
Plug, Armrest 1 19
Guard, Clothing, Desk Length - Left 1 110
Screw, Socket Head, Torx (K50 x 35mm) 1 311
Support, Armrest 1 112
Bushing (6mmx 9.4mm x 10mm) 1 113
Washer (.250 x .562 x .065/036) 1 114
Screw, Countersunk (M4.8 x 15mm) 1 115
Washer (.250 x .562 x .065/036) 1 216
Screw (M6 x 1 x 35mm) 1 120
8881147705-NLANLA - Armrest, Swingaway, Fixed Height, Full, Right 1 121 B
Screw, Socket Button Head (M6 x 40mm) 1 12
Washer (.250 x .562 x .065/036) 1 13
Socket, Armrest, Front 1 14
Grip, Foam Armrest 1 15
Plug, Armrest 1 16
Spring, Torsion with Button Lock 1 17
Support, Armrest 1 19
Tube, Armrest, Color 1 110
Pad, Arm, Full Length 1 111
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
10
Fixed Height Swingaway Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Bushing (6mmx 9.4mm x 10mm) 1 112
Screw, Countersunk (M4.8 x 15mm) 1 113
Screw, Socket Head, Torx (K50 x 35mm) 1 314
Guard, Clothing, Desk Length - Right 1 115
Button, Plug (22mm) 1 117
Screw, Socket Head, Torx (K50 x 30mm) 1 118
Tube, Support, Arm Pad, Full Length 1 119
Screw (M6 x 1 x 35mm) 1 120
8881147706-NLANLA - Armrest, Swingaway, Fixed Height, Full, Left 1 121 B
Screw, Socket Button Head (M6 x 40mm) 1 12
Washer (.250 x .562 x .065/036) 1 13
Socket, Armrest, Front 1 14
Grip, Foam Armrest 1 15
Plug, Armrest 1 16
Spring, Torsion with Button Lock 1 17
Support, Armrest 1 19
Tube, Armrest, Color 1 110
Pad, Arm, Full Length 1 111
Bushing (6mmx 9.4mm x 10mm) 1 112
Screw, Countersunk (M4.8 x 15mm) 1 113
Screw, Socket Head, Torx (K50 x 35mm) 1 314
Guard, Clothing, Desk Length - Left 1 115
Button, Plug (22mm) 1 117
Screw, Socket Head, Torx (K50 x 30mm) 1 118
Tube, Support, Arm Pad, Full Length 1 119
Screw (M6 x 1 x 35mm) 1 120
1151421-NLA NLA - Arm Pad w/Hardware, Full Length 1 1C
Pad, Arm, Full Length 1 12
Screw, Socket Head, Torx (K50 x 35mm) 1 311
Screw, Socket Head, Torx (K50 x 30mm) 1 119
1151391-NLA NLA - Arm Pad w/Hardware, Desk Length 1 1D
Arm Pad, Desk Length 1 12
Screw, Socket Head, Torx (K50 x 35mm) 1 311
Washer (.250 x .562 x .065/036) 1 216
1151392 H-Block Kit, Front 1 1E
Screw (M6 x 1 x 35mm) 1 16
Socket, Armrest, Front 1 17
Locknut (M6 x 1) 1 18
1151393-NLA NLA - Support Kit, Armrest, Right 1 1F
Screw, Socket Button Head (M6 x 40mm) 1 16
Locknut (M6 x 1) 1 18
Support, Armrest 1 112
Bushing (6mmx 9.4mm x 10mm) 1 113
Washer (.250 x .562 x .065/036) 1 114
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
11
Fixed Height Swingaway Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Screw, Countersunk (M4.8 x 15mm) 1 115
1151394-NLA NLA - Support Kit, Armrest, Left 1 1F
Screw, Socket Button Head (M6 x 40mm) 1 16
Support, Armrest 1 112
Bushing (6mmx 9.4mm x 10mm) 1 113
Washer (.250 x .562 x .065/036) 1 114
Screw, Countersunk (M4.8 x 15mm) 1 115
A - Includes items 2 - 16 and 20.
B - Includes items 2 - 20.
C - Not shown. Includes items 2, 11 and 19.
D - Not shown. Includes items 2, 11 and 16.
E - Not shown. Includes items 6 - 8.
F - Not shown. Includes items 6, 8, 12, 13, 14 and 15.
NOTE:
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
12
Adjustable Swingaway Height Arms
Form No. 07-076
13
To order call toll free 1-800-333-6900, or www.invacare.com
Adjustable Swingaway Height Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881147707-NLANLA - Armrest, Adjustable Height, Desk, Right 1 11 A
Pad, Arm, Desk Length 1 12
Screw, Phillips Flat Head (#4-40 x 3/8") 1 33
Rivet, Pop (5 x 10) 1 24
Rivet 1 15
Guard, Clothing 1 16
Spring, Torsion with Button Lock 1 17
Screw, Socket Button Head (M6 x 40mm) 1 18
Socket, Armrest, Front 1 19
Plug, Armrest 1 111
Screw, Socket Head (8-32 x 5/8") 1 112
Bushing (6mmx 9.4mm x 10mm) 1 113
Support, Armrest 1 114
Washer (.250 x .562 x .065/036) 1 115
Armrest - Right 1 116
Arm Pad Mounting Assembly - Right 1 117
Screw (M6 x 1 x 35mm) 1 118
8881147708-NLANLA - Armrest, Adjustable Height, Desk, Left 1 11 A
Pad, Arm, Desk Length 1 12
Screw, Phillips Flat Head (#4-40 x 3/8") 1 13
Rivet, Pop (5 x 10) 1 24
Rivet 1 15
Guard, Clothing 1 16
Spring, Torsion with Button Lock 1 17
Screw, Socket Button Head (M6 x 40mm) 1 18
Socket, Armrest, Front 1 19
Plug, Armrest 1 111
Screw, Socket Head (8-32 x 5/8") 1 112
Bushing (6mmx 9.4mm x 10mm) 1 113
Support, Armrest 1 114
Washer (.250 x .562 x .065/036) 1 115
Armrest - Left 1 116
Arm Pad Mounting Assembly - Left 1 117
Screw (M6 x 1 x 35mm) 1 118
8881147709-NLANLA - Armrest, Adjustable Height, Full, Right 1 11 A
Pad, Arm, Full Length 1 12
Screw, Phillips Flat Head (#4-40 x 3/8") 1 33
Rivet 1 14
Rivet, Pop (5 x 10) 1 25
Guard, Clothing 1 16
Spring, Torsion with Button Lock 1 17
Screw, Socket Button Head (M6 x 40mm) 1 18
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
14
Adjustable Swingaway Height Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Socket, Armrest, Front 1 19
Plug, Armrest 1 111
Screw, Socket Head (8-32 x 5/8") 1 112
Bushing (6mmx 9.4mm x 10mm) 1 113
Support, Armrest 1 114
Washer (.250 x .562 x .065/036) 1 115
Armrest - Right 1 116
Arm Pad Mounting Assembly - Right 1 117
Screw (M6 x 1 x 35mm) 1 118
8881147710-NLANLA - Armrest, Adjustable Height, Full, Left 1 11 A
Pad, Arm, Full Length 1 12
Screw, Phillips Flat Head (#4-40 x 3/8") 1 33
Rivet, Pop (5 x 10) 1 24
Rivet 1 15
Guard, Clothing 1 16
Spring, Torsion with Button Lock 1 17
Screw, Socket Button Head (M6 x 40mm) 1 18
Socket, Armrest, Front 1 19
Plug, Armrest 1 111
Screw, Socket Head (8-32 x 5/8") 1 112
Bushing (6mmx 9.4mm x 10mm) 1 113
Support, Armrest 1 114
Washer (.250 x .562 x .065/036) 1 115
Armrest - Left 1 116
Arm Pad Mounting Assembly - Left 1 117
Screw (M6 x 1 x 35mm) 1 118
1151422 Arm Pad w/Hardware, Full Length 1 1B
Pad, Arm, Full Length 1 12
Screw, Phillips Flat Head (#4-40 x 3/8") 1 33
1151395 Arm Pad w/Hardware, Desk Length 1 1B
Pad, Arm, Desk Length 1 12
Screw, Phillips Flat Head (#4-40 x 3/8") 1 23
1151392 H-Block Kit, Front 1 1C
Screw (M6 x 1 x 35mm) 1 18
Socket, Armrest, Front 1 19
Locknut (M6 x 1) 1 110
1151397-NLA NLA - Armrest Support, Adjustable Height, Right 1 1D
Screw, Phillips Flat Head (#4-40 x 3/8") 1 13
Screw, Socket Button Head (M6 x 40mm) 1 18
Locknut (M6 x 1) 1 110
Bushing (6mmx 9.4mm x 10mm) 1 113
Support, Armrest 1 114
Washer (.250 x .562 x .065/036) 1 115
1151398-NLA NLA - Armrest Support, Adjustable Height, Left 1 1D
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
15
Adjustable Swingaway Height Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Screw, Phillips Flat Head (#4-40 x 3/8") 1 13
Screw, Socket Button Head (M6 x 40mm) 1 18
Locknut (M6 x 1) 1 110
Bushing (6mmx 9.4mm x 10mm) 1 113
Support, Armrest 1 114
Washer (.250 x .562 x .065/036) 1 115
A - Includes items 2 - 17.
B - Not shown. Includes items 2 and 3.
C - Not shown. Includes items 8 - 10.
D - Not shown. Includes items 3, 8, 10, 13, 14 and 15.
NOTE:
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
16
Axles and Axle Mounting Plate Hardware
Form No. 07-076
17
To order call toll free 1-800-333-6900, or www.invacare.com
Axles and Axle Mounting Plate Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1430177 Axle, Quick Release Assembly, Spoked 1 11 A
Screw, C-Sunk Head (M6 x 1 x 40mm) 2 12
Plate, Axle, Quick Release 2 13
Axle, Quick Release 2 14
Lug, Axle 2 15
Washer (.250 x .562 x .065/036) 2 16
Washer, Serrated (M20.3 x 30mm x 1.5mm) 2 17
Nut (3/4-16) 2 18
Locknut (M6 x 1) 2 19
1430182-NLA NLA - Axle, Fixed Assembly, Composite 1 110 B
Screw, C-Sunk Head (M6 x 1 x 40mm) 2 14
Plate, Axle, Fixed 2 16
Screw, Hex (M12 x 1.75 x 115mm) 2 18
Washer (M22 x 12mm x 2.5mm) 2 111
Nut, Hex (M12 X 1.75) 2 112
Spacer (12.2MM x 20 x 25.4mm) 2 113
Locknut (M6 x 1) 2 114
1151399-NLA NLA - Axle Kit, Fixed Spoke 1 115 C
Screw, Hex (M12 x 1.75 x 115mm) 2 111
Spacer (12.2MM x 20 x 25.4mm) 2 112
Washer (M22 x 12mm x 2.5mm) 2 113
Nut, Hex (M12 X 1.75) 2 114
A - Includes items 2-9.
B - Includes items 4-6 and 11-14. Item #5 Axle Plate surface coating changed from colorless to a champagne color as of
11/16/09.
C - Includes items 11-14.
NOTE:
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
18
Back Canes and Back Hardware
Form No. 07-076
19
To order call toll free 1-800-333-6900, or www.invacare.com
Back Canes and Back Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1428635-0601 Cane w/Hardware, Rear, 0 Degree (16" High) 1 11 A
Grip, Cane 1 22
Back Cane, Fixed, Zero Degree (16" H) 1 23
Screw, Socket Head Cap (1/4-20 x 1") 1 24
Screw, Socket Button Head (M6 x 40mm) 1 25
Screw, Socket Button Head (M6 x 53mm) 1 26
Bracket, Cane, Rear 1 28
1428637-0601-NLANLA - Cane w/ Hardware, Rear, 7 Degree (16"
High)
1 11 A
Grip, Cane 1 22
Back Cane, Fixed, 8 Degree (16" H) 1 23
Screw, Socket Head Cap (1/4-20 x 1") 1 24
Screw, Socket Button Head (M6 x 40mm) 1 25
Screw, Socket Button Head (M6 x 53mm) 1 26
Bracket, Cane, Rear 1 28
1147717 Cane w/Hardware, Rear, 7 Degree, Adjustable
Height
1 19 B
Grip, Cane 1 22
Screw, Socket Head Cap (1/4-20 x 1") 1 24
Screw, Socket Button Head (M6 x 40mm) 1 25
Screw, Socket Button Head (M6 x 53mm) 1 26
Bracket, Cane, Rear 1 28
Tube, Cane, Rear, Adjustable Height 1 210
Cane, Back, Adjustable Height, Black, 7 Degree -
Right/Left
1 212
Button, Spring 1 213
1147716-NLA NLA - Cane w/Hardware, Rear, Adjustable Height,
Adjustable Angle
1 117 C
Grip, Cane 1 22
Screw, Socket Head Cap (1/4-20 x 1") 1 24
Screw, Socket Button Head (M6 x 40mm) 1 65
Screw, Socket Button Head (M6 x 53mm) 1 26
Bracket, Cane, Rear 1 28
Tube, Cane, Rear, Adjustable Height 1 210
Button, Spring 1 213
Cane, Back, Adjustable Height, Adjustable Angle,
Lower
1 214
Upholstery, Pad, Cane, Rear 1 215
Cane, Back, Adjustable Height, Adjustable Angle,
Upper
1 216
1147718-NLA NLA - Hardware, Back Upholstery 1 1
Knob (M6 x 16) 1 211
1151400 Grip Kit 1 1D
Grip, Cane 1 22
1151401 Cane Kit, Fixed 0 Degree 1 1E
Back Cane, Fixed, Zero Degree (16" H) 1 13
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
20
Back Canes and Back Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Screw, Socket Head Cap (1/4-20 x 1") 1 14
Button, Plug (22mm) 1 1
1151402 Bracket Kit, Back 1 1F,I
Screw, Socket Head Cap (1/4-20 x 1") 1 14
Screw, Socket Button Head (M6 x 40mm) 1 15
Screw, Socket Button Head (M6 x 53mm) 1 16
Bracket, Cane, Rear 1 18
1151403 Cane Assembly, Rear, Adjustable Height, 7 Degree 1 1G,I
Tube, Cane, Rear, Adjustable Height 1 110
Knob (M6 x 16) 1 111
Cane, Back, Adjustable Height, Black, 7 Degree -
Right/Left
1 112
Button, Plug (22mm) 1 1
1151404 Cane Assembly, Rear, Adjustable Height,
Adjustable Angle
1 1H,I
Screw, Socket Head Cap (1/4-20 x 1") 1 14
Screw, Socket Button Head (M6 x 40mm) 1 25
Locknut (M6 x 1) 1 37
Tube, Cane, Rear, Adjustable Height 1 110
Knob (M6 x 16) 1 111
Cane, Back, Adjustable Height, Adjustable Angle,
Upper
1 116
Button, Spring 1 117
A - Includes items 2-8.
B - Includes 2, 4-8, 10, 12 and 13.
C - Includes 2, 4-8 and 10, 13-16.
D - Not shown. Includes item 2
E - Not shown. Includes items 3, 4, 7 and plug button.
F - Not shown. Includes items 4-8.
G - Not shown. Includes items 10-12 and plug button.
H - Not shown. Includes items 4, 5, 7, 10, 11, 16 and 17.
I - Sold per side.
NOTE:
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
21
Crossbraces and Hardware
Form No. 07-076
22
To order call toll free 1-800-333-6900, or www.invacare.com
Crossbraces and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1428877-0601-NLANLA - Crossbrace Assembly w/ Hardware, Black
(16" W x 16" D)
1 11 A
1428879-0601-NLANLA - Crossbrace Assembly w/ Hardware, Black
(18" W x 16" D)
1 11 A
1428881-0601-NLANLA - Crossbrace Assembly w/ Hardware, Black
(20" W x 16" D)
1 11 A
1428883-0601-NLANLA - Crossbrace Assembly w/ Hardware, Black
(16" W x 18" D)
1 11 A
1428885-0601-NLANLA - Crossbrace Assembly w/ Hardware, Black
(18" W x 18" D)
1 11 A
1428887-0601-NLANLA - Crossbrace Assembly w/ Hardware, Black
(20" W x 18" D)
1 11 A
0029-40518 Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm) 1 42
0572-04843 Plug Button 1 43
0029-40509 Screw, Socket Button Head (M6 x 40mm) 1 64
1426739 Clamp, Saddle, Crossbar 1 45
0029X10500 Locknut (M6 x 1) 1 66
1423415 Link, Pivot, Crossbrace (15 - 17" W) 1 27
1423416-NLA NLA - Link, Pivot, Crossbrace (18 - 20" W) 1 27
0029-40522 Screw, Hex Head (M8 x 1.25 x 80mm) 1 18
0030-40503 Washer (M8 x 16mm x 1.5mm) 1 29
0569-04310-NLA NLA - Washer, Coved 1 410
0572-06386-NLA NLA - Washer (24 x 8.4 x 2) 1 111
0029-10508 Locknut (M8 x 1.25) 1 112
1423418 Crossbrace, Black (16" W x 16" D) 1 213
1423420 Crossbrace, Black (18" W x 16" D) 1 213
1423422 Crossbrace, Black (20" W x 16" D) 1 213
1423424 Crossbrace, Black (16" W x 18 D) 1 213
1423426 Crossbrace, Black (18" W x 18" D) 1 213
1423428 Crossbrace, Black (20" W x 18" D) 1 213
1151405 Seat Rail Plugs 1 1B
Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm) 1 42
Plug Button 1 43
1151406 Pivot Link Kit, 15W - 17W 1 1C
Screw, Socket Button Head (M6 x 40mm) 1 14
Locknut (M6 x 1) 1 16
Link, Pivot, Crossbrace (15 - 17" W) 1 17
1151407 Pivot Link Kit, 18W - 20W 1 1C
Screw, Socket Button Head (M6 x 40mm) 1 14
Locknut (M6 x 1) 1 16
NLA - Link, Pivot, Crossbrace (18 - 20" W) 1 17
1151408 Clamp Kit, Crossbrace Saddle 1 1D
Screw, Socket Button Head (M6 x 40mm) 1 24
Clamp, Saddle, Crossbar 1 25
Locknut (M6 x 1) 1 26
1151409 NLA - Hardware Kit, Crossbrace Pivot 1 1E
Form No. 07-076
23
To order call toll free 1-800-333-6900, or www.invacare.com
Crossbraces and Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Screw, Hex Head (M8 x 1.25 x 80mm) 1 18
Washer (M8 x 16mm x 1.5mm) 1 29
NLA - Washer, Coved 1 410
NLA - Washer (24 x 8.4 x 2) 1 111
Locknut (M8 x 1.25) 1 112
A - Includes items 2-13.
B - Includes items 2 and 3.
C - Includes items 4, 6 and 7.
D - Includes items 4-6.
E - Includes items 8-12.
NOTE:
Form No. 07-076
24
To order call toll free 1-800-333-6900, or www.invacare.com
Forks and Headtube Hardware
Form No. 07-076
25
To order call toll free 1-800-333-6900, or www.invacare.com
Forks and Headtube Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1450025 Assembly, Head Tube with Hardware 1 11 A
Screw, (M6 x 1 x 37mm) 1 22
Insert, Support Fork 1 13
Plate, Mounting Caster, Inner 1 14
Cap, Head Tube 1 15
Plate, Mounting Tube Head 1 16
Locknut (M12 x 1.75) 1 28
Washer, Plain 1 29
Bearing, Radial Flanged 1 210
Tube, Head 1 111
Stem, Fork 1 112
Fork 1 113
1449113 1 17 B
Locknut (M12 x 1.75) 1 28
Washer, Plain 1 29
Bearing, Radial Flanged 1 210
Tube, Head 1 111
Stem, Fork 1 112
Fork 1 113
1151410 Fork Kit 1 1C
Locknut (M12 x 1.75) 1 28
Washer, Plain 1 29
Stem, Fork 1 112
Fork 1 113
1151411 Headtube Kit, Caster 1 1D
Screw, (M6 x 1 x 37mm) 1 22
Insert, Support Fork 1 13
Plate, Mounting Caster, Inner 1 14
Cap, Head Tube 1 15
Plate, Mounting Tube Head 1 16
Tube, Head 1 111
1151412 Hardware Kit, Headtube Mounting 1 1E
Screw, (M6 x 1 x 37mm) 1 22
Plate, Mounting Tube Head 1 16
A - Includes items 2-13.
B - Includes items 8-13.
C - Includes items 8, 9, 12 and 13.
D - Includes items 2, 3, 4, 5, 6 and 11.
E - Includes items 2 and 6.
NOTE:
Form No. 07-076
26
To order call toll free 1-800-333-6900, or www.invacare.com

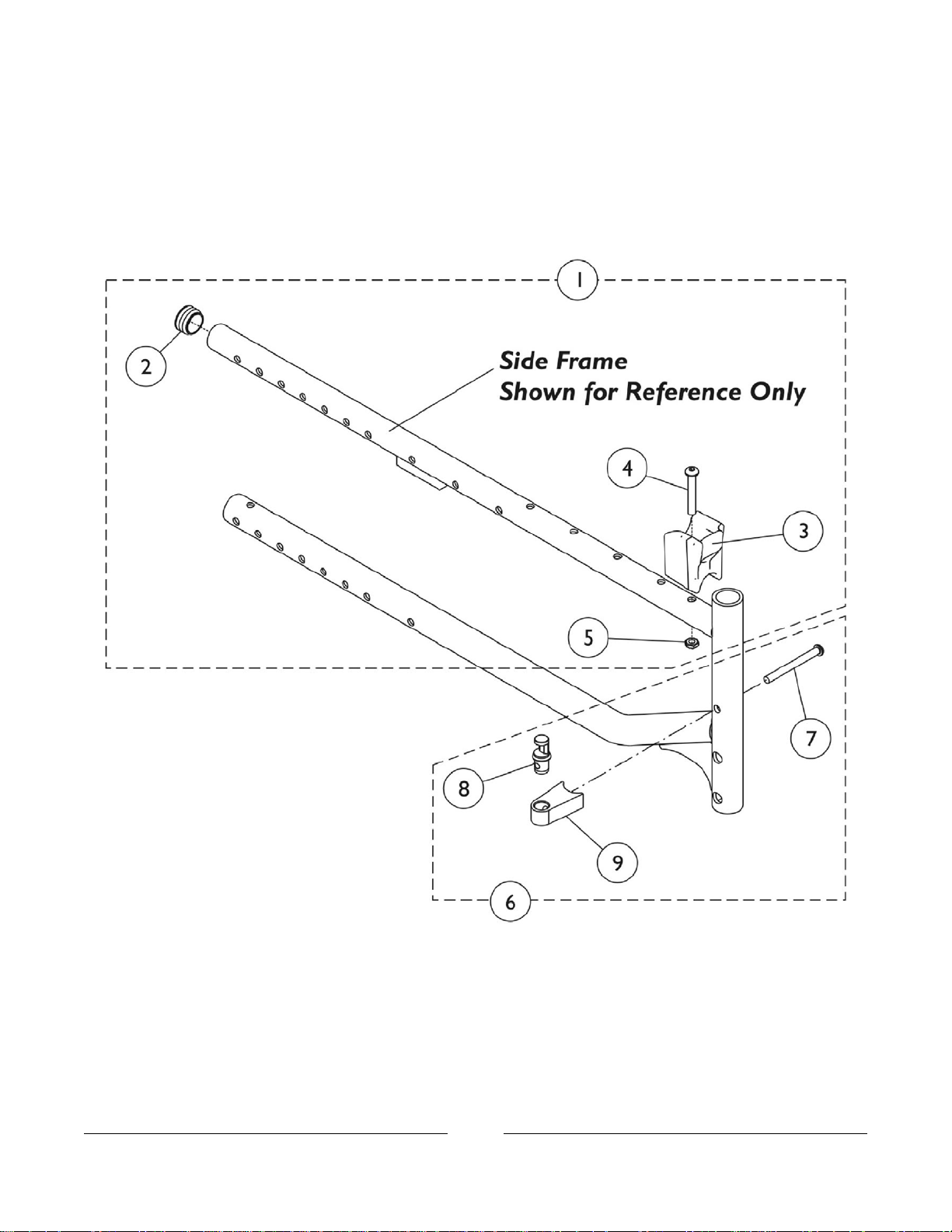

Frame Hardware
SIDE FRAMES CANNOT BE SERVICED IN THE FIELD.
Form No. 07-076
27
To order call toll free 1-800-333-6900, or www.invacare.com
Frame Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1151413 H - Block Kit - Right 1 11 A
Button, Plug (22mm) 1 12
H-Block, Front - Right 1 13
Screw (M6 x 1 x 35mm) 1 14
Locknut (M6 x 1) 1 15
1151414 H - Block Kit - Left 1 11 A
Button, Plug (22mm) 1 12
H-Block, Front - Left 1 13
Screw (M6 x 1 x 35mm) 1 14
Locknut (M6 x 1) 1 15
1130539 Kit, Sector Pin Hardware 1 16 B
Screw, Socket Button Head (1/4-20 x 2-1/2") 1 27
Pin, Sector 1 28
Bracket, Sector Block, Black 1 29
A - Includes items 2-5. Side frames cannot be serviced.
B - Kit includes items 7 thru 9. Sector pin hardware used for Legrests and Footrests.
NOTE:
SIDE FRAMES CANNOT BE SERVICED IN THE FIELD.
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
28
Wheel Style
Aluminum
Handrims
Steel Black Plastic
Coated Handrims
1498435-NLA149843422SP - Pnuematic
1498433-NLA149843222SP - Urethane
1498424-NLA1498423-NLA24SP - Pnuematic
1498422149826324SP Urethane
0572-05193-NLA0572-0590924COM - Pnuematic
1541972-NLA0572-05908-NLA24COM - Urethane
Rear Wheels with Handrims
Form No. 07-076
29
To order call toll free 1-800-333-6900, or www.invacare.com
Front Casters and Mounting Hardware
Form No. 07-076
30
To order call toll free 1-800-333-6900, or www.invacare.com
Front Casters and Mounting Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1431351 Caster Assembly w/Hardware, Pneumatic (8 x 1) 1 11 A
Screw, Hex Head (M8 x 1.25 x 80mm) 1 12
Wheel, Pneumatic (8" x 1") 1 13
Locknut (M8 x 1.25) 1 14
1431352 Caster Assembly w/Hardware, Urethane (8 x 1) 1 11 A
Screw, Hex Head (M8 x 1.25 x 80mm) 1 12
Wheel, Urethane (8" x 1") 1 13
Locknut (M8 x 1.25) 1 14
1431353 Caster Assembly w/Hardware, Pneumatic (8 x 2) 1 11 A
Screw, Hex Head (M8 x 1.25 x 80mm) 1 12
Wheel, Pneumatic (8" x 2") 1 13
Locknut (M8 x 1.25) 1 14
1431759 Caster Assembly w/Hardware, Urethane (8 x 2) 1 11 A
Screw, Hex Head (M8 x 1.25 x 80mm) 1 12
Wheel, Urethane (8 x 2) 1 13
Locknut (M8 x 1.25) 1 14
1431761 Caster Assembly w/Hardware, Urethane (6 x 1) 1 11 B
Screw, Hex Head (M8 x 1.25 x 80mm) 1 12
Wheel Assembly (6" x 1.25") 1 13
Locknut (M8 x 1.25) 1 14
Washer (.250 x .562 x x .065/.036) 1 25
A - Includes items 2-4.
B - Includes 2-5.
NOTE:
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
31
Footrest Support Assemblies
60° and 70°
Form No. 07-076
32
To order call toll free 1-800-333-6900, or www.invacare.com
Footrest Support Assemblies
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881128078 Footrest Support Assembly, 60 Degree
Non-Tapered, Sector, Color - Right
1 11
8881128079 Footrest Support Assembly, 60 Degree
Non-Tapered, Sector, Color - Left
1 11
8881127737 Footrest Support Assembly, 70 Degree
Non-Tapered, Sector, Color - Right
1 12
8881127738 Footrest Support Assembly, 70 Degree
Non-Tapered, Sector, Color - Left
1 12
1026703 Kit, Pivot/Slide Tube Mounting Hardware (Pair) 1 13 A
1045267 Screw, Hex Head w/ Patch (1/4-20 x 3/4") 1 14
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 15
1020534 Insert, Threaded 1 16 C
1028004 Kit, Pivot Slide Tube Mounting Hardware (Pair) 1 17 B
1045267 Screw, Hex Head w/ Patch (1/4-20 x 3/4") 1 14
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 15
A - Includes items 4-6.
B - Includes items 4 and 5.
C - As of 8/15/03, the Threaded Insert was revised from 3 to 5 Holes. Threaded Insert is Backward Compatible and does not
require ordering in Pairs.
NOTE:
60° and 70°
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
33
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881091764 Pad, Legrest, Vinyl - Right/Left 1 11 A,C
1068649 Hardware, Legrest Pad 1 12 B
Screw, Phillips Pan Head (#10-32 x 11/16") 1 2
Screw, Phillips Pan Head (#10-32 x 1") 1 2
Instruction Sheet, Legrest Pad Mtg. 1 1
A - Specify U67 upholstery color when ordering.
B - Includes Screws and Instruction Sheet.
C - Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit (1068649) when
ordering replacement Calf Pads.
NOTE:
Legrest Calf Pads
Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit
(1068649) when ordering replacement Calf Pads.
Form No. 07-076
34
To order call toll free 1-800-333-6900, or www.invacare.com
Elevating Legrest Support Assemblies - ELRSS
NOTE: Legrest Support does not include Legrest Pad.
Form No. 07-076
35
To order call toll free 1-800-333-6900, or www.invacare.com
Elevating Legrest Support Assemblies - ELRSS
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
8881147640 Legrest Support Assembly, Sector, Color - Right 1 11 A
Screw, Socket Button Head (1/4-20 x 1-3/4") 1 12
Plug Button (1") 1 13
Screw, Socket Button Head Cap (M6 X .8 X 25mm) 1 14
Bushing, Handle 1 15
Handle, Release, Black - Right 1 16
Screw, Socket Button Head (M6 x .8 x 25mm) 1 47
Washer, Nylon (1/4 x 1/2 x 1/32") 1 18
Bracket, Swing, Female 1 19
Spring, Compression Swing 1 110
Block, Sector 1 111
Locknut (M5 x .8) 1 512
Locknut (1/4-28) 1 213
Bracket, Swing, Male 1 114
Cap, Brake Lever End, Black 1 115
Spring, Torsion 1 116
Pin, Roller 1 117
Rod, Pivot 1 118
Guide, Pivot Rod 1 119
Screw, Phillips Pan Head w/Patch (#10-24 x 3/8") 1 120
Nut, Low Cap (5/16"-24) 1 221
Washer, Flat (21/64 x 53/64 x 7/64") 1 122
Screw, Socket Flat Head (5/16-18 x 2-1/4") 1 123
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 124
Washer (1/4 x 1/2 x 1/16") 1 125
Bracket Assembly, Adjustable Legrest Pad, Color 1 126
Spacer, Legrest Pad, Black 1 127
Plate, Legrest Pad 1 128
Locknut (5/16-18) 1 129
Bolt, Lug (5/16-24 x 1-3/8") 1 230
Rivnut (10-32 x 1") 1 131
T-Nut (1/4-20) 1 132
Tube, Elevating Support, Color - Right 1 133
Screw, Socket Button Head (1/4-28 x 1-1/4") 1 234
Plug, Insert (7/8") 1 135
Lever, Release - Right 1 136
Locknut (1/4-20) 1 137
Pivot, Footrest 1 138
Spacer (5/16 x 1/2 x 3/16") 1 139
Tube, Legrest Support, Sector, Color - Right 1 140
8881147641 Legrest Support Assembly, Sector, Color - Left 1 11 A
Screw, Socket Button Head (1/4-20 x 1-3/4") 1 12
Plug Button (1") 1 13
NOTE: Legrest Support does not include Legrest Pad.
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
36
Elevating Legrest Support Assemblies - ELRSS
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Screw, Socket Button Head Cap (M6 X .8 X 25mm) 1 14
Bushing, Handle 1 15
Handle, Release, Black - Left 1 16
Screw, Socket Button Head (M6 x .8 x 25mm) 1 47
Washer, Nylon (1/4 x 1/2 x 1/32") 1 18
Bracket, Swing, Female 1 19
Spring, Compression Swing 1 110
Block, Sector 1 111
Locknut (M5 x .8) 1 512
Locknut (1/4-28) 1 213
Bracket, Swing, Male 1 114
Cap, Brake Lever End, Black 1 115
Spring, Torsion 1 116
Pin, Roller 1 117
Rod, Pivot 1 118
Guide, Pivot Rod 1 119
Screw, Phillips Pan Head w/Patch (#10-24 x 3/8") 1 120
Nut, Low Cap (5/16"-24) 1 221
Washer, Flat (21/64 x 53/64 x 7/64") 1 122
Screw, Socket Flat Head (5/16-18 x 2-1/4") 1 123
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 124
Washer (1/4 x 1/2 x 1/16") 1 125
Bracket Assembly, Adjustable Legrest Pad, Color 1 126
Spacer, Legrest Pad, Black 1 127
Plate, Legrest Pad 1 128
Locknut (5/16-18) 1 129
Bolt, Lug (5/16-24 x 1-3/8") 1 230
Rivnut (10-32 x 1") 1 131
T-Nut (1/4-20) 1 132
Tube, Elevating Support, Color - Left 1 133
Screw, Socket Button Head (1/4-28 x 1-1/4") 1 234
Plug, Insert (7/8") 1 135
Lever, Release - Left 1 136
Locknut (1/4-20) 1 137
Pivot, Footrest 1 138
Spacer (5/16 x 1/2 x 3/16") 1 139
Tube, Legrest Support, Sector, Color - Left 1 140
8881147724 NLA - Legrest Support Tube Assembly, Sector,
Color - Right
1 141 B
Screw, Socket Button Head (1/4-20 x 1-3/4") 1 142
Plug Button (1") 1 143
Screw, Socket Button Head Cap (M6 X .8 X 25mm) 1 144
Bushing, Handle 1 145
Handle, Release, Black - Right 1 146
NOTE: Legrest Support does not include Legrest Pad.
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
37
Elevating Legrest Support Assemblies - ELRSS
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Screw, Socket Button Head (M6 x .8 x 25mm) 1 447
Washer, Nylon (1/4 x 1/2 x 1/32") 1 148
Bracket, Swing, Female 1 149
Spring, Compression Swing 1 150
Block, Sector 1 151
Locknut (M5 x .8) 1 552
Locknut (1/4-28) 1 153
Bracket, Swing, Male 1 154
Nut, Low Cap (5/16"-24) 1 155
Bolt, Lug (5/16-24 x 1-3/8") 1 156
Screw, Socket Button Head (1/4-28 x 1-1/4") 1 157
Plug, Insert (7/8") 1 158
Locknut (1/4-20) 1 159
Pivot, Footrest 1 160
Spacer (5/16 x 1/2 x 3/16") 1 161
Tube, Legrest Support, Sector, Color - Right 1 162
8881147725 NLA - Legrest Support Tube Assembly, Sector,
Color - Left
1 141 B
Screw, Socket Button Head (1/4-20 x 1-3/4") 1 142
Plug Button (1") 1 143
Screw, Socket Button Head Cap (M6 X .8 X 25mm) 1 144
Bushing, Handle 1 145
Handle, Release, Black - Left 1 146
Screw, Socket Button Head (M6 x .8 x 25mm) 1 447
Washer, Nylon (1/4 x 1/2 x 1/32") 1 148
Bracket, Swing, Female 1 149
Spring, Compression Swing 1 150
Block, Sector 1 151
Locknut (M5 x .8) 1 552
Locknut (1/4-28) 1 153
Bracket, Swing, Male 1 154
Nut, Low Cap (5/16"-24) 1 155
Bolt, Lug (5/16-24 x 1-3/8") 1 156
Screw, Socket Button Head (1/4-28 x 1-1/4") 1 157
Plug, Insert (7/8") 1 158
Locknut (1/4-20) 1 159
Pivot, Footrest 1 160
Spacer (5/16 x 1/2 x 3/16") 1 161
Tube, Legrest Support, Sector, Color - Left 1 162
1151418 Legrest Kit, Pivot 1 163 C
Screw, Socket Button Head (1/4-20 x 1-3/4") 1 164
Locknut (1/4-20) 1 165
Pivot, Footrest 1 166
1130753 Kit, Pivot Slide Tube Attaching Hardware 1 167 D
NOTE: Legrest Support does not include Legrest Pad.
Form No. 07-076
38
To order call toll free 1-800-333-6900, or www.invacare.com
Elevating Legrest Support Assemblies - ELRSS
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Screw, Lug (5/16-24 x 1-3/8") 1 168
Washer (11/32 x 53/64 x 1/8") 1 169
Locknut, Nylon Cap (5/16-24) 1 170
1130754 Kit, Legrest Pad Hardware 1 171 E
T-Nut (1/4-20) 1 172
Plate, Legrest Pad 1 173
Locknut (5/16-18) 1 174
Spacer, Legrest Pad, Black 1 175
Bracket Assembly, Adjustable Legrest Pad, Color 1 176
Washer, Steel (1/4 x 1/2 x 3/64") 1 177
Screw, Hex Head w/ Patch (1/4-20 x 1/2") 1 178
Screw, Socket Flat Head (5/16-18 x 2-1/4") 1 179
1147722 Kit, Pivot Rod - Right 1 180 F
Locknut (1/4-28) 1 281
Cap, Brake Lever End, Black 1 182
Spring, Torsion 1 183
Pin, Roller 1 184
Rod, Pivot 1 185
Guide, Pivot Rod 1 186
Screw, Phillips Pan Head w/Patch (#10-24 x 3/8") 1 187
Rivnut (10-32 x 1") 1 188
Screw, Socket Button Head (1/4-28 x 1-1/4") 1 289
Lever, Release - Right 1 190
1147723 Kit, Pivot Rod - Left 1 180 F
Locknut (1/4-28) 1 281
Cap, Brake Lever End, Black 1 182
Spring, Torsion 1 183
Pin, Roller 1 184
Rod, Pivot 1 185
Guide, Pivot Rod 1 186
Screw, Phillips Pan Head w/Patch (#10-24 x 3/8") 1 187
Rivnut (10-32 x 1") 1 188
Screw, Socket Button Head (1/4-28 x 1-1/4") 1 289
Lever, Release - Left 1 190
A - Includes items 2-40. Specify frame color when ordering, see category titled, "Frame Finishes and Touch-Up Paint."
B - Includes items 42-62. Specify frame color when ordering, see category titled, "Frame Finishes and Touch-Up Paint."
C - Includes items 64-66.
D - Includes items 68-70
E - Includes items 72-79
F - Includes items 81-91
NOTE:
NOTE: Legrest Support does not include Legrest Pad.
Form No. 07-076
39
To order call toll free 1-800-333-6900, or www.invacare.com
Adjustable Angle Footplate Assemblies - AT5543
Form No. 07-076
40
To order call toll free 1-800-333-6900, or www.invacare.com
Adjustable Angle Footplate Assemblies - AT5543
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 60° and 70° Non Tapered Footrests 1 11 C
1113578 Screw, Socket Flat Head (1/4-28 x 3/4") 1 22
1113572 Footplate, Adjustable Angle, Medium, Black (4-1/4"
W x 8" L)
1 13 F
1113573 Footplate, Adjustable Angle, Large, Black (5-1/4" W
x 8" L)
1 13 F
1113574 Footplate, Adjustable Angle, Extra Large, Black
(6-1/4" W x 8" L)
1 13 F
1113575 Footplate, Adjustable Angle, XX- Large, Black
(7-1/4" W x 8" L)
1 13 F
1113528 Bracket, Adjustable Angle Footplate, Black 1 14
1025765 Locknut (1/4-28) 1 25
1021343 Screw, Socket Head (5/16-18 x 1-1/4") 1 16
1113530 Attachment, Hinge 1 17
1096810 Screw, Socket Head (1/4-28 x 1-3/4") 1 18
1113529 Hinge, Adjustable Angle Footrest 1 19
1065362 Locknut (1/4-28) 1 110
1114688 Spacer, Hinge, Black 1 111
1114699 Tube, Pivot/Slide, Straight, Black (10-1/4") 1 112 A
1114700 Tube, Pivot/Slide, Straight, 2" Longer ALPT, Black
(12-1/4")
1 112 B
See Chart #13 ELRSS Style Elevating Legrests 1 113 D
1134427 Package, Plug Button, Black, "D" Shaped (3/4") 10 114
1134433 Pivot/Slide Tube w/ D Insert, Black 1 115 E
1134432 Pivot/Slide Tube w/ D Insert, Black (2" Longer) 1 115 E
1113578 Screw, Socket Flat Head (1/4-28 x 3/4") 1 216
1113573 Footplate, Adjustable Angle, Large, Black (5-1/4" W
x 8" L)
1 117
1113574 Footplate, Adjustable Angle, Extra Large, Black
(6-1/4" W x 8" L)
1 117
1113575 Footplate, Adjustable Angle, XX- Large, Black
(7-1/4" W x 8" L)
1 117
1113528 Bracket, Adjustable Angle Footplate, Black 1 118
1025765 Locknut (1/4-28) 1 219
1021343 Screw, Socket Head (5/16-18 x 1-1/4") 1 120
1096810 Screw, Socket Head (1/4-28 x 1-3/4") 1 121
1113529 Hinge, Adjustable Angle Footrest 1 122
1113530 Attachment, Hinge 1 123
1065362 Locknut (1/4-28) 1 124
1114688 Spacer, Hinge, Black 1 125
A - 60° and 70° Footrests
B - ALPT 2" Longer
C - Includes items 2-12
D - Includes items 14-25
E - ELRSS Elevating Legrest
F - This footplate was revised 9/2/2008 with rounder corners and accessory holes changed from 8 to 4. Recommended to
replace footplate in pairs to match sides.
NOTE:
41
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
Adjustable Angle Footplate Assemblies - AT5543
#1 Adjustable Angle Footplates w/ Pivot Tubes
60° and 70° Non Tapered Footrests
Straight
Slide Tube
(10-1/4")
Right Left
1114645111464416-17" Wide (6-1/4" Footplate)
1114647111464618-22" Wide (7-1/4" Footplate)
LeftRight
ALPT Straight
Slide Tube (12-1/4")
1114655111465416-17" Wide (6-1/4" Footplate)
1114657111465618-22" Wide (7-1/4" Footplate)
#13 Adjustable Angle Footplates w/ Pivot Tubes
ELRSS Style Elevating Legrests
Straight
Slide Tube
(10-1/4")
Right Left
1132064113206316-17" Wide (6-1/4" Footplate)
1132066113206518-22" Wide (7-1/4" Footplate)
LeftRight
ALPT Straight
Slide Tube (12-1/4")
1132092113209116-17" Wide (6-1/4" Footplate)
1132094113209318-22" Wide (7-1/4" Footplate)
Form No. 07-076
42
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - 1651 Composite
Form No. 07-076
43
To order call toll free 1-800-333-6900, or www.invacare.com
Footplate and Pivot Tube Assemblies - 1651 Composite
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
See Chart #1 60° Non-Tapered (13-19") 1 11 D
See Chart #1 70° Non Tapered (14-19") 1 11 D
See Chart #8 ELRSS Style Elevating Legrests 1 11 D
1120382 Tube, Pivot/Slide, Curved End, Black - Long (9-7/8") 1 12 A
1120391 Tube, Pivot/Slide, Curved End, 2" Longer ALPT,
Black (11-7/8")
1 12 A
1120389 Tube, Pivot/Slide, Straight, Black - Long (9-7/8") 1 12 B
1120390 Tube, Pivot/Slide, Straight, 2" Longer ALPT, Black
(11-7/8")
1 12 B
1134426 Package, Plug Button, Black (3/4") 10 13
1026880 Footplate, Composite, Medium, Black (7" W x 6" L) 1 14
1026881 Footplate, Composite, Large, Black (8" W x 6" L) 1 14
1025195 Locknut (1/4-20) 1 15
60285X006 Screw, Socket Head (1/4-20 x 2-1/4") 1 16
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 27
See Chart #8 ELRSS Style Elevating Legrests 1 18 E
1134427 Package, Plug Button, Black, "D" Shaped (3/4") 10 19
1134428 Pivot/Slide Tube w/ D Insert, Black 1 110 C
1134429 Pivot/Slide Tube w/ D Insert, Black (2" Longer) 1 110 C
1026880 Footplate, Composite, Medium, Black (7" W x 6" L) 1 111
1026881 Footplate, Composite, Large, Black (8" W x 6" L) 1 111
1025195 Locknut (1/4-20) 1 112
60285X006 Screw, Socket Head (1/4-20 x 2-1/4") 1 113
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 214
A - 60° Footrests
B - 70° Footrests
C - ELRSS Style Elevating Legrests
D - Includes items 2-7
E - Includes items 9-14
NOTE:
#1 60° Non Tapered
Curved End
Right/Left
Medium
Long
15-16" wide
Medium
2" Longer
15-16" wide
Large
Long
17-22" wide
Large
2" Longer
17-22" wide
1120420102838311204181028387Right
1120421102838411204191028388Left
#1 70° Non Tapered
Straight
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
44
Footplate and Pivot Tube Assemblies - 1651 Composite
#1 70° Non Tapered
Straight
Right/Left
Medium
Short
15-16" wide
Medium
2" Longer
15-16" wide
Large
Short
17-22" wide
Large
2" Longer
17-22" wide
1120414112040811204121120406Right
1120415112040911204131120407Left
#8 ELRSS Style Elevating Legrests
Right/Left
Medium
Long
15-16" wide
Medium
2" Longer
15-16" wide
Large
Long
17-22" wide
Large
2" Longer
17-22" wide
1132111113208211321091132080Right
1132112113208311321101132081Left
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
45
Nylon Back Upholstery
16" Wide 18" Wide 20" Wide
1147651-NLA1147650-NLA1147649-NLA
Adjustable Tension Back Upholstery
16" Wide 18" Wide 20" Wide
1147702-NLA11477011147700
1026298
See Note(s) A
A - Fixed Height Cane. Set of 2. NOTE:
Back Upholstery
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
46
Upholstery - Seat
Form No. 07-076
47
To order call toll free 1-800-333-6900, or www.invacare.com
Upholstery - Seat
Mounting Seat Upholstery With Out Pad
Dimensions Part Number
114768316 x 16" Deep
114768616 x 18" Deep
114768418 x 16" Deep
114768718 x 18" Deep
114768520 x 16" Deep
114768820 x 18" Deep
0572-04843Plug Button
Mounting Seat Upholstery With Pad
Dimensions Part Number
114768916 x 16" Deep
114769216 x 18" Deep
114769018 x 16" Deep
114769318 x 18" Deep
114769120 x 16" Deep
114769420 x 18" Deep
0572-04843Plug Button
Form No. 07-076
48
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Locks - Push to Lock & Push to Lock Extended
Form No. 07-076
49
To order call toll free 1-800-333-6900, or www.invacare.com
Wheel Locks - Push to Lock & Push to Lock Extended
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1151695 Wheel Lock Assemblies, Push to Lock 1 11 A,B
Screw, Socket Head (M6 x 30mm) 1 42
Clamp, Wheel Lock, Non-Threaded (7/8") 1 23
NLA - Clamp, Wheel Lock (7/8" Metric Thread) 1 24
Wheel Lock Assembly, Push to Lock - Left 1 15
Wheel Lock Assembly, Push to Lock - Right 1 15
1151694 Wheel Lock Assemblies, Push to Lock, Extended 1 17 B,D
Screw, Socket Head (M6 x 30mm) 1 42
Clamp, Wheel Lock, Non-Threaded (7/8") 1 23
NLA - Clamp, Wheel Lock (7/8" Metric Thread) 1 24
Wheel Lock Assembly, Push to Lock, Extended -
Left
1 16
Wheel Lock Assembly, Push to Lock, Extended Right
1 16
1151416-NLA NLA - Handle Kit, Wheel Lock - Short 1 1C,E
Handle, Wheel Lock, Black - Short 1 1
Screw, Socket Button Head (M4 X 0.7 X 15mm) 1 1
Locknut (M4 X 0.7) 1 1
1151417-NLA NLA - Handle Kit, Wheel Lock - Long 1 1C,F
Handle, Wheel Lock - Long 1 1
Screw, Socket Button Head (M4 X 0.7 X 15mm) 1 1
Locknut (M4 X 0.7) 1 1
A - Kit includes items 2-5.
B - Kit includes items 2, 3, 4 and 6.
C - Not Shown.
D - In order to assemble, the non-threaded clamp is above the seat rail or frame and the threaded is below the seat rail or
frame.
E - Replace with 1151695.
F - Replace with 1151694.
NOTE:
50
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
Rigidizer Bar
Form No. 07-076
51
To order call toll free 1-800-333-6900, or www.invacare.com
Rigidizer Bar
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1428550 NLA - Bar, Rigidizer w/ Knobs (16" Wide) 1 11 A
Tube, Rigidizer (16" W) 1 12
Knob (M6 x 16) 1 23
1428552 NLA - Bar, Rigidizer w/Knobs (18" Wide) 1 11 A
Tube, Rigidizer (18" W) 1 12
Knob (M6 x 16) 1 23
1428554 NLA - Bar, Rigidizer w/Knobs (20" Wide) 1 11 A
Tube, Rigidizer (20" W) 1 12
Knob (M6 x 16) 1 23
1430412 NLA - Insert, Rigidizer w/Hardware 1 14 B
Insert, Rigidizer 1 15
Screw, Phillips Pan Head (M4.8 X 12mm) 1 16
1147652 Plug Button, Rear Cane 1 17 C
Button, Plug (22mm) 1 28
A - Includes items 2 and 3.
B - Includes items 5 and 6.
C - Includes item 8.
NOTE:
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
52
Accessories
Positioning Strap
Width A1321 A1515
1147656114765416" Wide
1147656114765418" Wide
1147657114765520" Wide
Rear Anti-Tippers
Description Part Number
1147676Tube Cap Step Assembly
1147653Anti-Tipper Assembly, Rear (Pair)
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
53
Accessories
Part Number Description Package Quantity Assembly Quantity
11
Calf Strap, 16", 18", 20"
Wide Chairs
(36" Long)
1032243
11
H-Strap, 16", 18" Wide
Chairs
1032215
11H-Strap, 20" Wide Chair1032216
21Impact Guard, 8" Long
1026987
See Note(s) A
21
Protector, Frame,
Front, Blue
1159758
11
Protector, Frame,
Back, Blue
1159756
21
Protector, Frame,
Front, Silver
1159384-NLA
11
Protector, Frame,
Back, Silver
1159383-NLA
21
Protector, Frame,
Front, Red
1159759
11
Protector, Frame,
Back, Red
1159757
21
Protector, Frame,
Front, Black
1163422
11
Protector, Frame,
Back, Black
1163421
A - For 70 deg. Tapered Footrest. NOTE:
Form No. 07-076
To order call toll free 1-800-333-6900, or www.invacare.com
54
Yes, you can. ™
07-076
© 2012 Invacare Corporation, Elyria, Ohio.
All rights reserved. Trademarks are
identified by the symbols ™ and ®. All
trademarks are owned by or licensed to
Invacare Corporation unless otherwise
noted. Information is subject to change
without notification.
(Revised 10/09/12)
Invacare Corporation
One Invacare Way
Elyria, Oh USA
44036-2125
800-333-6900
Technical Support
800-832-4707
Customer Service
800-333-6900
Literature Orders
800-333-6900
www.invacare.com
Form No.
Loading...
