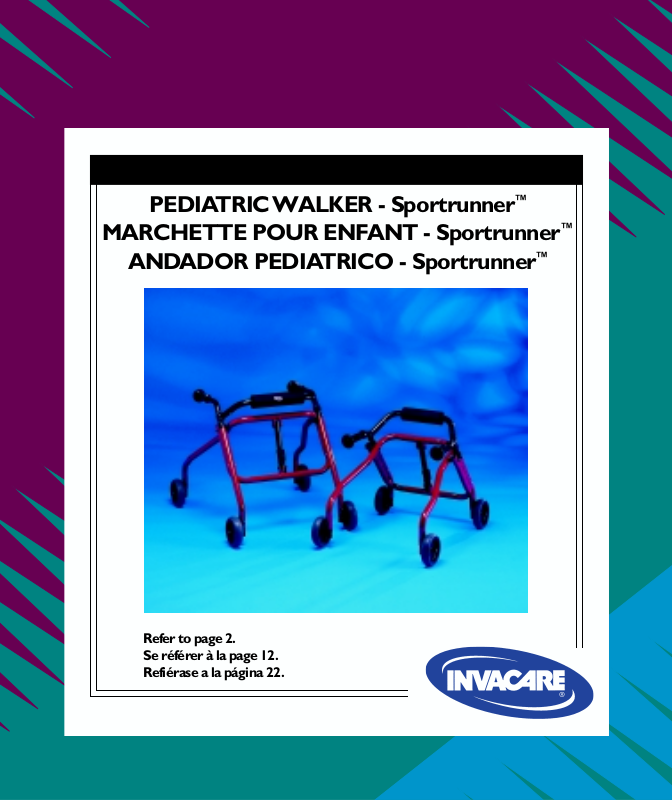

PEDIATRIC WALKER - Sportrunner
MARCHETTE POUR ENFANT - Sportrunner
ANDADOR PEDIATRICO - Sportrunner
Refer to page 2.
Se référer à la page 12.
Refiérase a la página 22.
Pediatric Walker - Sportrunner
™
Model Number 6210 - Small Size Frame
Model Number 6211 - Large Size Frame
The Pediatric Walker has a lifetime limited warranty
Features:
• Can be converted from a reverse postural (pulling) walker to a foward
(pushing) walker.
• Ergonomic release button helps fold walker frame easily
• Removable padded backrest provides comfort and protection
Options available:
• 6212 - Pair of 5-inch fixed wheels (one-way rotational)
• 6213 - Pair of 5-inch fixed wheels (two-way rotational)
• 6214 - Pair of crutch tips
SPECIFICA TIONS 6210 6211
Width Inside Handgrips 14-inches 16-inches
Width Inside Base Legs 15-inches 20-inches
Depth Opened at Base 17-inches 20-inches
Depth folded 9-1/4-inches 7-inches
Height Adjustment (Min-Max) 16 - 21-inches 20-1/2 - 25-inches
Product Weight 7 lbs. 11.6 lbs.
Weight Capacity 65 lbs. 65 lbs.
2
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage. In case of shipping damage, DO NOT use.
Contact Dealer/Carrier for further instruction.
SAFETY SUMMARY
The following recommendations are made for the safe operation of the PEDIA TRIC
WALKER - Sportrunner™:
GENERAL WARNING
DO NOT install or use this equipment without first reading and understanding
these instructions. If you are unable to understand the Warnings, Cautions or
Instructions, contact a healthcare professional, dealer or technical personnel
before attempting to install this equipment - otherwise, injury or damage
may occur.
Each individual should always consult with their physician or therapist to
determine proper adjustment and usage.
ST ABILITY W ARNINGS
Check to make sure crutch tips and wheels are not ripped, worn or missing.
Replace BEFORE using walker.
DO NOT use crutch tips on front wheel inserts.
Short steps should be taken to assure weight is distributed evenly and directly
over walker legs. These precautions will prevent uncontrollable movement
of walker when pulling or pushing.
A physical/occupational therapist should assist in the placement and
positioning of the hand grips for maximum support.
Care should be taken to ensure that ALL hand and height adjustments are
secure, and that wheels and moving objects are in good working order
before using this or any mobility aid.
All wheels MUST be in contact with the floor at ALL TIMES during use. This will
ensure the walker is properly balanced.
Invacare Walkers can provide ambulatory assistance for an individual
weighing up to 65 lbs. (29.48 kg.). Invacare Walkers ar e designed to provide
support, increased stability and assistance to an individual while walking.
A physical/occupational therapist should assist in determining the appropriate orientation of the walker (pulling or pushing) for the user.
Height adjustment MUST be checked frequently with the assistance of a
physical/occupational therapist to maintain proper height for the user.
3
SAFETY SUMMARY (continued)
FOLDING/ASSEMBLY WARNINGS
After unfolding or assembling walker, ensure that walker is securely locked
in OPEN position and level to the ground BEFORE using.
DO NOT hang anything on either the left or right side frames or the left
and right handle bars. This will cause side frames or handle bars to bend
downward and prevent walker from locking into place when fully
opened. This may also cause walker to tip, resulting in injury or damage.
INST ALLATION W ARNINGS
Ensure ALL handle snap buttons fully protrude through adjustment holes
of each front frame tube. This ensures that the handles are securely
locked in position.
The handles should be adjusted so the walker is level.
Always test to see that the walker and attachments are properly and
securely locked in place BEFORE using.
OPENING/FOLDING THE WALKER (FIGURE 1)
NOTE: Refer to INSTALLATION WARNINGS in the SAFETY SUMMARY in
this instruction sheet.
1. Press the release button to unlock the lock bar.
2. Grasping the lock bar, pull until the walker is fully unfolded and an audible
"click" is heard.
3. If necessary, unfold the handles by performing the following:
A. Grasp the handle and pull towards side of the walker frame.
B. Ensure both snap buttons fully protrude through both height adjustment holes.
C. Repeat STEPS A-B on remaining handle.
4. Ensure both handles are even and at the correct height. Refer to
ING THE HANDLE BARS in this instruction sheet.
5. Reverse STEPS 1-3 to fold the walker.
4
ADJUST-
Handle
UNFOLDED
Handles
Release
Button
Height
Adjustment
Holes
Lock
Walker
Frame
FIGURE 1 - OPENING/FOLDING THE WALKER
Bar
FOLDED
Snap Buttons
Walker
Frame
ADJUSTING THE HANDLE BARS (FIGURE 2)
NOTE: Refer to INSTALLATION WARNINGS in the SAFETY SUMMARY
in this instruction sheet.
1. Depress both snap buttons and raise/lower the handle to the desired height.
2. Ensure both snap buttons fully protrude through one (1) of seven (7) sets of
height adjustment holes in the front frame tube.
3. Repeat STEPS 1-2 on remaining handle.
Handle
Front Frame Tube
Height Adjustment
Holes
Snap Buttons
FIGURE 2 - ADJUSTING THE HANDLE BARS
5
WHEELS (FIGURE 3)
Replacing The Wheel
NOTE: Refer to INSTALLATION WARNINGS in the SAFETY SUMMARY
in this instruction sheet.
1. Remove the set screw from the wheel insert.
2. Perform one (1) of the following:
One-Way Wheels: Remove the existing mounting screw, washer and spacer
that secure the existing one-way wheel to the wheel insert.
Two-Way Wheel: Remove the existing mounting screw, washer, bushing
and spacer that secure the existing two-way wheel to the wheel insert.
3. Remove EXISTING wheel and discard.
4. Reverse STEPS 1-2 to install the NEW wheel.
Replacing The One-Way Wheels With Two-Way Wheels
NOTE: Refer to INSTALLATION WARNINGS in the SAFETY SUMMARY in
this instruction sheet.
NOTE: two way wheels are shipped assembled to the wheel insert.
1. Remove the mounting screw, washer and locknut securing the one-way
wheel and EXISTING wheel insert to the tube frame.
2. Remove the one-way wheel and EXISTING wheel insert and discard.
3. Insert the NEW wheel insert with two-way wheel into the tube frame and
secure with mounting screw, washer and locknut.
6
Bushing
(Two-Way Wheel Only)
Mounting
Screw
Tube Frame
Washer
Wheel
Mounting
Screw
Washer
FIGURE 3 - REPLACING THE WHEELS/REPLACING THE ONE-WAY
WHEELS WITH TWO-WAY WHEELS
Spacer
Locknut
Wheel Insert
Set Screw
CONVERTING THE REVERSE POSTURAL (PULLING)
WALKER TO A FOWARD (PUSHING) WALKER
(FIGURE 4)
NOTE: Refer to INSTALLATION WARNINGS in the SAFETY SUMMARY in this
instruction sheet.
NOTE: Walker is shipped in the reverse postural (pulling) walker configuration.
NOTE: Right, Left, Front, and Rear sides are determined from using the walker in
the reverse postural (pulling) configuration.
NOTE: Two (2) of the four (4) wheels provided with the walker are "one-way" wheels,
which roll in only one (1) direction. This allows the walker to be used as either a
reverse postural (pulling) walker, or a forward (pushing) walker.
NOTE: On a reverse postural (pulling) walker both of the one-way wheels are
mounted to the rear frame tubes. On a forward (pushing) walker both one-way
wheels are mounted to the front frame tubes.
NOTE: Take note of the location and orientation of the one-way wheels before removal.
NOTE: When installing the one-way wheels into the front frame tubes, their position
is reversed in order to change the direction of rotation.
7
1. Remove the four (4) mounting screws, washers and locknuts that secure the
four (4) wheel inserts to the walker frame. Remove the four (4) wheel inserts.
2. Install the right two-way wheel insert into the right rear frame tube. Secure
with mounting screw, washer, and locknut.
3. Install the left two-way wheel insert into the left rear frame tube. Secure with
mounting screw, washer, and locknut.
4. Install the right one-way wheel insert into the left front frame tube. Secure
with mounting screw, washer and locknut.
5. Install the left one-way wheel insert into the right front frame tube. Secure
with mounting screw, washer and locknut.
Left Rear
Frame Tube
Right Rear
Frame Tube
Left Front
Frame Tube
Locknut
Washers
Walker
Frame
Left Two-Way
Wheel Insert
Mounting
Screw
Left One-
Way Wheel
NOTE: Reverse Postural
(Pulling) Walker Shown.
Insert
Right One-Way
Wheel Insert
Right Front
Frame Tube
Right Two-Way
Wheel Insert
FIGURE 4 - CONVERTING THE REVERSE POSTURAL (PULLING) WALKER
TO A FORWARD (PUSHING) WALKER
8
REPLACING THE WALKER PAD (FIGURE 5)
NOTE: Refer to INSTALLATION WARNINGS in the SAFETY SUMMARY
in this instruction sheet.
1. Separate the hook and loop strips and remove the pad cover.
2. Remove the EXISTING walker pad crossmember.
3. Slide the NEW walker pad over the crossmember.
4. Reinstall the pad cover and secure with hook and loop strips.
Pad Cover
Crossmember
FIGURE 5 - REPLACING THE WALKER PAD
Hook and Loop Strips
Walker Pad
INSTALLING THE CRUTCH TIPS (FIGURE 6)
NOTE: Refer to INSTALLATION WARNINGS in the SAFETY SUMMARY
in this instruction sheet.
NOTE: Rear wheels are determined from the users position.
1. Remove the rea r wheel. Refer to REPLACING THE WHEEL in this instruc-
tion sheet.
2. Slide crutch tip on to the wheel insert in the rear frame tube.
3. Repeat STEPS 1-2 on remaining rear wheel.
9
Rear Left
Frame Tube
Wheel Insert
Crutch Tip
FIGURE 6 - INST ALLING THE CRUTCH TIPS
REPLACING THE GRIPS (FIGURE 7)
NOTE: Refer to INSTALLATION WARNINGS in the SAFETY SUMMARY
in this instruction sheet.
1. Remove the EXISTING grip and end plug. Discard both.
2. Apply a thin coat of hair spray on the inside of the NEW grip and on to the handle.
NOTE: This application will make it easier to slide the grip onto the push
handle bar.
3. Slide NEW grip onto one end of the push handle.
4. Install NEW end plug.
Grip
Handle Bars
FIGURE 7 - REPLACING THE GRIPS
10
End Plug
LIFETIME LIMITED WARRANTY
Invacare warrants this product to be free from defects in materials and workmanship
PLEASE NOTE: THE W ARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LA W APPLI-
CABLE TO PRODUCTS MANUF ACTURED AFTER JUL Y 4, 1975.
This warranty is extended only to the original purchaser/user of our products.
This warranty gives you specific legal rights and you may also have other legal rights which vary
from state to state.
Invacare warrants its product to be free from defects in material and workmanship for the
lifetime of use by original purchaser. If within such warranty period any such product shall be
proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This
warranty does not include any labor or shipping charges incurred in replacement part installation
or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this
warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product.
In the event you do not receive satisfactory warranty service, please write directly to Invacare at the
address on the back page. Provide dealer’s name, address, model number, date of purchase,
indicate nature of the defect and, if the product is serialized, indicate the serial number.
Invacare Corporation will use a return authorization. The defective unit or parts must be returned
for warranty inspection using the serial number, when applicable, as identification within thirty (30)
days of return authorization date. DO NOT return products to our factory without our prior
consent. C.O.D. shipments will be refused; please prepay shipping charges.
LIMITA TIONS AND EXCLUSIONS: THE W ARRANTY SHALL NOT APPL Y TO PROBLEMS ARISING FROM
NORMAL WEAR OR F AILURE TO ADHERE TO THE ENCLOSED INSTRUCTIONS. IN ADDITION, THE FOREGOING W ARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS
BEEN REMOVED OR DEF ACED; PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER
OPERA TION, MAINTENANCE OR STORAGE; OR PRODUCTS MODIFIED WITHOUT INV ACARE’S EXPRESS WRITTEN CONSENT (INCLUDING, BUT NOT LIMITED TO MODIFICATION THROUGH THE USE OF
UNAUTHORIZED P ARTS OR ATT ACHMENTS, PRODUCTS DAMAGED BY REASON OF REP AIRS MADE
TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INV ACARE; PRODUCTS DAMAGED
BY CIRCUMSTANCES BEYOND INV ACARE’S CONTROL; PRODUCTS REP AIRED BY ANYONE OTHER
THAN AN INV ACARE DEALER). SUCH EV ALUA TION SHALL BE SOLEL Y DETERMINED BY INV ACARE.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS W ARRANTIES, IF ANY,
INCLUDING THE IMPLIED W ARRANTIES OF MERCHANTABILITY AND FITNESS FOR A P ARTICULAR PURPOSE, AND SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESSED W ARRANTY PROVIDED
HEREIN AND THE REMEDY FOR VIOLATIONS OF ANY IMPLIED W ARRANTY SHALL BE LIMITED TO REP AIR
OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. INV ACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHA TSOEVER.
THIS W ARRANTY SHALL BE EXTENDED TO COMPLY WITH ST ATE/PROVINCIAL LA WS AND REQUIREMENTS.
11
Invacare Corporation • ONE INVACARE WAY • Elyria, Ohio 44036-4028 USA •
Invacare Canada, Inc. • 5970 Chedworth Way • Mississauga, Ontario L5R 3T9 Canada
Form No. 00-105 P/N 1098350 Rev. A (1)-8/00 Printed in USA
(800) 333-6900
(800) 668-5324
12
Loading...
