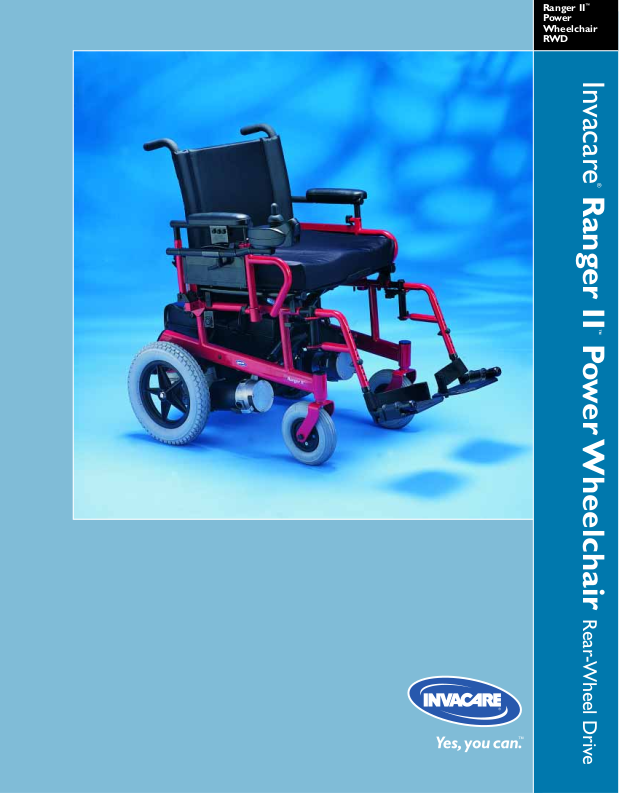

Invacare
®
Ranger II
™
Power Wheelchair Rear-Wheel Drive
Invacare
Ranger II
™
Power
Wheelchair
RWD
Invacare Corporation
www.invacare.com
USA
One Invacare Way
Elyria, Ohio
44036- 2125
(800) 333-6900
Canada
5970 Chedworth Way
Mississauga, Ontario
L5R 3T9 Canada
(800) 668-5324
© 2001
Invacare Corporation
Form No. 00-309
Invacare is a registered
trademark and Yes, you
can., MKIV and Ranger II
are trademarks of
Invacare Corporation.
Invacare Virtual Service is
a servicemark of Invacare
Corporation.
Specifications are subject
to change without
notification.
Specifications
Dimensions Adult Hemi
Overall
Height 35.25"-39.25" 33.25"-37.25"
Width open 21.75"-27.75" with MKIV joystick 23.75"-27.75" with MKIV joystick
20.5"-26.5" without MKIV joystick 20.5"-26.5" without MKIV joystick
Width closed 13.75" with MKIV joystick 13.75" with MKIV joystick
13" without MKIV joystick 13" without MKIV joystick
Length 36.5"-47.25" 36.5"-476.25"
Seat-to-Floor Height 20.25" 18.5"
Arm Height 9" fixed 9" fixed
9.4"-13.4" adjustable 9.4"-13.4" adjustable
Rear Wheel Size 12.5"x2.25" 12.5"-2.25"
Casters
8"x1.75" Semi-pneumatic standard standard
8"x2" Pneumatic optional optional
Weight
169 lb. with 22NF batteries 176 lb. with 22NF batteries
94 lb. without batteries 101 lb. without batteries
Maximum Speed 6 mph Standard 6 mph Standard
3.9 Basic 3.9 Basic
Battery (not included) 22NF deep-cycle gel cell 22NF deep-cycle gel cell
dual-mode automatic battery charger
Incline Capability 9º grade 9º grade
Shipping Weight 110 lb.-115 lb. 110 lb.-115 lb.
Ground Clearance 4" 4"
Full Turning Radius 33" 33"
All specifications are approximate.
Highlights
• Exciting frame colors
• Quiet and efficient direct-drive system
• Choice of back heights from 16" - 20"
• Adjustable-angle back
• Telescoping front riggings
• Full switch option capability on Ranger II standard
• Adult height seat-to-floor frame and hemi height
available
• 300 lb. weight capacity on Ranger II standard
• 250 lb. weight capacity on Ranger II basic
Styling
Up to now, this class of products was characterized
by aesthetically old-fashioned, unappealing choices.
By comparison, the beautiful styling of the Invacare
®
Ranger II™power chair brings this product class to
new visual heights.
Components
disassemble for
easy transport
Standard Features
• MKIV™-RII control system
• Invacare
®
Virtual Service
SM
• Separate, easy-to-remove battery boxes
• 22NF battery size for 16," 18," and 20" wide adult
and hemi seat models*
• U1 battery size for 14" wide models*
• Closed-loop system to help maintain speed and
direction, even downhill
• Automatic motor locks
• Dynamic (on-demand) braking with regeneration
• True free-wheeling with motor lock release
• Exclusive 8-amp dual-mode automatic battery
charger
• In-line casters to improve indoor maneuverability
* Batteries not included.
R
ear-wheel drive is the traditional configuration for power chairs. Rear-wheel drive chairs
excel at delivering a stable ride over a wide range of terrain. The Invacare
®
Ranger II
™
power chair, with its outstanding features, performance characteristics, and all-around
good looks, stands out as the best rear-wheel drive choice available.
