Intratone Proximity Reader User Manual

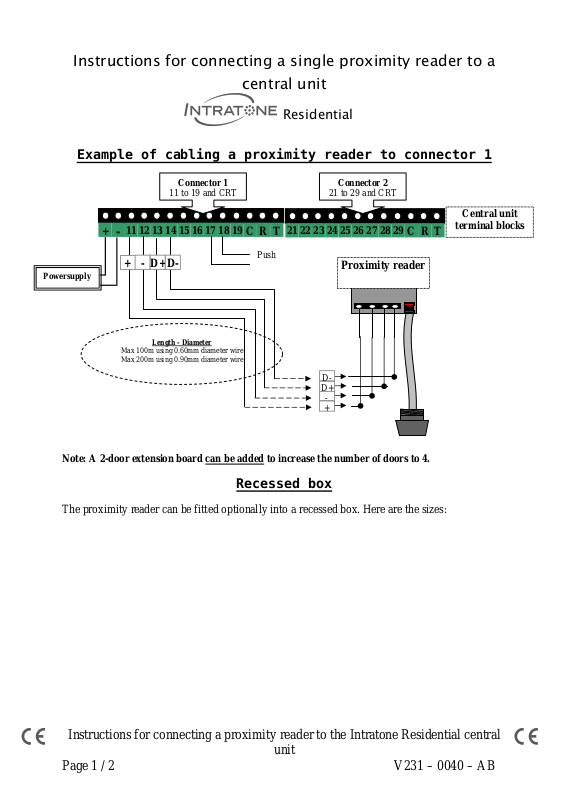

Instructions for connecting a single proximity reader to a

+

-

1 2 3 4 5 6 7 8 9 10 11 12

C R T

1 2 3 4 5 6 7 8 9 10 11 12

+ - D+ D-

central unit

Residential

Example of cabling a proximity reader to connector 1

Connector 1

11 to 19 and CRT

Powersupply

12

Push

21 23 24 25 26 27 28 29

22

11 13 14 15 16 17 18 19

Max 100m using 0.60mm diameter wire
Max 200m using 0.90mm diameter wire

Length - Diameter

Note: A 2-door extension board can be added to increase the number of doors to 4.

Recessed box

The proximity reader can be fitted optionally into a recessed box. Here are the sizes:

Connector 2

21 to 29 and CRT

Proximity reader

C R T

Central unit

terminal blocks

Instructions for connecting a proximity reader to the Intratone Residential central

unit

Page 1 / 2 V231 – 0040 – AB
