Ribbon cable for connection to the central unit
31 32 33 34 3536 37 38 39 C R T 41 42 43 44 4546 47 48 49 C R T
Extension card
Stage 1
Stage 3
Stage 4
Stage 2
steel base
Fitting procedure:

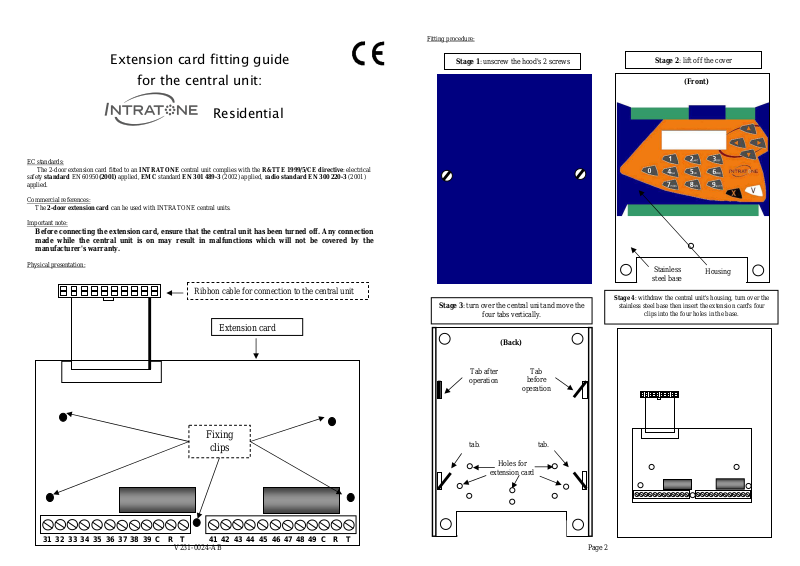

Extension card fitting guide
for the central unit:
Residential
EC standards:
The 2-door extension card fitted to an INTRATONE central unit complies with the R&TTE 1999/5/CE directive: electrical
safety standard EN 60950(2001) applied, EMC standard EN 301 489-3 (2002) applied, radio standard EN 300 220-3 (2001)
applied.
Commercial references:
The 2-door extension card can be used with INTRATONE central units.
Important note:
Before connecting the extension card, ensure that the central unit has been turned off. Any connection
made while the central unit is on may result in malfunctions which will not be covered by the
manufacturer's warranty.
Physical presentation:
: unscrew the hood's 2 screws
: turn over the central unit and move the
four tabs vertically.
: lift off the cover
(Front)
Stainless
: withdraw the central unit's housing, turn over the
stainless steel base then insert the extension card's four
clips into the four holes in the base.
Housing
Fixing
clips
V231-0024-AB
(Back)
Tab after
operation
tab.
Holes for
extension card
Tab
before
operation
tab.
Page 2
(front)
front view
Stage 6
the stainless steel base.
Stage 5
motherboard (display toward the top).
Motherboard turned over and mounted on
the Intratone central unit housing
(front)
Stage 8
Stage 9
be used
.
: connect one or two proximity readers
(according to your needs) to the extension card.
(Front)
: screw the hood to the central unit's
housing.
Motherboard
: bring the central unit's housing closer, and
connect the extension card ribbon cable to the
: replace the central unit's housing on
(Front)
Page 3
Stage 7: turn over the central unit and move the
four tabs at an angle.
Tab after
operation
Tab.
(Back)
Tab
before
operation
Tab.
Proximity reader
Proximity reader
The central unit is ready to
Page 4
