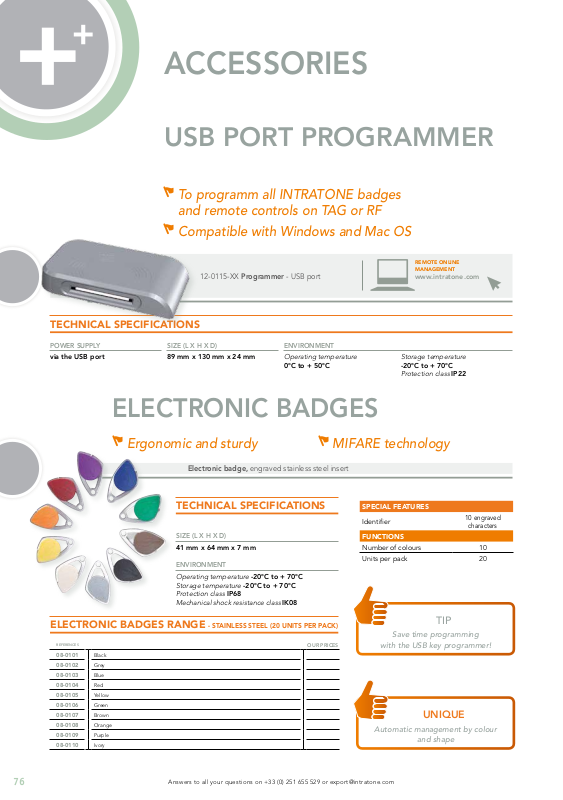

Intratone ACCESSORIES User Manual

12-0115-XX Programmer - USB port

Electronic badge, engraved stainless steel insert

ACCESSORIES

USB PORT PROGRAMMER

G

To programm all INTRATONE badges
and remote controls on TAG or RF

G

Compatible with Windows and Mac OS

TECHNICAL SPECIFICATIONS

REMOTE ONLINE
MANAGEMENT

www.intratone.com

POWER SUPPLY

via the USB port

SIZE (L X H X D)

89 mm x 130 mm x 24 mm

ENVIRONMENT

Operating temperature

0°C to + 50°C

ELECTRONIC BADGES

G

Ergonomic and sturdy

TECHNICAL SPECIFICATIONS

SIZE (L X H X D)

41 mm x 64 mm x 7 mm

ENVIRONMENT

Operating temperature -20°C to + 70°C
Storage temperature -20°C to + 70°C
Protection class IP68
Mechanical shock resistance class IK08

G

MIFARE technology

SPECIAL FEATURES

Identifier

FUNCTIONS

Number of colours 10

Units per pack 20

Storage temperature

-20°C to + 70°C
Protection class IP22

10 engraved

characters

76

ELECTRONIC BADGES RANGE

REFERENCES

08-0101

08-0102

08-0103

08-0104

08-0105

08-0106

08-0107

08-0108

08-0109

08-0110

Black

Grey

Blue

Red

Yellow

Green

Brown

Orange

Purple

Ivory

Answers to all your questions on [phone] or [e-mail]

- STAINLESS STEEL (20 UNITS PER PACK)

OUR PRICES

TIP

Save time programming

with the USB key programmer!

UNIQUE

Automatic management by colour

and shape

Electronic remote control, engraved stainless steel insert – 2 channels

Electronic dual-technology remote control, engraved stainless steel insert – 4 channels

REMOTE CONTROLS

2 channels

UNIQUE

Automatic

management by colour

and shape

Equipped with a battery saver

function. Press and hold to stop

charging your remote control.

G

Everything you need at the right price

G

RF 868 MHZ technology

TIP

ELECTRONIC REMOTE CONTROLS RANGE

2 CHANNELS (10 UNITS PER PACK)

REFERENCES

09-0101

Black

OUR PRICES

SPECIAL FEATURES

Identifier

868 MHz •

Number of channels 2

Technology RF

FUNCTIONS

Number of colours 1

Units per pack 10

Batch programming (barcode) •

10 engraved

characters

TECHNICAL SPECIFICATIONS

POWER SUPPLY

Supplied with 1 CR 2032
battery

SIZE (L X H X D)

41 mm x 71 mm x 13 mm

ENVIRONMENT

Operating temperature­20°C to + 70°C

Storage temperature

-20°C to + 70°C
Protection class IP54

REMOTE CONTROLS

4 channels

management by colour

G

Combines both technologies for use
as a badge or as a remote control

G

RF 868 MHZ technology

UNIQUE

Automatic

and shape

SPECIAL FEATURES

Identifier

868 MHz •

Number of channels 4

Technology MIFARE and RF

FUNCTIONS

Number of colours 5

Units per pack 10

10 engraved

characters

ELECTRONIC BI-TECHNOLOGY REMOTE
CONTROLS - 4 CHANNELS (10 UNITS PER PACK)

REFERENCES

09-0102

09-0103

09-0104

09-0105

09-0106

Black

Blue

Red

Yellow

Green

Answers to all your questions on [phone] or [e-mail]

OUR PRICES

TECHNICAL SPECIFICATIONS

POWER SUPPLY

Supplied with 1 CR 2032
battery

SIZE (L X H X D)

5 mm x 74 mm x 13 mm

ENVIRONMENT

Operating temperature

-20°C to + 70°C

Storage temperature

-20°C to + 70°C
Protection class IP54

77
