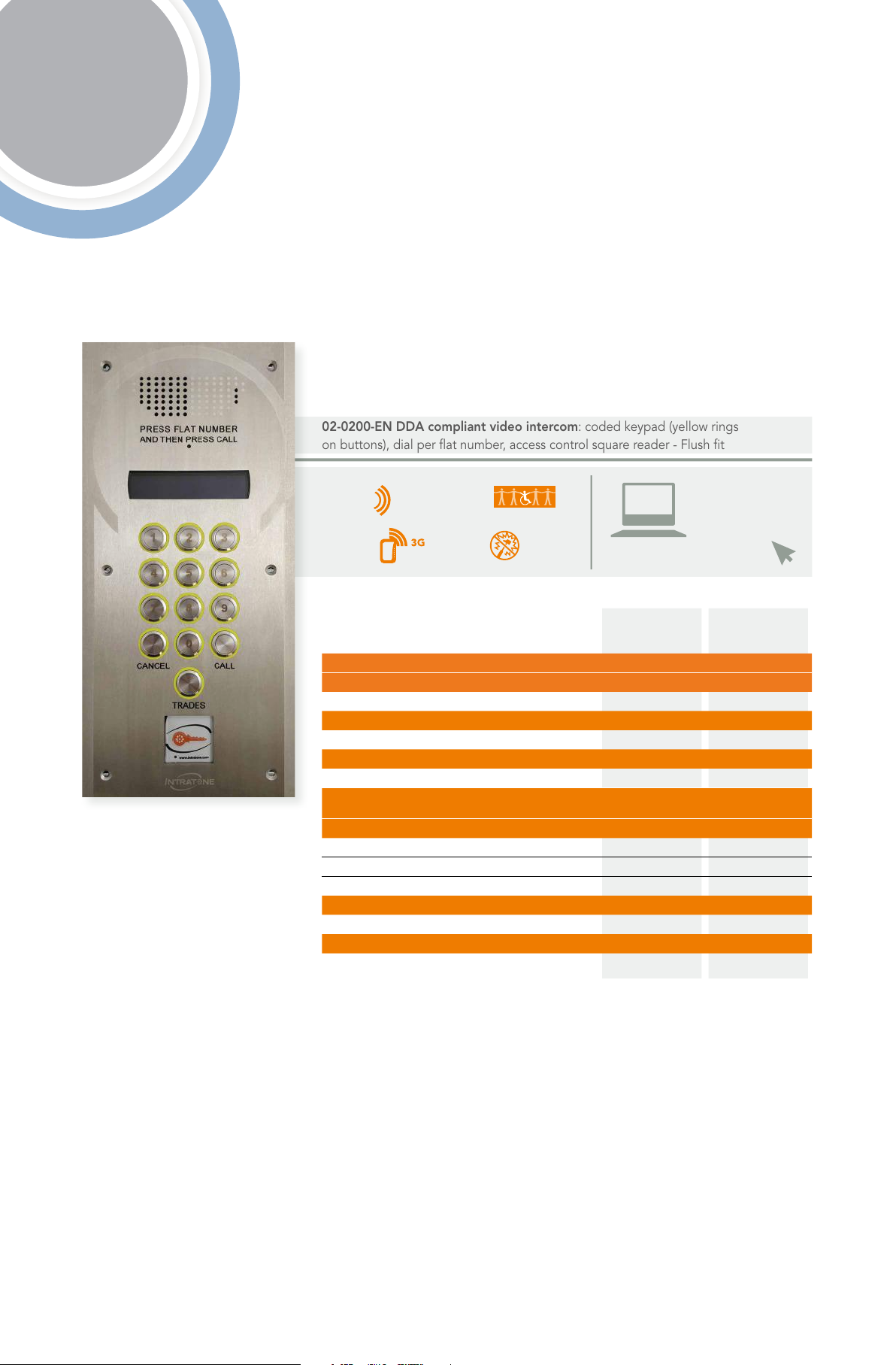

02-0200-EN DDA compliant video intercom: coded keypad (yellow rings
on buttons), dial per flat number, access control square reader - Flush fit

DDA COMPLIANT
VIDEO INTERCOM

Coded Keypad

REMOTE ONLINE

AUDIO

SUITABLE FOR EVERYONE

VANDAL­RESISTANT

MANAGEMENT

www.intratone.com

CENTRAL UNIT

MAX. NUMBER OF HOMES MANAGED max. 100 max. 1,000

SYSTEM

Number of relays 1 (+3) 2 (+2)

CONNECTION

3G unit Intratone (mobile networks) • •

3G UNIT SPECIFICATIONS

Remote 3G unit • •

CALLS/UPDATES INCLUDED

ACCESS CONTROL EQUIPMENT

Coded keypad • •

Trade button • •

Square proximity reader • •

FITTING

Flush-fit • •

FINISH

Stainless steel • •

Call length 40 sec.
Configurable welcome message (64 scrolling or static characters) YES
Simplified calling for the partially sighted YES
Call sheet display (apartments) during time slots YES
Operational messages: (call in progress…) Speech synthesis + display YES
Anti-disturbance

Sound level adjustment without dismantling (depending on associated
central unit)

Automatic call return if no answer YES

(1)

1 door

(03-0102-EN)

Request

quotation

2 doors

(03-0101-EN)

Request

quotation

YES

YES

(1)

System ensuring that a resident is not disturbed by repetitive calls

Answers to all your questions on [phone] or [e-mail]

TECHNICAL SPECIFICATIONS

POWER SUPPLY

Central unit

min. 12/24 V DC - 2 A

CABLING

2-DOOR CENTRAL UNIT
03-0101-EN

3G unit - Central unit

6 wires (3 twisted pairs)
Ø 0.8 mm - Max: 100 m

Central unit - Intercom

6 wires (3 twisted pairs)
Ø 0.8 mm - Max: 200 m

Intercom - 3G unit

2 wires (1 twisted pair)
Ø 0.8 mm - Max: 100 m

1-DOOR CENTRAL UNIT
03-0102-EN

Central unit - Intercom /
3G unit

4 wires (2 twisted pairs)
Ø 0.8 mm - Max: 200 m

Intercom - 3G unit

6 wires (3 twisted pairs)
Ø 0.8 mm - Max: 100 m

DDA COMPLIANT AUDIO INTERCOM - FLUSH FIT

REFERENCES

02-0200-EN

02-0201-EN

02-0202-EN

12-0131

INTERCOMS ONLY OUR PRICES

Stainless steel

COMPLETE PACKS INCLUDING 1 INTERCOM + 1 x 100-NAMES CENTRAL UNIT (1-door central unit 03-0102-EN)

Stainless steel

COMPLETE PACKS INCLUDING 1 INTERCOM + 1 x 1.000-NAMES CENTRAL UNIT (2-door central unit 03-0101-EN)

Stainless steel

ACCESSORIES

Surface mounted box for DDA compliant video intercom - Stainless steel

INTERCOM SIZE

L x H x D

180 x 385 x 2.5 mm

ENVIRONMENT

Intercom operating
temperature

-20°C to +70°C

Intercom storage
temperature

-20°C to +70°C

Intercom protection class

Intercom IP55
Outdoor fitting

INTERCOMS

Monthly

Classic monthly

packages

DUO

Unlimited calls and updates

Custom

Adjustable packages

PREPAID or FLEET

Unlimited calls

and updates

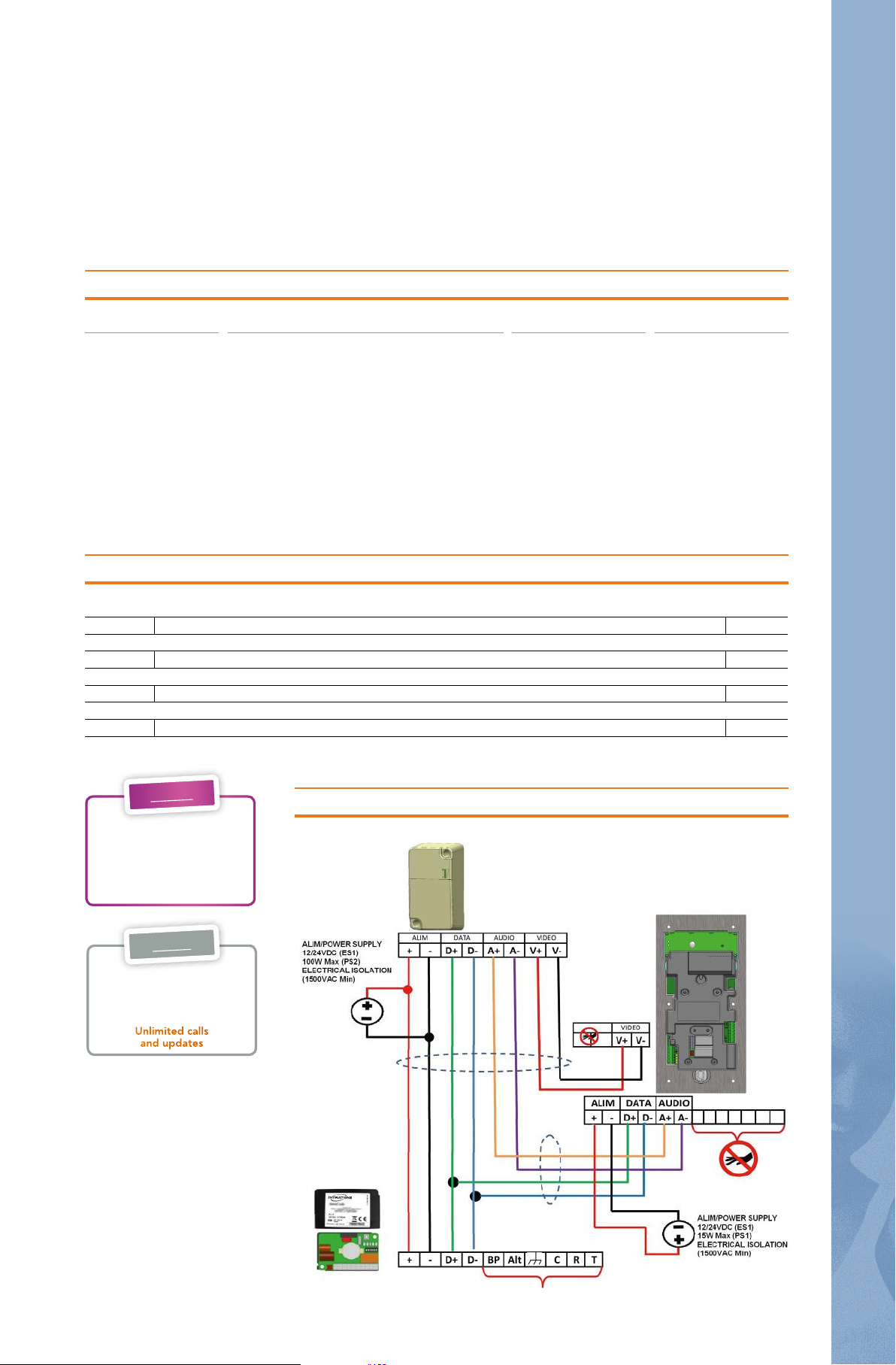

BASIC DIAGRAM
