TOTAL VEHICLE TECHNoLOGIES
4.3” GPS Rearview Mirror with Bluetooth
User Manual
TD43TOUCHPLUS
Introduction
Thank you for choosing a INTRAPHEX product!
1. Visit our website
for a copy of this manual
as well as any updated information on your device.
2. Please be sure to copy the contents of the SD card in case of file
corruption, or data loss.
3. Pictures in the manual are for reference only.
Caution:
1) If you are having trouble receiving a GPS signal, please check the
following possible causes:
a): Please check the connection of the GPS antenna on the rear of the
device.
b): For initial satellite reception, it may take up to 20 minutes, please
allow time for updates and satellite reception.
c): Please be sure that GPS antenna has a clear view of the sky, tall
buildings may interfere with
GPS reception.
2) Driver should not operate this navigation device while driving. Please
be sure to obey all traffic laws and regulations while using this product.
3) Due to firmware updates, some differences may occur with manual
and actual product. Please refer to
for any
updates to your device.
Total Vehicle Technologies
www.intraphex.com
www.intraphex.com
Contents
GPS Introduction ....................................................... 4
Product Appearance.................................................. 5
Basic Operation......................................................... 5
Bluetooth Function .................................................... 6
Bluetooth Function (continued) ................................. 7-9
Settings ................................................................... 10-12
Cable Connection.................................................... 13
Technical Parameter Form ...................................... 14
GPS Trouble Shooting............................................. 14
Total Vehicle Technologies
4
INTRAPHEX GPS Introduction
Insert supplied SD memory card with map data content, choose
navigation, then operate according to menu to start navigation.
NAVIGATION FUNCTION
This unit receives signals from satellites with the GPS receiver to
pinpoint and display your location on the map. The system will
calculate the best route automatically after the user sets the
destination. Please refer to the tutorial included in your navigation
software for further instructions.
ABOUT MAP DATA
The device uses the latest map data for navigation. Please be sure to
check your local rules and regulations of the road as they may have
changed without the knowledge of the map data supplier.
NAVIGATION
This GPS device supplies the suggested routing for reference only.
RECEIVING GPS SIGNAL
Receiving a GPS signal can be affected by many variables (examples:
tunnels, tall buildings, underground parking structures and solar flares)
Please allow up to 20 minutes for GPS reception.
GPS ACCURACY
The accuracy of the GPS system is usually within 30 feet.
GPS NAVIGATION
Total Vehicle Technologies
Total Vehicle Technologies
5

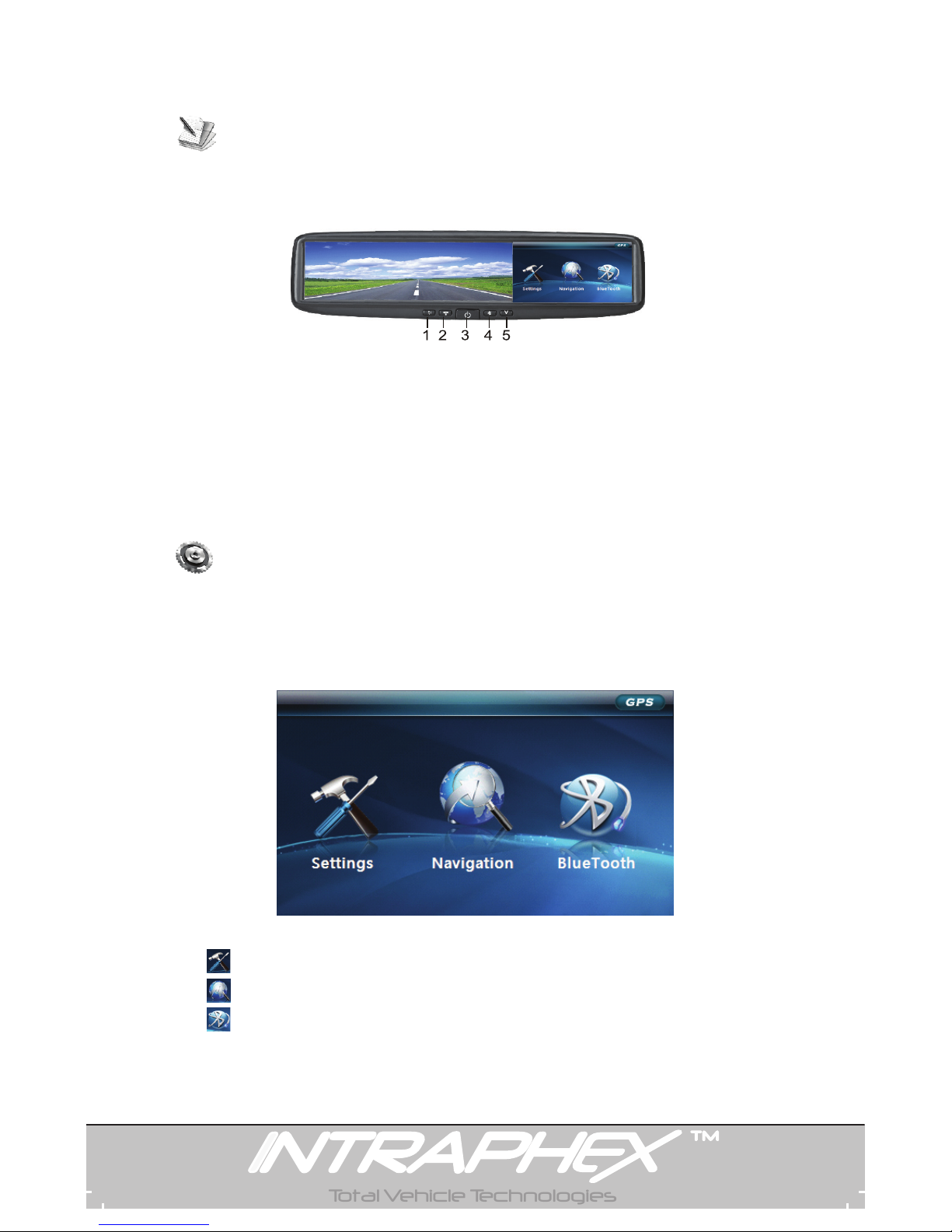

1. Handsfree Answer
2. Handsfree End Call
3. Power On/Off
4. Handsfree Shortcut Key
5. Main Menu
Basic Operation
Product Appearance
Turn ON car ignition, GPS mirror will automatically power on.
When car ignition is turned OFF GPS mirror will automatically
power off.
Settings: Navigation, Volume, Languages etc.
Navigation: Start Navigation
Bluetooth: Pair Bluetooth Phone, Hands-free calling
Total Vehicle Technologies
6
1. Pairing
To Pair with your mobile phone:
Bluetooth Function
Once a bluetooth phone is paired with this device, you can use this
device as a hands-free device to send and receive telephone calls.
• Enter the Bluetooth main menu
• Press the pairing icon
• Once the pairing is active, using your mobile phone search
for BTA. Select this device.
• Every mobile phones Bluetooth functions differently,
please see your mobile phones Users Guide to ensure
proper Bluetooth pairing procedure.
Total Vehicle Technologies
7
1. Pairing Continued...

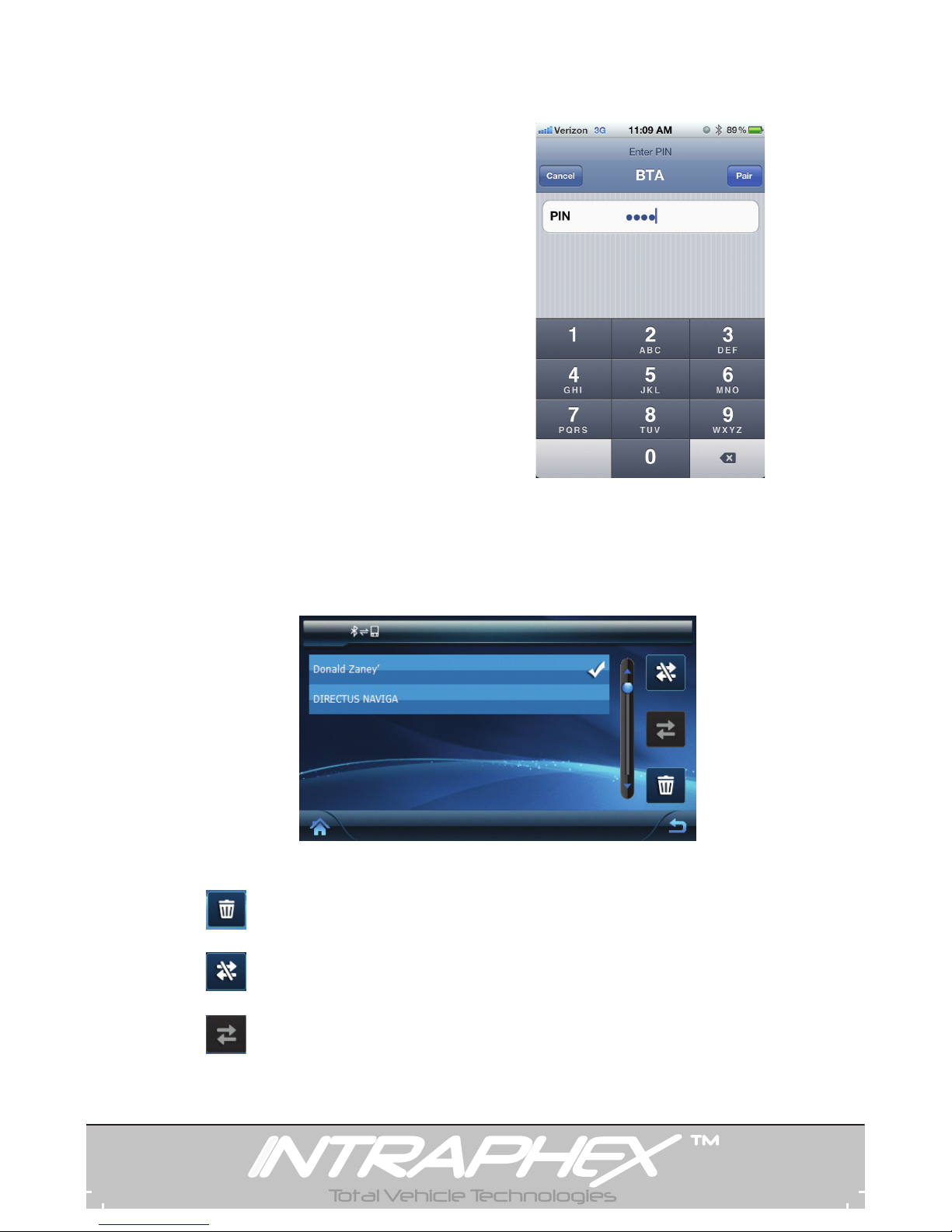

Enter the pin code
on your mobile phone
(default is 8888) and
press pair
•
• Your Bluetooth should now be paired, the TD43touch will hold
a maxium of 5 Bluetooth profiles and will automatically pair to the
first phone available on the list of paired devices, when the
TD43touch is turned on
Press to delete all paired devices
Press to unpair the selected mobile phone
Press to pair another listed device. Simply choose the desired
device and press the pair icon
Total Vehicle Technologies
8
Dial Pad
2. Placing a Call
• To place a hands free
call simply press the
Dial Pad icon
• Then dial the desired
number and press the
green send icon
• While in call
Press to mute
microphone
Press to display
the dialpad
Press to send to mobile
phone for privacy
Press to end call
Total Vehicle Technologies
9
Bluetooth on the GPS Mirror is always ON, to disconnect Bluetooth you must
do so on your mobile phone.
To enable auto answer you must the box next to Auto Answer.
Click to set PIN code.
3: Bluetooth Settings
Bluetooth Setting: In Bluetooth menu, click “Settings”
Total Vehicle Technologies
10
1. GPS settings
Click
to set up navigation
Click “Settings” in main menu
Settings
Click choose “Navigation Autorun at Power on” We suggest to choose this
option, when powering on, the system will automatically launch run navigation,
otherwise it will not auto run launch the navigation software.
Click Search Navigation
to find the path of
navigation software.
Using the folder structure, find “mobilenavigator.exe” file, double click it to
set the path. Return to the main menu, click “Navigation” to launch
the GPS Navigation program
Total Vehicle Technologies
11

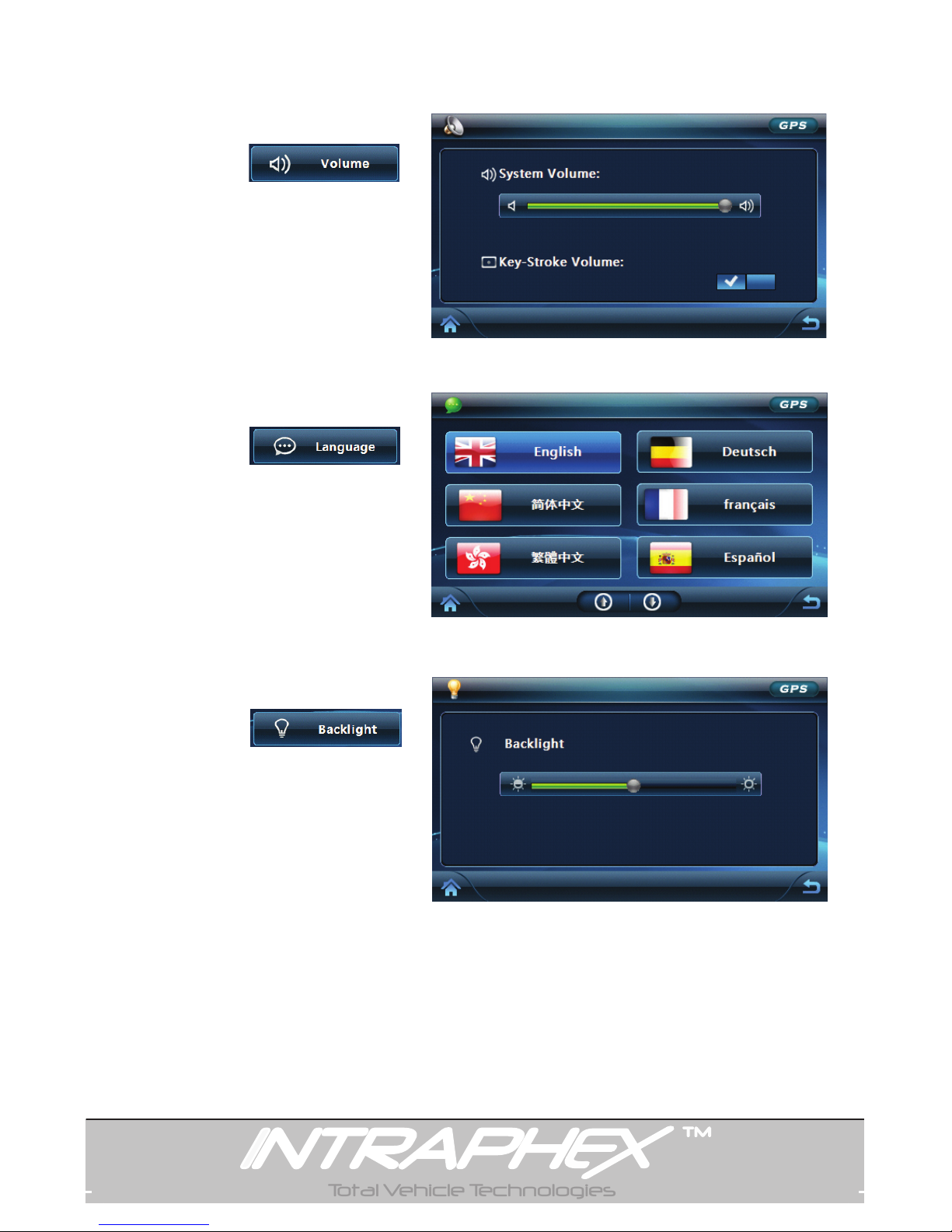

2. Volume set up
Click
to set up volume
4. Brightness setting
3.Language setting
Click
to set up language
Click
to set up brightness
Built-in Flash size, usable
size/total size

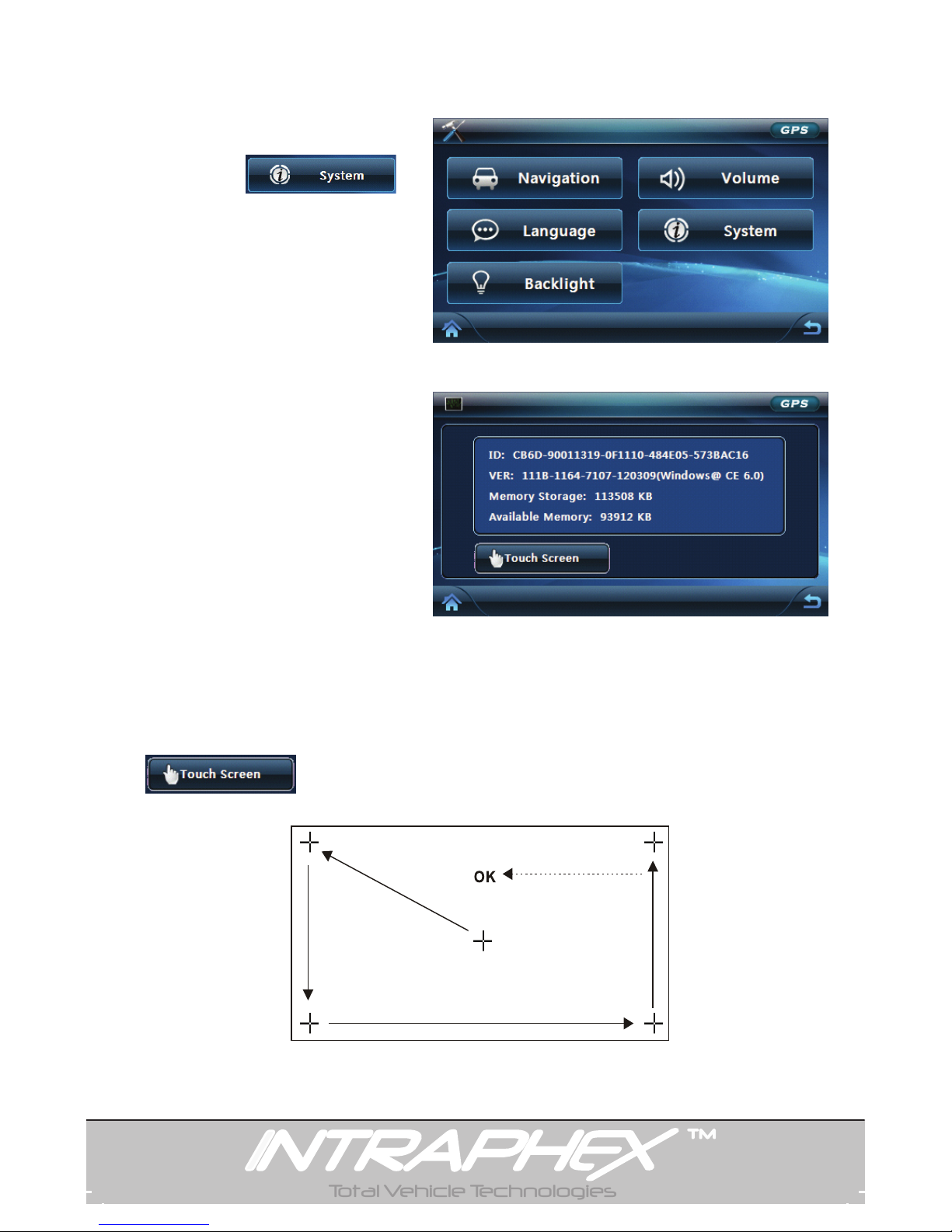

If touch screen becomes less responsive, due to high heat or use, click the
button and follow the calibration tutorial seen below by
touching each of the “+” as they are placed on the screen
Touch Screen Calibration:
Total Vehicle Technologies
12
System info:
ID: Device hardware ID number
VER: Software version number
Built-in RAM size, usable
size/total size
Available Memory:
5. System set up
Click
to set up system
Total Vehicle Technologies
13
Technical Details
Bracket Location
GPS Antenna
Green: Reverse (+12V)
BT Mic
Black: To Ground
Red: ACC (+12V)
Yellow: Batt (+12V)
Camera Two input
AV2 reverse camera input
CABLE CONNECTION
Total Vehicle Technologies
14
System
Parameter
GPS Trouble Shooting
Problem Probable Reason Solution
Does not work
No GPS signal
Device fails
while using
Panel keeps
flashing
No voice
guidance,
Navigation
picture is wrong
1. Power cable not properly
connected
2. High temperature may cause
device not to work correctly
1. GPS antenna not properly
connected
2. Unit may take up to 20 min
to receive initial signal.
3. Under bridge or in tunnel,
bad GPS signal
Possible software hangup
Corrupted sd card
Power cable not properly
connected
1. Happens when recalculating
route
2. New road not in map data
3. On covered road, bad
GPS signal
1. This is normal when system
re-rout
es, please wait
2. Keep driving, GPS will
automatically recalculate
3. Make sure vehicle has
good view of the sky
Check power cable
Restart device
1. Check power cable is
connected properly
2. Power off for a while,
after unit cools, restart it
1. Check GPS antenna
2. The device need some time
to run and get GPS signal,
please wait for a while
3. Drive to a open area to get
good signal
15
