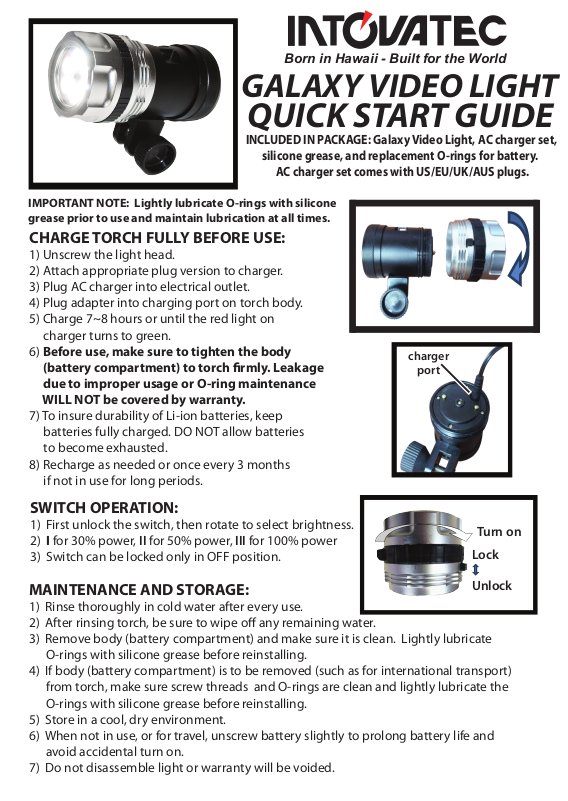

Page 1
Born in Hawaii - Built for the World
GALAXY VIDEO LIGHT
QUICK START GUIDE
INCLUDED IN PACKAGE: Galaxy Video Light, AC charger set,
silicone grease, and replacement O-rings for battery.
AC charger set comes with US/EU/UK/AUS plugs.
IMPORTANT NOTE: Lightly lubricate O-rings with silicone
grease prior to use and maintain lubrication at all times.
CHARGE TORCH FULLY BEFORE USE:
1) Unscrew the light head.
2) Attach appropriate plug version to charger.
3) Plug AC charger into electrical outlet.
4) Plug adapter into charging port on torch body.
5) Charge 7~8 hours or until the red light on
charger turns to green.
6) Before use, make sure to tighten the body
(battery compartment) to torch rmly. Leakage
due to improper usage or O-ring maintenance
WILL NOT be covered by warranty.
7) To insure durability of Li-ion batteries, keep
batteries fully charged. DO NOT allow batteries
to become exhausted.
8) Recharge as needed or once every 3 months
if not in use for long periods.
charger
port
SWITCH OPERATION:
1) First unlock the switch, then rotate to select brightness.
2) I for 30% power, II for 50% power, III for 100% power
3) Switch can be locked only in OFF position.
MAINTENANCE AND STORAGE:
1) Rinse thoroughly in cold water after every use.
2) After rinsing torch, be sure to wipe o any remaining water.
3) Remove body (battery compartment) and make sure it is clean. Lightly lubricate
O-rings with silicone grease before reinstalling.
4) If body (battery compartment) is to be removed (such as for international transport)
from torch, make sure screw threads and O-rings are clean and lightly lubricate the
O-rings with silicone grease before reinstalling.
5) Store in a cool, dry environment.
6) When not in use, or for travel, unscrew battery slightly to prolong battery life and
avoid accidental turn on.
7) Do not disassemble light or warranty will be voided.
Turn on
Lock
Unlock
Page 2
SWITCH CARE:
Because a magnet is used in the switch section, tiny naturally occurring iron particles (iron sand) can
accumulate on the switch. After every dive, wash thoroughly in fresh running water to remove any
such iron sand, as well as dirt and salt. The rotating switch is designed to allow water to enter the
switch area. It is very important to ush salt water from switch. Hold switch under ow of cool fresh
water. Rotate switch several times to ensure that all salt water is ushed. Do not drop or place the
light on sand or dirt, since iron sand may stick or go into switch section.
SPECIFICATIONS:
Function:
1) Waterproof to 400 feet / 122 meters.
2) 2500 lumens at full power
3) Color temp: 5500~6000K
4) LED life: approximately 50,000 hours.
5) Operating environment: -4°F to 113°F / -20°C to 45°C.
6) Wide beam angle: approximately 140 degrees
7) Switch: magnetic
8) Burn time: approximately 3 hrs at 30% power
2 hrs at 50% power
1 hr at full power
9) Notes: Major parameter test at 20~25°C
MATERIAL :
1) Case: 6061-T6 Aluminum alloy,
anti-corrosive anodized
2) Surface nish: Matte Black
3) Lens: Clear glass window
4) Waterproof silicone O-rings:
Quantity (2) 53mm x 2.5mm
ELECTRICAL DATA :
1) Light source: 6 pcs CREE XP-G LED;
2) Electrical current: input 12V,
current 1 +/-0.2A (MAX)
3) Battery: 3 "18560" (2600mAh) rechargeable
Li-ion battery 11.1V with protection circuit
4) Charge time: approximately 7 to 8 hours
PRODUCT NET WEIGHT AND DIMENSION :
1) Net weight: 702g (including battery)
2) Dimensions: Dia. 72mm X 100mm X 120mm
Designed in Hawaii Made in China
© 2014 Intova • All Rights Reserved
1100 Alakea St., 18th Floor
Honolulu, Hawaii 96813 USA
www.intova.net
