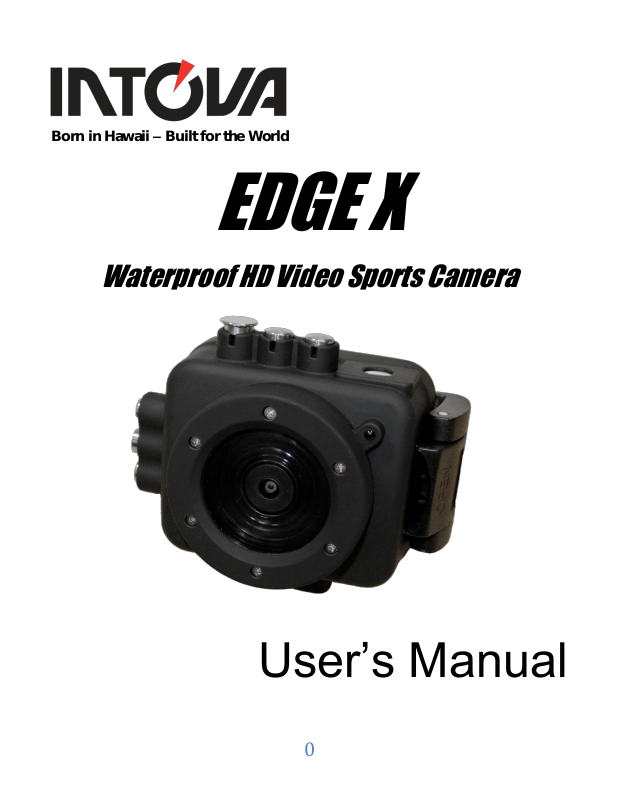

Born in Hawaii – Built for the World
EDGE X
Waterproof HD Video Sports Camera
User’s Manual
0
Table of Contents:
P r e f a c e … … … … … … … … … … … … … … … … … … … … … … … . 2
System requirements for 1080P HD video …… ………………3
Getting to know your camera …… …… … …… … …… …… ….. 4
Getting Started… … … …… … … … … …… … … …… … …… … …5
Using EDGE X…… … …… … … … …… … … … … …… … … … … . 7
Basic Operations of EDGE X camera… … … … … … ……… … . 8
Camera Settings… … … … … … … … … … … … … … … … … … …. 9
Video Menu… … … … … … … … … … … … … … … … … … … … … . 9
Photo Menu… … … … … … … … … … … … … … … … … … … … … 1 2
WiFi Menu… …… …… …… … … … … … … … … … … … … …… .. .1 2
System Menu……………………………………………………..14
Image Quality Menu… …… … …… … ……… … … … ……… … ..1 5
View Photos or Playback Videos………………………………16
Deleting Files…… … …… ……… …… … ………………………..17
Specifications…… …… … … … …… …… … …… …… … …… …. 18
1
PREFACE
Thank you for purchasing the Intova EDGE X waterproof sports camera! The rugged, durable and
waterproof EDGE X will help you capture high quality video and photos in many different venues and
environments. Visit www.intova.net to view the wide range of mount and system options available.
Enjoy!!
Main features:
Video Resolution:
1080p@60fps, 1080p@48fps, 1080p@30fps, 1080p@24fps
1200p@60fps, 1200p@48fps, 1200p@30fps, 1200p@24fps
960p@60fps, 960p@48fps, 960p@30fps, 960p@24fps,
720p@120fps, 720p@60fps, 720p@48fps, 720p@30fps, 720p@24fps,
(WVGA) 848x480p@240fps,848x480p@120fps,848x480p@60fps, 848x480p@48fps,
848x480p@30fps, 848x480p@24fps
VGAp@240fps, VGAp@120fps, VGA Full (60fps), VGAp@48fps, VGA (30 fps), VGAp@24fps
Photo Resolution:
12MP, 10MP, 8MP and 5MP
Rubber armored housing
Waterproof to 200 feet / 60M
Flat optical-glass lens port with water-repellant & anti-reflection coating
Super-wide-angle lens at 160 degrees
Digital Zoom: 60x, 16x, 10x and 4x
Uses same filters and lenses as CONNEX and NOVA HD
WiFi: remote operation and viewfinder, wireless file transfer on smartphone with WiFi app
WiFi remote controller (optional accessory)
1.5” / 3.8cm TFT-LCD 480x240
Rechargeable/Removable Li-ion battery 1150mAh
Battery life: 1.5 hrs (LCD on), 1.5 hrs (WiFi on), 2 hrs (LCD off)
Slave strobe function
Removable LCD glare hood
Diving Mode
Motion Detection Mode
Time Lapse mode
Self-capture mode
Burst Mode: 3, 5, 10, 20 and 30 photos
Video Rotation Mode (rotate video 180° when camera is mounted upside down)
Manual White Balance
Picture in Video
Dual stream mode
LED indicator- Visual Record Alert front and back
Audible record alert
Float Strap
High Definition TV output
Video format: H.264 / Photo format: JPEG
Supports Micro SD Card up to 64GB (class 10 required for HD video recording)
2
Important notice:
PC
Mac
Windows® 7, 8
Mac OSR X 10.6.3 or later
Intel® Core 2 Duo
TM
or faster
Intel® Core 2 Duo
TM
or faster
DirectX 10.0 or later
Minimum 2GB of system RAM
Recommended: 4GB
Minimum 2GB of system RAM
Recommended: 4GB
Video card with minimum 256MB of RAM
Video card with minimum 256MB of RAM
Recommended screen resolution 1920x1080
(minimum 1024x768)
Recommended screen resolution 1920x1080
(minimum 1024x768)
Do not attempt to take apart the camera as there are high voltage parts and dangerous electric
shock can occur.
If the camera is dropped or smashed and internal parts are exposed, do not touch as there is a
danger of electric shock.
Do not leave the camera in direct sunlight or near heat sources as these can damage the camera.
If camera becomes hot during use, turn off the power immediately.
For storage, remove the memory card and keep camera in a cool, dry place with housing door
slightly open.
Before each use, clean and maintain O-ring by removing any dirt, sand and other debris and
lightly lubricating with silicone grease to prevent drying and cracking.
Use float strap as extra precaution for water use.
System requirements for 1080P 30fps HD video (minimum)
IMPORTANT NOTE REGARDING CHOPPY OR BROKEN UP PLAYBACK:
HD video files contain very large amounts of data. When recording 1080p video, it is important to use
memory cards that are rated at class 10. 1080p 60fps is too much data for many computers to process.
Most common computers cannot process more than 30fps. We recommend using 30fps for most users
and applications. If 60fps is required, make sure your computer has AT LEAST 3.0-3.7 GHz third
generation Core based processors or equivalent, 4GB RAM and a graphics card that compares to an
NVIDIA GeForce GT650M or better.
Included Accessories:
User’s manual mini CD, lithium ion battery, USB cable, float strap, lens cap, anti-glare hood, silicone
grease, Quick Start Guide, Optional Accessory brochure.
3
GETTING TO KNOW YOUR CAMERA
ITEM
FUNCTION
ITEM
FUNCTION
1
POWER ON/OFF, MODE, MENU
SCROLLING button
13
Float strap attachment point
2
Slave strobe sync light
14
Tripod mount
3
Video recording in progress light
15
Removable anti-glare LCD hood
4
Lock latch
16
O-ring
5
Water repellant glass lens port
17
Thumb press backdoor opening system
in case of vacuum; see page 5.
6
Lens port ring
18
High Definition TV output port
7
SHUTTER button
19
Micro SD card port
8
MENU, WiFi ON/OFF, DELETE button
20
USB port
9
Port for rear video recording in
progress light
21
Li-ion battery cover; lift to open
10
UP, ZOOM IN button
22
LCD screen
11
OK, Picture in video( take photos while
video recording) button
23
Rear video recording in progress
indicator light
12
DOWN, ZOOM OUT, LCD ON/OFF
button
24
Microphone
1
2 3 4 5 6 7 8 9 10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
4
GETTING STARTED
STEP 1
STEP 2
STEP 3
STEP 4
Opening the housing:
Follow the steps below to open the housing. Sometimes a vacuum seal may occur, use thumb press
system to open.
IMPORTANT: Before each use, clean and maintain O-ring by removing any dirt, sand and other
debris and lightly lubricating with silicone grease to prevent drying and cracking.
Inserting the Micro SD card:
Make sure that camera is turned OFF when inserting or removing Micro SD card. Locate Micro SD card
port on your camera (refer to page 4). Insert card with gold contacts facing towards LCD screen. Push
down until card clicks into place. To remove, press down on inserted card to click and then release.
EDGE X uses Micro SD card up to 64 GB. For HD video, speed class 10 is required.
1. The camera cannot record video or take photos without a properly inserted memory card.
2. Format the Micro SD card before use.
3. If the card does not work with the camera, please try another card.
4. When recording video in 1080p, or using WiFi, card speed class 10 is required.
5
