Born in Hawaii – Built for the World
ConneX
Waterproof HD Video Camera with Hardwire Port
User’s Manual
0
Table of Contents:
Preface……………………………..………………………………………….2
Computer requirements for 1080P HD video …………..…………………4
Getting to know your camera ………………...…………...………………..5
Getting Started……………………………..…………………………………5
Using ConneX……………………………………………………………….7
Basic Operations of ConneX camera…………………………………….8
2.4G remote operations……………………………………………………9
Camera Settings………………………..…………………………………….9
Video Menu………………………...………...……………………………….9
Photo Menu………………………….……………………………………12
Setting Menu…………………………………………….………………..14
View Photos or Playback Videos……………………….…………………15
Deleting Files………………………………………………………………..16
ConneX Accessories……………………………………………………...16
ConneX Camera Live View Setup…………………………………………...18
Specifications………………………………………………………….…….19
1
PREFACE
Thank you for purchasing the Intova ConneX waterproof video camera! ConneX features a waterproof
hardwire port that allows cable connection up to 300 feet. Cable is available in either HD (component) or
VGA (composite) format and provides live video output and 12 volt DC power input. The system is
compatible with many Marine Electronics monitors or Intova’s 7” water resistant 12 volt DC monitor. A 2.4G
remote is included for surface control of camera. NOTE: The remote does not function below water and is
only waterproof to 6 feet. The rugged, durable and waterproof ConneX provides new and unmatched
functionality for many different uses. Visit www.intova.net to view the wide range of mount and system
options available. Enjoy!!
Main features:
x Video Resolution:
1080p@30fps,
720p@60fps, 720p@30fps
(WVGA)848x480p@60fps, 848x480p@30fps
VGA
x Photo Resolution:
12MP, 8MP, 5MP and 3MP
x Waterproof hardwire port for power in and live video out.
x Rugged polycarbonate housing
x Waterproof to 330 feet / 100M
x 140 degree Wide-angle lens
x 4x Digital Zoom
x Uses same filters and lenses as EDGE X and NOVA HD
x 2.4G remote (for above water use only)
x 1.5” / 3.8cm TFT-LCD 480x240
x Rechargeable Li-ion battery 1450mAh
x Micro USB charger/download port
x Battery life: 2.0 hours (LCD on), 3 hours (LCD off)
x Diving Mode
x Motion Detection Mode
x Time Lapse mode
x Self-capture mode
x Burst Mode: 3, 5, 10 photos
x Video Rotation Mode (rotate video 180° when camera is mounted upside down)
x Manual White Balance
x Picture in Video (take photo at same time as video recording by pressing OK button)
x Video recording LED indicator- blinking red light in front and blinking blue light on top
x Audible record alert
x Camera floats
x High Definition TV output
x Video codec: H.264 / Video format: MP4 / Photo format: JPEG
x Supports Micro SD Card up to 32GB with class 10 required for HD video recording (not included)
2
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
x Reorient or relocate the receiving antenna.
x Increase the separation between the equipment and receiver.
x Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
x Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Product Name: ConneX Camera
Model Name: ConneX
FCC ID:2AE2B-CONNEX
FCC ID: 2AE2B-ConneX
Intova LLC
3
Important notice:
PC
Mac
Windows® 7, 8, 10
Mac OSR X 10.6.3 or later
Intel® Core 2 Duo
or faster
Intel® Core 2 Duo
or faster
DirectX 10.0
or later
Minimum 2GB of system RAM
Recommended: 4GB
Minimum 2GB of system RAM
Recommended: 4GB
Video card with minimum 256MB of RAM
Video card with minimum 256MB of RAM
Recommended screen resolution
1920x1
Recommended screen resolution 1920x1080
(minimum 1024x768)
p
x Use only with approved mount systems that will not put pulling pressure directly on cable connector.
Improper pulling on cable/connector can damage connector and is not covered by warranty.
x WARNING: Do not attempt to take apart the camera-there are high voltage parts and dangerous
electric shock can occur.
x WARNING: If the camera is dropped or smashed and internal parts are exposed, do not touch-
there is a danger of electric shock.
x Do not leave the camera in direct sunlight or near heat sources as these can damage the camera.
x If camera becomes hot during use, turn off the power immediately.
x For storage, remove the memory card and keep camera in a cool, dry place with housing door
slightly open.
x Before each use, clean and maintain all O-rings in areas that have been opened by removing any
dirt, sand and any other debris
x O-rings should be visually inspected and lightly lubricated as needed with silicone grease to prevent
drying and cracking. Remove all excess grease after application.
x If camera stops responding to button controls, reset camera by inserting the end of a paper clip into
the reset hole (please see page 4).
Computer requirements for 1080p HD video:
Minimum recommended setup for viewing and editing 1080p 30fps video.
TM
080 (minimum 1024x768)
TM
Included Accessories:
2.4G remote, micro USB cable, TV out cable, wrist strap, lens cap, quick start guide, optional accessories
sheet.
4
GETTING TO KNOW YOUR CAMERA
(1) POWER
(2) SHUTTER
(3) LED
(7) Recording
indicator LED
(6) Tripod mount
(4) LOCK
(13) Cable port cover
(20) Mini USB HDTV out port
(17) EZ open tabs
(16) RESET
(12) MENU
(23) LCD
(24) O-ring
(21) Cable port
(9) DOWN, ZOOM in,
(8) UP,
ZOOM out,
LCD icons off,
(10) OK
(11) MODE
(19) Micro SD card port
(18) Thumb press
Place against
(17) EZ open tabs
Pull (4) lock
Push (18) thumb
press opener
(14) Micro USB port
(15) VGA TV out port
(22) Port cover O-Rings
(5) Wrist strap
attachment point
LCD off
Front LED off/on
opener
GETTING STARTED
Opening the camera:
Follow the steps below to open the housing. Sometimes a vacuum seal may occur, use thumb press system
to open.
IMPORTANT: Before each use, clean and maintain all O-rings for parts that have been opened by removing any
dirt, sand and other debris and lightly lubricating with silicone grease as needed to prevent drying and cracking.
Make sure to remove all excess grease before use. Excess grease can cause leakage and failure of seal.
Resetting camera: If camera becomes unresponsive, insert end of paper clip into (16) RESET hole and gently
push to reset camera.
5

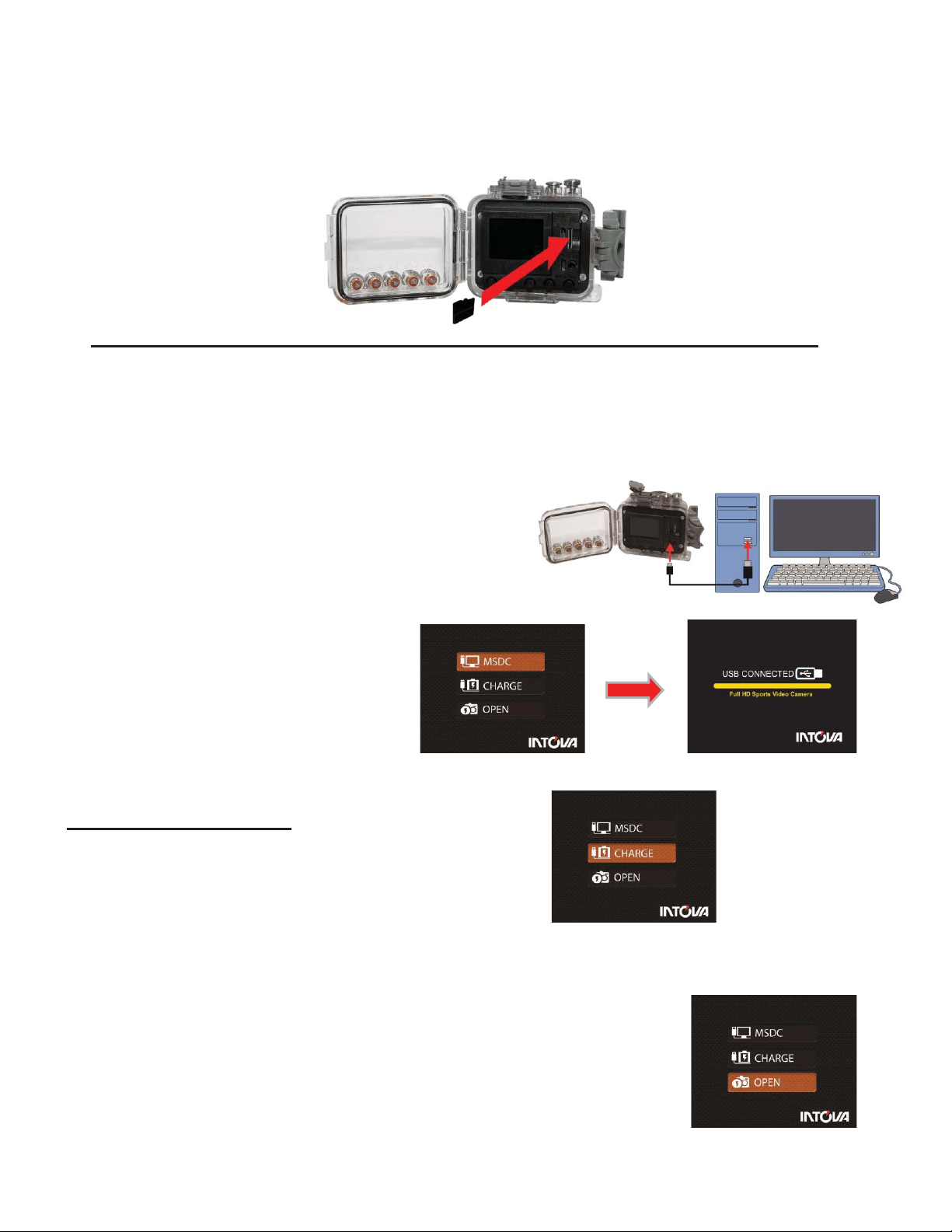

Inserting the Micro SD card:
Make sure that camera is turned OFF when inserting or removing Micro SD card. Insert card into Micro SD
card port with gold contacts facing towards LCD screen. Push down until card clicks into place. To remove,
press down on inserted card to click and then release. ConneX uses Micro SD card up to 32 GB. For HD
video, speed class 10 is required.
1. The camera cannot record video or take photos without a properly inserted memory card.
2. Format a new Micro SD card before first use or as necessary after first use such as when memory card
becomes full. To format SD card, press MENU, UP button, OK, UP button 6 times, OK, UP button, and OK.
WARNING: Format will erase all data from card. Transfer and save any data prior to formatting.
3. When recording video in 1080p resolution, card speed class 10 is required.
4. Please set appropriate TV SYSTEM (NTSC or PAL) in camera’s SETTING menu prior to recording.
Data transfer and charging:
Connect your camera to a computer with the micro USB
cable. After connection, camera will turn on. Use UP / DOWN
buttons and press OK button to select MSDC / CHARGE / OPEN.
EN.
MSDC: To download video or photo files.
When this choice is selected, the screen
with “USB CONNECTED” will appear and
camera will be detected by the computer.
Files can then be transferred.
CHARGE: To recharge the battery. Charging time is up to 6 hours.
When CHARGE is selected, LCD will turn off.
Charging the Li-ion battery:
1. Insert the USB cable into the camera’s Micro USB port.
2. Insert other end of cable into a computer USB port.
3. Scroll down to select CHARGE and press OK.
4. When charge is complete, red LED will turn off.
Important: DO NOT allow Li-ion battery to become fully discharged. If not using camera for a
prolonged period, recharge every 3 months to prevent battery from becoming fully discharged.
OPEN: To recharge the battery power and operate the camera at the same time.
When this choice is selected, LCD will show live view.
If none of the above choices is selected, the camera will automatically go to
MDSC mode after 20 seconds and the “USB CONNECTED” screen will appear.
6
