INTO TECH LIVE120 Users Manual

Download

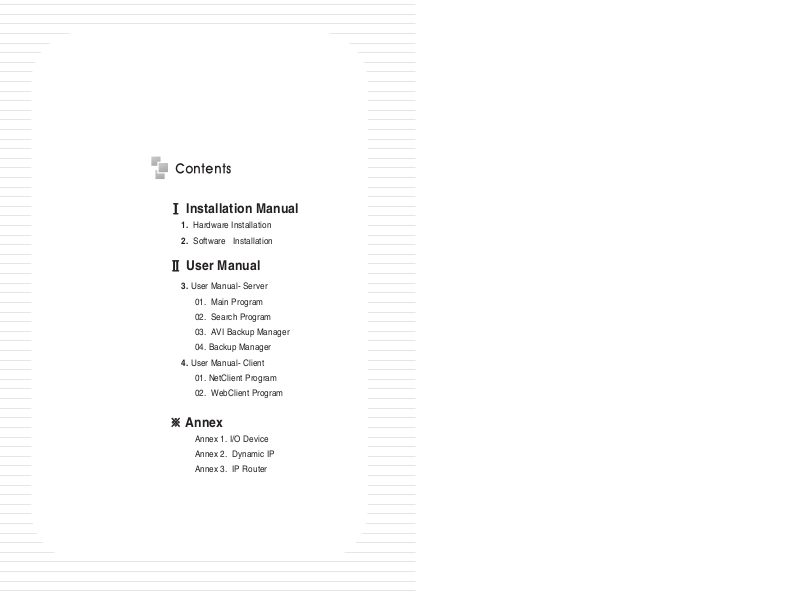

Contents

ⅠⅠ

Installation Manual

1. Hardware Installation

2. Software Installation

ⅡⅡ

User Manual

3. User Manual- Server

01. Main Program

02. Search Program

03. AVI Backup Manager

04. Backup Manager

4. User Manual- Client

01. NetClient Program

02. WebClient Program

※※

Annex

Annex 1. I/O Device

Annex 2. Dynamic IP

Annex 3. IP Router

Ⅰ

Installation manual - Hardware Installation

11.. HHaarrddwwaarree IInnssttaallllaattiioonn

Please check contents before installation: DVR Board, Extension Cable, Audio & PTZ Installation, etc., if you are missing any parts please contact your local dealer.

1. DVR Board & Extension Cable Installation

1-1. Insert the DVR Board to an empty PCI Slot in DVR PC.

1-2. Use Extension Cable to connect cameras.

2. DVR Audio Installation

2-1. Prepare DVR PC and MIC. 2-2. Connect the MIC to the Mainboard MIC Port of DVR PC OR the Audio IN port on DVR Board. Please connect the Speaker to the back panel of DVR PC.

<MIC>

Either connect the MIC to Audio IN port of DVR Board OR Mainboard MIC port.

- H Board: Connect the 4CH MIC(B) to DVR Board(A) starting from the left.

<4CH>

Ⅰ

Installation manual - Hardware Installation

- HP Board: Connect the 8CH MIC(B) to DVR Board(A) starting from the top.

<8CH>

- RC Board: Connect the 4CH MIC(B) to DVR Board(A) starting from the left.

<4CH>

3. P/T/Z Installation

3-1. P/T/Z Cable [A] Cable : Connect to COM port of DVR PC [B] Cable : Connect to DVR Board [C] Cable : Connect to Receiver Cable

4. Real Display(RD) Board Installation

4-1.

Insert the Real Display Board into an empty PCI Slot in DVR PC.

4-2. Use Cable to connect Real Display Board with DVR Board.

Real Display Board cannot be used alone, it must be used with S, H, HPLUS

DVR Boards.

Ⅰ

Installation manual - Software Installation

5. I/O Board Installation

5-1. Prepare Sensor, Alarm, I/O Board and I/O Extension Board for I/O

Board Installation.

< 8 port In/Out Connection>

4CH Input

5CH Output

I/O Extension Board

4CH Input

3CH Output

A : Industrial Case System can use In/Out port separately when additional

Back Panel is available.

< 16 port In/Out Connection>

To use 16 port In/Out,

A : Slave Board must remove jumper. B : Master Board must install jumper.

1. Software Installation

You can install SmartDVR Software by using SmartDVR Formula CD or downloading from INTOTECH website, www.intotech.co.kr. Software CD consists of Server Package (Main program, WebClient program, Apache HTTP Server program), Client Package (NetClient program) & AVI Codec. User Manual is also available from SW CD.

[Main Program Installation]

Insert SmartDVR Formula CD into CD-ROM drive or run DvrSetup.exe file; the following installation screen will appear .

Click the icon below and Main Program installation will automatically proceed.

WebClient -> SmartDVR Formula

Installation Step : Apache HTTP Server (Web Server) ->

Ⅰ

Installation manual - Software Installation

1. SmartDVR Apache HTTP Server (Web Server) Installation

1-1 Installation wizard tool will appear. Click [Next].

1-2 Read the License Agreement and if you agree to the

contents, select [I accept…] and click [Next].

1-3 Click [Next] after checking server information of Apache

HTTP Server.

1-4 Insert Network Domain, Server Name, Administrator’s

E-mail Address.

(This procedure is only a formality. In general cases, follow example)

Select [Run as a service for All Users – Recommended] and click [Next].

Ⅰ

Installation manual - Software Installation

1-5 Select Setup Type as [Complete] and click [Next].

1-6 Click [Next] without change of setting. Note: Do not change

the directory!

1-7 After the setting is finished, click [Install] and start installation.

1-8 After the installation is done, click [Finish].

Ⅰ

Installation manual - Software Installation

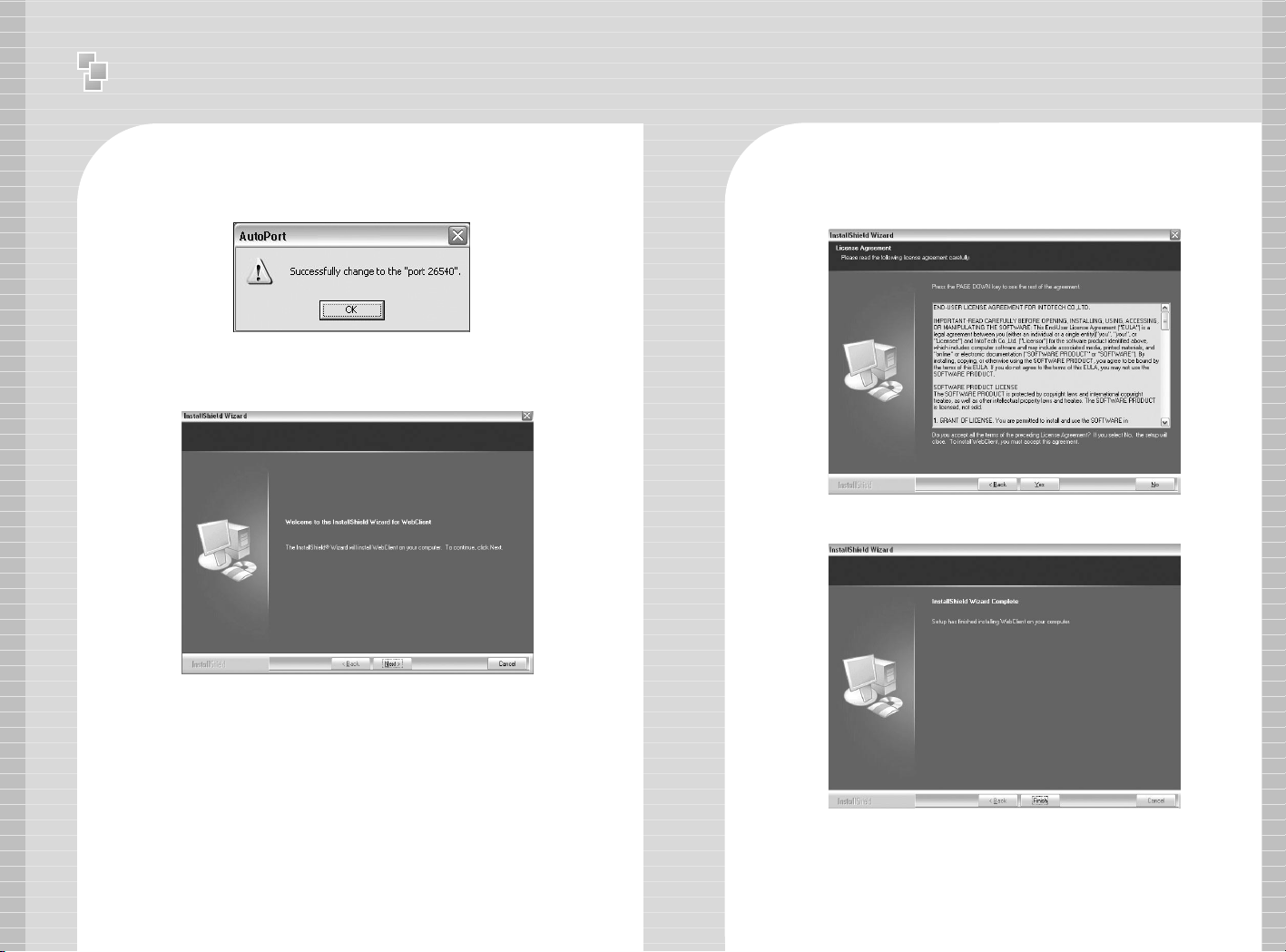

1-9 After the installation is finished, a message confirming the

change of the Server port of Apache will appear.

2 SmartDVR WebClient Installation

2-1 After the Installation Wizard Tool is appeared, click [Next].

2-2 Check the contents of License Agreement; if you agree to the

contents, click [Yes].

2-3 After the installation is done, click [Finish].

Ⅰ

Installation manual - Software Installation

3 SmartDVR Formula Installation

3-1 After Installation Wizard Tool is appeared, Click [Next].

3-2 Check the details of License Agreement; if you agree to the

contents, click [Yes].

3-3 After choosing [Destination Folder] for installation, click

[Next].

3-4 After the installation is done, click [Finish].

Ⅰ

Installation manual - Software Installation

3-5 Driver Installation: Wizard automatically installs drivers

according to each board type.

3-6 Reboot PC after all the installation.

4. SmartDVR Formula Uninstallation

4-1 Goto [Start] – [Control panel] and click [Add/Remove

Program].

4-2 Select [SmartDVR Formula] and click [Change/Remove].

5 NetClient Installation

5-1 After the Installation Wizard Tool is appeared, click [Next].

5-2 After choosing [Destination Folder] for installation, click [Next].

Click the icon below and NetClient Program installation will proceed.

Ⅰ

Installation manual - Software Installation

5-3 After the installation is finished, click [Finish]

6 NetClient Uninstallation

6-1 Goto [Start] – [Control panel] and click [Add/Remove

Program].

6-2 Select [NetClient Plus] and click [Change/Remove].

AVI Codec Installation

Click the icon below and AVI Codec installation will proceed.

7-1 AVI Codec Installation diagram.

7-2 After the installation is finished, click [Finish].

Ⅱ

User Manual - Main Program

3 Main Program

01. Main Program

Main Program enables users to monitor images through PC monitor. The main program supports the following functions: record images, search & playback images and control camera remotely. Image can also be transmitted over the network to any remote site.

→

❶

→

❷

→

❸

󳦔

❺

1 : Control Panel 2 : Screen Partition Panel 3 : Pan/Tilt Control Panel 4 : Camera Selection Panel 5 : Audio Volume Control Bar 6 : Status Information Panel

󳦔

❹

󳦔

❻

1-1 Control Panel Control Panel consists of the following icons: This enables users

to run search programs, manually record images and open configuration window.

→

Search Icon

Configuration Icon

Recording Icon

- Search Icon: Search Option.

- Configuration Icon: To change setup of program.

- Lock Icon: Supports password lock function for Server

- Recording Icon and All Icon:

Record only certain channels – Enable users to manually select certain channels for recording. Record all channels – Click [All] icon and click [REC] icon to record all channels.

1-2 Screen Partition Panel

Support 7 kinds of various screen partitions, full-screen and sequence rotation display mode etc.

1-3 Pan/Tilt Control Panel

Use of Pan/Tilt Camera,

1.Select correct [Receiver] protocol from [Configuration].

2. Select the channel which is connected to Pan/Tilt camera.

3. Click various buttons from Pan/Tilt Control Panel to control camera. (Pan/Tilt/Zoom/Focus).

←

security.

→

Lock Icon

→

All Icon

[Screen Partition Panel]

󳦒

Pan/Tilt & Zoom/Focus Button

Ⅱ

User Manual - Main Program

1-5 Audio Volume Control Bar

If Audio input is configured from [Configuration] - [General], audio volume can be controlled from Audio Volume Control Bar.

1-6 Status Information Panel

Indicates number of connection from Internet( T C P ) & modem. Disk Full will be indicated in red color

if there is no space left in HDD.

Disk Full

󳦕

󳦔

Internet(TCP) Conection CH No. Modem Conection CH No.

1-4 Camera Selection Panel

Click specific channel from Camera Selection Panel to enlarge and view images.

2 Configuration

Configuration Folder consists of [General], [Channel], [Store], [Network], [Schedule], [Maintenance], [Event], [Receiver], [Video Out] and [User Management] sub-panels. Configuration is used for setting Resolution, Image Quality, Motion Detected Recording, I/O, Schedule, Pan/Tilt Receiver Protocol, Network IP setup, etc.

1-1 General

Start Section

- Auto Start: DVR program automatically executed when system is turned on.

- Max size at starting: DVR Program is setup as the exact size of monitor resolution to prevent display of other programs.

Exit Section

Option: Only DVR program shuts down after closing DVR Program OR the complete system shuts down. (Computer Power OFF).

Ⅱ

User Manual - Main Program

Audio Input

Setup the Gain of Audio Input.

- AUD1 ~ AUD8 is gain control for Audio Input from Capture Board. Set the gain to minimum(0) when use of amplified mic. (e.g.: camera built-in mic)

- Snd Card is audio volume control using Sound Card as output device.

Video/Audio Setup

- Setup Camera Input Type NTSC – Korea, USA, Japan, Australia(some region), North Amercia(some region) etc. PAL – Region excluding NTSC area(China, Europe, South America, etc.)

- Channel Selection – Select channel for surveillance

- Resolution Setup – Image Resolution Setup(320X240 OR 640X480)

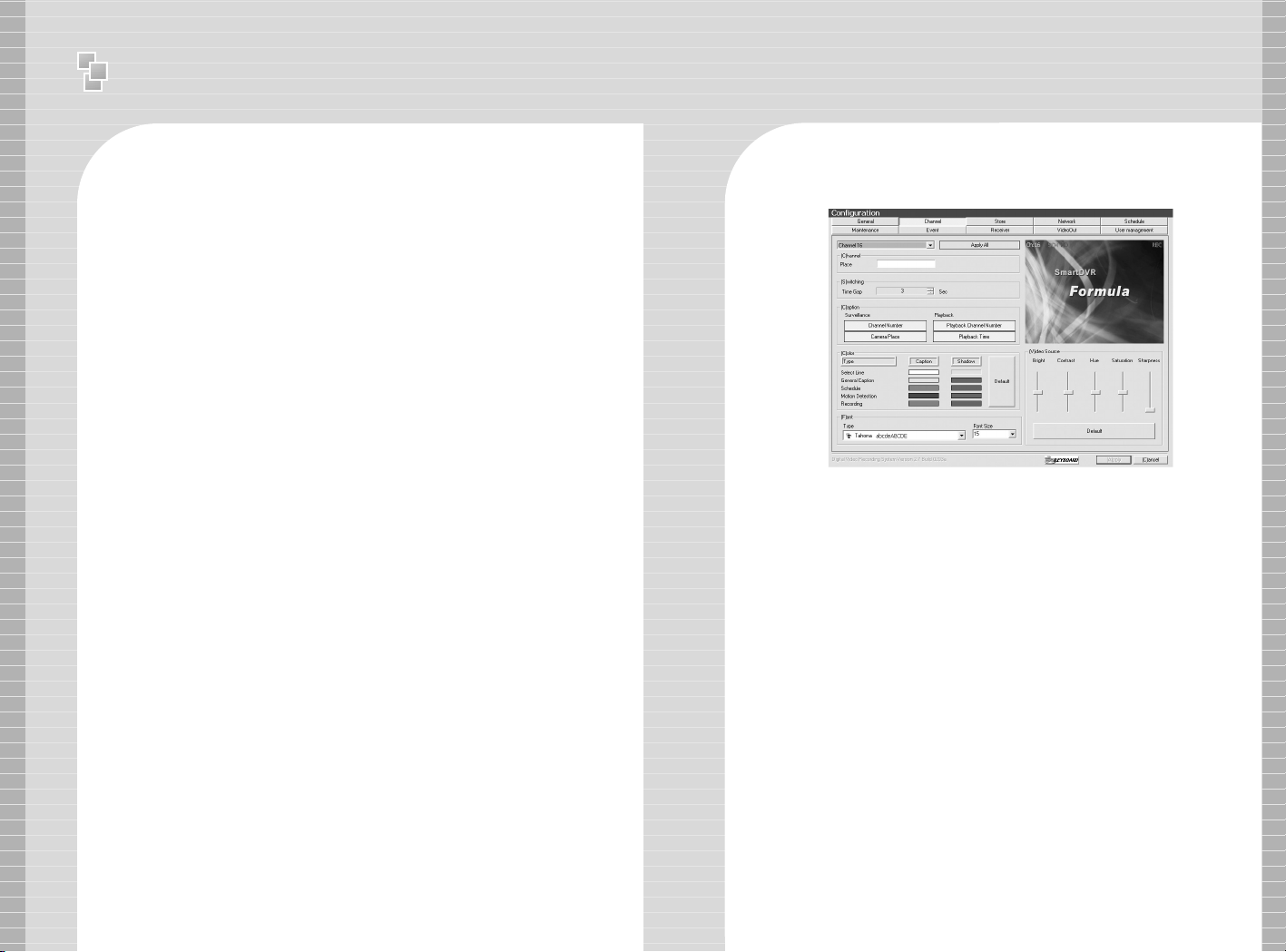

2 Channel

Channel(Caption) Input

Insert description of camera surveillance area

Caption Setup

- Surveillance Mode – Setup to indicate channel number and camera surveillance area caption in Main Program.

- Search Mode – Setup to indicate channel number and recorded time in Search Program.

※ Caption Font and Color Setup – Setup caption font & color of

caption according to channel number, camera surveillance area, recorded time etc.

※ Video Source – Setup Brightness, Contrast, Hue, Saturation and

Sharpness.

Ⅱ

User Manual - Main Program

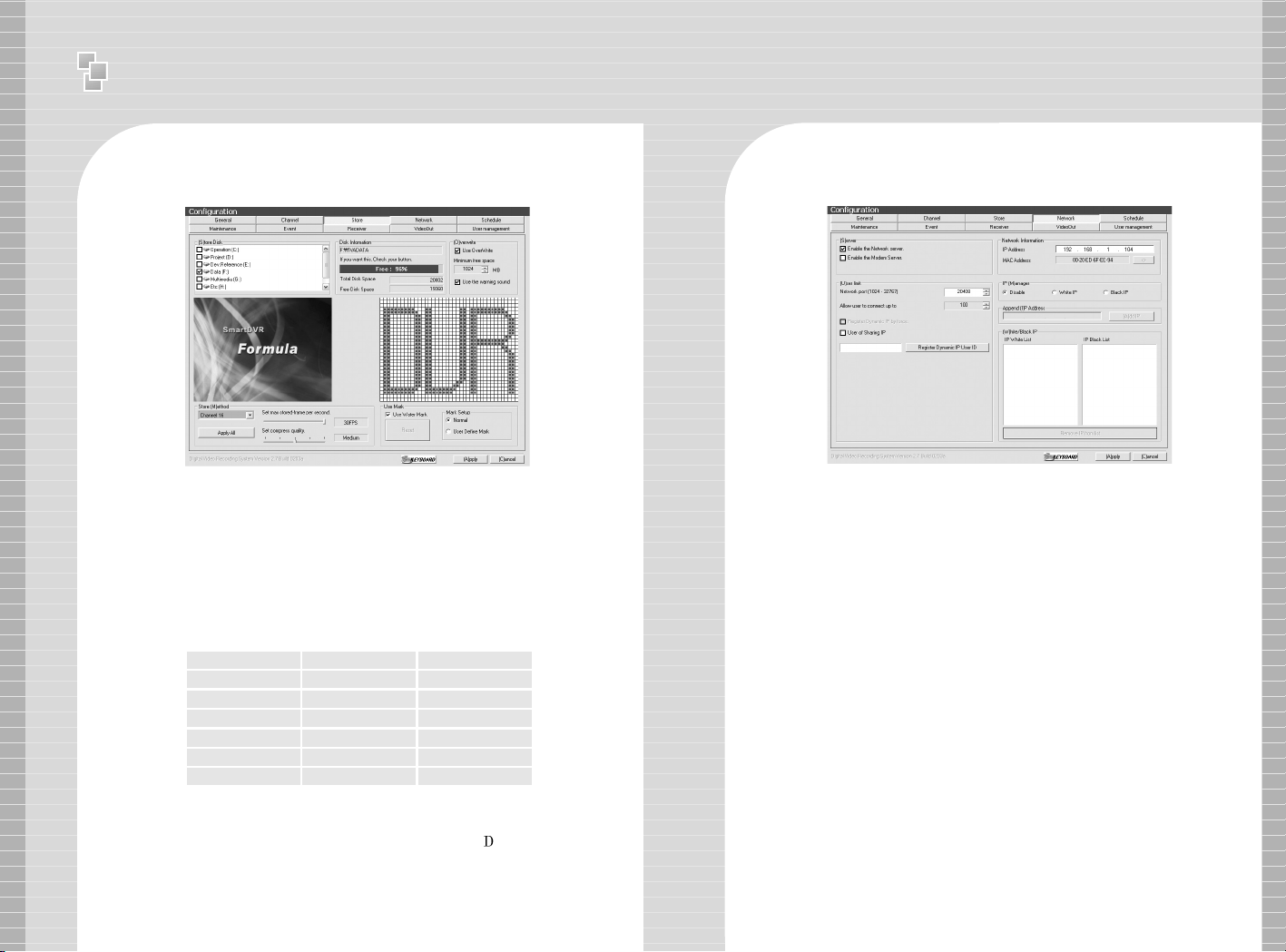

2 Store

※ Store Disk – Indicates installed HDD Capacity.

Check(√) HDD to use as recording device Notice) Recommend to disable C Drive(Operating System installed) as recording device and use other drives(D, E, C).

※ Overwrite – Setup overwrite to delete the oldest data when

free HDD is lesser than minimum free space allowed.

※ Setup compression quality & max stored-frame per second.

Recording size of 1 frame according to image quality & resolution is as followings:

Image Quality Resolution

Low 320X240 2.5

Low 640X480

Medium 320X240

Medium 640X480

High 320X240

High 640X480

※ Watermark Use Watermark to prevent image tampering of every recorded frame.

- Default: Watermark will be inserted as the word ‘ VR’.

- User Define Mark: Watermark will be inserted as user defined word for easy identification or organization.

Recording Size(KB)

3.7 10

5.0 15

3 Network

※※

Server Setup

- Enable the Network Server: Setup System to be used as Internet Server.

Server image can be viewed from remote Client Program OR Internet Web Browser by using private line connected to internet.

- Enable the Modem Server:

Server image can be viewed from remote Client Program by using modem connected through PSTN Network(Internet Web Browser not supported.).

※※

Network Information

System IP Address & MAC Address

- Direct connection to Server is possible from remote Client Program OR Internet Web Browser when use of Fixed IP.

- Direct connection to Server is possible through DHS Server from remote Client Program by using DHS Service provided by our company when use of Dynamic IP.

※※

User Limit

- IP Router User: Check [User of Sharing IP] if DVR System is connected to internet using IP Router.

- Register Dynamic IP User ID: ID must be registered to use DHS Service when use of Dynamic IP. Contact our company for more detailed information regarding Dynamic IP.

Setup System to be used as PSTN Network Server.

Ⅱ

User Manual - Main Program

4 Schedule

Recording Modes: Full Recording, Motion Detected Recording, Sensor Recording is possible for a specific date, time and channels.

e.g.) Setup Recording Schedule for Monday 0~12 hour, Setup Motion Detection Recording Schedule for Tuesday 13~23 hour, Setup Sensor Recording Schedule for Wednesday 0~24 hour.

5 System Auto Reboot

Setup specific time to automatically reboot system.

Ⅱ

User Manual - Main Program

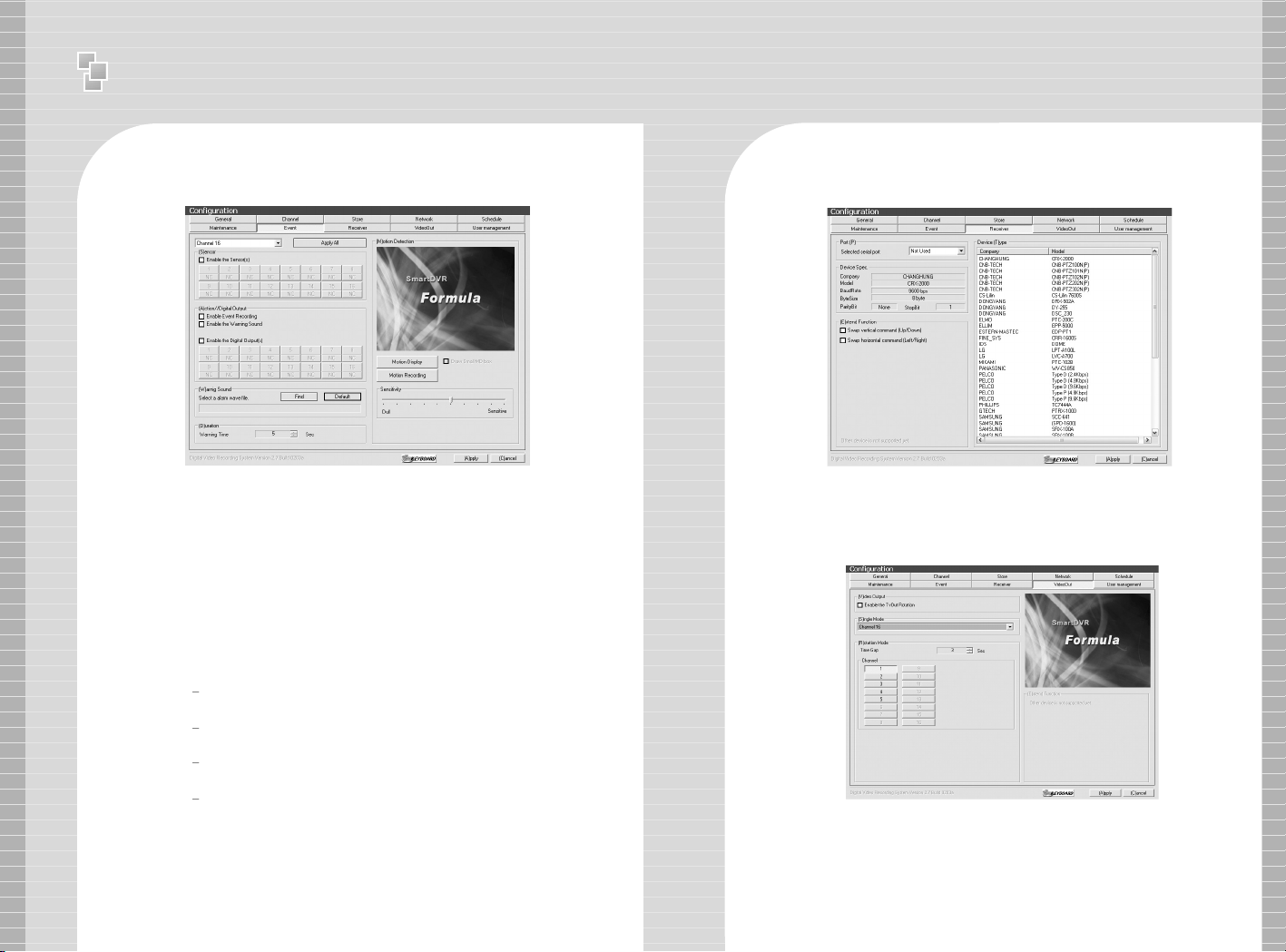

6 Event

※※

Sensor Input

- Check [Enable the Sensor] and configure the channel of camera and sensor input channel.

※※

Enable Event Recording

- Use Digital Output OR auto-recording when there is sensor input signal.

e.g.) Configure 1,2,3,4 Sensor Input for CH1 Camera & 5,6,7,8 Digital Output. Enable Event Recording & Warning Sound from speaker.

※※

Motion Detection

Motion Detection Area Setup, Motion Detection Sensitivity Setup

Setup MD Area: Setup rectangular area in screen using the mouse.

Motion Display: Indicate the specific area by changing color when motion is detected.

Motion Recording: Record when there is movement in image

7 Receiver

※ Port Setup: Select serial port to use PAN/TILT Camera OR Receiver. ※ Device Type: Select protocol of receiver from Device Type Panel.

8 Video Out

Video Out function can be used by Loop-Through to analog monitor.

※※

Enable the TvOut Rotation :

One channel can be viewed during the directed time gap or various selected channels can be viewed in timed sequence.

※※

Single Mode : Only the selected one channel is viewed

Ⅱ

User Manual - Search Program

9 User Management

User Managemet can give different authorization levels for management in accord to user IDs.

※※

Insert & Modify User Information

Insert ID & Password and click [Modify User Information] icon to add new user.

※※

Accessible local Functions

Function to manage DVR System in installation site–Support setup for all the functions of DVR.

※※

Accessible Network Functions

Setup of only limited function is available for users connecting from outside using client program

※※

Accessible Channels

Direct only certain channels to be viewed according to user IDs.

02.Search Program

Search Program allows users to search by time/date & play recorded images and audio. Support saving of still image by .bmp format, printing of still image, watermarked .bmp file of each image.

1-1 Control Panel

Serveillance Mode

󳥡

Icon

󳥡 Load Data Icon

Save Icon

- Surveillance Mode Icon: Exit search program and converts to Survillance Mode(Main Program).

- Load Data Icon: Open Calendar for loading data.

→

Print Icon

Watermark

󳥡

󳦏

Viewer Icon

Ⅱ

User Manual - Search Program

Calendar

MD ONLY Icon: Load Motion Detected data only. LOAD Icon: Load data of selected date from calendar.

- Save Icon: Save image of selected channels

- Print Icon: Print image of selected channels using printer.

1-2 Playback Control Panel

1-4 Data Search Process Bar

Hour Button

Minute Bar

1-5 Search Audio Volume Control Bar

1-3 Screen Partition Panel

[Playback Control Panel] [Screen Partition Panel]

Supports playback options: 1x, 4x playback, reverse playback, frame by frame playback.

←←

Hour Button: Recorded data of selected hour is indicated in red color.

- Minute Bar: Minute of recorded data is indicated 0~59min. and

recorded data is indicated in red color.

Support 8 kinds of various screen partition display.

Control audio volume when replay of recorded data.

Print Channel: Select channel for printing images.

Option: Print image with caption OR goto printer setup.

Print Type: Setup print layout

Watermark Viewer Icon: Run Watermark Viewer.

Watermark Viewer

Open saved .bmp file to check if there is any image tampering & check if watermark is identical with original image.

INTO TECH LIVE120 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
