SMARTPHONES & INTERNET HVAC CONTROL

IS-IR-WIFI-1

Universal Controller

Introduction

Installation

Wi-Fi Setup

New User

Apps & Web

Introduction

Overview

IntesisHome is the most advanced solution to remotely

System Devices Benefits Control Licenses

Example 1

Example 2

Video

manage an Air Conditioning system using all sort of mobile devices such as Smartphones, Tablets and PC.

Introduction

Overview

There are 3 basic components on IntesisHome:

System

Devices Benefits Control Licenses

Example 1

Example 2

Video

The Air Conditioning units are controlled from a webpage or using an iOS or Android APP in a very intuitive way

A wireless device controlling each unit using IR

communication

A server in the cloud manages all the processes

Introduction

Overview System

Devices

Benefits Control Licenses

Example 1

Example 2

IntesisHome IS-IR-WIFI-1 device is an easy to install and small device which allows connectivity with the IntesisHome application and connects with your climate system using

Infrared (IR)

The device is compatible with any air conditioner unit that can be controlled using an IR remote controller*

Video

* Check our compatibility list. http://www.intesishome.com/support/compatibility-list

Introduction

Overview

Some IntesisHome benefits are:

System Devices

Benefits

Control Licenses

Example 1

Example 2

Video

-Turn the AC on before arriving home

-Know the actual Ambient Temperature of your home

- Change the program if the user is going to arrive late

- Turn the unit off once out of the building if you left it running

- Program the AC with a calendar scheduler in an easy an intuitive way

- Several languages are available

- Save money without losing comfort

Introduction

Overview

With IntesisHome you can control:

System Devices Benefits

Control

Licenses

Example 1

Example 2

Video

- Indoor Unit Start and Stop

- Change the working Mode (Heat, Cool, Fan, Auto, Dry)

- Change the Fan Speed

- Change the Vanes position

- See the Room Temperature

- Control the Set Point Temperature

- Scenes and Timers

- Schedule Calendar

- And many more…

Check complete features list at http://www.intesishome.com/features

Introduction

Overview

Example 1: Home

System Devices Benefits Control

Example 1

Example 2

Video

Do you think you will be delayed coming back home? Forgot to turn off the heat pump when leaving home? Do you want to reduce unnecessary cooling or warming when you are out of home?

IntesisHome puts in your hand the ability to control your air conditioning system anytime, anywhere.

Introduction

Overview

Example 2: Shops

System Devices Benefits

Control Licenses

Example 1

Example 2

Video

Do you have a Twin, Triple or double Twin system installed? With only one IntesisHome device are you able to setup an

Annual schedule calendar.

- Turn on the units before open the shop, your first customer

of the day will find the shop comfortable

- Don’t forget the AC ON! Schedule an Off operation 20

minutes before you close the Shop and save energy

Introduction

Overview

Video: Universal controller introduction (EN)

System Devices Benefits

Control Licenses

Example 1

Example 2

Video

Also you can see this video on:

http://youtu.be/gX0K_0ivNPQ (EN) http://youtu.be/x-jvMfnR0Ig?list=UU_yv659xCOWn5Pfr2JoPIsg (ES) http://youtu.be/SPabNPha-2E?list=UU_yv659xCOWn5Pfr2JoPIsg (PT)

Installation

Packaging

Location Power supply IR configuration More info…

- Packaging content

- IntesisHome device

- Power supply

* Power Supply includes UE, US, UK ,AU Plugs & a wire to be connected directly to the Indoor Unit Power Supply

- Documentation

Installation

Packaging

- Installation location

Location

Power supply IR configuration More info…

- Place the IntesisHome device:

Option 1 Option 2

Next to the Air conditioner fixed on the wall

- IS-IR-WIFI-1 Includes 2 IR emitters making the installation very flexible and also includes an IR receiver, if you want to know how are working your unit, you must install the device in a place where can receive the signal sent by the manufacturer IR Remote Controller.

If you don’t have enough Wi-Fi Signal, remember you can change the location of the IntesisHome device to be closer to the Access point (router)

Pointing at the Air conditioner, placing it over any surface

IR Emitter 1 IR Receiver

IR Emitter 2

Installation

Packaging

- Power Supply

Location

Power supply

IR configuration More info…

The IntesisHome device comes with a 5V DC 0,2 A power supply to be connected to the

device. We do also provide 4 different types of plugs to match your current location needs: European Union (EU), United Kingdom (UK), United States (US) and Australia (AU).

If you doesn’t have an available power socket near the indoor unit, with the device there is also an additional cable. Remove the plug adaptor and connect the additional cable provided to the IEC-60320 C8 standard connector (See below image). Connect the other end of the cable to the power terminal block of the indoor unit.

Installation

Packaging

- IR configuration

Location Power supply

IR configuration

More info…

Learning Mode: Automatic configuration of the IR wireless remote controller

1- Push IH button for 3 seconds. The LED will turn into white steady 2- Pick up the IR controller and push the On/Off button pointing to the IntesisHome Universal device.

- If process is not ok, the IntesisHome device LED will be blinking Red.

*Repeat the process from Step 1 and check our compatibility list.

- If process is OK, the IntesisHome device LED will be blinking green.

Manual Mode: Manual configuration of the IR wireless remote controller

1- Go to settings/device section and press “Manual Mode”

2- Select your AC brand and model.

Installation

Packaging

- More info

Location Power supply IR configuration

More info…

For detailed instructions please see the user manual located at:

http://intesishome.com/docs/IS-IR-WIFI-1_User_Manual_eng.pdf

Wi-Fi Setup

Before starting

Specifications Requirements Initial Setup (I) Initial Setup (II)

Automatic (I)

Automatic (II) Automatic (III)

Manual WPS

Locate your smartphone where you want to install the IntesisHome device and

check if you have a good Wi-Fi signal

- If you have enough Wi-Fi signal then proceed to install

- If you don’t have enough Wi-Fi signal then:

- Try to install the IntesisHome device in other place

- Try to move the Wi-Fi access point

Error message

Wi-Fi Setup

Before starting

IntesisHome Wi-Fi Specifications

Specifications

Requirements Initial Setup (I) Initial Setup (II)

Automatic (I)

Automatic (II) Automatic (III)

Manual

- Wi-Fi protocol IEEE 802.11b (IEEE 802.11bgn compatible)

- RF Channels available 1 to 14ch (From factory 1 to 11ch)

- Security types WEP, WPA and WPA2

- Wi-Fi configuration methods

- Automatic search of nearest Wi-Fi networks

- Manual setup of hidden SSID Wi-Fi networks

- WPS (Push button Method)

- IP configuration

- DHCP (Automatic IP Address)

- Manual (Static IP Address)

WPS Error message

Wi-Fi Setup

Before starting

What do you need?

Specifications

Requirements

Initial Setup (I) Initial Setup (II)

Automatic (I)

Automatic (II) Automatic (III)

Manual

For complete information about Wi-Fi configuration process, please check next manual

http://www.intesishome.com/docs/IntesisHome_DeviceConfig.pdf

WPS Error message

Wi-Fi Setup

Before starting

Initial Setup

Specifications Requirements

Initial Setup (I)

Initial Setup (II)

Automatic (I)

Automatic (II) Automatic (III)

Manual

- Be sure to have the

IntesisHome device with

Led Green On

- With your Smartphone,

Tablet or Laptop search for the WI-FI network called “IntesisHomexxxxxx” and connect to it

- The latest “xxxxxx”

WPS Error message

correspond with last 6

characters of the device MAC Address

Wi-Fi Setup

Before starting

Initial Setup

Specifications Requirements Initial Setup (I)

Initial Setup (II)

Automatic (I)

Automatic (II) Automatic (III)

Manual

- Open the web browser and access to ihconfig.com page

- The Welcome Screen configuration page will appear

WPS Error message

Wi-Fi Setup

Before starting Specifications Requirements

Automatic configuration

Click “Automatic” in order to

Initial Setup (I) Initial Setup (II)

Automatic (I)

Automatic (II) Automatic (III)

Manual WPS Error message

start to search the Wi-Fi networks around the device

After some seconds a Wi-Fi

networks list will appear.

Find your Wi-Fi network and click “Select”

Please be sure that the device

has enough Wi-Fi signal level

Wi-Fi Setup

Before starting Specifications

Automatic configuration

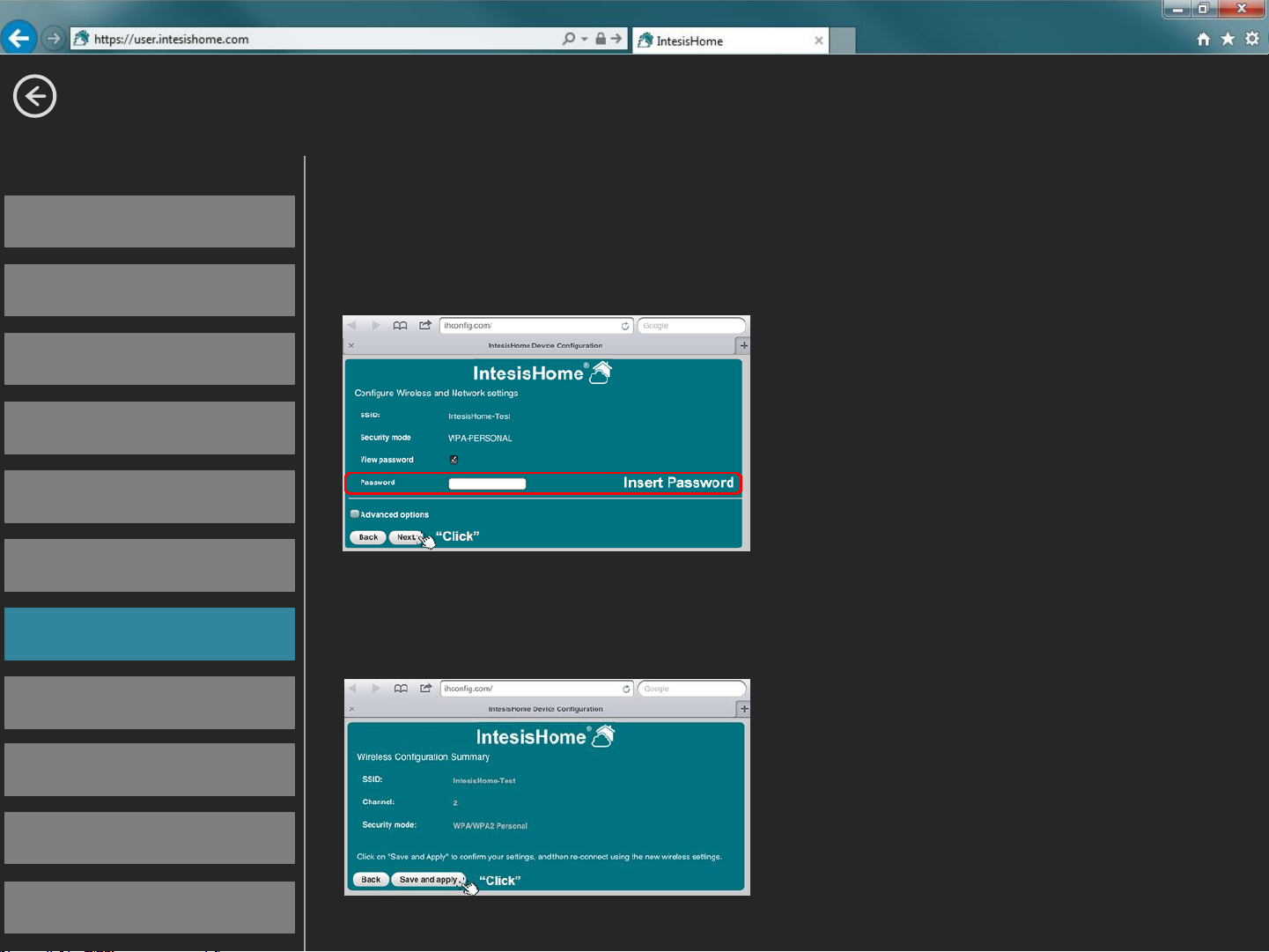

Insert your password and click

Requirements Initial Setup (I) Initial Setup (II)

Automatic (I)

Automatic (II)

Automatic (III) Manual WPS

“Next”

*If you need to setup an Static IP Address, click “Advanced Options”, introduce the IP settings and then click “Next”

Check if the data on the

Wireless configuration

Summary is correct If YES click “Save and Apply”

Error message

If NO click “back” and modify

Wi-Fi Setup

Before starting Specifications Requirements Initial Setup (I) Initial Setup (II)

Automatic (I)

Automatic configuration

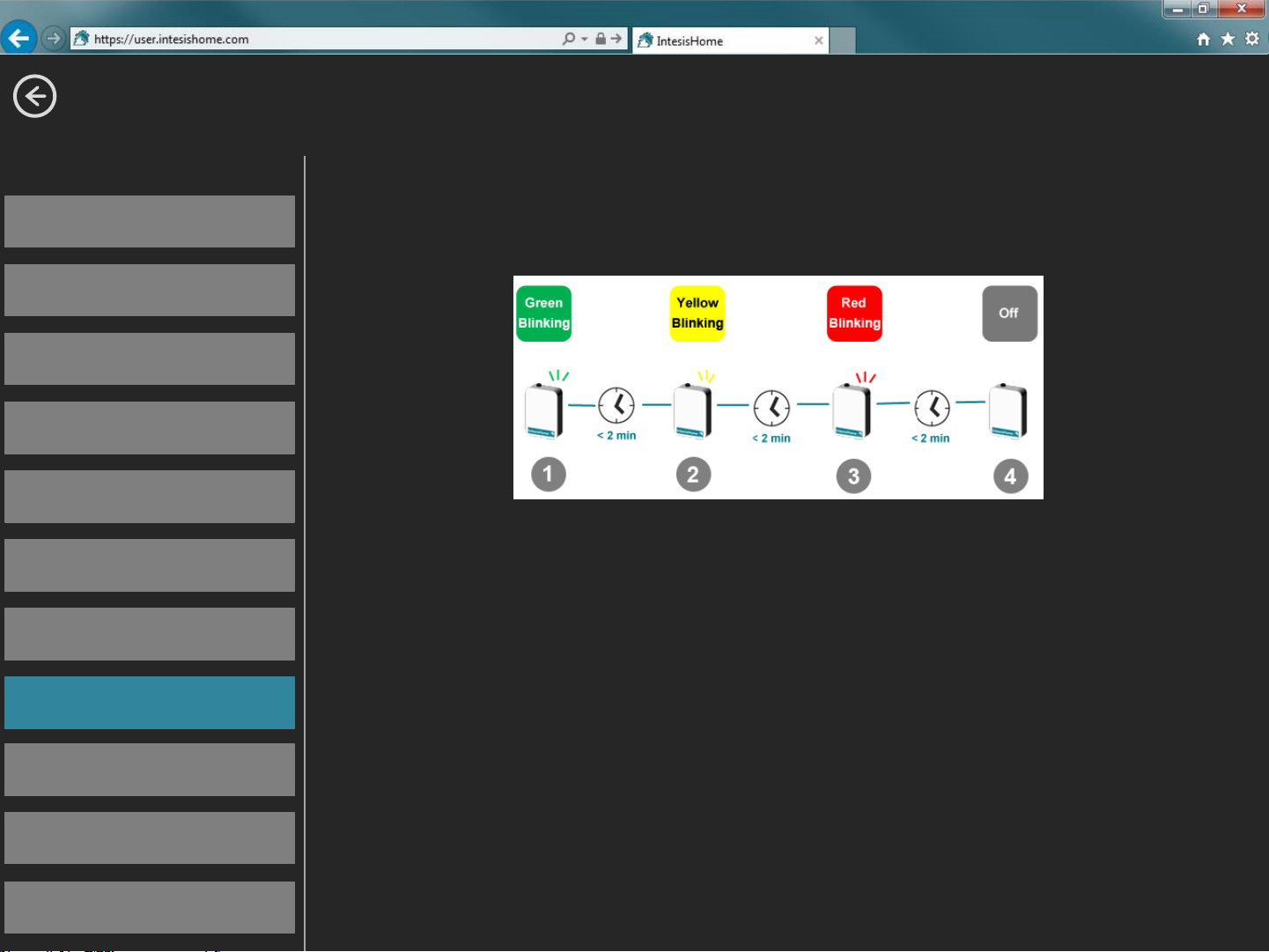

Step 1: The device is trying to connect to the Wi-Fi Router

Automatic (II)

Automatic (III)

Manual WPS Error message

Step 2: The device has been connected to the Wi-Fi router and now is downloading the last Firmware Update

Step 3: After the update, the device will automatically reboot

and will try to connect again to the Wi-Fi router Step 4: The device now is working

Wi-Fi Setup

Before starting Specifications

Manual configuration (For hidden SSID Wi-Fi networks)

The SSID is the name of the Wi-Fi network. This name can

Requirements Initial Setup (I) Initial Setup (II)

Automatic (I)

Automatic (II) Automatic (III)

Manual

WPS

be Hidden by the Wi-Fi Router Settings. If you want to

connect the IntesisHome device to one of this networks

then use Manual configuration.

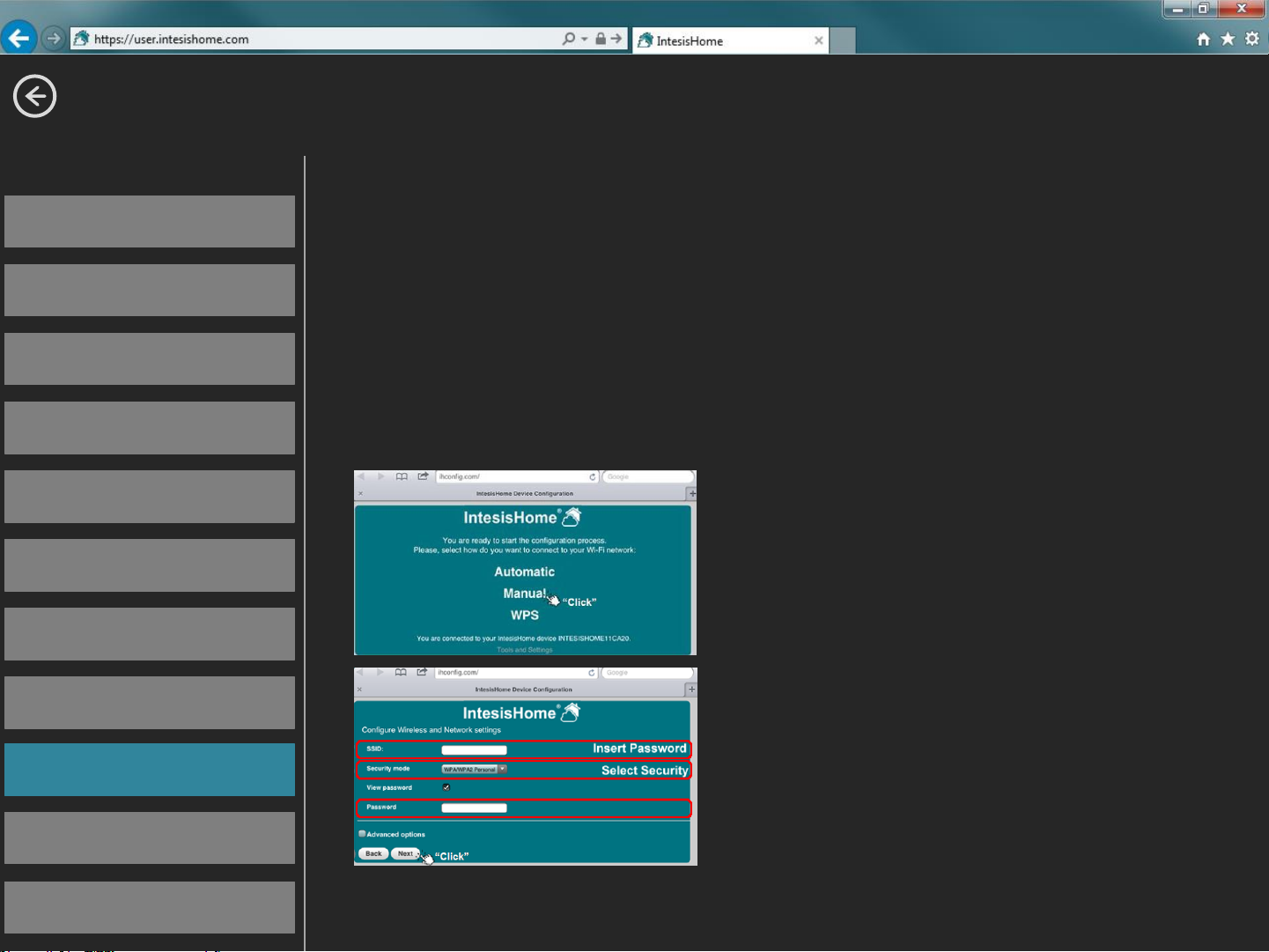

Click “Manual” in order to start the

configuration

In this window you need to:

- Write the SSID name

- Choose Type of security

- Write the password

Error message

* The next steps are the same as “Automatic” configuration

Wi-Fi Setup

Before starting Specifications

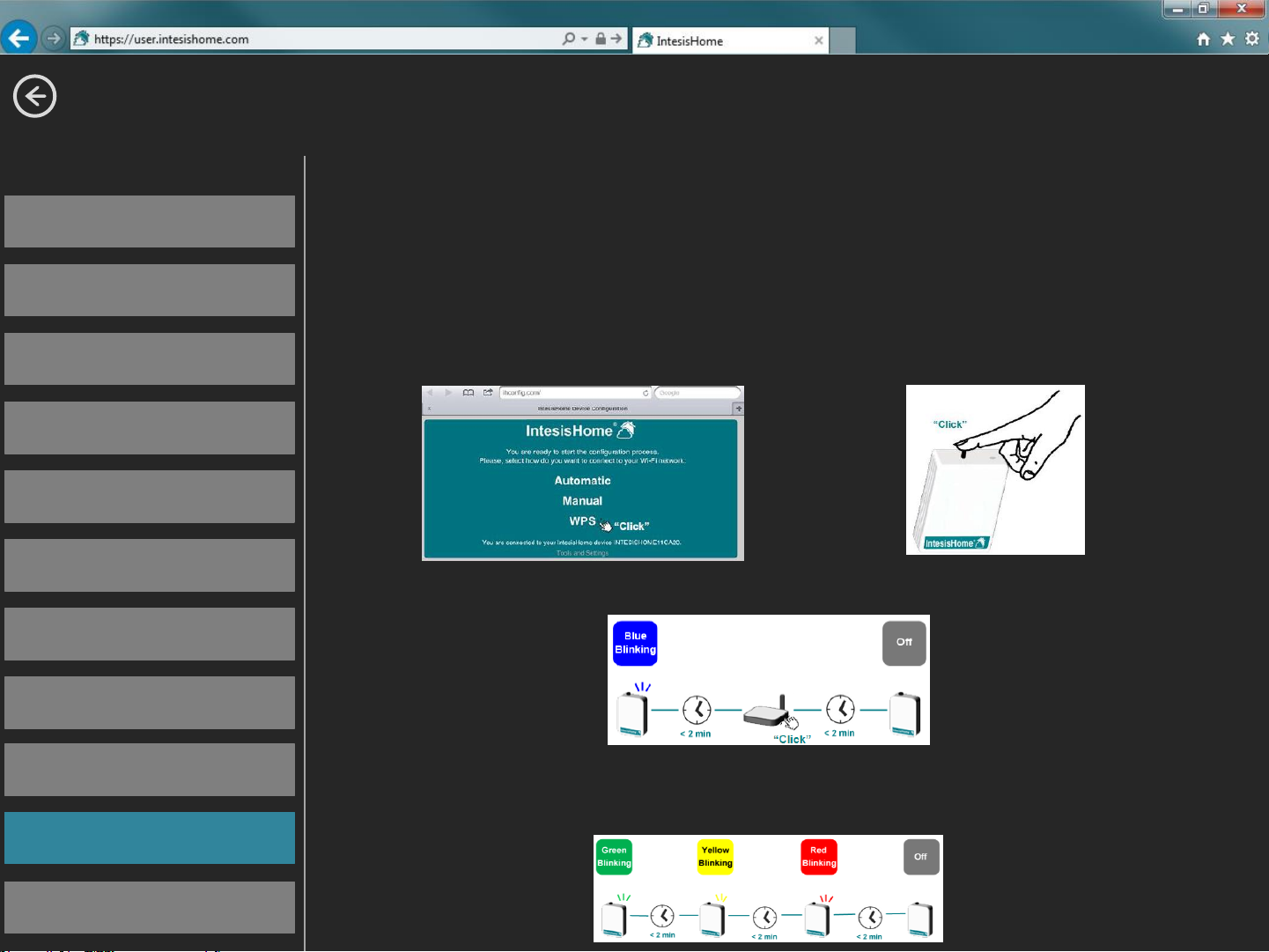

WPS configuration (Only for WPS compatible Wi-Fi routers)

- Click on WPS menu on the Web page or Click WPS

Requirements Initial Setup (I) Initial Setup (II)

Automatic (I)

Automatic (II) Automatic (III)

Manual

WPS

button on the IntesisHome device in order to Start

- Then Click on WPS button on the Wi-Fi router

- After that, the device will proceed to the next steps as

Automatic or Manual configuration

Error message

Wi-Fi Setup

Before starting Specifications

Error message

If any problem appear during the setup, the LED of the

Requirements Initial Setup (I) Initial Setup (II)

Automatic (I)

Automatic (II) Automatic (III)

Manual WPS

device will indicate the problem

Find all the LED status table on:

http://www.intesishome.com/docs /IntesisHome_DeviceConfig.pdf

If any problem appears, you can connect again to the

IntesisHome device and in the Welcome Screen the Error Message will be showed

Error message

New User

Create account

Fill the form

Create an account

After having connected the IntesisHome device to Internet,

you will be able to create a new account at

www.intesishome.com

New User

Create account

Fill the form

Fill the form with proper personal data and accept the terms

and conditions

A validation e-mail will be sent to the introduced e-mail account during the registration process

Please, follow instructions in the validation e-mail to finish the registering process. After that, you will be able to login as a known user

New User

Create account Fill the form

Introduce Username or E-mail and the password

Add device (I) Add device (II) Add device (III)

Then click “Login” button

New User

Create account Fill the form

Add device

Add device (I)

Add device (II) Add device (III)

First time you login into IntesisHome, this window will show up

Otherwise, access to the

configuration section clicking on

the Settings button on the main page

Click on “Devices” tab in the top bar menu and then click add (+)

New User

Create account

Add device

Fill the form Login Add device (I)

Add device (II)

Add device (III)

- Introduce the registration number. You can find this

information on the cover of the IntesisHome device User Manual or in a label in the device

- Note. Be sure to have the device already configured and

connected to Internet. If not, you can’t complete the

device registration process

New User

Create account

Add device

Fill the form Login Add device (I) Add device (II)

Add device (III)

- If you use Automatic configuration please choose your

AC brand from the list.

- If you use Manual configuration please choose your AC

brand and model from the list.

Apps & Web

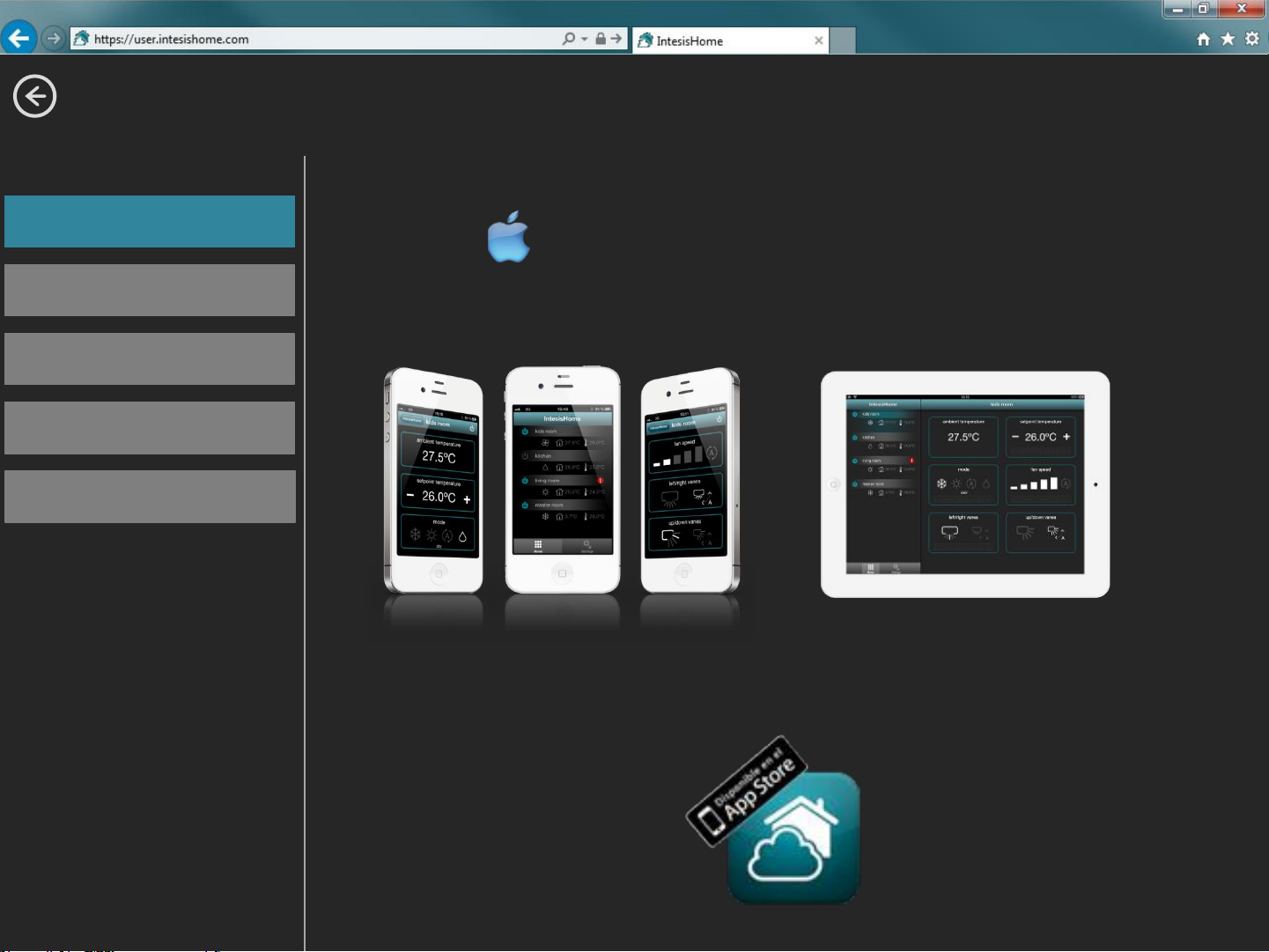

iOS App

Android App Web Login Tutorial

- iOS Devices: iPhone, iPod and iPad (iOS 7.0 or higher)

- Download for free in AppStore.

Apps & Web

iOS App

Android App

Web Login Tutorial

- Android Devices: Smartphones and Tablets (Android 2.2

or higher)

- Download for free in Google Play

Apps & Web

iOS App

Web

Android App

Web

- Web available in any PC, Tablet or Smartphone

Note: User & Device configuration could be made only in the Web

Apps & Web

iOS App

Android App Web

Tutorial

1- User name & Password 2- Remember User Name & Password for the next time 3- Login Button

4- View and example: If you don’t have any account you can use

this to see how IntesisHome works

APP

WEB

5- Create a new user account at IntesisHome

Apps & Web

iOS App

Tutorial: How does the APP work

Android App Web Login

Tutorial

Also you can see this video on: http://www.youtube.com/watch?v=P4YMvkzUFXM

IntesisHome IS-IR-WIFI-1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
