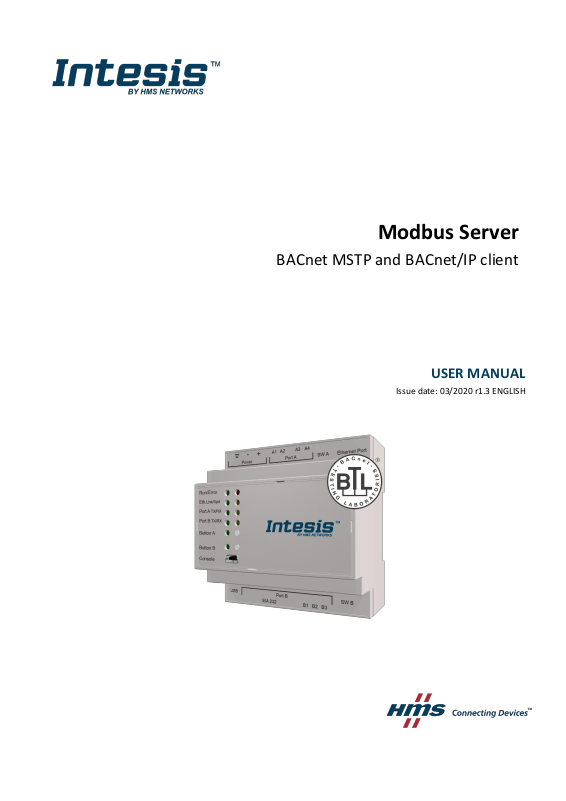

Intesis INMBSBAC1000000 User guide

Modbus Server

BACnet MSTP and BACnet/IP client

USER MANUAL

Issue date: 03/2020 r1.3 ENGLISH

IntesisTM Modbus Server – BACnet Client User Manual r1.3 EN

© HMS Industrial Networks S.L.U - All rights reserved

This information is subject to change without notice

URL https://www.intesis.com

2 / 27

Important User Information

Disclaimer

The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any
inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability for
any errors that may appear in this document.

HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product
development. The information in this document shall therefore not be construed as a commitment on the part of
HMS Industrial Networks and is subject to change without notice. HMS Industrial Networks makes no commitment
to update or keep current the information in this document.

The data, examples and illustrations found in this document are included for illustrative purposes and are only
intended to help improve understanding of the functionality and handling of the product. In view of the wide range
of possible applications of the product, and because of the many variables and requirements associated with any
particular implementation, HMS Industrial Networks cannot assume responsibility or liability for actual use based on
the data, examples or illustrations included in this document nor for any damages incurred during installation of the
product. Those responsible for the use of the product must acquire sufficient knowledge in order to ensure that the
product is used correctly in their specific application and that the application meets all performance and safety
requirements including any applicable laws, regulations, codes and standards. Further, HMS Industrial Networks will
under no circumstances assume liability or responsibility for any problems that may arise as a result from the use of
undocumented features or functional side effects found outside the documented scope of the product. The effects
caused by any direct or indirect use of such aspects of the product are undefined and may include e.g. compatibility
issues and stability issues.

IntesisTM Modbus Server – BACnet Client User Manual r1.3 EN

© HMS Industrial Networks S.L.U - All rights reserved

This information is subject to change without notice

URL https://www.intesis.com

3 / 27

Gateway for the integration of BACnet MSTP and BACnet IP
installations into Modbus RTU or Modbus TCP enabled
monitoring and control systems.

ORDER CODE

LEGACY ORDER CODE

INMBSBAC1000000

IBMBSBAC1000000

INMBSBAC2500000

IBMBSBAC2500000

INMBSBAC6000000

IBMBSBAC6000000

INMBSBAC1K20000

IBMBSBAC1K20000

INMBSBAC3K00000

IBMBSBAC3K00000

IntesisTM Modbus Server – BACnet Client User Manual r1.3 EN

© HMS Industrial Networks S.L.U - All rights reserved

This information is subject to change without notice

URL https://www.intesis.com

4 / 27

INDEX

Description .................................................................................................................................................... 5

Introduction ....................................................................................................................................... 5

Functionality ..................................................................................................................................... 6

Gateway’s capacity .......................................................................................................................... 6

2 BACnet interface ...................................................................................................................................... 7

Description ........................................................................................................................................ 7

BACnet/IP ......................................................................................................................................... 8

BACnet MSTP .................................................................................................................................. 8

Points definition ................................................................................................................................ 9

3 Modbus interface ...................................................................................................................................... 9

Description ........................................................................................................................................ 9

Functions supported ......................................................................................................................... 9

Modbus RTU .................................................................................................................................. 10

Modbus TCP ................................................................................................................................... 10

Address Map .................................................................................................................................. 10

Points definition .............................................................................................................................. 10

4 Connections ........................................................................................................................................... 12

Powering the device ....................................................................................................................... 13

Connection to Modbus ................................................................................................................... 13

4.2.1 Modbus TCP ........................................................................................................................... 13

4.2.2 Modbus RTU ........................................................................................................................... 13

Connection to BACnet .................................................................................................................... 13

4.3.1 BACnet IP ............................................................................................................................... 13

4.3.2 BACnet MSTP ........................................................................................................................ 14

Connection to the configuration tool ............................................................................................... 14

5 Set-up process and troubleshooting ...................................................................................................... 15

Pre-requisites ................................................................................................................................. 15

Intesis MAPS. Configuration & monitoring tool for Intesis BACnet series ..................................... 15

5.2.1 Introduction ............................................................................................................................. 15

5.2.2 Connection .............................................................................................................................. 15

5.2.3 Configuration tab .................................................................................................................... 16

5.2.4 Signals .................................................................................................................................... 22

5.2.5 Sending the configuration to Intesis ....................................................................................... 23

5.2.6 Diagnostic ............................................................................................................................... 23

Set-up procedure ............................................................................................................................ 25

6 Electrical & Mechanical Features ........................................................................................................... 26

7 Dimensions ............................................................................................................................................ 27

IntesisTM Modbus Server – BACnet Client User Manual r1.3 EN

© HMS Industrial Networks S.L.U - All rights reserved

This information is subject to change without notice

URL https://www.intesis.com

5 / 27

Description

Introduction

This document describes the integration of BACnet MSTP and BACnet IP installations into Modbus RTU or Modbus
TCP compatible devices and systems using the Intesis Modbus Server – BACnet Client gateway.

The aim of this integration is to make accessible BACnet system signals and resources from a Modbus based control
system or device, as if it was a part of the own Modbus system and vice-versa.

The gateway acts as a Modbus TCP Server or Modbus RTU slave device in its Modbus interface, allowing a Modbus
master/client device to read/write to its internal points. From BACnet point of view, Intesis acts as a BACnet client
device, able to subscribe (COV) or do periodic polling of configured BACnet points.

Configuration is carried out using the configuration software IntesisTM MAPS.
This document assumes that the user is familiar with Modbus and BACnet technologies and their technical terms.

Integration of BACnet IP or BACnet MSTP server systems

into Modbus TCP or Modbus RTU control and monitoring systems

IntesisTM Modbus Server – BACnet Client User Manual r1.3 EN

© HMS Industrial Networks S.L.U - All rights reserved

This information is subject to change without notice

URL https://www.intesis.com

6 / 27

Functionality

From the BACnet system point of view, after the start up process, Intesis subscribes to configured BACnet points or
reads them continuously from their respective BACnet server devices and updates in its memory the value of the
present_value property received from them.

From the Modbus system point of view, after the start up process, the gateway presents its points as Modbus
Registers, to be read or written by a Modbus client/master device using standard Modbus functions. The values
received from Modbus are immediately written in the associated present_value property of the corresponding object.

Each BACnet object from the BACnet server devices is associated to a Modbus register, with this, all the configured
points of the BACnet server devices are seen as a single Modbus server with many registers from the Modbus system
point of view, each register corresponding to a present_value of an object on a particular BACnet server device.

When a new value is read from BACnet for a given object/present_value, the new value is updated in the gateway's
memory and made accessible at Modbus Server interface.

In the continuous polling of the BACnet server, if an unresponsive BACnet server device is detected, the
corresponding virtual signal inside Intesis will be activated indicating communication error with the BACnet server
device. These virtual signals indicating communication status in real time with the BACnet devices are also accessible
from Modbus, like the rest of the points of the gateway.

Gateway’s capacity

Intesis capacity is listed below:

Element

100

version

250

version

600

version

1200

version

3000

version

Notes

Type of BACnet
devices

IP / MSTP

Communication with BACnet IP
and MSTP

Number of BACnet
devices

256

Maximum number of different
BACnet devices the Intesis can
communicate to

Number of Modbus
Registers

100

250

600

1200

3000

Maximum number of points that
can be defined in the virtual
Modbus Server device inside the
gateway

Modbus link layers
supported

Modbus RTU (EIA485)

Modbus TCP

Those supporting Modbus
protocol. Communication over
TCP/IP and RTU

IntesisTM Modbus Server – BACnet Client User Manual r1.3 EN

© HMS Industrial Networks S.L.U - All rights reserved

This information is subject to change without notice

URL https://www.intesis.com

7 / 27

2 BACnet interface

This section describes the BACnet part of the Intesis's configuration and functionality.

Description

BACnet server devices are represented in the form of Devices holding Objects, normally every physical device
corresponds to a logical one. The Objects can be of different type depending on the data and functionality the
represent: Analog Input, Analog output, Digital Input, etc. Up to 23 different types of objects. Note that Outputs are
objects meant to be written in the direction BACnet network to the device, and the opposite for Inputs (they are meant
to offer status information of the BACnet device). Value objects are bidirectional.

Every Object has different properties. The most meaningful one, and the one used to read and write values by Intesis
is the Present Value property, which indicates the real value of the object. Every Object of the same type in a Device
is identified with its associated Object Instance.

These are the possible BACnet objects supported by Intesis:

Object Type

Property

Description

Analog Input

Present Value

Analog signal. i.e. Ambient temperature.

Analog Output

Present Value

Analog signal.

Analog Value

Present Value

Analog signal. i.e. Temperature set point value.

Binary Input

Present Value

Digital signal. i.e. ON/OFF status.

Binary Output

Present Value

Digital signal. i.e. ON/OFF command.

Binary Value

Present Value

Digital signal. i.e. ON/OFF status/command.

Multistate Input

Present Value

Multistate signal. i.e. Working mode status.

Multistate Output

Present Value

Multistate signal.

Multistate Value

Present Value

Multistate signal. i.e. Working mode command.

Accumulator

Present Value

Loop

Present Value

Every signal is identified with its associated Device + Object Type + Object Instance.
Intesis simulates a virtual BACnet device inside the BACnet system acting as client device in the BACnet system.

The communication with the rest of the BACnet devices is done via the Ethernet port of the gateway which
implements the BACnet protocol.

Intesis implements a single BACnet object of its own: this is, its BACnet Device Object, containing its BACnet Device
Identifier and basic properties of Intesis as BACnet device (name, firmware version, etc).

Using the configuration tool with Intesis it’s possible to scan the BACnet network for available devices and their
objects, which can later be directly added to your configuration. This facilitates the configuration process, avoiding to
enter them manually.

BACnet/IP and BACnet MSTP physical layers are supported. Only one physical layer can be used at a time. This is,
if communicating to BACnet using BACnet/IP, BACnet MSTP cannot be used, and viceversa.

IntesisTM Modbus Server – BACnet Client User Manual r1.3 EN

© HMS Industrial Networks S.L.U - All rights reserved

This information is subject to change without notice

URL https://www.intesis.com

8 / 27

BACnet/IP

Main parameter to set up for BACnet/IP, additional to basic IP settings (IP, netmask, default gateway) is the
communication port. Intesis uses port 47808 (0xBAC0) by default and it can be changed at configuration time.

When using BACnet/IP, device can also act as a Foreign Device (in order to be able to communicate with devices
that are in another network domain), alternatively implement a BBMD itself (Bacnet/IP Broadcast Management
Device). This functionality facilitates communication of devices in other networks with the devices in the network
where Intesis is installed.

Communication with BACnet/IP excludes possibility of communicating with BACnet MSTP from Intesis.

BACnet MSTP

When choosing BACnet MSTP device needs to be associated with a MAC address (address within the MSTP network
segment), to be configured with configuration software.

Following baud rates are supported for MSTP line: 9600, 19200, 38400, 76800, 115200 or Autobauding (autodetect).
Standard wiring guidelines for EIA485 apply for the BACnet MSTP line.
Communication with BACnet MSTP excludes possibility of communicating with BACnet/IP from Intesis.

IntesisTM Modbus Server – BACnet Client User Manual r1.3 EN

© HMS Industrial Networks S.L.U - All rights reserved

This information is subject to change without notice

URL https://www.intesis.com

9 / 27

Points definition

Every point defined in Intesis has the following BACnet features associated to it:

Feature

Description

BACnet Device

BACnet device to which belongs the point, from a list of BACnet devices that can
be defined in Intesis (up to 16).

For every BACnet device defined, a virtual signal is created automatically in Intesis
to inform about the communication with the BACnet device, this signal is available
also from the Modbus interface like the rest of points.

BACnet object type

BACnet object type for the point. It can be one of the following BACnet object types
supported by Intesis:

AI = Analog Input.
AO = Analog Output.
AV = Analog Value.
DI = Digital Input.
DO = Digital Output.
DV = Digital Value.
MI = Multistate Input.
MO = Multistate Output.
MV = Multistate Value.
LOOP = Loop
ACUM = Accumulator

Consult documentation of BACnet device(s) to integrate for information about BACnet object types of
the points desired to integrate.

BACnet object
instance

BACnet object instance for the point on the external BACnet device.

Consult documentation of BACnet device(s) to integrate for information about BACnet object instance
of the points desired to integrate.

Note that configuration tool used with Intesis enables for discovery of existing BACnet devices in the network, as well
as their BACnet objects and types, which can be later directly added in configuration. This facilitates the process of
choosing suitable parameters above for every BACnet object on every BACnet device to integrate.

3 Modbus interface

Description

Intesis acts as a slave device in its Modbus interface, this interface can be the Ethernet port (if using Modbus TCP),
or the EIA232/EIA485 ports (if using Modbus RTU). To access the points and resources of the Intesis from a Modbus
master device, you must specify as Modbus register addresses, those configured inside Intesis corresponding to
BACnet signals. See details below in this document.

The Intesis can have Modbus RTU mode active, Modbus TCP mode active, or both modes active at the same time.

Functions supported

This part is common for Modbus TCP & RTU.
Modbus functions 01 and 02 (coils and digital input registers) can be used to read Modbus registers.
