Intesis Hisense VRF Air Conditioning User Manual

Hisense VRF Air Conditioning

Gateway for the integration of Hisense VRF systems into KNX home automation

systems

USER MANUAL

Issue date: 01/2019 r1.1 ENGLISH

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

2 / 30

Important User Information

Disclaimer

The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability for any errors that may appear in this document.

HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Industrial Networks and is subject to change without notice. HMS Industrial Networks makes no commitment to update or keep current the information in this document.

The data, examples and illustrations found in this document are included for illustrative purposes and are only intended to help improve understanding of the functionality and handling of the product. In view of the wide range of possible applications of the product, and because of the many variables and requirements associated with any particular implementation, HMS Industrial Networks cannot assume responsibility or liability for actual use based on the data, examples or illustrations included in this document nor for any damages incurred during installation of the product. Those responsible for the use of the product must acquire sufficient knowledge in order to ensure that the product is used correctly in their specific application and that the application meets all performance and safety requirements including any applicable laws, regulations, codes and standards. Further, HMS Industrial Networks will under no circumstances assume liability or responsibility for any problems that may arise as a result from the use of undocumented features or functional side effects found outside the documented scope of the product. The effects caused by any direct or indirect use of such aspects of the product are undefined and may include e.g. compatibility issues and stability issues.

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

3 / 30

Gateway for the integration of Hisense VRF systems into KNX home automation systems.

ORDER CODE

LEGACY ORDER CODE

INKNXHIS016O000

HS-AC-KNX-16

INKNXHIS064O000

HS-AC-KNX-64

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

4 / 30

INDEX

1 Description ............................................................................................................................................................ 5

Introduction .................................................................................................................................................... 5

1.1 Functionality...................................................................................................................................................... 6

Capacity of Intesis ......................................................................................................................................... 7

2 KNX System .......................................................................................................................................................... 8

Description..................................................................................................................................................... 8

Points definition ............................................................................................................................................. 8

3 Connections .......................................................................................................................................................... 9

Power device ............................................................................................................................................... 10

Connect to Hisense installation ................................................................................................................... 10

Connection to KNX ...................................................................................................................................... 10

Connection to the configuration tool ............................................................................................................ 10

4 Set-up process and troubleshooting ................................................................................................................... 11

Pre-requisites .............................................................................................................................................. 11

Intesis MAPS. Configuration & monitoring tool for Intesis KNX series ....................................................... 11

4.2.1 Introduction .......................................................................................................................................... 11

4.2.2 Connection ........................................................................................................................................... 11

4.2.3 Configuration tab ................................................................................................................................. 12

4.2.4 KNX configuration ................................................................................................................................ 12

4.2.5 Hisense configuration .......................................................................................................................... 15

4.2.6 Signals ................................................................................................................................................. 17

4.2.7 Sending the configuration to Intesis .................................................................................................... 18

4.2.8 Diagnostic ............................................................................................................................................ 18

4.2.9 Set-up procedure ................................................................................................................................. 20

5 Electrical & Mechanical Features ........................................................................................................................ 20

6 Dimensions ......................................................................................................................................................... 22

7 AC Unit Types compatibility ................................................................................................................................ 23

8 Error codes for Indoor and Outdoor Units ........................................................................................................... 24

9 Appendix A – Communication Objects Table ..................................................................................................... 27

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

5 / 30

1 Description

Introduction

This document describes the integration of Hisense VRF air conditioning systems into KNX home automation systems using gateway Intesis KNX – Hisense VRF.

The aim of this integration is to monitor and control your Hisense air conditioning system, from your KNX TP-1 installation. To do it so, Intesis performs as a one more KNX device, sending and receiving telegrams to group addresses in the KNX network.

Intesis makes available the Hisense air conditioning system indoor units’ datapoints through independent KNX objects. Up to 64 indoor units supported, depending on product version. This document assumes that the user is familiar with KNX and Hisense technologies and their technical terms.

Integration of Hisense VRF systems into

KNX control systems

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

6 / 30

1.1 Functionality

IntesisTM continuously monitors Hisense VRF network for all configured signals and keeps the updated status of all of them in its memory. It triggers updates on configured group addresses to KNX network on value change.

Commands toward the indoor unit communication adaptor are permitted. Each indoor unit is offered as a set of KNX objects.

Element

Object supported

Outdoor Unit

• Communication status

• Status

Indoor Unit

• Status

• Command

• Communication

status

General signals (all units)

• Command

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

7 / 30

Capacity of Intesis

Element

Max.

Notes

Number of indoor units

64*

Number of indoor units that can be controlled through Intesis

* There are different models of Intesis KNX – Hisense VRF each one with different capacity. The table above shows the capacity for the top model (with maximum capacity).

Their order codes are:

▪ INKNXHIS016O000: Model supporting up to 16 indoor units ▪ INKNXHIS064O000: Model supporting up to 64 indoor units

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

8 / 30

2 KNX System

In this section, a common description for all Intesis KNX series gateways is given, from the point of view of KNX system which is called from now on internal system. Connection with the Hisense system is also called from now on external system.

Description

Intesis KNX connects directly to the KNX TP-1 bus and performs as one more device into the KNX system, with the same configuration and operational characteristics as other KNX devices.

Internally, the circuit part connected to the KNX bus is opto-isolated from the rest of the electronics. Intesis KNX receives, manages and sends all the telegrams related to its configuration to the KNX bus. On receiving WRITE telegrams of KNX group addresses associated to communication objects, the corresponding

messages are sent to the external system (Hisense installation). When a change in a signal of the external system is detected, a WRITE telegram is sent to the KNX bus (addressed

with the group address associated to the corresponding group object), in order to maintain both systems synchronised in every moment.

The status of the KNX bus is checked continuously and, if a bus drop-down is detected, for example due to failure in the bus power supply, after the KNX bus is restored again, Intesis will send READ telegrams to group addresses of all communication objects marked with flag ‘Ri’. The behaviour of each individual point into Intesis is determined by the flags configured for the communication object. See details below.

Points definition

Every group object in configuration has following KNX properties:

Property

Description

Descriptive information about the communication object or signal.

Object function

Information on range of values for the group object.

DPT

Datapoint type. It is the KNX data type used to encode the signal's value. It will depend on the type of signal associated in the external system in every case.

Group

It is the KNX group to which the point is associated. It is also the group to which the read (R), write (W), transmit (T), update (U) and read on init (Ri) flags are applied. It is the sending group.

Listening addresses

They are the addresses that can write on the group object, a part of the main group address.

R

Read. If this flag is activated, READ telegrams of this group address will be accepted.

Ri

Read on Init. If this flag is activated, the object will trigger corresponding READ request (on associated group address) on initialization.

W

Write. If this flag is activated, WRITE telegrams on this group object will be accepted.

T

Transmit. If this flag is activated, when the group object value changes, due to a change in the external system, a WRITE telegram of the associated group address will be sent to the KNX bus.

U

Update. If this flag is activated, UPDATE telegrams (response to READ telegrams) on this group object will be accepted.

Active

If activated, the point will be active in Intesis, if not, the behaviour will be as if the point is not defined. This allows deactivating points without the need of delete them for possible future use.

These properties are common for all Intesis KNX series gateways. Although each integration may have specific properties according to the type of signals of the external system.

See list of communication objects in section 9 APPENDIX A – COMMUNICATION OBJECTS TABLE.

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

9 / 30

3 Connections

Find below information regarding the Intesis connections available.

Power Supply

Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.

If using DC power supply:

Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted (check table below). The power supply can be connected to earth but only through the negative terminal, never through the positive terminal.

If using AC power supply:

Make sure the voltage applied is of the value admitted (24 Vac). Do not connect any of the terminals of the AC power supply to earth, and make sure the same power supply is not supplying any other device.

Ethernet

Connect the cable coming from the IP network to the connector ETH of the gateway. Use an Ethernet CAT5 cable. If communicating through the LAN of the building, contact the network administrator and make sure traffic on the port used is allowed through all the LAN path (check the gateway user manual for more information). Default IP is

192.168.100.246. DHCP is enabled by default.

PortA / KNX

Connect the KNX TP1 bus to connectors A3 (+) and A4 (-) of gateway’s PortA. Respect the polarity.

PortB / H-Link Hisense

Connect the H-Link terminals (TB2) of Hisense Outdoor Unit to the connectors B1 and B2 of gateway’s PortB. There is no polarity to be respected.

Console Port Connect a mini-type B USB cable from your computer to the gateway to allow communication between the Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user manual for more information.

USB

Connect a USB storage device (not a HDD) if required. Check the user manual for more information.

Ensure proper space for all connectors when mounted (see section 6)

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

10 / 30

Power device

The first step to perform is to power up the device. To do so, a power supply working with any of the voltage range allowed is needed (check section 5). Once connected the ON led will turn on.

WARNING! In order to avoid earth loops that can damage the gateway, and/or any other equipment connected to it, we strongly recommend:

• The use of DC power supplies, floating or with the negative terminal connected to earth. Never use a DC power supply with the positive terminal connected to earth.

• The use of AC power supplies only if they are floating and not powering any other device.

Connect to Hisense installation

Use the Port B connector of the Intesis device in order to connect Hisense H-Link bus to the Intesis. Remember to follow all safety precautions indicated by Hisense.

Connect the Hisense H-Link bus to connectors B1 and B2 of gateway’s PortB. Bus is not sensitive to polarity.

Connection to KNX

Connect the KNX TP1 bus to connectors A3 (+) and A4 (-) of gateway’s PortA. Respect the polarity.

Connection to the configuration tool

This action allows the user to have access to configuration and monitoring of the device (more information can be found in the configuration tool User Manual). Two methods to connect to the PC can be used:

• Ethernet: Using the Ethernet port of Intesis.

• USB: Using the console port of Intesis, connect a USB cable from the console port to the PC.

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

11 / 30

4 Set-up process and troubleshooting

Pre-requisites

It is necessary to have a KNX installation, device or interface operative and well connected to the corresponding KNX port of Intesis. It is also required to have a Hisense Air Conditioner installation, with accessible H-Link/TB2 port for connection of Intesis.

Connectors, connection cables, PC to use the configuration tool and other auxiliary material, if needed, are not supplied by HMS Networks SLU for this standard integration.

Items supplied by HMS Networks for this integration are:

• Intesis gateway.

• Link to download the configuration tool.

• USB Console cable to communicate with Intesis.

• Product documentation.

Intesis MAPS. Configuration & monitoring tool for Intesis KNX series

4.2.1 Introduction

Intesis MAPS is a Windows® compatible software developed specifically to monitor and configure Intesis new generation gateways.

The installation procedure and main functions are explained in the Intesis MAPS KNX User Manual. This document can be downloaded from the link indicated in the installation sheet supplied with the Intesis device or in the product website at www.intesis.com

In this section, only the specific case of Hisense to KNX systems will be covered. Please check the Intesis MAPS KNX User Manual for specific information about the different parameters and how to

configure them.

4.2.2 Connection

To configure the Intesis connection parameters press on the Connection button in the menu bar.

Figure 4.1 MAPS connection

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

12 / 30

4.2.3 Configuration tab

Select the Configuration tab to configure the connection parameters. Three subsets of information are shown in this window: General (Gateway general parameters), KNX (KNX interface configuration) and Hisense (Hisense interface parameters).

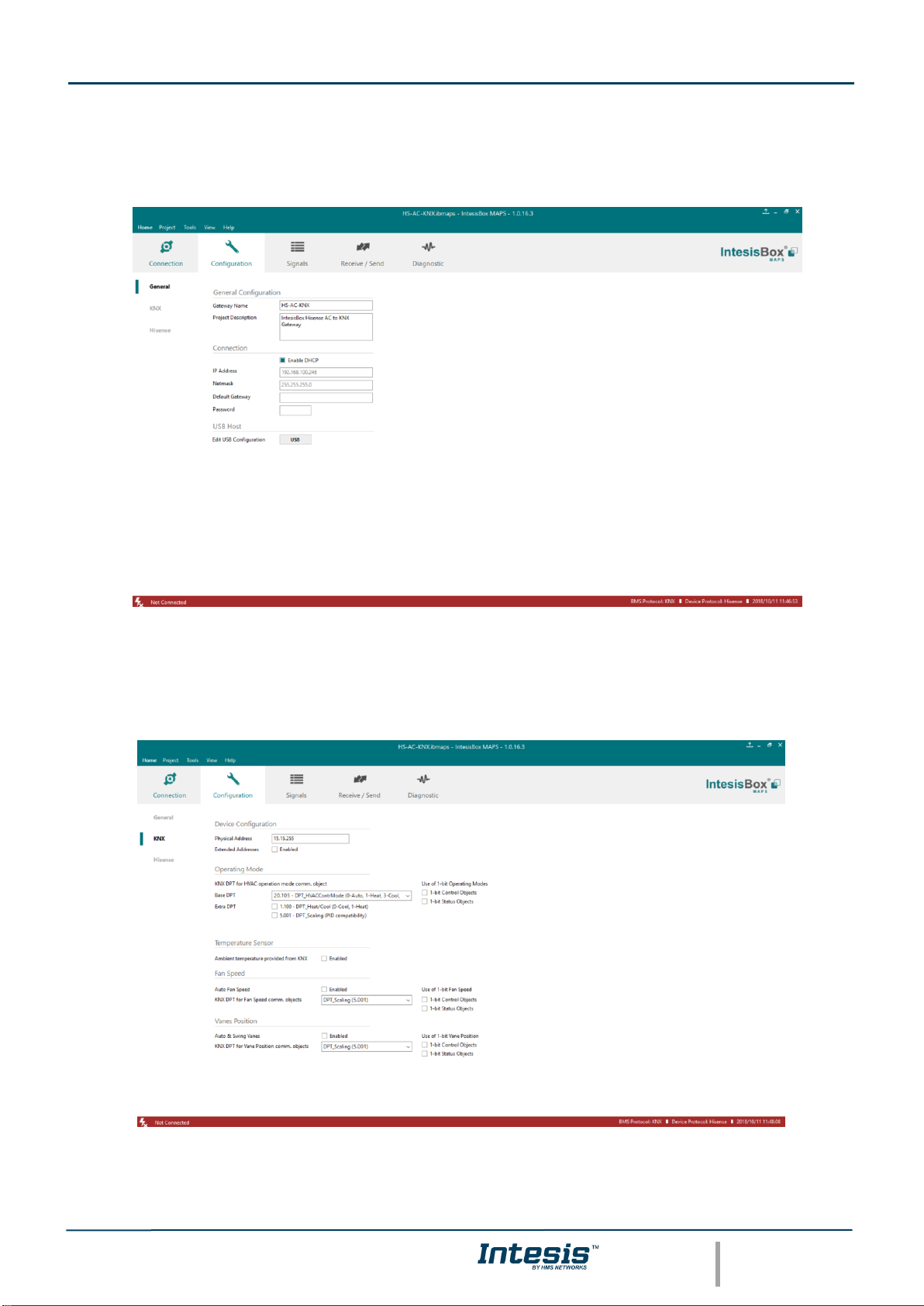

Figure 4.2 Intesis MAPS configuration tab

4.2.4 KNX configuration

Set parameters of KNX interface of Intesis.

Figure 4.3 Intesis MAPS KNX configuration tab

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

13 / 30

1. Device configuration

1.1. Physical Address. KNX physical address of the device in the network

1.2. Extended Addresses. Enables usage of KNX Extended addresses (rangefrom 16/0/0 to 32/7/255).

2. Operating Mode. Settings related to KNX interface for control and feedback of AC unit’s operating mode.

2.1. KNX DPT for HVAC operation mode comm object. Base DPT. Base DPT to use for control/monitor the

operating mode. Following DPT types are offered:

o DPT_20.105. DPT_HVACContrMode: 0-Auto, 1-Heat, 3-Cool, 9-Fan, 14-Dry o DPT_5.x (non-standarized): 0-Auto, 1-Heat, 2-Dry, 3-Fan, 4-Cool

2.2. KNX DPT for HVAC operation mode comm object. Extra DPT. Additional DPT to use for control/monitor

the operating mode.

o DPT_1.100. DPT_Heat/Cool: 0-Cool, 1-Heat. o DPT_5.001. DPT_Scaling: Enables objects “Control_ Heat Mode & On” and “Control_ Cool Mode &

On”. Their type is DPT_Scaling (0..100%), and their ending is to be able to control parameters On/Off, Cool/Heat of indoor unit from a single percentage object. They are meant to provide compatibility with certain thermostats oriented to the operation of valves for Heating/Cooling. Whenever a value > 0% is received at each of these two objects, the corresponding operating mode and ON operation is sent to the indoor unit. Whenever both values are 0%, indoor unit is set to OFF

2.3. Use of 1-bit Operating Modes. 1-bit Control Objects. Enables a bit-type object for the control of each

operating mode.

2.4. Use of 1-bit Operating Modes. 1-bit Status Objects. Enables a bit-type object for monitoring each

operating mode.

3. Temperature Sensor.

3.1. Ambient temperature provided from KNX. Enables object Control_ KNX ambient temperature.

NOTE: Indoor unit does not accept, by itself, that an ambient temperature for control of operation

of the indoor unit is provided. To allow regulation of indoor unit according to a temperature reference from KNX, what Intesis does is passing a different temperature setpoint to the indoor unit than the

one required by the user. The passed setpoint is such that the difference ‘Ambient temperature

reported by Hisense IU – AC setpoint’ is equal to ‘Ambient temperature reported by KNX – AC

setpoint required by KNX’, using the following formula: “AC Setp. Temp” = “AC Ret. Temp” - (“KNX Amb. Temp.” - “KNX Setp. Temp”)

Where:

▪ AC Setp. Temp: AC indoor unit setpoint temperature

▪ AC Ret. Temp: AC indoor unit return temperature ▪ KNX Amb. Temp.: Ambient temperature provided from KNX ▪ KNX Setp. Temp: Setpoint temperature provided from KNX

Consequently, when using this feature (Ambient temp provided from KNX), setpoint at AC and setpoint in KNX will not necessarily be the same (actually, user will not be able to operate setpoint

from AC System controllers as the remote controller).

!

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

14 / 30

4. Fan Speed. Settings related to KNX interface for control and feedback of AC unit’s fan speed.

4.1. Auto Fan Speed. Configures availability of Auto Fan Speed control/monitoring objects. Necessary if your

indoor unit has auto fan speed.

4.2. KNX DPT for Fan Speed comm objects. DPT_5.001, DPT_Scaling. Control/monitoring of Fan Speed is

performed by means of scaling (percentage) objects. Thresholds for control object and values for status object will vary according to number of fanspeeds of the unit.

4.2. KNX DPT for Fan Speed comm objects. DPT_5.010, DPT_Value_1_Ucount. Control/monitoring of Fan

Speed is performed by means of enumerated values.

4.4. Use of 1-bit Fan Speed. 1-bit Control Objects. Enables a bit-type object for control of fan speed.

4.5. Use of 1-bit Fan Speed. 1-bit Status Objects. Enables a bit-type object for monitoring of each fan speed.

5. Vanes Position. Settings related to KNX interface for control and feedback of AC unit’s vanes position.

4.1. Auto&Swing Vanes. Configures availability of Auto and Swing control/monitoring objects.

4.2. KNX DPT for Vane Position comm objects. DPT_5.001, DPT_Scaling. Control/monitoring of Vanes

Positions is performed by means of scaling (percentage) objects. Thresholds for control object and values for status object will vary according to number of vanes positions of the unit.

4.2. KNX DPT for Vane Position comm objects. DPT_5.010, DPT_Value_1_Ucount. Control/monitoring of

Vanes Positions is performed by means of enumerated values.

4.4. Use of 1-bit Fan Speed. 1-bit Control Objects. Enables a bit-type object for control of Vanes Positions.

4.5. Use of 1-bit Fan Speed. 1-bit Status Objects. Enables a bit-type object for monitoring of each Vanes

Position.

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

15 / 30

4.2.5 Hisense configuration

Set parameters for connection with Hisense’s installation.

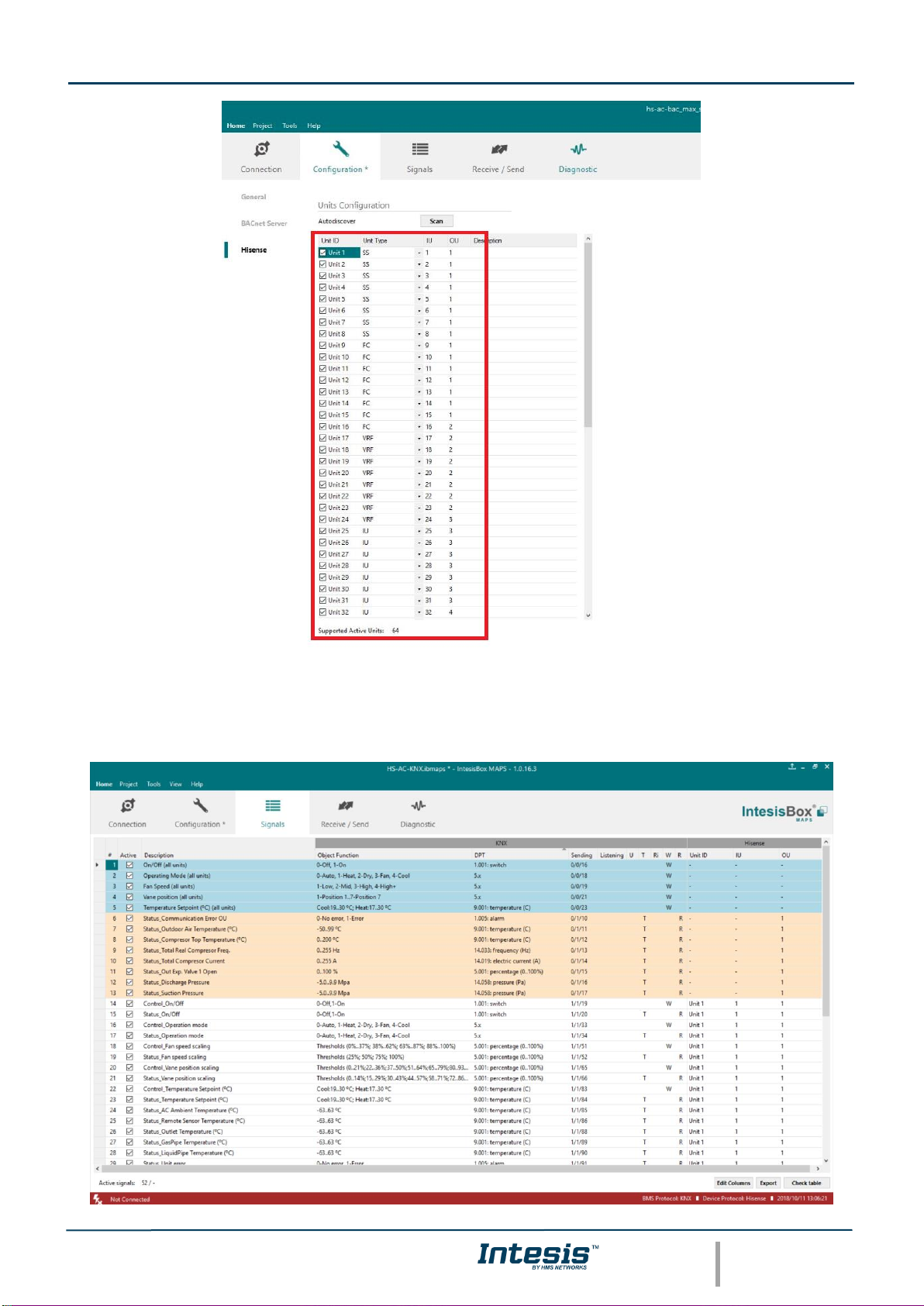

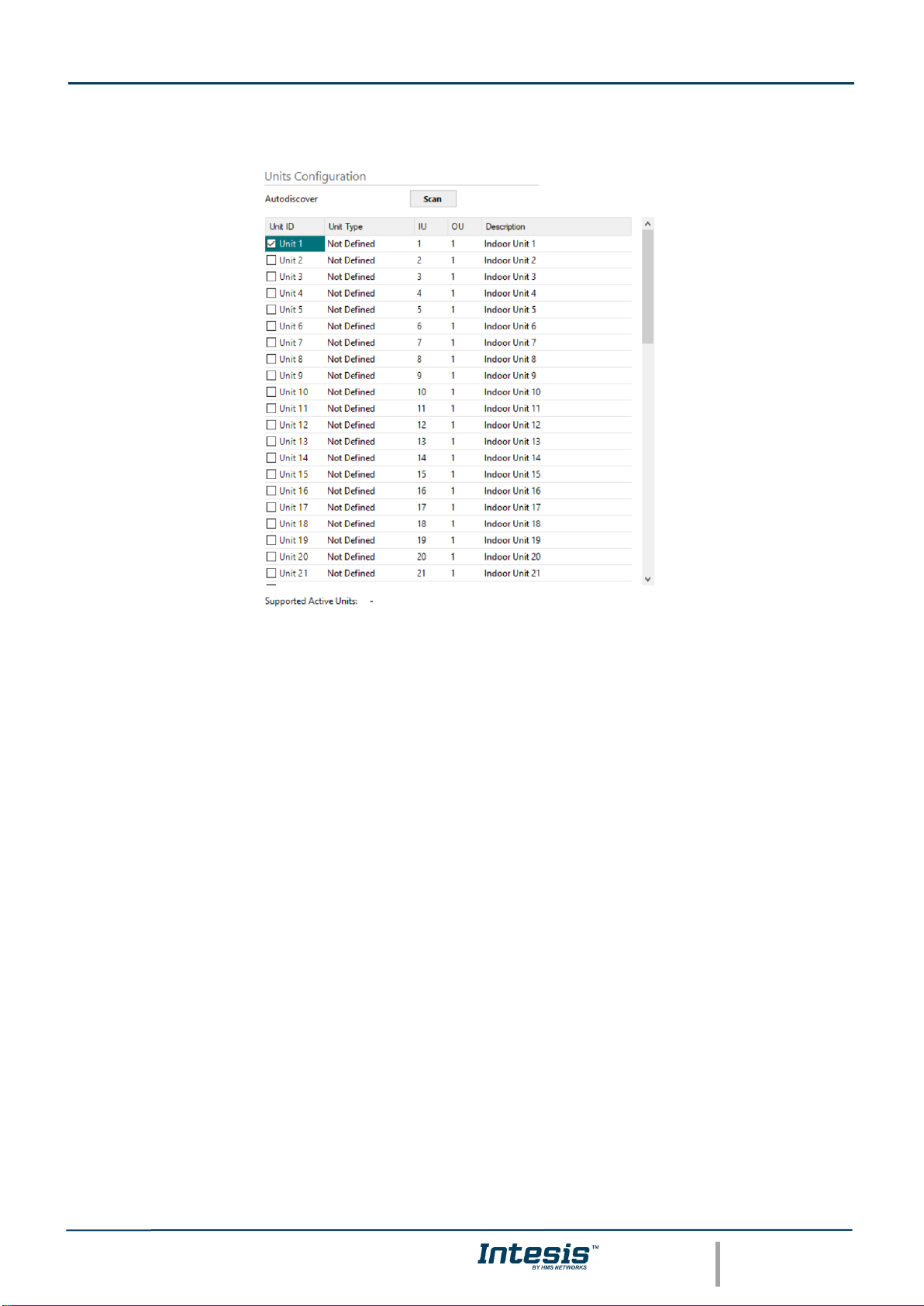

Figure 4.4 Intesis MAPS Hisense configuration tab

In Units Configuration section you need to enter, for each unit:

• Active. If it’s active (checkbox at Unit xx), ranging from 1 to 64 indoor units that will be integrated (maximum number of units will depend on Intesis model)

• IU address. Address 1..64 of Unit in Hisense H-Link bus.

• OU address. Address 1..64 of Outdoor Unit in Hisense H-Link bus.

• Description. Descriptive name to easy identification of the unit (for example, ‘living room floor 1 unit’, etc).

Additional to manual entry of each unit, autodiscover of present units in an H-Link installation is possible. To do so, click button Scan. Following window will appear:

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

16 / 30

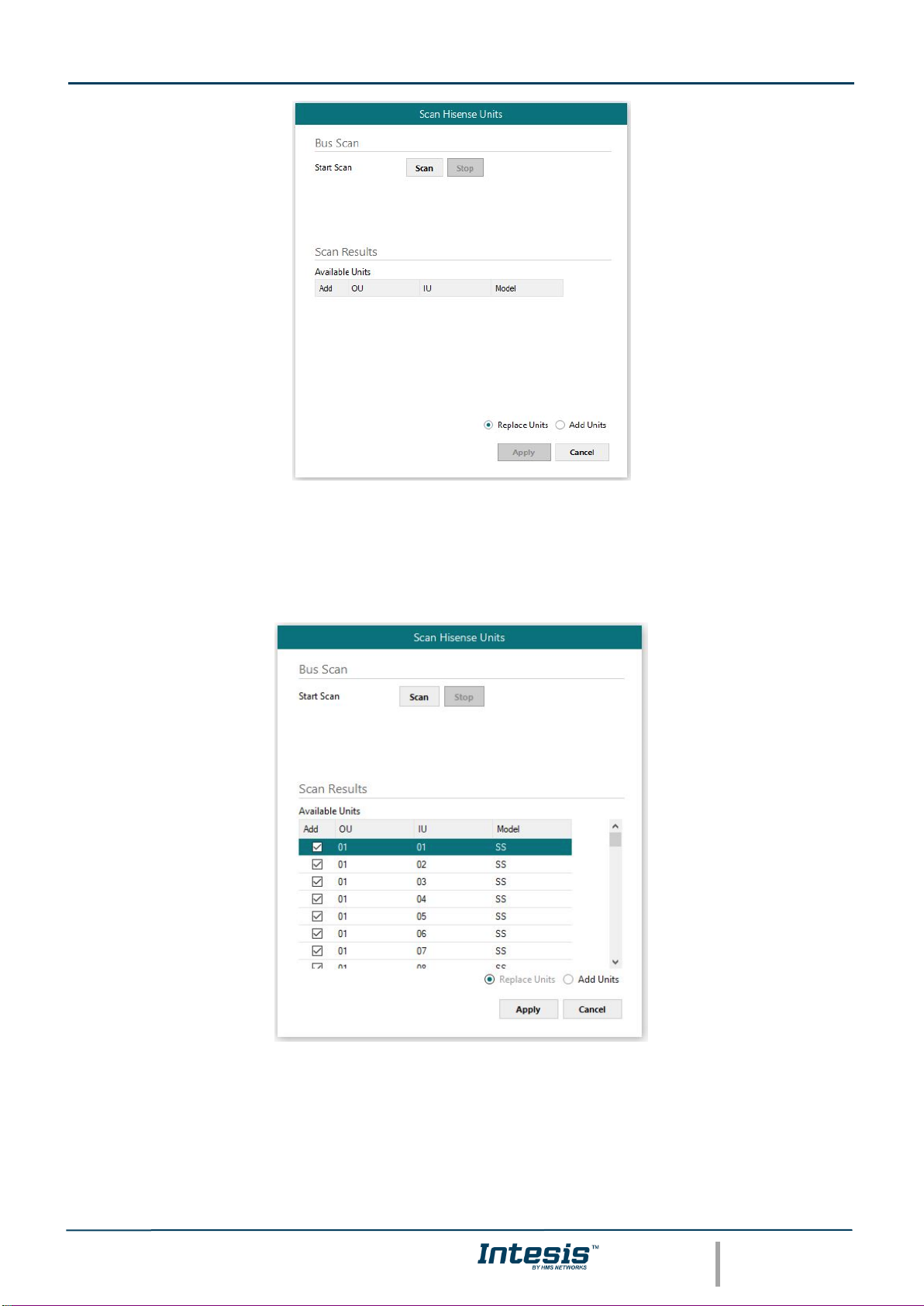

Figure 4.5 Intesis MAPS Scan Hisense Units window

By pressing Scan button, connected Hisense H-Link bus will be scanned for available units. Error window will appear if there is a problem in the connection with H-Link bus (units not powered, bus not connected, …).

A progress bar will appear during the scan, which will take up to a few minutes. After scan is completed, detected units will be shown in available units as follows:

Figure 4.6 Intesis MAPS Scan Hisense Units window with scan results

Select with its checkbox units to add (or replace) in installation, according to selection Replace Units / Add Units. After units to be integrated are selected, click button Apply, and changes will appear in previous Units Configuration window.

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

17 / 30

Figure 4.7 Intesis MAPS Hisense configuration tab after importing scan results

4.2.6 Signals

All available KNX objects, its corresponding description and other main parameters are listed in the signals tab.

Figure 4.8 Intesis MAPS Signals tab

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

18 / 30

4.2.7 Sending the configuration to Intesis

When the configuration is finished, follow the next steps.

1.- Save the project (Menu option Project->Save) on your hard disk (more information in Intesis MAPS User Manual).

2.- Go to tab ‘Receive / Send’ of MAPS, and in Send section, press Send button. Intesis will reboot automatically once the new configuration is loaded.

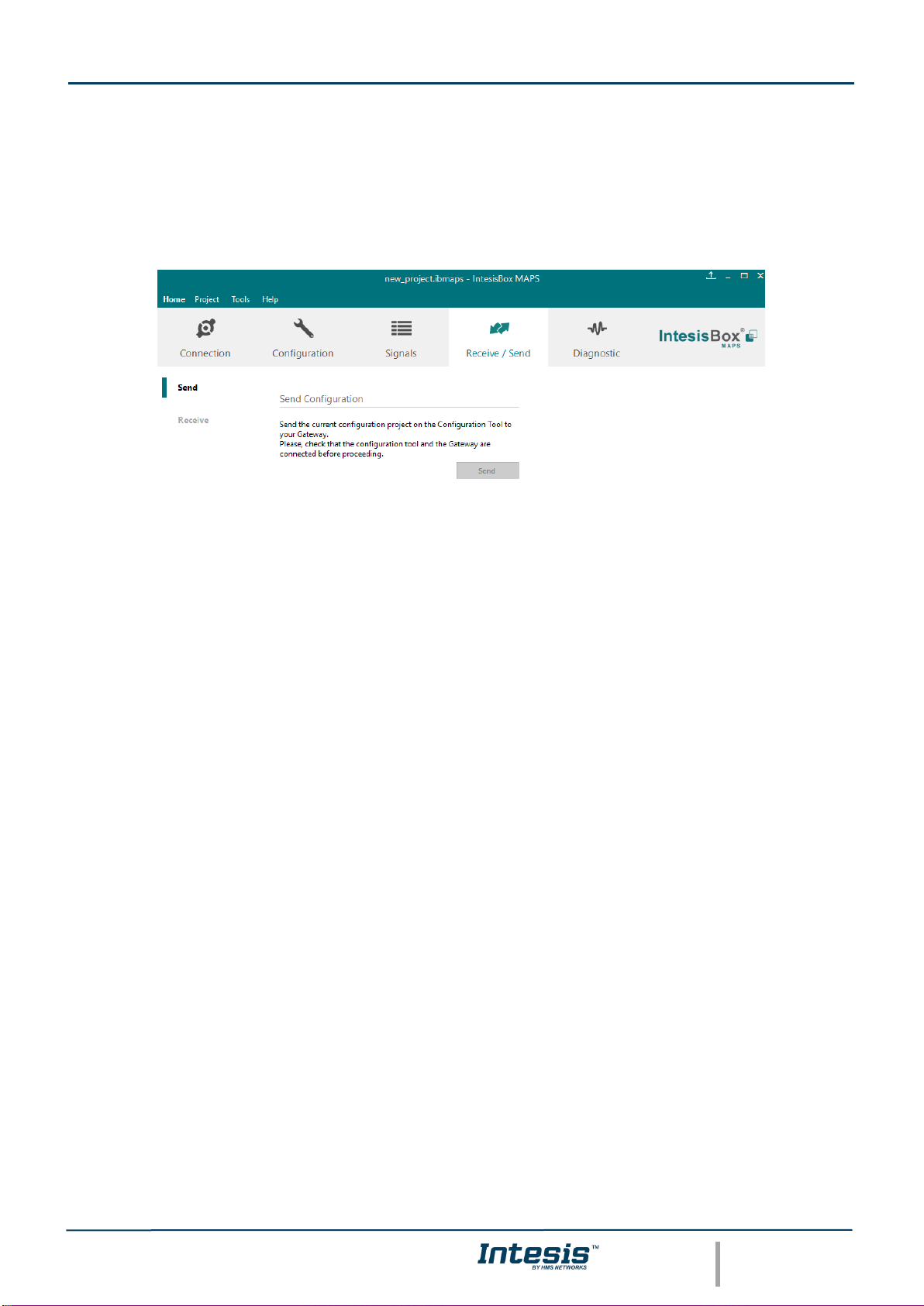

Figure 4.9 Intesis MAPS Receive/Send tab

After any configuration change, do not forget to send the configuration file to the Intesis using the Send button in the Receive / Send section.

4.2.8 Diagnostic

To help integrators in the commissioning tasks and troubleshooting, the Configuration Tool offers some specific tools and viewers.

In order to start using the diagnostic tools, connection with the Gateway is required. The Diagnostic section is composed by two main parts: Tools and Viewers.

• Tools Use the tools section to check the current hardware status of the box, log communications into

compressed files to be sent to the support, change the Diagnostic panels’ view or send commands to

the gateway.

• Viewers

In order to check the current status, viewer for the Internal and External protocols are available. It is also available a generic Console viewer for general information about communications and the gateway status and finally a Signals Viewer to simulate the BMS behavior or to check the current values in the system.

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

19 / 30

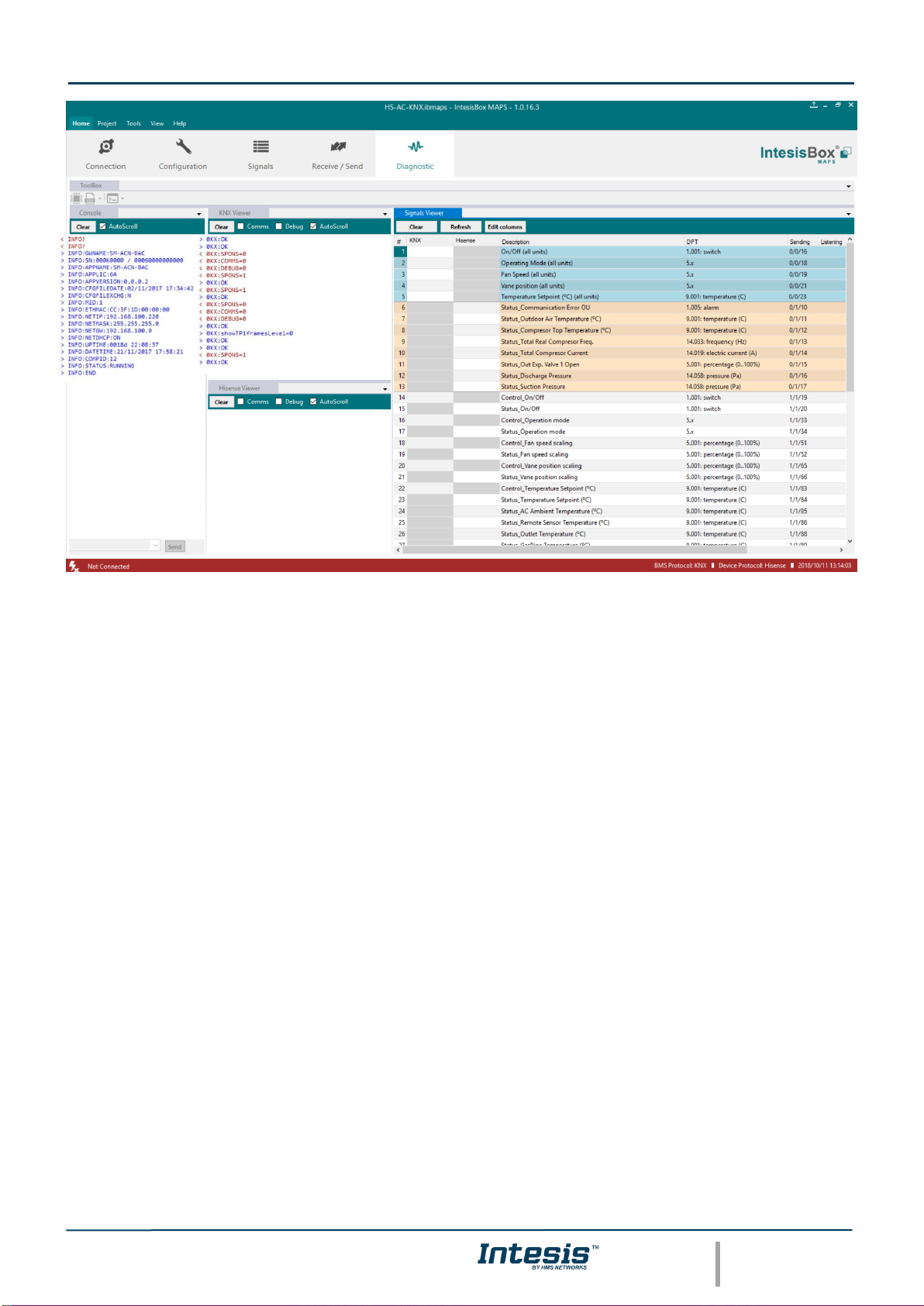

Figure 4.10 Diagnostic

More information about the Diagnostic section can be found in the Configuration Tool manual.

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

20 / 30

4.2.9 Set-up procedure

1. Install Intesis MAPS on your laptop, use the setup program supplied for this and follow the instructions given by the Installation wizard.

2. Install Intesis in the desired installation site. Installation can be on DIN rail or on a stable not vibrating surface (DIN rail mounted inside a metallic industrial cabinet connected to ground is recommended).

3. Connect the KNX communication cable coming from the KNX network to the port marked as Port A on Intesis (More details in section 3).

4. Connect the communication cable coming from the Hisense H-Link installation to the port marked as Port B of Intesis (More details in section 3).

5. Power up Intesis. The supply voltage can be 9 to 36 Vdc or just 24 Vac. Take care of the polarity of the supply voltage applied.

WARNING! In order to avoid earth loops that can damage Intesis and/or any other equipment connected to it, we strongly recommend:

• The use of DC power supplies, floating or with the negative terminal connected to earth. Never use a DC power supply with the positive terminal connected to earth.

• The use of AC power supplies only if they are floating and not powering any other device.

6. If you want to connect using IP, connect the Ethernet cable from the laptop PC to the port marked as Ethernet of Intesis (More details in section 3).

If you want to connect using USB, connect the USB cable from the laptop PC to the port marked as Console of Intesis (More details in section 3).

7. Open Intesis MAPS, create a new project selecting a copy of the one named INKNXHIS---O000.

8. Modify the configuration as desired, save it and download the configuration file to Intesis as explained in the Intesis MAPS user manual.

9. Visit the Diagnostic section and check that there is communication activity, some TX frames and some other RX frames. This means that the communication with the KNX installation and Hisense installation is OK. In case there is no communication activity between Intesis and the KNX side and/or Hisense units, check that those are operative: check communication cable used to connect all devices and any other communication parameter.

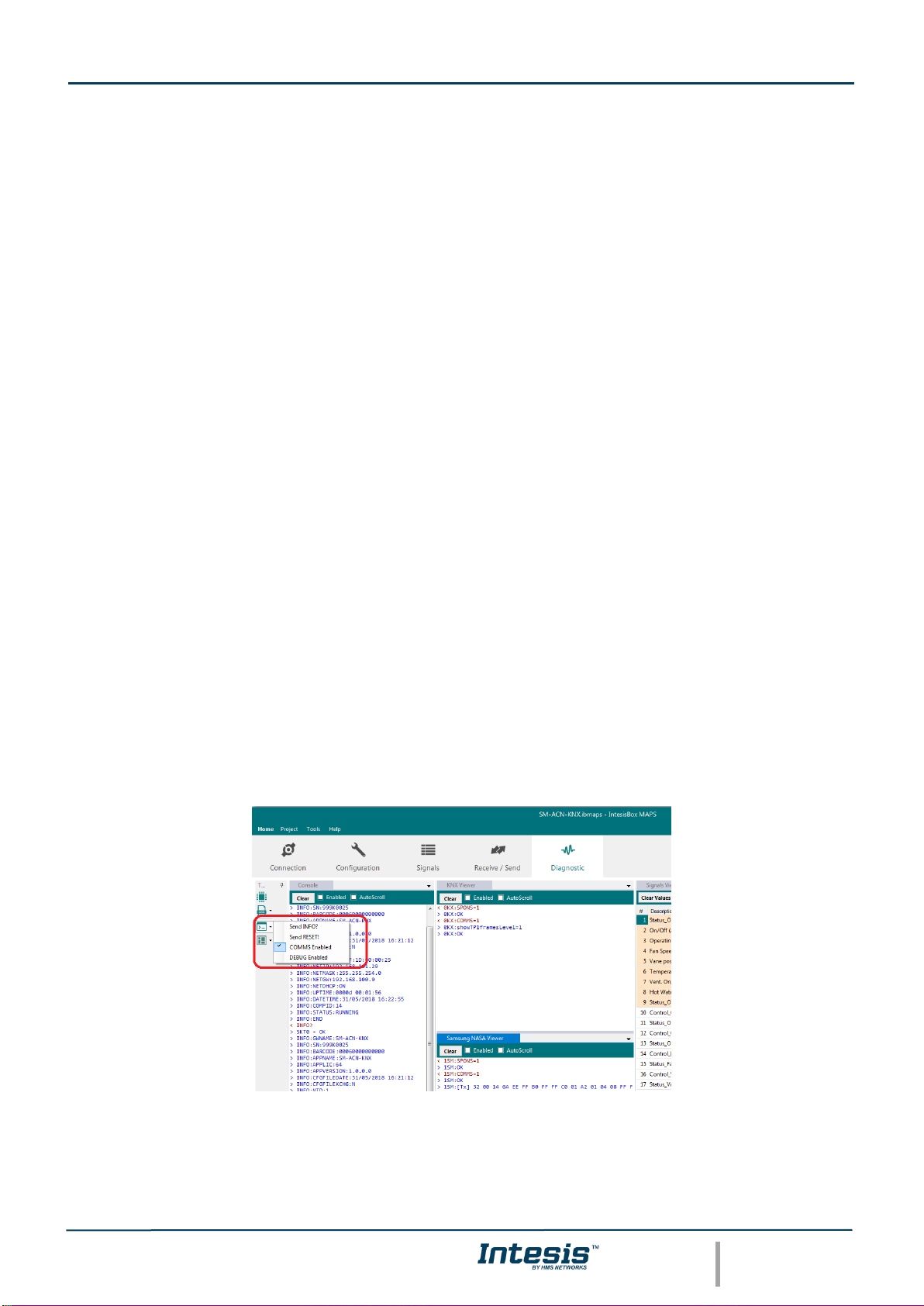

Figure 4.11 Enable COMMS

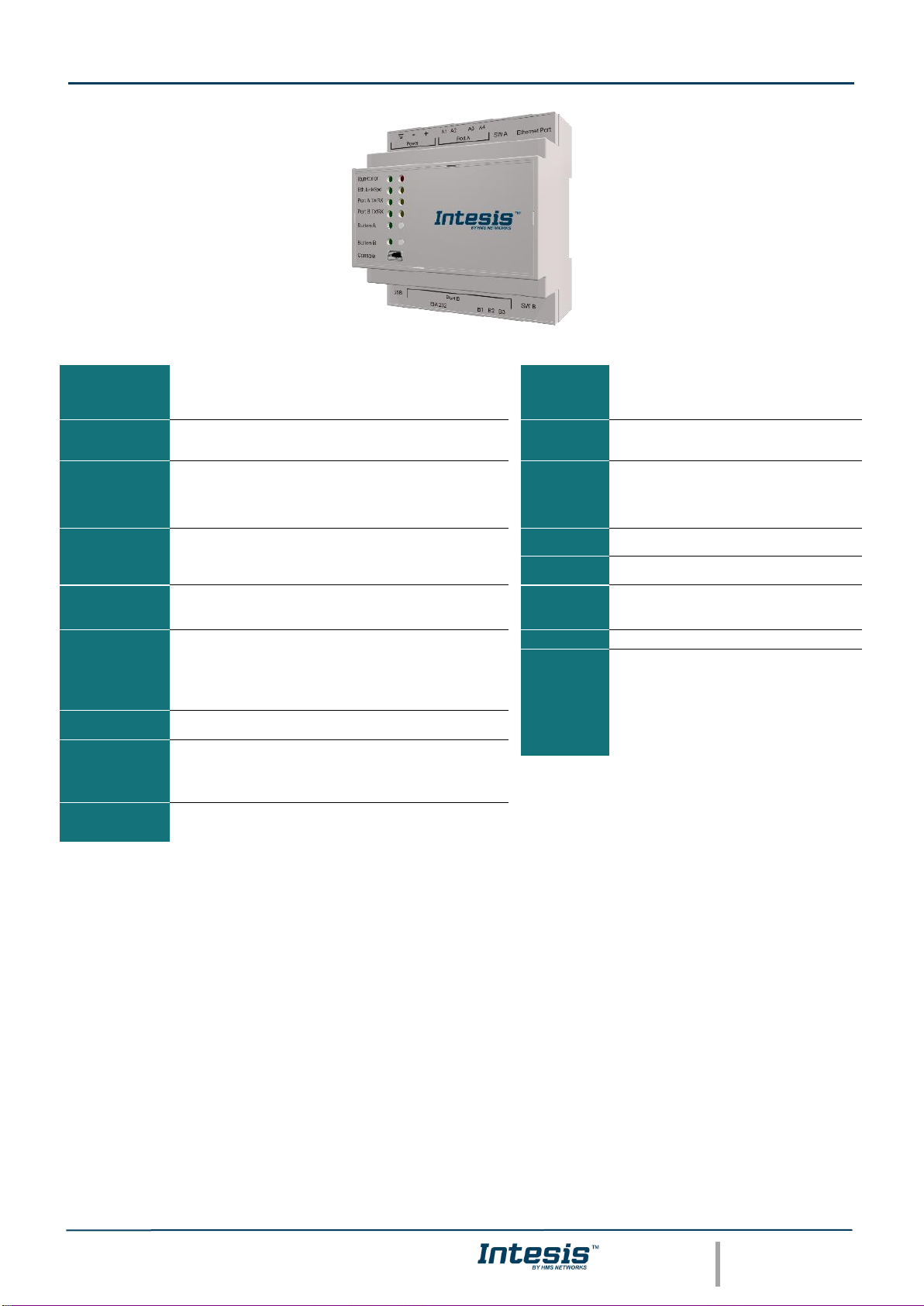

5 Electrical & Mechanical Features

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

21 / 30

Enclosure

Plastic, type PC (UL 94 V-0) Net dimensions (dxwxh): 90x88x56 mm Recommended space for installation (dxwxh): 130x100x100mm Color: Light Grey. RAL 7035

Battery

Size: Coin 20mm x 3.2mm Capacity: 3V / 225mAh Type: Manganese Dioxide Lithium

Mounting

Wall. DIN rail EN60715 TH35.

Console Port

Mini Type-B USB 2.0 compliant 1500VDC isolation

Terminal Wiring

(for power supply and low-voltage signals)

Per terminal: solid wires or stranded wires (twisted or with ferrule)

1 core: 0.5mm

2

… 2.5mm

2

2 cores: 0.5mm

2

… 1.5mm

2

3 cores: not permitted

USB port

Type-A USB 2.0 compliant Only for USB flash storage device

(USB pen drive)

Power consumption limited to 150mA

(HDD connection not allowed)

Power

1 x Plug-in screw terminal block (3 poles)

9 to 36VDC +/-10%, Max.: 140mA. 24VAC +/-10% 50-60Hz, Max.: 127mA Recommended: 24VDC

Push Button

Button A: Check the user manual Button B: Check the user manual

Operation Temperature

0°C to +60°C

Ethernet

1 x Ethernet 10/100 Mbps RJ45 2 x Ethernet LED: port link and activity

Operational Humidity

5 to 95%, no condensation

Port A

1 x KNX TP-1 Plug-in screw terminal block orange (2 poles)

2500VDC isolation from other ports KNX power consumption: 5mA Voltage rating: 29VDC

1 x Plug-in screw terminal block green (2 poles)

Reserved for future use

Protection

IP20 (IEC60529)

LED Indicators

10 x Onboard LED indicators

2 x Run (Power)/Error 2 x Ethernet Link/Speed 2 x Port A TX/RX 2 x Port B TX/RX 1 x Button A indicator 1 x Button B indicator

Switch A

(SWA)

1 x DIP-Switch for PORT A configuration:

Reserved for future use

PORT B

1 x Serial EIA232 (SUB-D9 male connector)

Reserved for future use

1 x H-Link Plug-in screw terminal block (3 poles)

1500VDC isolation from other ports

Switch B

(SWB)

1 x DIP-Switch for PORT B configuration:

Reserved for future use (leave OFF, default)

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

22 / 30

6 Dimensions

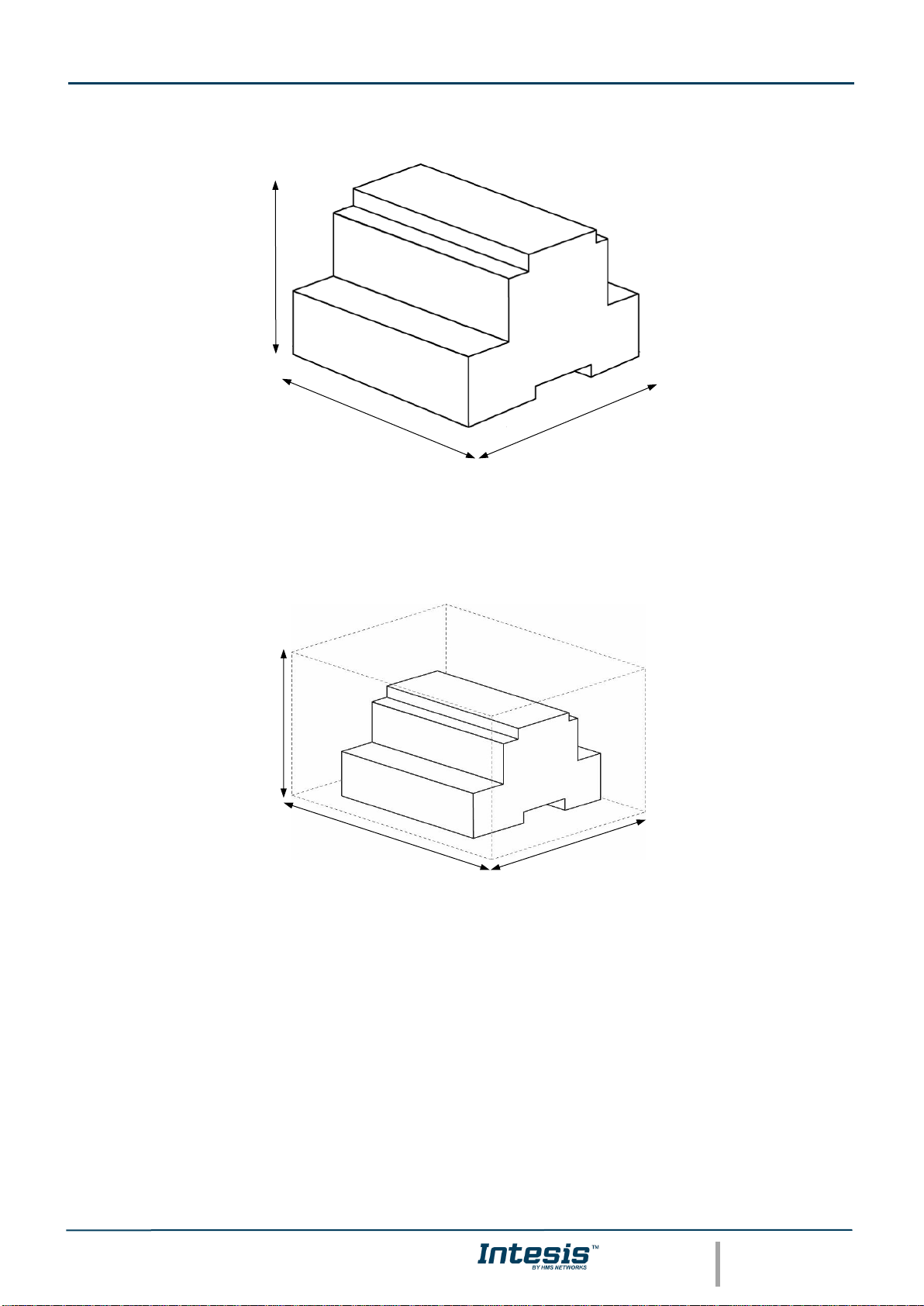

Recommended available space for its installation into a cabinet (wall or DIN rail mounting), with space enough for external connections

100 mm (h)

100 mm (w)

130 mm (d)

56 mm (h)

88 mm (w)

90 mm (d)

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

23 / 30

7 AC Unit Types compatibility

A list of Hisense unit model references compatible with INKNXHIS016O000 / INKNXHIS064O000 and their available features can be found in:

https://www.intesis.com/docs/compatibilities/inxxxhis001r000_compatibility

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

24 / 30

8 Error codes for Indoor and Outdoor Units

This list contains all possible values shown in KNX Object for “Error Code” for each indoor unit and outdoor unit. It must be taken into account that Outdoor Units are only able to reflect a single error for each indoor / outdoor unit in

the system. Thus, a unit having two or more active errors from that list will only report a single error code – the one of the first error that has been detected.

Error Code

Category

Content of Abnormality

Leading Cause

01

lndoor Unit

Activation of Protection Device (Float Switch)

Activation of Float Switch (High Water Level in Drain Pan,

Abnormality of Drain Pipe, Float Switch or Drain Pan)

02

Outdoor Unit

Activation of Protection Device (High Pressure Cut)

Activation of PSH (Pipe Clogging, Excessive Refrigerant! lnert Gas Mixing)

03

Transmission

Abnormality between lndoor and Outdoor

incorrect Wiring, Loose Terminals, Disconnect Wire, Blowout of Fuse, Outdoor Unit Power OFF

04

Abnormality between lnverter PCB and Outdoor PCB

lnverter PCB - Outdoor PCB Transmission Failure (Loose Connector, Wire Breaking, Blowout of Fuse)

04.

Abnormality between Fan Controller and Outdoor PCB

Fan Controller - Outdoor PCB Transmission Failure (Loose Connector, Wire Breaking, Blowout of Fuse)

05

Supply Phase

Abnormality Power Source Phases

lncorrect Power Source, Connection to Reversed Phase, Open-Phase

06

Voltage

Abnormal lnverter Voltage

Outdoor Voltage Drop, insufficient Power Capacity

06.

Abnormal Fan Controller Voltage

Outdoor Voltage Drop, lnsufficient Power Capacity

07

Cycle

Decrease in Discharge Gas Superheat

Excessive Refrigerant! Charge, Failure of Thermistor, lncorrect Wiring, lncorrect Piping Connection, Expansion Valve Locking at Opened Position (Disconnect Connector)

08

lncrease in Discharge Gas Temperature

lnsufficient Refrigerant! Charge, Pipe Clogging, Failure of Thermistor, lncorrect Wiring, lncorrect Piping Connection, Expansion Valve Locking at Closed Position (Disconnect Connector)

0A

Transmission

Abnormality between Outdoor and Outdoor

lncorrect Wiring, Breaking Wire, Loose Terminals

0b

Outdoor Unit

lncorrect Outdoor Unit Address Setting

Duplication of Address Setting for Outdoor Units (Sub Units) in Same Refrigerant! Cycle System

0c

lncorrect Outdoor Unit Main Unit

Two (or more) Outdoor Units Set

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

25 / 30

Setting

as "Main Unit" Exist in Same Refrigerant! Cycle System

11

Sensoron lndoor Unit

lnlet Air Thermistor

lncorrect Wiring, Disconnecting Wiring Breaking Wire, Short Circuit

12

Outlet Air Thermistor

13

Freeze Protection Thermistor

14

Gas Piping Thermistor

19

Fan Motor

Activation of Protection Device for lndoor Fan

Fan Motor Overheat, Locking

21

Sensor on Outdoor Unit

High Pressure Sensor

lncorrect Wiring, Disconnecting Wiring Breaking Wire, Short Circuit

22

Outdoor Air Thermistor

23

Discharge Gas Thermistor on Top of Compressor

24

Heat Exchanger Liquid Pipe Thermistor

25

Heat Exchanger Gas Pipe Thermistor

29

Low Pressure Sensor

31

System

lncorrect Capacity Setting of Outdoor

Unit and lndoor Unit

lncorrect Capacity Code Setting of Combination

Excessive or lnsufficient lndoor Unit Total

Capacity Code

35

lncorrect Setting of lndoor Unit No.

Duplication of lndoor Unit No. in same Ref. Gr.

36

lncorrect of lndoor Unit Combination

lndoor Unit is Designed for R22

38

Abnormality of Picking up Circuit for

Protection in Outdoor Unit

Failure of Protection Detecting Device

(lncorrect Wiring of Outdoor PCB)

39 Compressor

Abnormality Running Current at

Constant! Speed Compressor

Overcurrent, Blowout Fuse, Current Sensor

Failure, instantaneous Power Failure, Voltage

Drop, Abnormal Power Supply

3A

Outdoor Unit

Abnormality of Outdoor Unit Capacity

Outdoor Unit Capacity > 510kBtu/h

3b

lncorrect Setting of Outdoor Unit

Models Combination or Voltage

lncorrect Setting of Main and Sub Unit(s)

Combination or Voltage

3d

Abnormality Transmission between

Main Unit and Sub Unit(s)

lncorrect Wiring, Disconnect Wire, Breaking

Wire, PCB Failure

43

Protection

Device

Activation of Low Compression Ratio

Protection Device

Defective Compression (Failure of Compressor

of lnverter, Loose Power Supply Connection)

44

Activation of Low Pressure lncrease

Protection Device

Overload at Cooling, High Temperature at

Heating, Expansion Valve Locking (Loose

Connector)

45

Activation of High Pressure lncrease

Protection Device

Overload Operation (Clogging, Short-Pass), Pipe

Clogging, Excessive Refrigerant!, lnert Gas

Mixing

47

Activation of Low Pressure Decrease

Protection Device (Vacuum Operation

Protection)

lnsuffcient Refrigerant!, Refrigerant! Piping,

Clogging, Expansion Valve Locking at Open

Position (Loose Connector)

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

26 / 30

48

Activation of lnverter Overcurrent

Protection Device

Overload Operation, Compressor Failure

51

Sensor

Abnormal lnverter Current! Sensor

Current! Sensor Failure

53

lnverter

lnverter Error Signal Detection

Driver IC Error Signal Detection (Protection for

Overcurrent, Low Voltage, Short Circuit)

54

Abnormality of lnverter Fin

Temperature

Abnormal lnverter Fin Thermistor,

Heat Exchanger Clogging, Fan Motor Failure

55

lnverter Failure

lnverter PCB Failure

57

Fan Controller

Activation of Fan Controller Protection

Driver IC Error Signal Detection (Protection for

Overcurrent, Low Voltage, Short Circuit),

lnstantaneous Overcurrent

5A

Abnormality of Fan Controller Fin

Temperature

Fin Thermistor Failure, Heat Exchanger

Clogging, Fan Motor Failure

5b

Activation of Overcurrent Protection

Fan Motor Failure

5C Abnormality of Fan Controller Sensor

Failure of Current! Sensor (lnstantaneous

Overcurrent,

lncrease of Fin Temperature, Low Voltage, Earth

Fault, Step-Out)

EE Compressor

Compressor Protection Alarm

(lt is cannot be reset from remote

Controller)

This alarm code appears when the following

alarms• occurs three times within 6 hours.

*02, 07, 08, 39, 43 to 45, 47

b1

Outdoor Unit

No. Setting

lncorrect Setting of Unit and

Refrigerant! Cycle No.

Over 64 Number is Set for Address or

Refrigerant! Cycle.

b5

lndoor Unit

No. Setting

lncorrect lndoor Unit Connection

Number Setting

More than 17 Non-Corresponding to Hi-NET

Units are Connected to One System.

C1

Switch Box

Unit

lncorrect lndoor Unit Connection

2 or more Switch Box Units are connected

between outdoor unit and indoor unit.

C2

lncorrect lndoor Unit Connection No.

Setting

9 or More lndoor Units Connected to Switch Box

Unit

C3 lncorrect lndoor Unit Connection

The indoor units of different refrigerant! cycle is

connected to Switch Box unit.

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

27 / 30

9 Appendix A – Communication Objects Table

TOPIC

NAME

LEN

DATAPOINT TYPE

FLAGS

FUNCTION

DPT_NAME

DPT_ID

R W T

U

GLOBAL

SIGNALS

ON/OFF

On/Off (all units)

1 bit

DPT_Switch

1.001

W 0-Off, 1-On

OP MODE

Operating Mode (all units)

1 byte

DPT_HVACContrMode

20.105

W 0-Auto, 1-Heat, 3-Cool, 9-Fan, 14-Dry

Operating Mode (all units)

1 byte

Non-standarized

5.x W

0-Auto, 1-Heat, 2-Dry, 3-Fan, 4-Cool

FAN SPEED

Fan Speed (all units)

1 byte

Non-standarized

5.x W

1-Low, 2-Mid, 3-High, 4-High+

Fan Speed AUTO (all units)

1 bit

DPT_Switch

1.001

W 1-Set auto fan; 0-Stop auto fan

VANE POSITION

Vane position (all units)

1 byte

Non-standarized

5.x W

1-Position 1...7-Position 7

Vane position AUTO (all units)

1 bit

DPT_Switch

1.001

W 1-Set auto vane; 0-Stop auto vane

SETP TEMP

Temperature Setpoint (ºC) (all units)

2 byte

DPT_Value_Temp

9.001

W Cool:19..30 ºC; Heat:17..30 ºC

OUTDOOR

UNIT

SIGNALS

COMM ERROR

Status_Communication Error OU

1 bit

DPT_Alarm

1.005 R T

0-No error, 1-Error

TEMPERATURES

Status_Outdoor Air Temperature (ºC)

2 byte

DPT_Value_Temp

9.001 R T

-50..99 ºC

Status_Compresor Top Temperature (ºC)

2 byte

DPT_Value_Temp

9.001 R T

0..200 ºC

COMPRESOR

Status_Total Real Compresor Freq.

4 byte

DPT_Value_Frequency

14.033

R T 0..255 Hz

Status_Total Compresor Current

4 byte

DPT_Value_Electric_Current

14.019

R T 0..255 A

VALVE

Status_Out Exp. Valve 1 Open

1 byte

DPT_Scaling

5.001 R T

0..100 %

PRESSURE

Status_Discharge Pressure

4 byte

DPT_Value_Pressure

14.058

R T -5.0..9.9 Mpa

Status_Suction Pressure

4 byte

DPT_Value_Pressure

14.058

R T -5.0..9.9 Mpa

ON / OFF

Control _On/Off

1 bit

DPT_Switch

1.001

W 0-Off,1-On

Status _On/Off

1 bit

DPT_Switch

1.001 R T

0-Off,1-On

OP MODE

Control _Operation mode

1 byte

DPT_HVACContrMode

20.105

W 0-Auto, 1-Heat, 3-Cool, 9-Fan, 14-Dry

Status _Operation mode

1 byte

DPT_HVACContrMode

20.105

R T 0-Auto, 1-Heat, 3-Cool, 9-Fan, 14-Dry

Control _Operation mode

1 byte

Non-standarized

5.x W

0-Auto, 1-Heat, 2-Dry, 3-Fan, 4-Cool

Status _Operation mode

1 byte

Non-standarized

5.x R T

0-Auto, 1-Heat, 2-Dry, 3-Fan, 4-Cool

Control _Mode Cool/Heat

1 bit

DPT_Heat/Cool

1.100

W 0-Cool, 1-Heat

Status _Mode Cool/Heat

1 bit

DPT_Heat/Cool

1.100 R T

0-Cool, 1-Heat

Control _Heat mode&ON

1 byte

DPT_Scaling

5.001

W 0%-Off, 1%-100%-On+Heat

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

28 / 30

INDOOR UNIT

SIGNALS

Control _Cool mode&ON

1 byte

DPT_Scaling

5.001

W 0%-Off, 1%-100%-On+Cool

Control _Auto mode

1 bit

DPT_Switch

1.001

W 1-Set auto mode

Status _Auto mode

1 bit

DPT_Switch

1.001 R T

1-Auto mode active, 0-Auto mode not active

Control _Heat mode

1 bit

DPT_Switch

1.001

W 1-Set heat mode

Status _Heat mode

1 bit

DPT_Switch

1.001 R T

1-Heat mode active, 0-Heat mode not active

Control _Cool mode

1 bit

DPT_Switch

1.001

W 1-Set cool mode

Status _Cool mode

1 bit

DPT_Switch

1.001 R T

1-Cool mode active, 0-Cool mode not active

Control _Fan mode

1 bit

DPT_Switch

1.001

W 1-Set fan mode

Status _Fan mode

1 bit

DPT_Switch

1.001 R T

1-Fan mode active, 0-Fan mode not active

Control _Dry mode

1 bit

DPT_Switch

1.001

W 1-Set dry mode

Status _Dry mode

1 bit

DPT_Switch

1.001 R T

1-Dry mode active, 0-Dry mode not active

Control_Fan speed enumerated

1 byte

Non-standarized

5.x W

1-Low, 2-Mid, 3-High, 4-High+

FAN SPEED

Status _Fan speed enumerated

1 byte

Non-standarized

5.x R T

1-Low, 2-Mid, 3-High, 4-High+

Control _Fan speed scaling

1 byte

DPT_Scaling

5.001

W

Thersholds (0%..37%; 38%..62%; 63%..87%;

Status _Fan speed scaling

1 byte

DPT_Scaling

5.001 R T

Thersholds (25%; 50%; 75%; 100%)

Control_ Fan speed low

1 bit

DPT_Switch

1.001

W 1-Set fan speed low

Status_Fan speed low

1 bit

DPT_Switch

1.001 R T

1-Speed low active, 0-Speed low not active

Control_Fan speed mid

1 bit

DPT_Switch

1.001

W 1-Set fan speed mid

Status_Fan speed mid

1 bit

DPT_Switch

1.001 R T

1-Speed mid active, 0-Speed mid not active

Control_Fan speed high

1 bit

DPT_Switch

1.001

W 1-Set fan speed high

Status_Fan speed high

1 bit

DPT_Switch

1.001 R T

1-Speed high active, 0-Speed high not active

Control_Fan speed high+

1 bit

DPT_Switch

1.001

W 1-Set fan speed high+

Status_Fan speed high+

1 bit

DPT_Switch

1.001 R T

1-Speed high+ active, 0-Speed high+ not active

Control_Fan speed Man/Auto

1 bit

DPT_Switch

1.001

W 0-Manual; 1-Auto

Status_Fan speed Man/Auto

1 bit

DPT_Switch

1.001 R T

0-Manual; 1-Auto

VANE POS

Control_Vane position enumerated

1 byte

Non-standarized

5.x W

1-Position 1..7-Position 7

Status_Vane position enumerated

1 byte

Non-standarized

5.x R T

1-Position 1..7-Position 7

Control_Vane position scaling

1 byte

DPT_Scaling

5.001

W

Thersholds(0..21%;22..36%;37..50%;51..64%;65..79%;8

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

29 / 30

INDOOR UNIT

SIGNALS

Status_Vane position scaling

1 byte

DPT_Scaling

5.001 R T

Thersholds(0..14%;15..29%;30..43%;44..57%;58..71%;7

Control_Vane position auto

1 bit

DPT_Switch

1.001 R T

1-Set auto vane, 0-Stop auto vane

Status_Vane position auto

1 bit

DPT_Switch

1.001

W 1-Vane auto active, 0-Vane auto not active

Control_Vane position position-1

1 bit

DPT_Switch

1.001 R T

1-Set position-1 vane

Status_Vane position position-1

1 bit

DPT_Switch

1.001

W 1-Vane position-1 active, 0-Vane position-1 not active

Control_Vane position position-2

1 bit

DPT_Switch

1.001 R T

1-Set position-2 vane

Status_Vane position position-2

1 bit

DPT_Switch

1.001

W 1-Vane position-2 active, 0-Vane position-2 not active

Control_Vane position position-3

1 bit

DPT_Switch

1.001 R T

1-Set position-3 vane

Status_Vane position position-3

1 bit

DPT_Switch

1.001

W 1-Vane position-3 active, 0-Vane position-3 not active

Control_Vane position position-4

1 bit

DPT_Switch

1.001 R T

1-Set position-4 vane

Status_Vane position position-4

1 bit

DPT_Switch

1.001

W 1-Vane position-4 active, 0-Vane position-4 not active

Control_Vane position position-5

1 bit

DPT_Switch

1.001 R T

1-Set position-5 vane

Status_Vane position position-5

1 bit

DPT_Switch

1.001

W 1-Vane position-5 active, 0-Vane position-5 not active

Control_Vane position position-6

1 bit

DPT_Switch

1.001 R T

1-Set position-6 vane

Status_Vane position position-6

1 bit

DPT_Switch

1.001

W 1-Vane position-6 active, 0-Vane position-6 not active

Control_Vane position position-7

1 bit

DPT_Switch

1.001 R T

1-Set position-7 vane

Status_Vane position position-7

1 bit

DPT_Switch

1.001

W 1-Vane position-7 active, 0-Vane position-7 not active

TEMPERATURES

Control_Temperature Setpoint (ºC)

2 byte

DPT_Value_Temp

9.001

W Cool:19..30 ºC; Heat:17..30 ºC

Status_Temperature Setpoint (ºC)

2 byte

DPT_Value_Temp

9.001 R T

Cool:19..30 ºC; Heat:17..30 ºC

Status_AC Ambient Temperature (ºC)

2 byte

DPT_Value_Temp

9.001 R T

-63..63 ºC

Status_Remote Sensor Temperature (ºC)

2 byte

DPT_Value_Temp

9.001 R T

-63..63 ºC

Control_KNX ambient Temperature (ºC)

2 byte

DPT_Value_Temp

9.001

W ºC

Status_Outlet Temperature (ºC)

2 byte

DPT_Value_Temp

9.001

W -63..63 ºC

Status_GasPipe Temperature (ºC)

2 byte

DPT_Value_Temp

9.001 R T

-63..63 ºC

Status_LiquidPipe Temperature (ºC)

2 byte

DPT_Value_Temp

9.001

W -63..63 ºC

ERROR CODE

Status_Unit error

1 bit

1.005-DPT_Alarm

1.005 R T

0-No error, 1-Error

Status_Unit error code

2 byte

Non-standarized

8.x R T

0-No Error, X-Error (100..999)

FILTER

Status_FilterSign

1 bit

DPT_Alarm

1.005 R T

0-Normal, 1-Alarm

IntesisTM KNX – HISENSE VRF User Manual r1.1 EN

This information is subject to change without notice

URL https://www.intesis.com

30 / 30

INDOOR UNIT

SIGNALS

Control _FilterReset

1 bit

DPT_Reset

1.015

W 0-No reset, 1-Reset

COMM STATUS

Status_Communication status

1 bit

DPT_Switch

1.001 R T

0-Not exist, 1-Exist

REMOC.

Control_On/Off Remote controll disablement

1 bit

DPT_Bool

1.002

W 0-No disabled, 1-Disabled

Status_On/Off Remote controll disablement

1 bit

DPT_Bool

1.002 R T

0-No disabled, 1-Disabled

Control_Mode Remote controll disablement

1 bit

DPT_Bool

1.002

W 0-No disabled, 1-Disabled

Status_Mode Remote controll disablement

1 bit

DPT_Bool

1.002 R T

0-No disabled, 1-Disabled

Control_Setpoint Remote controll disablement

1 bit

DPT_Bool

1.002

W 0-No disabled, 1-Disabled

Status_Setpoint Remote controll disablement

1 bit

DPT_Bool

1.002 R T

0-No disabled, 1-Disabled

Control_Fan Remote controll disablement

1 bit

DPT_Bool

1.002

W 0-No disabled, 1-Disabled

Status_Fan Remote controll disablement

1 bit

DPT_Bool

1.002 R T

0-No disabled, 1-Disabled

SYSTEM INFO

Status_Unit type

1 byte

DPT_Value_1_Ucount

5.010 R T

1-SS, 2-FC, 3-VRF, 4-IU, 5-ES, 13-Not Defined

Status_Unit adress

1 byte

DPT_Value_1_Ucount

5.010 R T

1..64

Status_System adress

1 byte

DPT_Value_1_Ucount

5.010 R T

1..64

DEHUMIDIFICATION

Status_Dehumidification

1 bit

DPT_Switch

1.001 R T

0-Off,1-On

Control_Dehumidification correction

1 byte

DPT_Value_1_Ucount

5.010

W 0..2

Status_Dehumidification correction

1 byte

DPT_Value_1_Ucount

5.010 R T

0..2

OTHERS

Status_Compresor stop cause

2 byte

Non-standarized

8.x R T

X-Cause (0-254), 255-Operation Off

Status_Expansion valve open

1 byte

DPT_Scaling

5.001 R T

0..100 %

Status_Operation condition

1 byte

Non-standarized

5.x R T

0-Off, 1-Thermo Off, 2-Thermo On, 3-Alarm

Status_RC SW Temperature (ºC)

2 byte

DPT_Value_Temp

9.001 R T

-63..63 ºC

Status_RC SW Configuration

1 bit

DPT_Switch

1.001 R T

0-Without RCS, 1-With RCS

Intesis Hisense VRF Air Conditioning User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
