Intertek TASMAN EP & HP, TASMAN EP, TASMAN HP Installation And Operating Instructions Manual

TASMAN EP & HP

Natural Gas & Propane

Zero Clearance Direct Vent Gas Fireplace

Installation and Operating Instructions

Optional Screen Door shown

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

For your safety

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

What to do if you smell gas

 Do not try to light any appliance.  Do not touch any electrical switch; do not use any phone in your building.  Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instruction s.  If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

Please read this manual before installing or using this appliance. Retain this manual for future reference.

See inside manual (page 59) for upgrade information

Page 1 of 80

Table of Contents

1.0 INTRODUCTION.....................................................................................................................

1.1 Specifications, Appliance Dimensions & Installation Codes................................3 & 4

1.2 Features .....................................................................................................................5

1.3 Intended Use..............................................................................................................5

1.4 General Safety............................................................................................................6

2.0 OPERATION...........................................................................................................................

2.1 Lighting Instructions ............................................................................................ 7 & 8

2.2 Heat Output Adjustment ............................................................................................9

2.3 Fan Operation ............................................................................................................9

3.0 INSTALLATION .....................................................................................................................

3.1 Installation & Safety Notes ......................................................................................10

3.2 Unpacking ...............................................................................................................10

3.3 Installation ...............................................................................................................10

3.3.1 Minimum Clearances ....................................................................................... 10 - 12

3.3.2 Gas Line Installation ................................................................................................13

3.3.3 Thermostat or Wall Switch & Wiring Connections ........................................... 13 & 14

3.3.4 Direct Vent Information .............................................................................. …...15 - 36

3.3.5 Firebox Component Installation........................................................................ 37 - 47

3.3.6 Door Installation .............................................................................................. 48 & 49

3.3.7 Initial Firing & Manifold Pressure..............................................................................50

3.3.8 Primary Air Adjustment ............................................................................................51

3.3.9 Altitude Adjustment ..................................................................................................52

3.3.10 Field Assembled Parts ....................................................................................53 – 58

4.0 MAINTENANCE .....................................................................................................................

4.1 Maintenance Safety .................................................................................................59

4.2 Recommended Service ...........................................................................................59

4.3 Glass Cleaning ........................................................................................................59

4.4 Burner & Pilot Cleaning ...........................................................................................60

4.5 Optional Fan Installation ..........................................................................................60

4.6 Valve & Pilot Replacement .....................................................................................60

5.0 TROUBLE SHOOTING ……………………………………………………………………. 61 & 62

6.0 REPLACEMENT PARTS …………………………………………………………………. 63 & 64

7.0 WARRANTY …………………….…………………………………………………………. 65 & 66

8.0 LABEL INFORMATION (E-UNIT)………………………………………………………… 67 & 68 APPENDIX A (H-UNIT UPGRADE)…….…………………………………………………………. 69 – 74 APPENDIX B (CONVERSION KIT) …….………………………………………………………….75 – 77 APPENDIX C (INTERMITTENT PILOT & VALVE KIT)…………………………………………..78 - 80

Inca Metal Cutting Unit 100 Sales and office #115 shipping 11091 Bridgeport Rd Richmond BC V6X-1T3

Page 2 of 80

1.0 INTRODUCTION

1.1 SPECIFICATIONS

TABLE 1

ITEM NATURAL GAS (NG) PROPANE (LPG)

INPUT: Hi 18,000 Btu/hr (5.27 kW) 15,000 Btu/hr (4.39 kW)

INPUT: Lo 12,500 Btu/hr (3.66 kW) 12,500 Btu/hr (3.66 kW)

MANIFOLD PRESSURE: Hi 3.5” w.c. (0.87 kPa) 10” w.c. (2.49 kPa)

MANIFOLD PRESSURE: Lo 1.7” w.c. (0.42 kPa) 6.4” w.c. (1.57 kPa)

GAS INLET SUPPLY

PRESSURE:

Maximum: 13.5” w.c. (3.4 kPa) Maximum: 14” w.c. (3.49 kPa)

ORIFICE SIZE: @ 0-4500’ # 48 DMS # 57 DMS

CONTROL VALVE TYPE: Honeywell , SIT 820 Nova,

VENTING 2-ply aluminum vent,

FAN * Optional * Variable Speed (120 Volt) Variable Speed (120 Volt)

Minimum: 5.0” w.c. (1.2 kPa) Minimum: 12” w.c. (2.99 kPa)

Honeywell , SIT 820 Nova,

Robertshaw-Grayson or

Skytech AF-4000

Simpson Dura-Vent, Selkirk or

Security

Robertshaw-Grayson or

Skytech AF-4000

2-ply aluminum vent,

Simpson Dura-Vent, Selkirk or

Security

Page 3 of 80

APPLIANCE DIMENSIONS

Figure 1

INSTALLATION CODES

Installation must conform to local codes. In the absence of local codes, installation must conform to the National Fuel Gas Code, ANSI Z233.1, or the current CAN/ CGA B149.1 Installation Codes. The unit, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electric Code ANSI/NFPA No. 70 or with the current CSA C22.1 Canadian Electrical Code. In the state of Massachusetts, this product can only be installed by a licensed plumber or a licensed gas fitter. Failure to comply will void the warranty.

Page 4 of 80

1.2 FEATURES

Ignition system: Standing pilot ignition system with thermopile and thermocouple flame detection and piezo igniter.

Gas control: Gas control valve type: Automatic millivolt powered combination gas control valve with variable flame control for

convenience and on/off switch. Optional digital remote on/off wall switch and/or optional wall thermostat (note: thermostats are not allowed in the United States). The gas valve does not require electricity from an external source.

Fan control * Optional * Variable speed control: For units equipped with a fan control, the knob controls the fan speed, turning the knob

counter-clockwise turns it to the “Off” position.

1.3 INTENDED USE

This appliance is intended to be used as a zero clearance fireplace. This unit is certified for installation in a bedroom or a bed sitting room where the maximum input is within 50 cubic feet per 1000 Btu/hr, (i.e. 900 cubic feet for E unit & 1600 cubic feet for H unit). In Canada all bedroom installations require the use of wall thermostats (note: thermostats are not allowed in the United States).

Page 5 of 80

1.4 GENERAL SAFETY

 Maintain adequate clearances around air openings into the combustion chamber.  Maintain adequate accessibility clearances for servicing and proper operation.  This appliance shall not be connected to chimney flue serving a separate solid-fuel burning

appliance.

 The appliance area must be kept clear and free from combustible materials, gasoline and other

flammable liquids and vapors.

 The flow of combustion and ventilation air shall not be obstructed.  The combustion air supply shall be in the same pressure zone as the drafthood relief opening

on an appliance equipped with a drafthood or as the vent outlet on an appliance not equipped with a drafthood.

 Do not use this appliance if any part has been under water. Immediately call a qualified

service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies. Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the same room as the appliance. Clothing or other flammable material should not be placed on or near the appliance. Any safety screen or guard removed for servicing an appliance must be replaced prior to operating the appliance. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative that control compartments, burners and circulating air passageways of the appliance be kept clean.

Page 6 of 80

2.0 OPERATION

2.1 LIGHTING INSTRUCTIONS

FOR YOUR SAFETY, READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result

causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly. B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will

settle on the floor.

WHAT TO DO IF YOU SMELL GAS

 Do not try to light any appliance.  Do not touch any electric switch; do not use any phone in your building.  Immediately call your gas supplier from a neighbour’s phone. Follow the gas supplier’s instructions.  If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a

qualified service technician. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace

any part of the control system and any gas control which has been under water.

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information above on this label.

2. Set the thermostat to the lowest setting.

3. Turn off all electric power to the appliance.

4. Controls are accessed by opening the bottom louver.

5. Push in gas control knob slightly and turn clockwise to  “OFF”.

6. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information above on this label. If you don’t smell gas, go to the next step.

7. Turn control knob counterclockwise pilot position.

8. Depress control knob and push in piezo igniter button. Once pilot ignites continue to hold the control knob in for one (1) minute after the pilot is lit. Release knob and it will pop back up. Pilot should remain lit. If it goes out, repeat steps 4 – 7.

 If knob does not pop up when released, stop and immediately call your service technician or gas supplier.  If the pilot will not stay lit after several attempts, turn the gas control knob to “OFF” and call your service technician or gas supplier.

9. Turn gas control knob counterclockwise  to “ON”. Turn on all electric power to the appliance. Set thermostat to desired setting or turn appliance switch to “ON” position then close bottom louver.

TO TURN GAS OFF TO APPLIANCE

1.Set thermostat to lowest setting.

2.Turn off all electric power to the appliance if service is to be performed.

3.Push in gas control knob slightly and turn clockwise  to “OFF”, do not force.

Note: The valve is equipped with a safety lockout, once in the “ OF F” posi tion you must wait until the thermopile has cooled before attempting to light the pilot (approximately 3 minutes).

Page 7 of 80

LIGHTING INSTRUCTIONS - for Intermittent Pilot

FOR YOUR SAFETY, READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property

damage, personal injury or loss of life.

A. This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand.

B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will

settle on the floor.

WHAT TO DO IF YOU SMELL GAS

C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a

qualified service technician. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace

any part of the control system and any gas control which has been under water.

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information above on this label.

2. Set the thermostat to the lowest setting.

3. Turn off all electric power to the appliance.

4. "ON / OFF" switch is accessed by opening the bottom louver.

5. Do not attempt to light the pilot by hand.

7. Turn on all electric power to the appliance.

8. Set thermostat to desired setting (or switch to "ON" if not using a thermostat).

9. Close bottom louver.

10. If the appliance will not operate, follow the instructions "To Turn Off Gas To Appliance" and call your service technician or gas supplier.

TO TURN GAS OFF TO APPLIANCE

1.Set thermostat to lowest setting.

2.Turn on/off switch to off.

1. Pressure Taps

2. Main Valve Connection

3. Pilot Internal Solenoid Connection

4. Outlet Ports

5. Mounting Holes

7. Flow Control Screw

8. Pilot Connections

9. High/Low Connection

10. Inlet Ports

Page 8 of 80

2.2 HEAT OUTPUT ADJUSTMENT

The valve supplied with the appliance has a HI/LO knob to control the heat output and flame height (see valve diagram in Lighting Instructions, section 2.1).

2.3 FAN OPERATION

For units equipped with a fan control knob, the knob is located in the valve control compartment and may be adjusted to the following settings:

OFF: Turn the control fully counter-clockwise until the switch operates. Variable Speed Setting:

Turn the control to the desired setting. When the knob is turned fully clockwise the fan will set to

minimum speed.

Warning

Electrical Grounding Instructions This appliance is equipped with a three prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three prong receptacle. Do not cut or remove the grounding prong from this plug.

Figure 2

Page 9 of 80

3.0 INSTALLATION

3.1 INSTALLATION & SAFETY NOTES

Read all instructions before starting installation and follow them carefully during installation to ensure maximum benefit and safety. Failure to follow these instructions will void your warranty and may present a fire hazard. See the warranty at the back of this manual for disclaimers regarding improper installation. This direct vent fireplace and it’s components are tested and safe when installed in accordance with this installation manual.

WARNING: Do not connect 120 VAC to the gas control valve or it’s wiring, as this will damage the valve.

3.2 UNPACKING

Please check the appliance carefully for any damaged or missing components (specifically check the glass condition). Report any problems to your dealer within 30 days of purchase.

3.3 INSTALLATION

For satisfactory results it is necessary to plan certain aspects of the installation prior to the appliance’s final positioning. These include the vent system, the gas piping, and the fans wiring. Combustible surfaces such as the hearth, mantle, and facing must also be planned for. Be sure to leave adequate clearance for servicing and proper operation.

NOTE: All Installations Require Venting.

3.3.1 MINIMUM CLEARANCES Corner Installation

Page 10 of 80

3.3.1 MINIMUM CLEARANCES (continued)

Figure 3

Page 11 of 80

3.3.1 MINIMUM CLEARANCES (continued)

Mantle Height

Mantle Depth (X)

from Floor (Y)

40" 10" 39" 9" 38" 8" 37" 7" 36" 6" 34" 5" 33" 4"

Minimum Clearances to Combustibles

A – Internal Ceiling 48” (1219 mm) from floor B– Back & Sidewalls 0" (0 mm) with 1” (25 mm) Standoffs installed Mantle (see chart) D --Internal Framing 34-7/8” (886 mm) from floor to bottom edge of framing E --Unit Trim to sidewall 6” (152 mm) F - Floor 0” (0 mm)

Note: Check local codes for floor requirements. This fireplace is suitable for installation on a combustible surface. “Clearances are in accordance with local installation codes and the requirements of the gas supplier.” **The mantel placement chart on the previous page illustrates the allowable mantel sizes and placements. The 1” incremental grid can be used to determine the allowable mantel size based on the elevation above the units upper trim.

When using paint or lacquer to finish the mantel, such paint or lacquer must be heat resistant (up to 250º F) to prevent discolorations.

Page 12 of 80

3.3.2 GAS LINE INSTALLATION

 Install supply line using any piping approved for your installation meeting CAN/CGA 6.10, AA 3,

ANSI Z21.24 or Z21.45. A qualified gas fitter should install the gas line in accordance with all local building codes. If codes permit, coiled copper tubing may be used for gas supply.

 Pressure taps are provided on the gas control fo r test gauge connections to measure the manifold

and inlet pressures (see Lighting Instructions).

 This appliance must be isolated from the gas supply piping system by closing its individual manual

shut off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.45 kPa).

 The appliance and its individual shut off valve must be disconnected from the gas supply piping

system during any pressure testing of the system at test pressures in excess of 1/2 psig (3.45

kPa).  Install the gas line as follows: The appliance shall be installed with a manual shut off ball valve and additional pressure

regulator to bring line pressure down to 14” w.c..

Upon initial firing check manifold pressure at pressure tap located on the front control panel (see Lighting Instructions in section 2.1).

WARNING: Do not use an open flame to test for gas leaks.

3.3.3 THERMOSTAT, WALL SWITCH OR DIGITAL ON/OFF REMOTE INSTALLATION

The burner control knob is located in the control compartment at the bottom of the unit. For your convenience, the unit can also be operated by a thermostat, a digital on/off remote or a wall switch control. Millivolt thermostats are available from any authorized Inca Metal Cutting dealer. Bedroom installations require the use of a wall thermostat. Note: Thermostats are not allowed in the United States.

NOTE: The thermostat, digital on/off remote or wall switch MUST be rated for millivolt use. Minimize splicing in all millivolt wiring & crimp all unavoidable splices.

Thermostat, Digital On/Off Remote or Wall Switch Installation

Mount the thermostat, digital on/off remote or wall switch in the desired location and run “two conductor thermostat wire” to the unit’s lower right hand corner, close to the gas supply line.

1. Purchase “two conductor thermostat wire”, which is not provided, at any local supplier. The

gauge of thermostat wire will determine the maximum wire length and distance at which to locate the thermostat, digital on/off remote or wall switch. See Table 1 and the information packaged with thermostat. Be aware that as the length of wire increases, the probability of adequate operating voltage decreases.

Page 13 of 80

TABLE 1 THERMOSTAT WIRE INFORMATION

WIRE SIZE MAX. WIRE LENGTH

AWG mm ft. m

22 0.6 10 3.0 20 0.8 25 7.6 18 1.0 40 12.2 16 1.3 64 19.5 14 1.6 100 30.5

2) After the unit is installed and the gas line hooked up, crimp a fork connector to each wire and

attach them to the TH/TP and TH screws located on the valve.

3) Check tests can be performed on the valve by using the trouble-shooting guide, Section 5.0.

4) This switch may be connected in parallel with a thermostat, digital on/off remote or wall switch

(see Figure 4).

Figure 4

Page 14 of 80

3.3.4 Direct Vent Information

The unit must be connected to listed 2-ply aluminium venting, 4” flex vent on the exhaust side and listed 7” flex vent on the air intake side or can be used with Security Venting or Simpson Dura-Vent 4” x 6-5/8” with the use of Simpson Dura-Vent adapters part #’s 0924N3 & P574. Install the vent components according to the manufacturer's instructions being sure to use spacers (see Figure 5) every 5’ to ensure correct spacing is maintained between air intake and exhaust. Slope horizontal pipe at least 1/4" (6 mm) rise per foot of horizontal run. Allow 1" (25 mm) clearance to the vent. Refer to the graph for allowable vent configurations. Be sure to ensure that termination area allows enough room for adequate combustion and ventilation air and that the flow of combustion and ventilation air is not obstructed.

Note: If at any time the vent-air intake piping is dismantled, use the vent manufacturer’s

instructions and the sealing instructions for reassembly.

Figure 5

Page 15 of 80

3.3.4 Direct Vent Information (continued) Simpson Dura-Vent

The minimum vent system for horizontal termination must consist of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit 90 degree elbow 12" (305 mm) length horizontally Wall thimble part #IMC1082A Horizontal termination cap 0984

The maximum horizontal vent system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit 40' (12192 mm) vertical length directly on top of the stove 90 degree elbow 15' (4572 mm) maximum horizontal length

Wall thimble part# IMC1082A Horizontal termination cap 0984 The maximum vertical system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit Up to 40' (12192 mm) of vertical length Fire stop Flashing Collar Termination cap part # 0991

Security Venting

The minimum vent system for horizontal termination must consist of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit

90 degree elbow

12" (305 mm) length horizontally

Wall thimble part #IMC1082A

Horizontal termination cap SV4CHC

The maximum horizontal vent system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit 40' (12192 mm) vertical length directly on top of the stove 90 degree elbow 15' (4572 mm) maximum horizontal length

Wall thimble part# IMC1082A Horizontal termination cap SV4CHC The maximum vertical system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit Up to 40' (12192 mm) of vertical length Fire stop Flashing Collar Termination cap part # SV4CGV

Page 16 of 80

3.3.4 Top Vent - Direct Vent Information (continued) Selkrik Direct-Temp Venting

The minimum vent system for horizontal termination must consist of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit

90 degree elbow

12" (305 mm) length horizontally

Wall thimble part #IMC1082A

Horizontal termination cap 4DT-HC

The maximum horizontal vent system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit 40' (12192 mm) vertical length directly on top of the stove 90 degree elbow 15' (4572 mm) maximum horizontal length

Wall thimble part# IMC1082A Horizontal termination cap 4DT-HC The maximum vertical system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit Up to 40' (12192 mm) of vertical length Fire stop Flashing Collar Termination cap part # 4DT-VC

Use a ceiling fire stop when penetrating a ceiling or floor. Use a wall thimble when penetrating an inside wall or outside wall. Vent terminals shall not be recessed into a wall or siding.

Do not exceed more than 15' (4572 mm) of horizontal length of vent.

Page 17 of 80

3.3.4 Direct Vent Information (continued) 2-Ply Aluminum Flex Vent

The minimum vent system for horizontal termination must consist of:

10” (254 mm) vertical length (measured to center of vent pipe) with a 90 degree bend and a

10” (254 mm) horizontal length (measured from center of vent pipe)

Wall thimble part# IMC1082A Horizontal termination cap part # IMC1070A or IMC1070B

The maximum horizontal vent system consists of:

40’ (12192 mm) vertical length with a 90 degree bend and a 15’ (4572 mm) horizontal length

(measured to center of vent pipe) Wall thimble part# IMC1082A

Horizontal termination cap part # IMC1070A or IMC1070B Note: Horizontal venting shall be supported, by means of a steel strap, every 3’.

The maximum vertical system consists of:

Up to 40' (12192 mm) of vertical length Fire stop Flashing Collar Adapter from flex to Simpson Dura-Vent part #P574 Termination cap part # 0991

A maximum of 4 – 90 degree bends can be used on the vertical installation with the flex vent. The maximum height for this vent configuration is 30’ (9144 mm) and the minimum height is 16’ (4877 mm), the maximum horizontal run is a total of 15’.

When fastening the flex vent to the termination and to the unit use a minimum of 3 # 8 x ½” hex head sheet metal screws on the 4” vent and a minimum of 4 - # 8 x ½” hex head sheet metal screws on the 7” vent.

Page 18 of 80

This model is certified for a maximum horizontal run of 15’ at 40’ vertical and a maximum vertical height of 40’.

Page 19 of 80

TYPICAL FLEX VENT INSTALLATIONS (continued) Installation 1

With this installation a maximum of 4 - 90 degree and a maximum 30’ vertical with a maximum total horizontal offset of 15’ may be used. The installer must use a wall thimble (part # IMC1082A) wherever the venting passes through a wall, floor or ceiling. The installer must also provide any support brackets and roof flashings that are required.

Page 20 of 80

3.3.4 Direct Vent Information (continued) Natural Gas EP Unit ONLY

Simpson Dura-Vent

The minimum vent system for horizontal termination must consist of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit

12" (300 mm)vertical length of vent

90 degree elbow

12" (300 mm) horizontal length of vent

Wall thimble part #IMC1082A

Horizontal termination cap 0984

The maximum horizontal vent system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit 40' (12192 mm) vertical length directly on top of the stove 7 - 90 elbows (4 of the elbows allowed in horizontal plane) 28' (8534 mm) maximum horizontal length Wall thimble part# IMC1082A Horizontal termination cap 0984 The maximum vertical system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit Up to 40' (12192 mm) of vertical length Fire stop Flashing Collar Termination cap part # 0991

Security Venting

The minimum vent system for horizontal termination must consist of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit

12" (300 mm)vertical length of vent

90 degree elbow

12" (300 mm) horizontal length of vent

Wall thimble part #IMC1082A

Horizontal termination cap SV4CHC

The maximum horizontal vent system consists of:

Wall thimble part# IMC1082A Horizontal termination cap SV4CHC The maximum vertical system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit Up to 40' (12192 mm) of vertical length Fire stop Flashing Collar Termination cap part # SV4CGV

Page 21 of 80

3.3.4 Top Vent - Direct Vent Information (continued) Natural Gas EP Unit ONLY

Selkrik Direct-Temp Venting

The minimum vent system for horizontal termination must consist of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit

90 degree elbow

12" (305 mm) length horizontally

Wall thimble part #IMC1082A

Horizontal termination cap 4DT-HC

The maximum horizontal vent system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit 40' (12192 mm) vertical length directly on top of the stove 90 degree elbow 15' (4572 mm) maximum horizontal length

Wall thimble part# IMC1082A Horizontal termination cap 4DT-HC The maximum vertical system consists of:

Simpson Dura-Vent adapter Part # 0924N3 directly on top of unit Up to 40' (12192 mm) of vertical length Fire stop Flashing Collar Termination cap part # 4DT-VC

Use a ceiling fire stop when penetrating a ceiling or floor. Use a wall thimble when penetrating an inside wall or outside wall. Vent terminals shall not be recessed into a wall or siding.

Page 22 of 80

3.3.4 Direct Vent Information (continued) Natural Gas EP Unit ONLY

2-Ply Aluminum Flex Vent

The minimum vent system for horizontal termination must consist of:

10” (254 mm) vertical length (measured to center of vent pipe) with a 90 degree bend and a

10” (254 mm) horizontal length (measured from center of vent pipe)

Wall thimble part# IMC1082A Horizontal termination cap part # IMC1070A or IMC1070B

The maximum horizontal vent system consists of: 40’ (12192 mm) vertical length with a 7 - 90 degree bends (4 of the elbows allowed in

horizontal plane)and a 28’ (8534 mm) horizontal length (measured to center of vent pipe) Wall thimble part# IMC1082A

Horizontal termination cap part # IMC1070A or IMC1070B

Note: Horizontal venting shall be supported, by means of a steel strap, every 3’.

The maximum vertical system consists of:

Up to 40' (12192 mm) of vertical length Fire stop Flashing Collar Adapter from flex to Simpson Dura-Vent part #P574 Termination cap part # 0991

A maximum of 4 – 90 degree bends can be used on the vertical installation with the flex vent. The maximum height for this vent configuration is 40’ (12192 mm) and the minimum height is 4’ (1200 mm), the maximum horizontal run is a total of 28’ (8534 mm).

Page 23 of 80

Direct Vent Information (continued)

Natural Gas EP Unit ONLY

Horizontal Vents

Acceptable Configurations

Example 1 V Value = A (4') = 4'

H Value = 3B (3 x 2') + C (3') = 11'

V Value = Total length of all vertical

sections in feet.

H Value = Total length of all horizontal sections in feet.

NOTE:

a) for H & V values for 45 venting see Chart IV. b) elbows are not counted in H or V values.

c) vent chart starts from the top

of the unit.

Page 24 of 80

Direct Vent Information (continued)

Natural Gas EP Unit ONLY

Vertical Vents

Acceptable Configurations

Example 1 V Value = A (4') + C (3') = 7'

H Value = 2B (2 x 2') = 4'

V Value = Total length of all vertical sections in

feet.

H Value = Total length of all horizontal sections in feet.

NOTE:

a) for H & V values for 45 venting see Chart IV. b) elbows are not counted in H or V values.

c) vent chart starts from the top of the

unit.

Page 25 of 80

Direct Vent Information (continued)

Natural Gas EP Unit ONLY

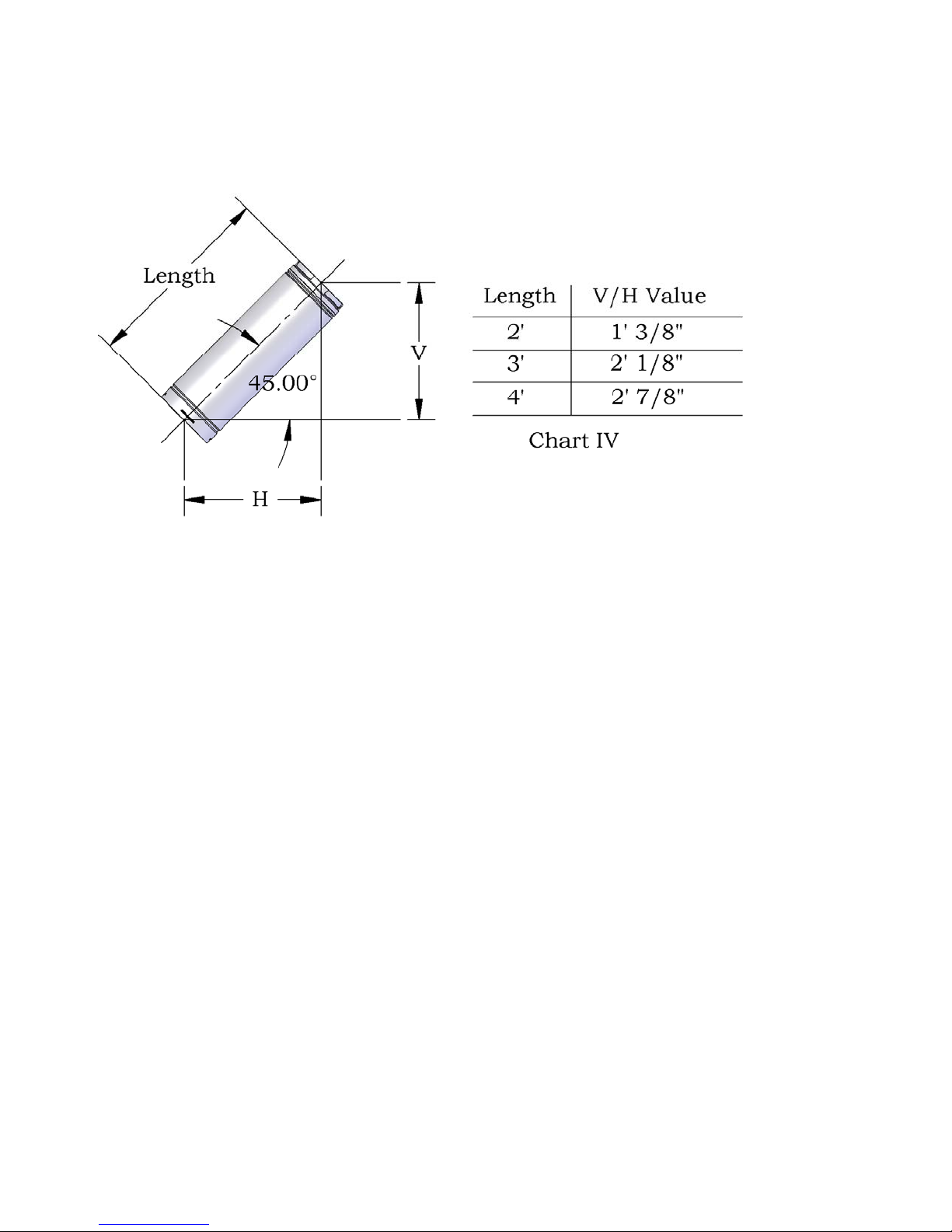

Chart IV

Page 26 of 80

Typical Simpson Dura- Vent Installation:

Vent terminals shall not be recessed into a wall or siding.

Figure 6

Page 27 of 80

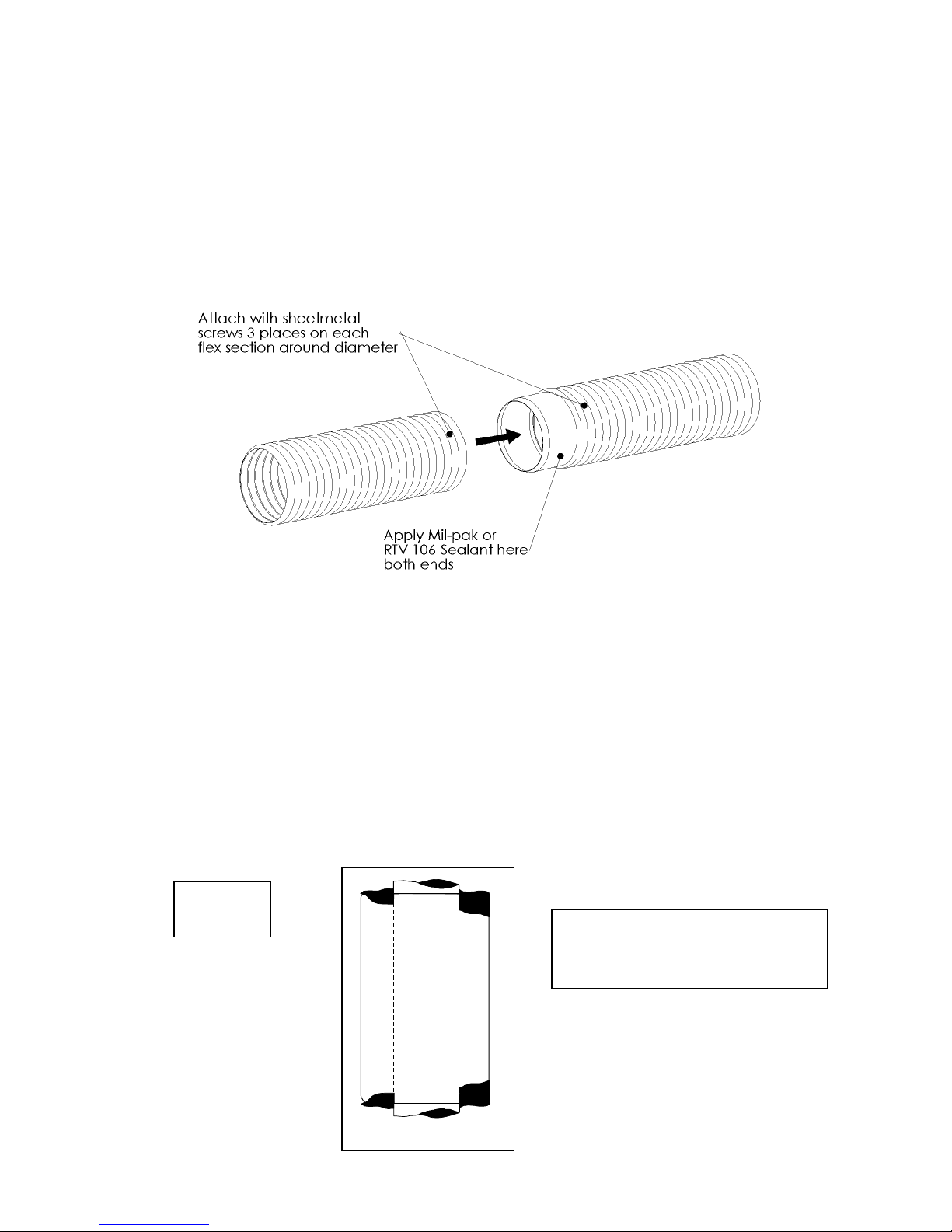

USE OF COUPLERS – WITH FLEX PIPE

In the event of a puncture of the vent pipe or if an extension is needed couplers may be used on both the 4” and 7” flex vent. High temperature sealant shall be applied to the ends of the coupler and then the coupler shall then be inserted into the flex vent. For the 4” vent 3 #8 x ½” hex head sheet metal screws shall be used on each end of the joint to fasten the coupler to the venting. On the 7” vent a minimum of 4 #8 x ½” hex head sheet metal screws shall be used. See Figure 7.

Figure 7

USE OF SEALANT

Sealant is required on vent system joints. On longer vent runs, especially vertical runs, sealant will ensure that the combustion air enters from outdoors, and not through the vent joints. Use high temperature sealant, available from local suppliers, on the inner pipe joint, applying the sealant around the outside of the male part of the vent. A bead of silicone should be used on the outside of the joint after assembly to seal the supply air. If the venting is disconnected for servicing, be sure to follow above instructions for resealing venting when reconnecting to system.

“WARNING: A minimum clearance to combustibles must be maintained around the vent pipe of 1” on horizontal pipe runs and 1” on vertical pipe runs.

Figure 8

Apply RTV high temperature sealant around male pipe.

Page 28 of 80

VENT RESTRICTOR INSTALLATION Decorative Unit Restrictors

Vent Configuration Restrictor Size Width (inches)

40' vertical x 15' horizontal 75% 3.35"

20’ – 30’ 80% 3.48” 12’ – 20’ 70% 3.14”

6’ – 12’ 50% 2.5”

below 6’ none N/A

Heater Unit Restrictors Vent Configuration Restrictor Size Width (inches)

20’ – 30’ 55% 2.66” 12’ – 20’ 50% 2.5”

6’ – 12’ 25% 1.7”

below 6’ none N/A

Vent Restrictor

Page 29 of 80

Direct Vent Information (continued)

Natural Gas EP Unit ONLY

Page 30 of 80

Direct Vent Information (continued)

Natural Gas EP Unit ONLY

Page 31 of 80

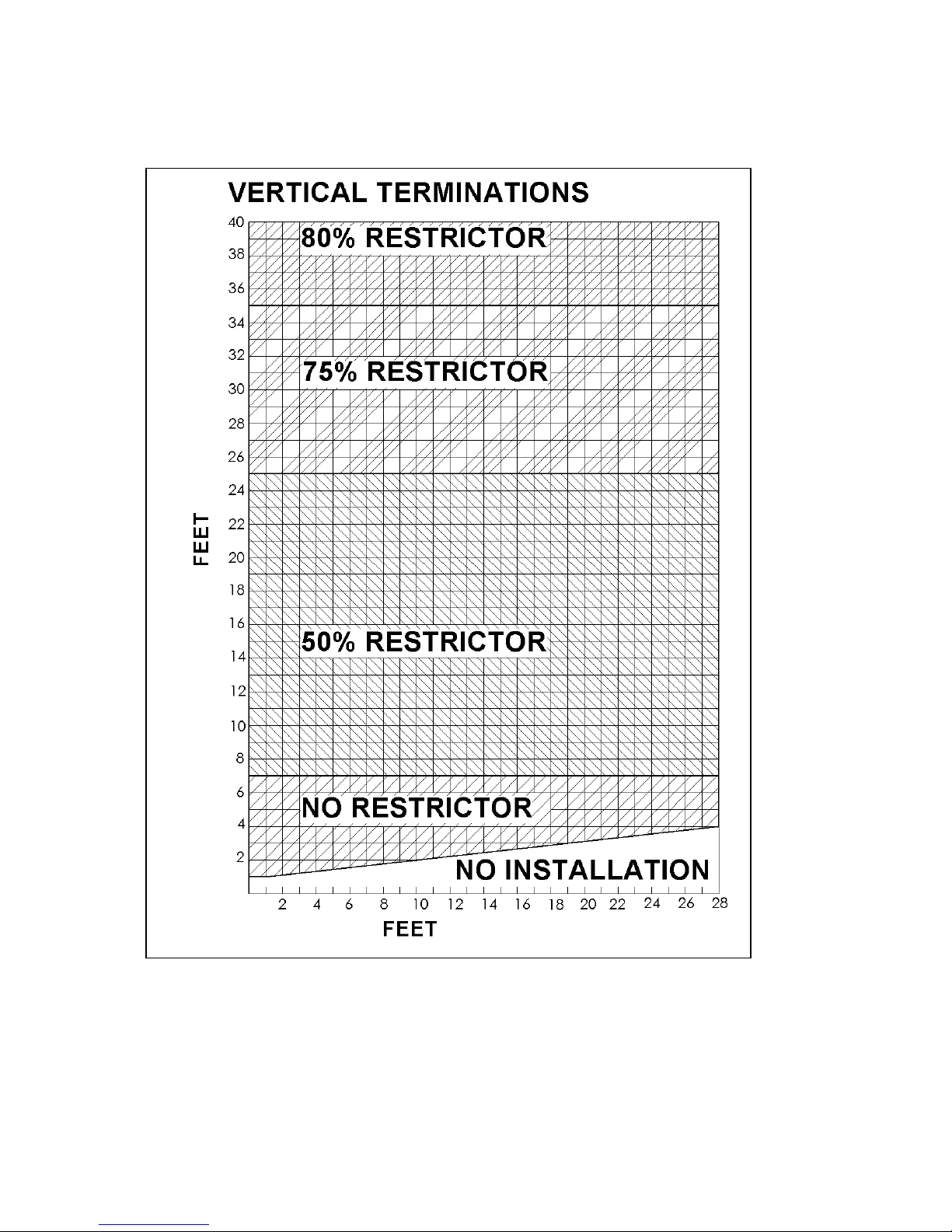

VENT RESTRICTOR INSTALLATION

Natural Gas EP Unit ONLY

Vent Configuration Restrictor Size Width

(inches)

35' - 40' vertical 80% 3.48"

25' vertical 75% 3.35"

7' vertical 50% 2.5" 40' vertical x 28' horizontal & 4 vertical elbows 80% 3.48” 25' vertical x 28' horizontal & 4 vertical elbows 75% 3.35”

7' vertical x 28' horizontal & 4 vertical elbows 50% 2.5”

Below 7' none n/a 40' vertical x 28' horizontal & 7 elbows (4 in horizontal plane) 50% 2.5" 12' vertical x 28' horizontal & 7 elbows (4 in horizontal plane) 50% 2.5"

4' vertical x 28' horizontal & 7 elbows (4 in horizontal plane) none n/a

4' vertical x 28' horizontal & 1 elbow none n/a

1' vertical x 1' horizontal & 1 elbow none n/a

Page 32 of 80

VENT RESTRICTOR INSTALLATION (continued)

The restrictors are installed by removing the 2 screws on the ceiling of the firebox, place the desired restrictor in place and using the screws to fasten the restrictor to the firebox. If you are installing a heater unit, you must first remove the firebox baffle (4 screws) before installing the desired restrictor. Return the firebox baffle after installing the restrictor. See Figure 9.

Figure 9

Page 33 of 80

Horizontal Wall Vent Terminations

The position of the horizontal vent termination must be positioned in such a way as to meet all local building codes. Attach the correct length of pipe. Mark the center line of the pipe facing the wall (allowing for a 1/4” rise per foot of horizontal, example 10 ft of horizontal would require a rise of 2.5”).

NOTE: ALLOWING THE VENT PIPE TO SLOPE DOWN TOWARDS THE VENT TERMINATION COULD CAUSE POOR COMBUSTION AND/OR HIGH TEMPERTURES THAT MAY PRESENT A FIRE HAZARD.

Mark a 9” x 9” square around the center mark (inside dimensions). Cut and frame the exterior wall to accept the wall thimble. Install the wall thimble, on the inside of the exterior wall, shield using wood screws.

Attach the venting to the termination using sheet metal screws, for Z-Flex installations a Inca Metal Cutting’s termination part # IMC1070A or IMC1070B shall be used and when using Simpson Dura-Vent or Security Venting a Simpson Dura-Vent termination part # P574 shall be used. If termination is to be installed on vinyl siding using vinyl siding standoff part # IMC1151.

To install the termination attach the 4” exhaust to the termination and fasten with 3 #8 x ½” hex head sheet metal screws then attach the 7” vent to the termination and fasten with 4 #8 x ½” hex head sheet metal screws, be sure that the flex vent overlaps the termination collars a minimum of 2”. Then attach the termination to the exterior wall using four wood screws through the holes in the corner of the vent terminal. The next step is to apply a bead of mil-pac or RTV 106 to top of the 4” exhaust collar on the unit and attach the 4” vent using screws (as described above), finally apply a bead of mil-pac or RTV 106 to top of the 7” vent and attach (as described above).

Vertical Installations

Always maintain a 1” clearance around the vent pipe (vertical) and 1” clearance horizontal, when passing through ceilings, walls, roofs, enclosures, attic rafter or any combustible surfaces.

DO NOT PACK AIR SPACES WITH INSULATION.

When passing through a flat ceiling install a Box/Wall thimble. Cut a 9” square hole and frame as shown in the diagram opposite.

NOTE: ALWAYS CHECK YOUR LOCAL CODES BEFORE INSTALLING VENTING. CLE AR ANCES ETC, MAY VARY FROM STATE TO STATE (PROVINCE TO PROVINCE).

NOTE: CONSULT DURAVENT PARTS LIST OR INCA METAL CUTTING’S FIREPLACE MANUFACTURING PARTS LIST FOR PART NUMBERS.

See section 3.3.10 Venting for instructions on how to connect Security Venting or Simpson Dura-vent.

9” x 9” opening

Page 34 of 80

Termination above Roof

Consult local codes for minimum vent cap height above the roof (X), vent must be a minimum of 2’ from any wall.

Figure 10

To prevent water seepage; install the flashing with upper portion slid under the roofing material and the lower portion over the roofing material. Note: Do not fasten down until the final adjustments to the vent have been made.

Page 35 of 80

VENT TERMINAL LOCATIONS Figure 11

V Vent Termination

A Air Supply Inlet

NOTE: All clearances are measured from the center of the termination (except item F).

A = clearances above grade, veranda, porch, deck, or balcony * 17-1/2" (445 mm) minimum B = clearance to window or door that may be opened *17-1/2" (445 mm) minimum C = clearance to permanently closed window *minimum 17-1/2" (445 mm) recommended to prevent

condensation on window

D = vertical clearance to ventilated soffit located above the terminal, within a horizontal distance of 24" (610

mm) from the centre-line of the terminal, 23-1/2" (597 mm) minimum E = clearance to unventilated soffit 23-1/2" (597 mm) minimum F = clearance to outside corner = 0" (0mm) G = clearance to inside corner from centre of termination = 10-1/2" (267mm) H = clearance to each side of center line above meter, in Canada 36" (914 mm) within a height 15' (4500

mm) above the meter assembly, for * U.S. follow ANSI Z223.1 I = clearance to service regulator vent outlet, for Canada 36" (914 mm) minimum, for * U.S. follow ANSI

Z223.1 J = clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other

appliance *17-1/2" (445 mm) minimum K = clearance to a mechanical air supply inlet, for Canada 77-1/2" (1969 mm) minimum , for * U.S. follow

ANSI Z223.1 L =  clearance above paved side-walk or a paved driveway located on public property 89-1/2" (2273 mm)

minimum M =  clearance under veranda, porch, deck, or balcony * 17-1/2" (445 mm) minimum

 a vent shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and

serves both dwellings*  only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the floor* * as specified in CGA B149 Installation Code (1991) NOTE: local codes or regulations may specify different clearances * follow ANSI Z223.1 for U.S.A.

Page 36 of 80

3.3.5 CERAMIC LOG INSTALLATION – TUBE BURNER

The log tray has 4 tabs (2 front, 2 back) for positioning the rear log and the main front log.

Position rear log on rear log pins.

Page 37 of 80

3.3.5 CERAMIC LOG INSTALLATION (continued)

Position front log on front log pins.

Position front right twig on log pin and move right side of twig until it contacts the front lip of the log tray.

NOTE: The E unit is available with the above 3 log installation or with the additional twigs shown on the following page. If using the 3 log installation remove the twig positioning pins which are visible in the picture directly above this statement.

Page 38 of 80

3.3.5 CERAMIC LOG INSTALLATION (continued)

Position left twig on the pins located on the front and rear logs, note that the wye portion of the twig is facing the rear of the unit .

Position right twig on the pin located on the rear log and move the twig until it is resting against the front twig.

Page 39 of 80

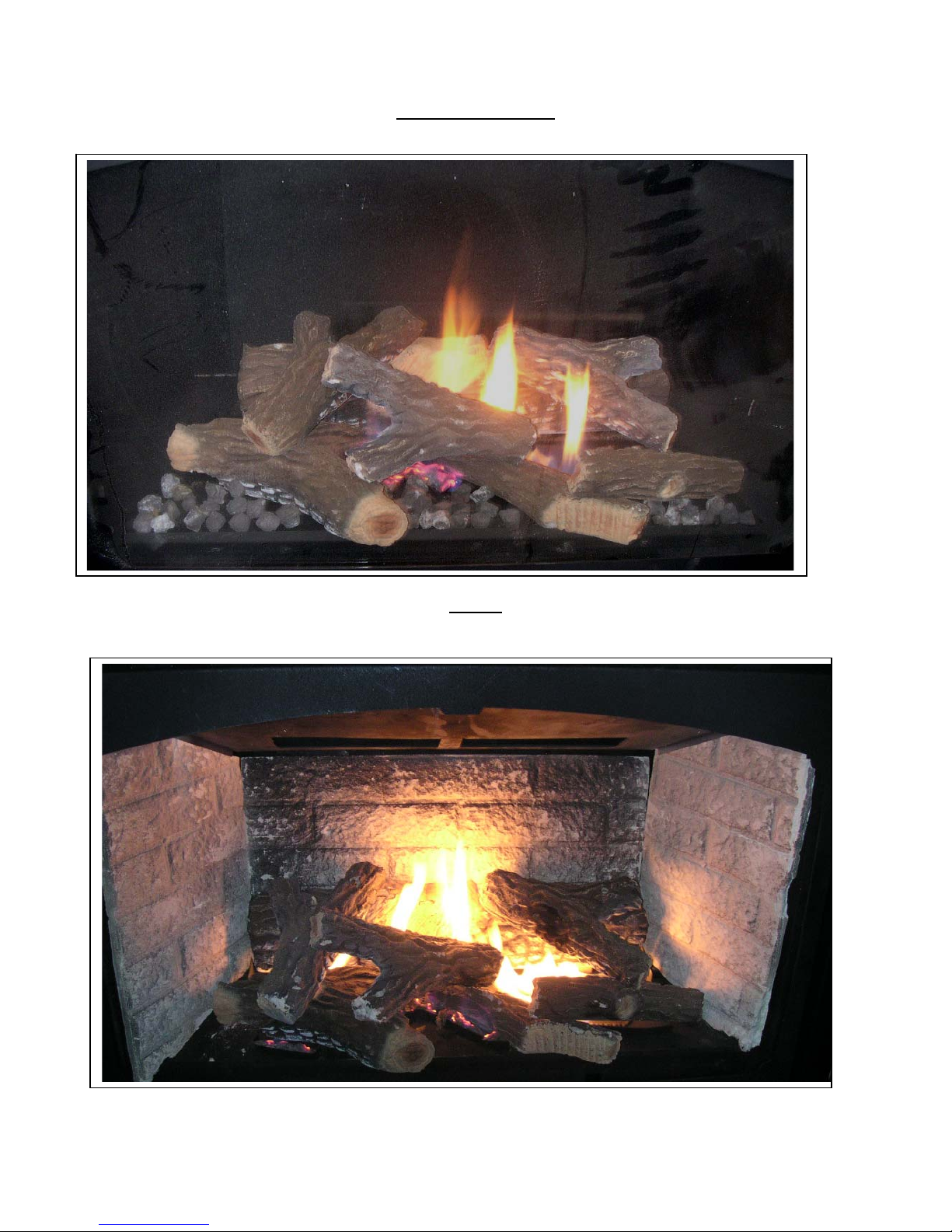

MAIN BURNER FLAME PICTURE

Decorative (E-Unit)

Page 40 of 80

3.3.5 CERAMIC LOG INSTALLATION – PAN BURNER

The log tray has tabs (2 front, 2 back) for positioning the rear log and the main front log.

Position rear log on rear log pins.

Page 41 of 80

3.3.5 CERAMIC LOG INSTALLATION – PAN BURNER (continued)

Position right front log on front log pins.

Position front left twig on log pins.

Page 42 of 80

3.3.5 CERAMIC LOG INSTALLATION – PAN BURNER (continued)

Position far left twig on the pin located on the bottom twig and angle as shown.

Position right "Y" twig on the pins located on the rear log and move the twig until it is resting on the front twig.

Page 43 of 80

3.3.5 CERAMIC LOG INSTALLATION – PAN BURNER (continued)

Position left "Y" twig on the pins located on the front and rear logs, note that the wye portion of the twig is facing the rear of the unit .

Position center "Y" twig on the pins located on the right front log and left twig, note that the wye portion of the twig is facing the left side of the unit.

Page 44 of 80

MINERAL WOOL & EMBER INSTALLATION – PAN BURNER

Tasman HP

For illustration purposes logs are shown without center twig.

The Tasman HP is able to be operated with mineral wool & embers for additional flame effect. The mineral wool is inserted between the logs and a containment barrier, which is part of the burner. The other areas, shown along the front of the burner, may have other burner media such as embers or “lava rock”, etc. installed. There is a lip on the front of the burner, the burner media is placed between this lip and the mineral wool barriers. Note: Only the mineral wool is to cover the burner ports. Mineral wool may also be placed in the ember area if desired.

Page 45 of 80

MINERAL WOOL & EMBER INSTALLATION – PAN BURNER

Tasman EP

For illustration purposes logs are shown without center twig.

The Tasman EP is able to be operated with mineral wool & embers for additional flame effect. The mineral wool is inserted between the logs and a containment barrier, which is part of the burner. The other areas, shown along the front of the burner, may have other burner media such as embers or “lava rock”, etc. installed. There is a lip on the front of the burner the burner media is placed between this lip and the mineral wool barriers. Note: Only the mineral wool is to cover the burner ports. Mineral wool may also be placed in the ember area if desired.

Page 46 of 80

PAN BURNER FLAME PICTURE

Decorative (E-Unit)

H-Unit

Page 47 of 80

3.3.6 Door Installation Fit the top door slots over the brackets on each side of the top of the firebox, locate the two bottom

clasps and close. See Figure 12. Pull the top of the window forward and release. Make sure the door returns to it’s original position. This ensures that the door safety device is working properly.

Removal is reverse order. If the glass has been damaged or broken it is highly recommended that you contact a qualified

service person. Remove the broken pieces (be sure to wear gloves) and remove door. See the replacement parts list, at the end of the manual, you will require one 6 mm tempered glass panel (part # IMC1010). Next you will install the glass gasket (part # 6AL) around the perimeter of the glass panel, this gasket has an adhesive edge which is adhered to the glass while the rounded edge of the gasket is folded over the edge of the glass. Lay a thin bead of high temperature silicone (part # RTV106) around the inside perimeter of the door frame and with the rounded edge facing into the door place the glass panel back into the door frame. Then follow the instructions above to re-install the door.

Figure 12

Page 48 of 80

WARNING: Do not operate appliance with the glass front removed, cracked or broken. Replacement of the glass should be done by a licensed or qualified service person.”

 Only doors certified with the appliance shall be used.  Do not use substitute materials.  Do not abuse glass doors by striking or slamming shut.  Do not operate with broken glass.

Page 49 of 80

3.3.7 INITIAL FIRING When lit for the first few times, the appliance may emit an odour resulting from evaporation of paint

and lubricants used in the manufacturing process. Open a door or window for ventilation. Anyone with a respiratory condition may need to leave the room during the initial firings.

NOTE: It is normal for the appliance to expand and contract while it heats up or cools down

whether this is from a cold start or a steady-state condition where the fan has come on or off. Under these circumstances it is possible that the expansion/contraction of the metal parts may produce sounds.

Occasionally, after a cold start, vapor may condense and fog the glass, and the flames may be partially blue. After a few minutes the moisture will disappear and the flames will become yellow. Visually check the flame after warm-up (see flame pictures on page 31).

Figure 13

3.3.8 MANIFOLD PRESSURE REGULATOR ADJUSTMENT

The manifold pressure regulator controls gas input and flame height, and is pre-adjusted at the factory. No further adjustment is required. Manifold pressure can be verified only (see Lighting Instructions).

PILOT FLAME ADJUSTMENT For proper operation, the pilot and main burner flames must be steady and not lifting off or floating.

The top 3/8” – 1/2” (10-13mm) of the thermopile should be engulfed by the pilot flame, see Figure 13.

Page 50 of 80

PRIMARY AIR ADJUSTMENT Aeration is factory set but may need adjustment for altitude or movement during shipping. To adjust

the air shutter loosen the screw on the bottom of the valve tray and slide the shutter bolt right or left to suit (see Figure 14). Sliding the lever to the right closes the air shutter making the flame taller and more colorful, sliding the lever to the left opens the air shutter this brings down the flame height and reduces flame color.

Caution: Parts requiring adjustment during operation may be hot. Note: Burner and bottom of firebox only shown for illustration purposes.

Factory Setting

Natural Gas – closed on E & H units

Propane Gas – closed on E unit, 50% on H unit

Figure 14

Aeration adjustment is important for the correct functioning of the appliance. Carbon build up, flame lifting or any malfunction due to improper aeration adjustment during installation is not covered under the factory warranty.

Page 51 of 80

3.3.9 ALTITUDE ADJUSTMENT All valves have been pre-set and certified for installation at elevations from 0 – 4500 feet (1 – 1372m)

above sea level. When installing this unit at higher elevations, it is necessary to decrease the input rating by replacing

the existing burner orifice with a smaller size for installations over 4500 feet (1372m). The appliances input should be reduced 4% for each additional 1000 feet (305m) above sea level. For the USA, derate the unit from sea level according to the gas installation code.

Page 52 of 80

3.3.10 FIELD ASSEMBLED PARTS OPTIONAL FAN INSTALLATION

The optional fan kit (part # IMC1057A) is available with a 45 mm fan. To install the optional fan you will need to have 120 VAC run to a receptacle inside the unit. Remove the bottom louver and control panel then slide the fan kit into place behind the valve and secure with 3 # 10 sheet metal screws in the holes provided on each side. Plug the fan cord into the receptacle. A thermal snap disk is provided to turn the fan on after the unit has run for approximately 5 – 10 minutes. The snap disk is installed by sliding it into the holder on the bottom side of the valve tray. See Figure 2 for electrical wiring schematic and Figure 17 for fan installation. Replace control panel and bottom louver.

Figure 17

Page 53 of 80

3.3.10 FIELD ASSEMBLED PARTS (continued) LOUVERS

The louvers are simple to install, the bottom & top louvers hang on brackets located at each side of the appliance. See Figure 18.

Figure 18

Page 54 of 80

3.3.10 FIELD ASSEMBLED PARTS (continued)

Optional Bay Fronts

The appliance is available with 2 optional bay fronts:

IMC1027A

IMC1013A

Page 55 of 80

3.3.10 FIELD ASSEMBLED PARTS (continued)

Optional Bay Fronts

Both bay fronts are installed in the same way, simply remove the existing louvers and hang the bay fronts in the slots which the louvers fit in see Figure 19.

Figure 19

Page 56 of 80

VENTING When Security Venting or Simpson Dura-Vent is to be used with the unit it will be necessary to install an adapter to allow the 6-5/8” venting to connect to the unit which is factory assembled for connection to 7” flex vent. The adapter (part# 0924N3) fits over the exhaust & air inlet collars on the top of the appliance and is fastened in place with sheet metal screws. See Figure 20.

Twist lock procedure: Four indentations, located on the female ends of pipes and fittings, are designed to slide straight onto the male ends of adjacent pipe and fittings. Orient the four pipe indentations so they match and slide into the four entry slots on the male ends (see Figure 22). Push the pipe sections completely together then twist lock one section clockwise approximately one quarter turn until the two sections are fully locked.

In vertical installations which use flex vent it is necessary to install an adapter (part # P574) at the end of the venting to allow connection to the Simpson Dura-Vent termination part # 0991 or Security Venting part# SV4CGV. The adapter fits into the flex vent and is secured in place using sheet metal screws. See Figure 21.

Horizontal runs of vent must be supported every three feet. Wall straps are available for this purpose. High temperature sealant is required on each joint, run a 1/8” bead of sealant around the male end of

the outer sleeve, as shown in Figure 22, and twist lock the pipes or fittings together.

Figure 20 Figure 21

Page 57 of 80

VENTING (continued)

Figure 22

Page 58 of 80

4.0 MAINTENANCE

4.1 MAINTENANCE SAFETY

Turn off the gas to the main burner and allow the heater to cool for up to 30 minutes before servicing.

Service and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service technician. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is important that the access door compartment, burner, and circulating air passageways be kept clean to provide for adequate combustion and ventilation airflow. Do not substitute materials or use components other than factory supplied.

4.2 RECOMMENDED SERVICE

1. The venting system should be annually inspected by a qualified agency.

2. Visually check the burner and pilot flames occasionally. Visually inspect height and color of flames (see Figure 13 & page 31).

3. Clean the glass as needed. See section 4.3 for instructions on glass cleaning.

4. Have the appliance inspected annually by a professional service technician.

5. Clean the appliance regularly.

Annual service: An annual service call should take between 1 – 2 hours. Start by disassembling the unit; take off the door and remove all the glass embers, burner, and fan (if so equipped). A small toothbrush is a handy tool for cleaning the fan. Loosen all the debris on the fan blades and vacuum it off. Vacuum the whole firebox and all the air passages. Clean the burner, pilot orifice, main orifice, etc.. After everything is clean, check all the connections and the chassis ground and reassemble. Fire up the unit and check the electrical readings of the thermopile/thermocouple. Clean the glass. Check the gas pressure.

4.3 GLASS CLEANING

The inside of the glass may require periodic cleaning to remove deposits left from impurities in the gas and combustion air. For best results, use a tempered glass cleaner or polish. A suitable cleaner is available from your dealer. Avoid the use of ammonia based cleaners such as Windex®. Do not clean while hot. Do not use abrasive cleaners. Make sure you clean off any white film on the fireplace glass as soon as possible – otherwise the glass may deteriorate.

Page 59 of 80

4.4 BURNER & PILOT CLEANING

Periodic cleaning is necessary for proper operation. Refer to section 4.7, remove the burner, and check that the burner orifice is clean. Visually inspect the pilot. Brush or blow away any dust, lint, or foreign debris. If the pilot orifice is plugged, disassembly may be required to remove any foreign material from the orifice or tubing. When the appliance is back in service, check the pilot flame pattern with the figures in Section 3.3.8. For re-lighting, refer to the lighting instructions in Section 2.1.

4.5 OPTIONAL FAN INSTALLATION

See instructions which are included with optional fan kit in section 3.3.10. “Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.”

4.6 VALVE AND PILOT ASSEMBLY REPLACEMENT

The following procedure is to be performed by qualified service personnel ONLY. Turn off the gas supply and allow the heater to cool for up to 30 minutes.

1. Turn off the gas at the meter.

2. Remove the door.

3. Remove the logs and log tray.

4. Remove the burner by loosening the screws and lifting it out.

5. Disconnect the gas line to the appliance and disconnect the gas line from the valve to the main

orifice.

6. Remove the screws holding the valve bracket to the base of the unit and lift valve & valve bracket

out.

7. Undo the pilot gas line and thermocouple connections at the gas valve and unplug piezo igniter.

8. Disconnect the thermostat or on/off switch wires from the valve (if applicable).

9. Remove the gas line to the valve inlet and outlet.

10. Remove the screws which hold the valve to the valve bracket.

11. Remove the screws fastening the pilot assembly to the pilot bracket and remove the pilot

assembly.

12. Reassemble the components in reverse order.

Page 60 of 80

5.0 TROUBLE SHOOTING

SYMPTOM

POSSIBLE CAUSE

CORRECTIVE ACTION

I. Pilot will not light after

repeated triggering of the piezo ignition button

A. No spark at electrode (weak or not heat source for pilot ignition)

1. Improper ignition 1. Align the electrode with 1/8” (3mm) gap to pilot hood

2. Poor connections at starter

and ignition electrode

3. Broken ceramic cover on

ignition electrode

4. Defective piezo igniter 4. Replace piezo igniter

5. Poor grounding of piezo igniter 5. Tighten mounting nut and/or igniter

2. Reconnect if loose

3. Replace pilot assembly

screws

B. No gas or low gas pressure

1. Gas line shut off(s) may not be

turned on

2. Air in gas lines 2. Purge gas lines

3. Gas lines may not be

connected

4. Low pressure may be caused

by bent line

5. Valve control knob not fully

depressed in “PILOT” position

II. Pilot will not stay lit after

following the lighting instructions

1. Weak or improperly located

2. Defective thermocouple 2. Replace thermocouple

3. Thermocouple not installed

4. Open wire connection in pilot

5. Defective Valve 5. Connect the millivolt meter probes to the

A. Thermocouple / Valve

pilot flame

properly

circuit

1. Turn on shut-off valves

3. Connect all gas lines

4. Check for a kinked line

5. Fully depress control knob

1. Adjust and clean pilot. The flame must impinge on or engulf the thermocouple, as shown in Figure 13

3. Make sure all wire connections at the gas valve terminals are tight and the thermocouple is fully inserted into the mounting bracket

4. Check wire continuity and connections in the pilot circuit

thermopile terminals on the gas valve. Turn the valve to the “PILOT” position, depress, and light. If the meter reading is greater than 540 millivolts after 30 seconds, the thermopile is good. If the pilot does not stay lie, the valve is defective. Check section “B” below, before replacing valve

Page 61 of 80

following the lighting instructions continued …

III. Main burner will not light

IV. Soot deposits on glass

V. Flame burns blue and lifts

off burner

VI. Main flame does not burn properly

VII. Flames impinge on firebox top

B. Defective safety circuit Pilot will not stay lit after

1. Loose or defective connections

1. Check continuity, tighten wiring or connections, and repair

A. Valve / Switches

1. Valve control off 1. Turn to “ON” position

2. Blockage at the burner (line, orifice, or ports)

3. Defective wall switch or thermostat

4. Defective wiring or connections

5. Excessive length of thermostat wire from valve to wall switch or thermostat

6. Wall switch or thermostat incorrectly wired

7. Defective Valve 7. Turn valve and “ON/OFF” switch to the

8. Thermopile may not be generating sufficient voltage (750 mV)

9. Wall switch, thermostat, or wires are defective

1. Air inlet blocked or restricted 1. Clean air inlets

2. Vent system is restricted or inadequate

1. Insufficient combustion air being supplied

2. Manifold pressure set too high 2. Check manifold pressure

3. Vent system restricted 3. Check vent system

1. Incorrect vent or termination

used.

1. Vent system is restricted or inadequate

2. Manifold pressure too high 2. Check manifold pressure as required

2. Check and clean

3. Conduct a continuity test or jumper wire test and replace if defective

4. Conduct a test with a jumper wire and repair as required

5. Reduce wire length to less than 100 feet or increase wire size

6. Wire correctly

“ON” position. Check with millivolt meter at terminals TP-TH. Millivolt meter should read greater then 540 millivolts. If the reading is OK and the burner does not come on, replace the gas valve

8. Recheck using the millivolt meter. The pilot flame may not be high enough for the flame to properly engulf the thermopile. If so, adjust and reset. If voltage is still insufficient, replace thermopile

9. Follow previous corrective action, check switch and wiring. Replace where defective

2. Confirm venting & termination are those which are approved with the appliance

1. Ensure that no foreign material blocks air inlets. Ensure the vent is adequate

1. Confirm venting & termination are those

which are approved with the appliance

1. Correct flue as required

Page 62 of 80

6.0 REPLACEMENT PARTS

When requesting service or replacement parts for your unit, please provide model name and serial number. All parts listed below may be ordered from an authorized dealer. Description Part# Door IMC1009 Door Retainer IMC1043 Upper Louvers IMC1012AU Lower Louvers IMC1012AL Burner Tray IMC1037 Burner IMC1036 Valve Bracket IMC1048

Fan Kit IMC1057A

Door Glass IMC1010 25% Restrictor IMC1084a 50% Restrictor IMC1084b 55% Restrictor IMC1084c 70% Restrictor IMC1084d 80% Restrictor IMC1084e Door Glass Gasket 6AL Pilot Assembly PSE-C4-519 Orifice P0505-48 Orifice P0505-57 Gas Valve (Honeywell) VS8420-E Gas Valve (SIT) 0.820.634 Gas Valve (Robertshaw) 7000MVRB-5-LC Piezo Igniter (R/S only) 1244-US Door Latches 701S Door Springs 10834-00480 Air Shutter IMC1041 Valve Tray (propane) IMC1040ELP Back Log IMC1095 Right Front Log IMC1096 Left Front Log IMC1097 Left Twig IMC1098 Right Twig IMC1099

Intermittent Pilot & Remote Control Valve Parts Description Valve AF-4000

Hi/Low Knob AF-4000MH/L Module AF-4000MOD Module Wiring Harness AF-4000WH8PIN24 Motor Drive Battery Pack AF-4000BP AC Adapter AF-4000ADP Hi/Low Motor AF-4000MVH/L Battery Back Up Pack AF-4000BBU Hi/Low Solenoid AF-4000SH/L Remote Control SP-1001, SP-1001H/L or SP-1001H/LTH Intermittent Pilot PSE-NA266

Part#

Page 63 of 80

6.0 REPLACEMENT PARTS (continued)

Additional parts for heater units

Description Part# Rear Ceramic Panel IMC1049 Right Ceramic Panel IMC1050 Left Ceramic Panel IMC1051 Burner IMC1036A Orifice P0505-37 Orifice P0505-53 Burner Tray IMC1037A Firebox Baffle IMC1042 Door Glass IMC1010A Burner Media IMC1200 Valve Tray (natural gas) IMC1040HN Valve Tray (propane) IMC1040HLP Skamol Panel – Left IMC1051SK Skamol Panel – Right IMC1050SK Skamol Panel – Rear IMC1049SK Skamol Baffle IMC1042SK

Additional parts for pan burners

Description Part# Pan Burner Assembly, E-Unit IMC1128A Pan Burner Assembly, H-Unit IMC1128B Log Tray E-Unit IMC1135A Log Tray H-Unit IMC1135B Rear Log (1) IMC1095 Left Large Twig (1) IMC1096 Front Small Twig (2) IMC1098 Wye Twig (3) IMC1099

Page 64 of 80

7.0 INCA METAL CUTTING’S WARRANTY PROTECTION FOR ALL INCA METAL CUTTING GAS FIREPLACE PRODUCTS

Inca Metal Cutting’s products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak tested and test fired at a quality control test station. Once assembled the complete fireplace is thoroughly inspected by a qualified technician, before packaging, to ensure that you, the customer, receives the quality product that you expect from Inca Metal Cutting’s.

INCA METAL CUTTING’S GAS FIREPLACE’S WARRANTY

Your Inca Metal Cutting gas fireplace is guaranteed to be free of defects in materials and workmanship for a period of 5 years from the date of purchase. This covers: combustion chambers, heat exchangers and burners as well as stainless steel parts against tarnishing. Electrical (110 volt and millivolt) components and wearable parts such as blowers, gas valves, thermal switches, switches, wiring, remote controls, igniters, gaskets, glass and pilot assemblies are covered and Inca Metal Cutting will provide replacement parts free of charge during the first year of the limited warranty

CONDITIONS AND LIMITATIONS

Inca Metal Cutting warrants its products against manufacturing defects to the original purchaser only – i.e. the individual or legal entity (registered customer) whose name appears on the original invoice – provided that the purchase was made through an authorized Inca Metal Cutting dealer and is subject to the following conditions and limitations:

This factory warranty is nontransferable and may not be extended whatsoever by any of our representatives.

A licensed, authorized service technician or contractor must have installed the gas fireplace. Installation must be done in accordance with the installation instructions included with the product and all local and national building and fire codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect. Parts installed from other manufacturers will nullify this warranty.

This limited warranty further does not cover any scratches, dents, corrosion or discoloring caused by excessive heat, abrasives, chemical cleaners nor any venting components used in the installation of the fireplace.

This warranty does not cover any problems caused to installation used venting or vent terminations which are not certified for use with this product.

Any installation, labor, construction, transportation or other related costs or expenses arising from defective part(s), repair or replacement or otherwise of same, will not be covered by this warranty nor shall Inca Metal Cutting assume responsibility for same. Further, Inca Metal Cutting will not be responsible for any incidental, indirect or consequent damages, except as provided by law, and in no event shall they exceed the original purchase price.

Page 65 of 80

CONDITIONS AND LIMITATIONS (continued)

In the first year only, this warranty extends to the repair or replacement of warranted parts, which are defective in material or workmanship provided that the product has been operated in accordance with the operation instructions and under normal conditions.

After the first year, Inca Metal Cutting may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

Notwithstanding any provisions contained in this warranty, Inca Metal Cutting’s responsibility under this warranty is defined as above and it shall not in any event extend to any incidental, consequential or indirect damages.

This warranty defines the obligations and liability of Inca Metal Cutting with respect to the Inca Metal Cutting gas fireplace and any other warranties expressed or implied with respect to this product, its components or accessories are excluded.

Inca Metal Cutting neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product. Inca Metal Cutting will not be responsible for: over firing, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains, inadequate vents, excessive venting configurations, insufficient make up air, or negative air pressures which may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc.

Any damages to fireplace, combustion chamber, brass or chrome trim or other component due to water, weather damage, long periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of Inca Metal Cutting.

The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from your authorized dealer.

Inca Metal Cutting reserves the right to have its representative inspect any product or part thereof prior to honoring any warranty claim.

Page 66 of 80

8.0 LABEL INFORMATION E - UNIT

Page 67 of 80

9.0 LABEL INFORMATION (continued)

Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

Sections of the venting system have not been installed. WARNING – Do not operate the appliance until all sections have been assembled and installed in accordance with the manufacturer’s instructions.

WARNING

Class IIIA-2 In Canada, also certified for installation in a bedroom or bedsitting room.

Termination Labels ClassIIIA-1

Inca Metal Cutting’s Listed Vent Termination Part #IMC1070A or IMC1070B For Direct Vent Fireplace Mfg. by Inca Metal Cutting Heating Products Ltd. Unit 100 Sales and office #115 shipping 11091 Bridgeport Rd Richmond BC, V6X 1T3 HOT

Class I This side up

Page 68 of 80

INSTRUCTIONS FOR TUBE BURNER UPGRADING TO HEATER UNIT

The specifications of the heater unit are:

ITEM NATURAL GAS (NG) PROPANE (LPG)

INPUT: Hi 32,000 Btu/hr (9.37 kW) 28,000 Btu/hr (8.20 kW) INPUT: Lo 23,000 Btu/hr (6.74 kW) 22,000 Btu/hr (6.44 kW) MANIFOLD PRESSURE: Hi 3.5” w.c. (0.87 kPa) 10” w.c. (2.49 kPa) MANIFOLD PRESSURE: Lo 1.7” w.c. (0.42 kPa) 6.4” w.c. (1.57 kPa) GAS INLET SUPPLY PRESSURE: Maximum: 13.5” w.c. (3.4 kPa) Maximum: 14” w.c. (3.49 kPa)

AIR SHUTTER

SETTING ORIFICE SIZE: @ 0-4500’ # 34 DMS # 51 DMS CONTROL VALVE TYPE: Honeywell , SIT 820 Nova,

VENTING 2-ply aluminum vent, Selkirk,

FAN * Optional * Variable Speed (120 Volt) Variable Speed (120 Volt)

Minimum: 5.0” w.c. (1.2 kPa) Minimum: 12” w.c. (2.99 kPa)

Robertshaw-Grayson or Skytech AF-4000

Security or Simpson Dura-Vent

APPENDIX A

adjustable from open 1/16”

to fully open

adjustable from open 1/8”

to fully open

Honeywell , SIT 820 Nova, Robertshaw-Grayson or Skytech AF-4000 2-ply aluminum vent, Selkirk, Security or Simpson Dura-Vent

Page 69 of 80

The steps for upgrading the decorative unit to a heater unit are as follows:

1) Remove door (see page 32).

2) Remove logs, log tray and burner. Remove orifice and replace with appropriate orifice for heater

unit. Install heater burner & log tray.

Page 70 of 80

3) Install burner media along front edge of log tray, media may protrude to the center of the front burner holes and may be installed in any unused area along the front of the log tray. The picture below shows approximately how far the embers should protrude into the flame.

4) Install firebox baffle with 2 screws into back wall of firebox and 2 screws into ceiling of firebox.

Page 71 of 80

5) The first step for installing the ceramic brick panels is to place the rectangular shaped panel on the log tray against the back wall of the firebox. Next slide, either, left or right panel into place, note that the panel fits behind the ledge of the firebox baffle on the top and a bent up tab on the log tray on the bottom. When both side panels are installed they will secure the rear panel in place.

7) The final step will be to replace the E unit, tempered glass, door with the H unit ceramic glass door.

Flame picture of heater unit

Page 72 of 80

LABEL INFORMATION H – UNIT

Page 73 of 80

APPENDIX B (CONVERSION KITS)

This kit will convert the fireplace to Natural Gas / Propane (as applicable). In order to convert this unit to an alternate gas the valve tray assembly must be replaced as 1 piece.

The IMC100 models are designed to burn either natural gas or propane. Each unit leaves the factory equipped for one specific fuel but it is simple to field convert the unit to an alternate fuel. The original type of fuel is marked on the ratings label (see pages 50 & 56) of the manual.

“WARNING” This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. The qualified service agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the converted appliance is checked as specified in the manufacturer’s instructions supplied with the kit.

This kit is for use with models Tasman ET & Tasman HT.

Conversion Kit Contents

This conversion kit contains the following parts:

1) Valve tray part numbers: IMC1040EN (for natural gas E-rated units)

IMC1040ELP (for propane E-rated units) IMC1040HN (for natural gas H-rated units) IMC1040HLP (for propane H-rated units)

2) Conversion Kit labels

Page 74 of 80

The proper steps for converting the appliance are as follows:

1) Caution the gas supply shall be shut off prior to disconnecting the electrical power, before proceeding with the conversion.

2) Remove the door, ceramic logs, log tray and burner (see page 43 in the manual).

3) Remove the valve tray (see pages 43 in the manual).

4) Replace with desired valve tray (installation is the reverse of removal).

5) Verify the input of the converted appliance by checking the orifice size with the size specified on the ratings labels found on pages 50 & 56 of the manual.

6) Replace burner, log tray, ceramic logs and door.

7) Leak test the appliance, with a soapy water solution, prior to placing the unit into operation.

8) Light appliance. See the Lighting Instructions, page 7, of the manual to verify normal operating sequence of the ignition system.

9) Check that the manifold pressure is correct, see pages 3 or 52 of the manual.

10) Check that the minimum and maximum inlet gas pressures are correct, see pages 3 or 52 of the manual.

See pages 30, 33 & 55 of the manual for proper pilot and burner flame pictorials. Fill out and attach the fuel conversion label provided in the kit then apply label over top of existing

ratings label. All valves have been pre-set and certified for installation at elevations from 0 – 2000 feet (1 – 608 m)

above sea level. When installing this unit at higher elevations, it is necessary to decrease the input rating by replacing

the existing burner orifice with a smaller size for installations over 2000 feet (608 m). The appliances input should be reduced 4% for each additional 1000 feet (305 m) above sea level. For the USA, derate the unit from sea level according to the gas installation code.

H-Unit Natural Gas

ALTITUDE (ft) ORIFICE #

2000 34 3000 34 4000 34 5000 34 6000 35 7000 35 8000 35 9000 36

10,000 36

Page 75 of 80

H-Unit Propane Gas

ALTITUDE (ft) ORIFICE #

2000 51 3000 51 4000 51 5000 51 6000 53 7000 53 8000 53 9000 54

10,000 54

E-Unit Natural Gas

ALTITUDE (ft) ORIFICE #

2000 45 3000 45 4000 45 5000 45 6000 46 7000 46 8000 46 9000 47

10,000 47

E-Unit Propane Gas

ALTITUDE (ft) ORIFICE #

2000 57 3000 57 4000 57 5000 57 6000 58 7000 58 8000 58 9000 59

10,000 59

Page 76 of 80

CONVERSION KIT MARKINGS

Class IIIA

Minimum inlet gas pressure 5.0” w.c. for natural gas Minimum inlet gas pressure 11.5” w.c. for propane Maximum inlet gas pressure 7.0” w.c. for natural gas Maximum inlet gas pressure 14.0” w.c. for propane Input rating 32,000/23,000 btu/hr for natural gas on Tasman HT unit Input rating 18,000/12,500 btu/hr for natural gas on Tasman ET unit Input rating 28,500/22,000 btu/hr for propane gas on Tasman HT unit Input rating 15,000/12,500 btu/hr for propane gas on Tasman ET unit Conversion kits part #TNG1 for NG & #TLPG1 for LPG are for use with models Tasman ET or Tasman HT natural gas or propane gas.

Class IIIA

This appliance was converted d/m/y to _____ gas with kit #TNG1 or TLPG1 by (name and address of organization making the conversion), which accepts the responsibility that this conversion has been made properly.

Class IIIA

This control has been converted for use with ______ gas.

Exterior of the kit shall have the following markings:

1) Conversion kit part #

2) Appliance model #(s) for use with the kit

3) Type of gas to be converted to.

Page 77 of 80

APPENDIX C (AMERICAN FLAME VALVE INFORMATION)

Page 78 of 80

APPENDIX C (Continued)

Page 79 of 80

APPENDIX C (Continued)

Special Features on the AF-4000 Module

The AF-4000 Module can be powered two different ways. The first is a standard 110 volt AC to 6.0 volt DC adaptor. This adapter is connected to the AF-4000 Module by connecting the two 1/4” female terminals from the adapter to the two 1/4” male terminals, located on the AF-4000 Module , marked POWER. The second method of powering the appliance is by using the AF-4000 BP battery pack.

The appliance will not have back up power, during power outages, if only the 6.0 volt adapter is used however a battery back up package, AF-4000BBU, is available to be used in this situation.

The AF-4000 module has 2 special features built into the system.

1. Continuous Pilot Feature - This feature allows the user to change from a spark to pilot system to a standing pilot system, for direct vent appliances during cold climate, to keep the firebox warm. a) There is a switch located on the side of the AF-4000 module that reads “Continuous Pilot ON/OFF”, this switch will allow the user to select the pilot mode of operation. b) When the Continuous Pilot switch is in the OFF position and the appliance ON/OFF switch is turned to ON the pilot will spark and light. When the appliance ON/OFF switch is turned OFF the pilot will shut off when the main burner shuts off. c) When the Continuous Pilot switch is in the ON position and the appliance ON/OFF switch is turned on the pilot will spark and light. When the appliance ON/OFF switch is turned to OFF the pilot will stay ON when the main burner shuts off. This setting is generally used in cold climates to keep the firebox warm. d) The Continuous Pilot mode can also be activated by an optional hand held remote control.

2. Remote Control Feature - The AF-4000 module has a built in remote control receiver. This allows the user to program a hand held remote transmitter, wireless wall mount thermostat or wireless wall mount switch to the appliance at any time during or after the installation of the appliance. a) There is a switch located on the side of the AF-4000 module that reads REMOTE/OFF. b) When the Remote/Off switch is in the OFF position the appliance will operate from an appliance mounted rocker switch or wall switch connected to the (2) brown wires on the AF-4000 module. c) When the Remote/Off switch is in the REMOTE position the appliance will operate from the (optional) Remote Control transmitter, wireless wall mounted thermostat or wireless wall mounted switch.

NOTE: The AF-4000 module must be programmed to the (optional) Remote Control transmitter, wireless wall mounted thermostat or wireless wall mounted switch.

a) To program the AF-4000 locate the LEARN button on the AF-4000 module. Press and release the LEARN button, the AF-4000 module will beep then press any key on the Remote Control. Once the AF-4000 internal receiver accepts the transmitter code there will be a series of confirming beeps. b) The Remote system is now ready for use.

Page 80 of 80

Intertek TASMAN EP & HP, TASMAN EP, TASMAN HP Installation And Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
