Inter-Tech RS-017 User Manual
Errors excepted. No warranty for the correctness of the information
State
: 11.03.2021

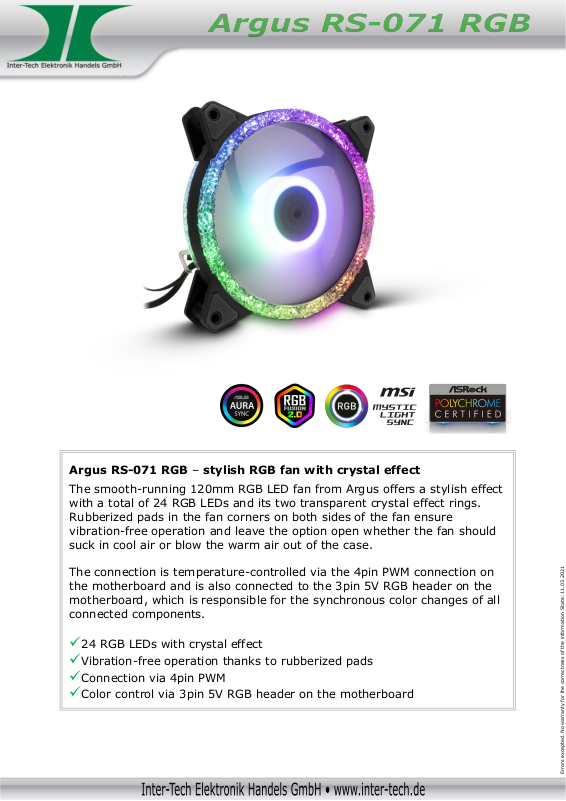

Argus RS-071 RGB – stylish RGB fan with crystal effect
The smooth-running 120mm RGB LED fan from Argus offers a stylish effect
with a total of 24 RGB LEDs and its two transparent crystal effect rings.
Rubberized pads in the fan corners on both sides of the fan ensure
vibration-free operation and leave the option open whether the fan should
suck in cool air or blow the warm air out of the case.
The connection is temperature-controlled via the 4pin PWM connection on
the motherboard and is also connected to the 3pin 5V RGB header on the
motherboard, which is responsible for the synchronous color changes of all
connected components.
24 RGB LEDs with crystal effect
Vibration-free operation thanks to rubberized pads
Connection via 4pin PWM
Color control via 3pin 5V RGB header on the motherboard
Specifications
Fan dimension (H/W/D)
25/120/120mm
LEDs
24
Fan speed
900rpm
Rated voltage
12V
Max. current of the LEDs
0.5A
Air flow
59.81cbm/h
Noise level
22dBA
Connectors
4pin PWM
Specific 5pin connection
(only for certain Argus fan sets)
3pin RGB header connector for 5V digital
Package dimension (H/W/D)
170/123/28mm
Weight (net)
140g
Weight (gross)
175g
Packing units (VE/VPE/PAL)
1/60/1800
Warranty
24 Months
Article number
EAN-Code
88885538
4260455646178
Scope of delivery
Fan screws
Manual
(german, english)
Features
Individually or for Argus Fan Sets usable
Y-connector for 3pin 5V RGB motherboard control
Two transparent rings with a total of 16 RGB LEDs
Transparent ring around the fan motor with 8 RGB LEDs
Rubberized fan corners for vibration-free operation
Fluid bearing
Errors excepted. No warranty for the correctness of the information
State
: 11.03.2021
