Inter-Tech RGB-500W II User Manual
Errors excepted. No warranty for the correctness of the information
State
: 10.09.2020

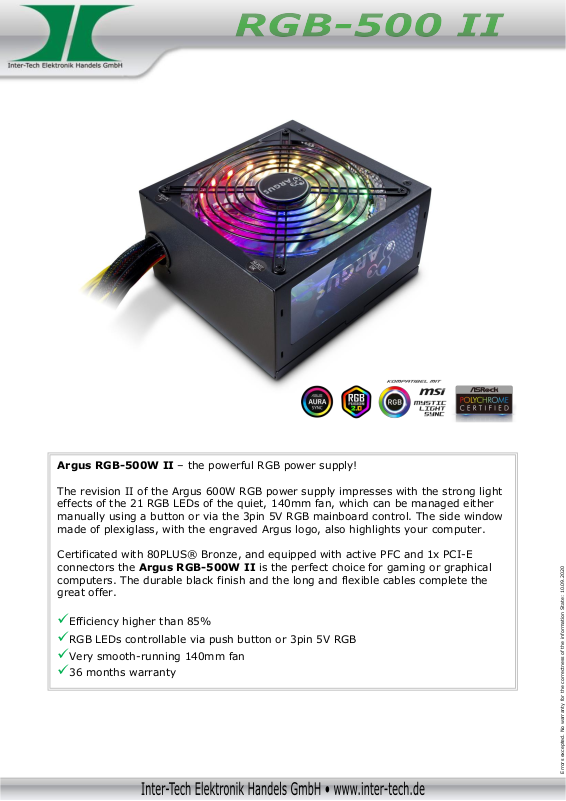

Argus RGB-500W II – the powerful RGB power supply!
The revision II of the Argus 600W RGB power supply impresses with the strong light
effects of the 21 RGB LEDs of the quiet, 140mm fan, which can be managed either
manually using a button or via the 3pin 5V RGB mainboard control. The side window
made of plexiglass, with the engraved Argus logo, also highlights your computer.
Certificated with 80PLUS® Bronze, and equipped with active PFC and 1x PCI-E
connectors the Argus RGB-500W II is the perfect choice for gaming or graphical
computers. The durable black finish and the long and flexible cables complete the
great offer.
Efficiency higher than 85%
RGB LEDs controllable via push button or 3pin 5V RGB
Very smooth-running 140mm fan
36 months warranty
^
AC Input
100V/240V 47-63Hz
DC Output
3.3V
5V
12V
-12V
5Vsb
RGB-500 II
Max.
Current
18A
15A
40A
0.3A
2.5A
Max.
Combined
Power
100W
480W
3.6W
12.5W
500W
Specifications
Output
500W
Mainboard 20+4Pin
1x
4Pin/ 4+4Pin/ 8Pin 12V
- / • / -
PCI-Express 6+2Pin
1x
PCI-Express 6Pin
-
IDE 4Pin
4x
S-ATA
4x
Floppy
1x
Fan Monitoring
-
100/240V Input
•/•
(auto.)
PFC
Active
ATX-Standard
ATX 2.3
Fan Dimension
1x 140mm
Fan Control
Automatic
Noise Level
19-35dB
Cable Management
-
Protection Circuit
OPP, OVP, SCP
PSU Dimensions (H/W/D)
86/150/160mm
Package Dimensions (H/W/D)
175/255/98mm
Weight (net)
1.29kg
Weight (gross)
1.63kg
Packing Units (VE/VPE/PAL)
1/10/320
Warranty
36 Months
Article Number
EAN-Code
88882192
4260455645492
Scope of Delivery
Manual (german, english), Power cord, Mounting screws, Cable ties
80+ Certificate
Errors excepted. No warranty for the correctness of the information
State
: 10.09.2020
Connectors
Mainboard 20+4Pin
55cm
4+4Pin 12V
55cm
15cm
Floppy
S-ATA
15cm
IDE 4pin
IDE 4pin
45cm
45cm
45cm
15cm
PCI-Express 6+2Pin
55cm
2pin RGB-LEDs
15cm
S-ATA
3pin 5V RGB
70cm
• = existing
- = non existing
IDE 4pin
IDE 4pin
S-ATA
S-ATA
15cm
15cm
