Inter-Tech R2A-MV0700 User Manual
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
• PMBus communication protocolkoll
• Remote On / OFF
• Small size

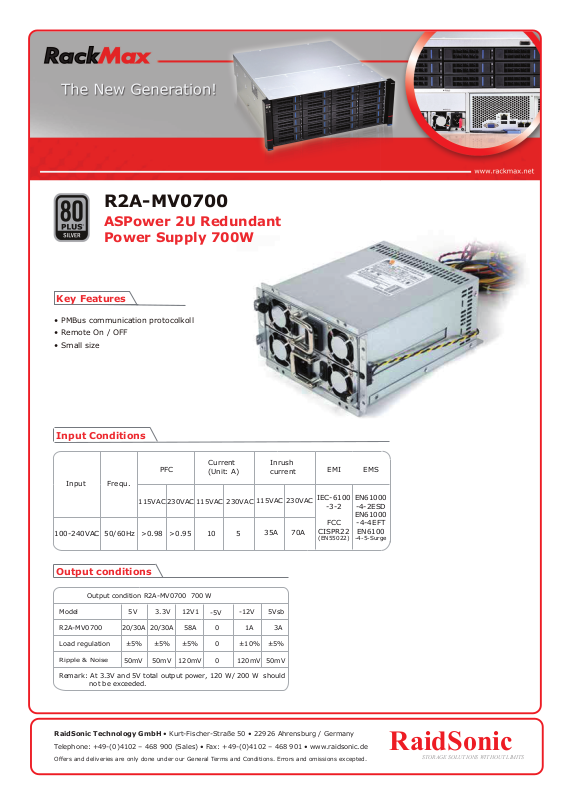

R2A-MV0700
ASPower 2U Redundant
Power Supply 700W
Key Features
Input Conditions
Output conditions
Input
100-240VAC
Frequ.
50/60Hz
115VAC5230VAC
10
115VAC
>0.98
230VAC
>0.95
Current
(Unit: A)
PFC
Inrush
current
IEC-6100
-3-2
FCC
CISPR22
(EN55022)
EN61000
-4-2ESD
EN61000
-4-4EFT
EN6100
-4-5-Surge
EMI EMS
115VAC
70A
230VAC
35A
Output condition R2A-MV0700 700 W
Remark: At 3.3V and 5V total output power, 120 W/ 200 W should
Ripple & Noise
Load regulation
R2A-MV0700
Model
1A
-12V
20/30A
5V
50mV
±5%
3.3V
50mV
±5%
58A
12V1
120mV
±5%
±10%
120mV
20/30A
3A
5Vsb
±5%
50mV
-5V
0
0
0
not be exceeded.
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Scope of delivery
R2A-MV0700
Logistical Data
20+4 PIN
EPS 12V
4+4 PIN
SATA
15 PIN
MOLEX
4 PIN
FDD
4 PIN
TTL
2 PIN
Technical Data
On delay 100 ms to 500 ms
16 ms minimum at 115VAC 80% load
20 ms maximum at 115VAC full load
Short, OPP, OCP, OVP, OTP
ON / OFF control
Operating range: 0°C ~ 50°C,
Storage temperature: -20°C ~ 80°C
Complete PMBus communication protocol
185 x 150 x 86 mm
Power good signal
Hold time
Rise time
Output protection
Remote
Temperature range
PMBus
Dimension
Model
Article No.
EAN code
Brand
Colour
Watt
Module
Efficiency
R2A-MV0700
29669
4250078162650
ASPower
Silver
700 W
U1A-M20700-DR
>88% typical load at
115VAC input (Silver)
Packing unit: 4 pcs./ carton Dimension of carton: 510 x 320 x 310 mm Import tax: 85044030
Total weight: 17.2 kg/ carton
Dimension (with handle): 199 x 168 x 102.6 mm
Gross weight (incl. packing): 4.2 kg
Dimension of article: 185 x 150 x 86 mm
Net weight / article: 3.8 kg
Country of origin: China
Dimension of packing box: 290 x 240 x 140 mm
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
x1
x6
x2 x2
x1
x1
