Interspace Industries TheatreCue 16 Way V4 System User Manual

Download

Designed and created by:-

16 Channel Cue Light System

A visual signalling system for theatres that allows silent cues to be given to actors and technicians

Built By

Up to 36 programmable Cue Lights

•

Multiple per channel

•

2,000m (6500ft)+ total cable length

•

Uses a single 1 pair cable

Cue Lights

01.

Designed and created by:-

Quick Start Guide

Using a standard 3 pin XLR microphone cable , c

•

one or more Outstations to either XLR connector on the Master Station’s rear panel. Both XLRs on the Master Station can be used at the same time.

Both Go and Standby lamps on the Master Station will

•

light dimmed once the Outstation has performed a lamp test.

•

Press a Standby button on the Master Station.

Standby lamps on the Master Station & Outstation flash.

Press the Outstation’s Confirm button

•

The Standby lamps burn steadily. Pressing the Confirm button when the Standby lamp is not flashing will light the Call lamp

•

Press the Go button The Go lamps light. The Standby lamp goes out if it was on. After 3 seconds the Go lamp flashes. After a total of 15 seconds, the Go lamp turns itself off.

onnect

3 4

Master Station’s front panel

Cue Light Outstation

Built By

Trigger cues across multiple channels by the press of a

•

single master Group button Assign channels to Group A or B

When an Outstation is unplugged, the Fault lamp

•

flashes. Reset the Fault lamps by pressing both the red and blue buttons on the Master Station.

Power. 36V DC 1.9A

Master Station’s rear panel

02.

Designed and created by:-

Index

Quick start Guide

The Cue Light Components

16 Channel Master Station. QLM16i2 Mk4

Cue Light

Cue Light Outstations

Standard Outstation features in detail

Multiple Outstations per channel

Relay Outstation. QLRi2 Mk4

Changing an Outstation’s channel

Outstation Cables

Linking multiple Master Stations

Master Station Configuration Editor

Diagnostics

System design suggestions

Specifications

Outstation types and configuration

Standard Outstation. QLSi2 Mk4 Beeper Outstation. QLSi2-B Mk4

Built By

Warranty, Declarations and Standards.

03.

Designed and created by:-

The Cue Light Components

Standard Cue Light Outstation Model QLSi2 Mk4

Cue Light Master Station.

Cue Light Master Station. Model QLM16i2 Mk4

Details on page 7

16 channel digital Cue Light Master S can be used

•

with any number of Cue Light Outstations from 1 to 40.

Any number of Outstations (up to the maximum 40) can be

•

connected to any channel

Up to 6 Master Stations can be linked for larger systems.

•

Dual Master Stations can be used on the same wiring

universe. (this feature coming soon)

Can be controlled from a PC running show control

software.

5 types of Outstation including Relay.

•

Up to 16 programmable options for each individual channel.

•

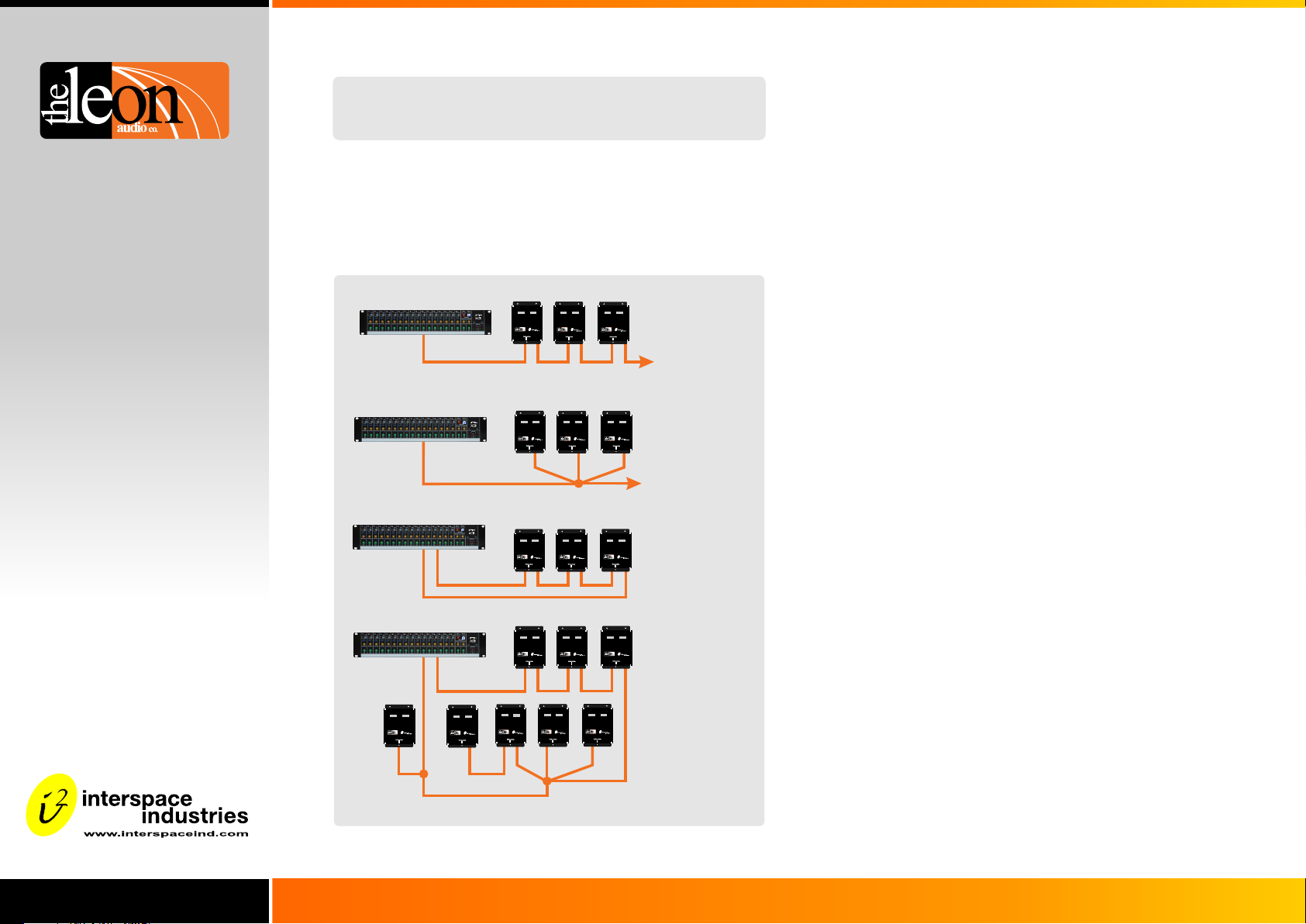

Outstations can be wired using daisy chain, star and/or

•

loop wiring topologies on a single 3 pin XLR microphone cable.

tation

Cue Light Beeper Model QLSi2-B Mk4

Outstation with

Standard Cue Light Outstation. Model QLSi2 Mk4

Details on page 14

20mm Go and Standby LED lamps are b

•

and dimmable.

Red or yellow Standby lamp option programmable per

•

Outstation.

Backlit Acknowledge button can also signal the Master

•

Station.

Eavesdrop mode switch enables the use of multiple

•

Outstations per channel.

16 programmable options for each individual Outstation.

•

right, wide angle

Cue Light Outstation with Beeper. Model QLSi2-B Mk4

Details on page 14

As per the Standard Outstation, but with an inbuilt beeper.

•

Built By

Total cable length can be greater than 2,000m (6,500 feet).

•

Powered from a universal 90/264V 50/60Hz external power supply.

•

The beeper is triggered by the Beep button on the Master

•

Station and/or programmable Beep-on-Go option.

It can be used as a Standard Outstation (without beeps) as it

•

only beeps when specifically commanded to do so.

All Outstations are available individually.

04.

Designed and created by:-

The Cue Light Components

(Continued)

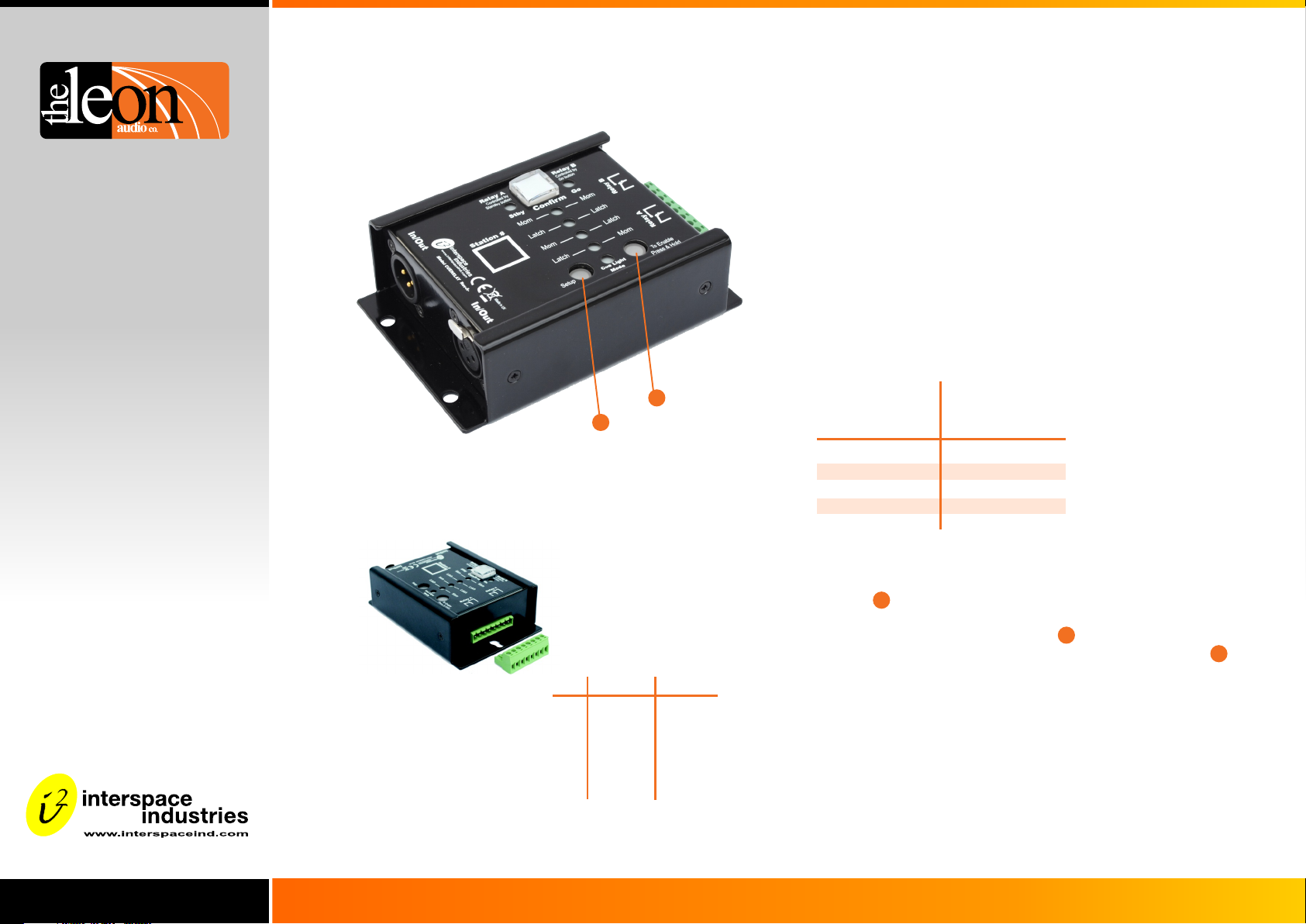

Relay Outstation

Relay Outstation. Model QLRi2 Mk4

Details on page 19

This Outstation has two relays with changeover contacts

•

which allows for direct control of other circuits such as smoke machines, door bells and stage telephones etc.

The relays are controlled by the Go and Standby buttons on

•

the Master Station.

Cue Light/Latching/Momentary operating modes are

•

selectable.

Connection to the voltage free relay contacts is via Phoenix

•

compatible connectors.

There is provision for an external Confirm button.

•

10 programmable options for each individual Outstation.

•

It can function as a Standard Outstation although the Go

•

and Standby lamps are only 5mm in diameter.

RS232/RS485 Computer interface

PC Interface

Connects between the Master Station and a PC running

•

party show control software to provide remote control for up to 6 Master Stations via RS232 or RS485.

Allows control from a touch screen or show control script.

•

QLi2-PCi Mk4

3rd

Built By

05.

Designed and created by:-

The Cue Light Components

Coming Soon

Ethernet bridge.

•

Splitter with 2 or 4 ports.

•

2,000m of cable on each port. Master and Outstations can connect anywhere on any port.

(Continued)

Built By

06.

Designed and created by:-

Built By

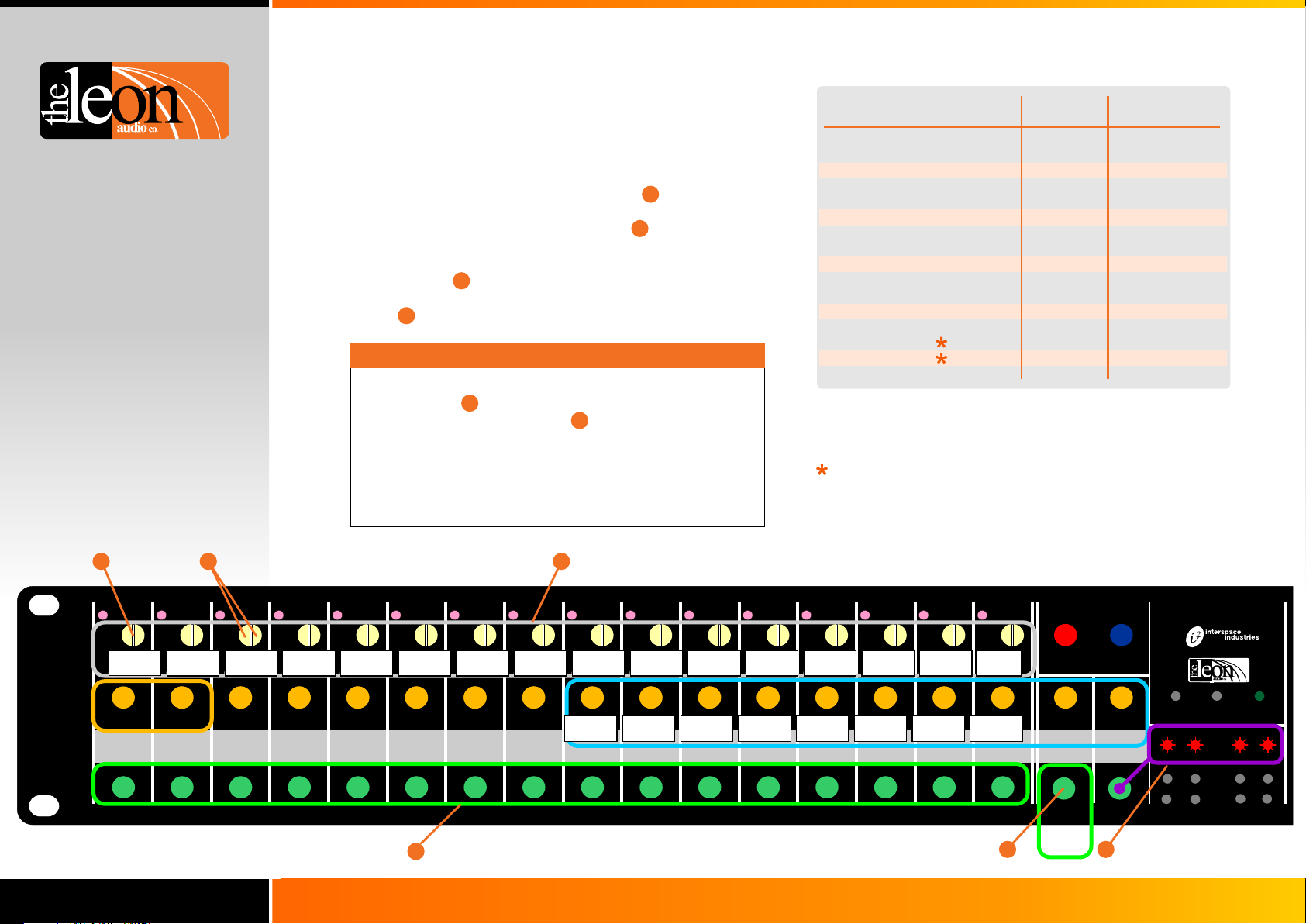

16 Channel Master Station

The system consists of a Master Station and any number of Cue Light Outstations from 1 to a maximum of 40.

Cue Light Outstations have an Eavesdrop mode which allows an unlimited number of Outstations to be assigned to the same channel (up to the system’s maximum of 40).

The wiring between a Master Station and its Outstations is known as a wiring universe. A universe supports a maximum of 16 channels. With multiple Outstations per channel, there may be up to 40 Outstations connected to these 16 channels.

The Master Station can be connected at any point in the wiring universe. This allows the Master Station to be easily moved from any mode to any other mode on the wiring, such as from prompt corner to a production desk in the auditorium during rehearsals.

Two Master Stations can be connected to the same wiring universe allowing for dual control of 16 channels. (this feature coming soon)

QLM16i2 Mk4

Up to 6 Master Stations can be linked for larger systems. Each Master Station must have its own wiring universe of 16 channels.

The digitally addressed Cue Light Outstations are connected using a single 3 pin XLR microphone cable although screened data cable is preferable.CAT5/6 cable may be used. Outstations may be connected using either daisy chain, star and/or loop wiring topologies. The Master Station provides power to all Outstations over this same cable.

Cable faults are reported as soon as they happen as Outstations are in continuous communication with the Master Station.

A Short lamp lit indicates a short circuit in the external wiring to the Outstations. External wiring is protected by an electronic current limiter which is backed up by a self resetting fuse.

A white designation strip runs between all channels.

07.

Designed and created by:-

16 Channel Master Station

Power. 36V DC 1.9A

(Continued)

Go and Standby buttons

The illuminated

Go and Standby buttons on the Master

Station light dim once an Outstation is connected and has performed a lamp test. These 2 buttons are used to send cues to a Cue Light Outstation.

The Go and Standby buttons light brightly in response to a Go or Standby cue. They are driven by data returned from the Outstations.

This is known as positive monitoring. They are not just a local indication that a button has been pressed.

Built By

Parallel XLR

connectors for

Outstations

Parallel Expansion Ports

for PC Interface and

the linking of Masters

Master station’s rear panel

Master Mode Switch. Used when 2 Masters are connected (this feature coming soon)

Eavesdrop Outstations

On any channel, set only one Outstation to Normal Mode. This Outstation will send return monitoring to the Master station for driving the Go and Standby lamps

All additional Outstations assigned to that same channel must be set to Eavesdrop Mode. These additional Outstations respond to commands from the Master Station but send no return monitoring. They can however, send Call signals. (see the following page)

For more details on Eavesdrop Mode see the section on Multiple Outstations per channel (page 18).

08.

Designed and created by:-

16 Channel Master Station

(Continued)

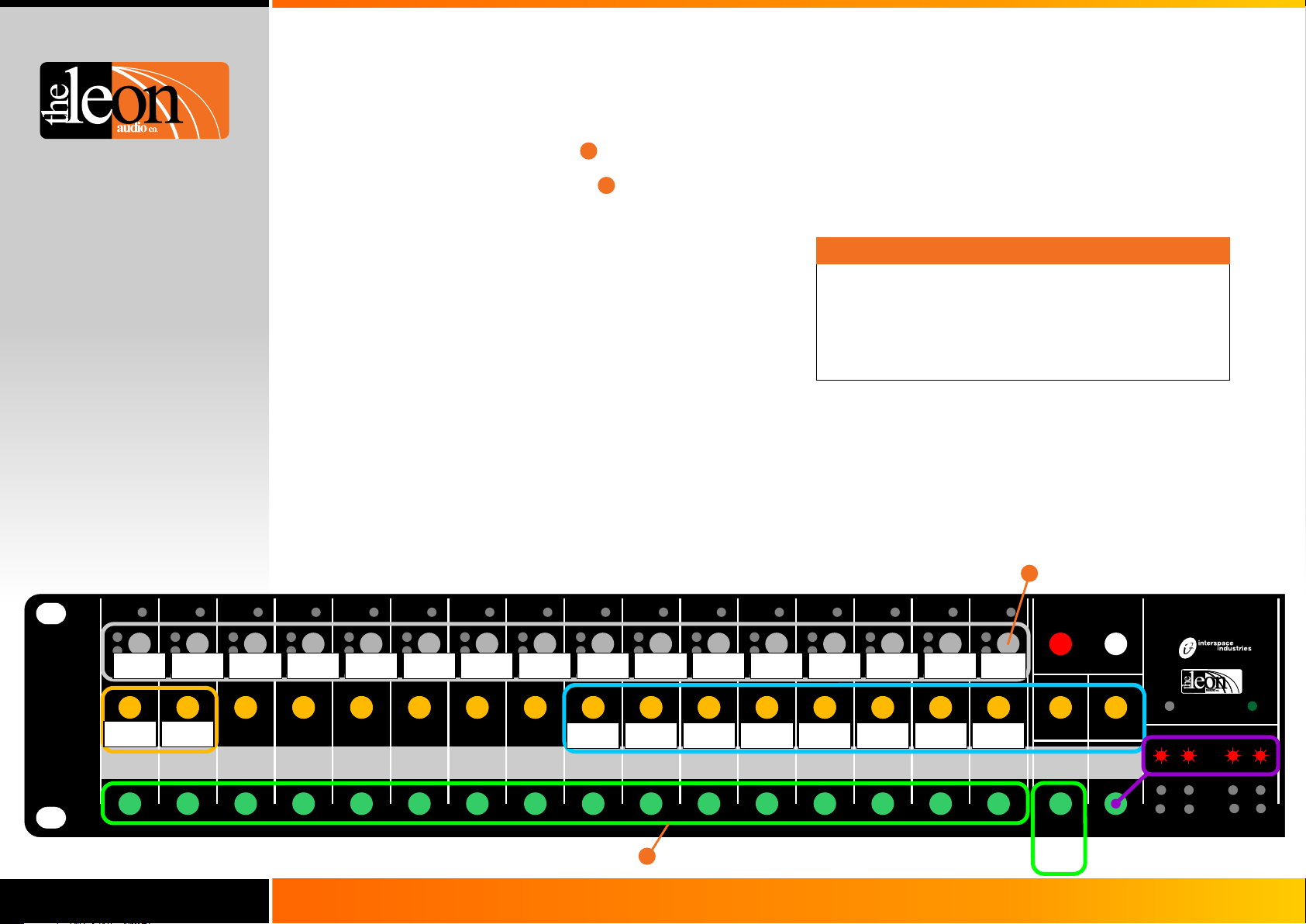

Call Lamps

Each channel has a blue Call lamp to enable an Outstation to signal the Master Station.

An Outstation’s Confirm button has 2 functions. If a Standby cue is waiting to be acknowledged (Standby

•

lamps flashing), pressing the Confirm button will cause the Standby lamps to burn steadily. Pressing the Confirm button at any other time will light the

•

Call lamp.

The Call lamps can be disabled as well as set to flash or burn steadily on a channel by channel basis. These changes are made via the Master Station’s Configuration Editor. (page 34)

While Outstations set to Eavesdrop Mode do not send return monitoring to the Master Station, they do send Call signals.

Fault Lamps

A red Fault lamp at the top of each channel indicates when an Outstation is not communicating with the Master Station. This could be due to an unplugged Outstation or a cable fault. The Fault lamp has 3 states. On, Off and Flashing.

The Fault lamp is off when a channel is unused (no

•

Outstation connected). Go and Standby buttons will also be off. The Fault lamp is also off when an Outstation is connected but in this case the Go and Standby buttons will light dimmed.

The Fault lamp is on if a channel has an Outstation

•

connected in Eavesdrop Mode but no Outstation in

Normal Mode.

The Eavesdrop Mode Outstation will still respond to Go and Standby cues but the Go and Standby buttons on the Master Station will not light as there is no return monitoring from Outstations in Eavesdrop Mode.

The Fault lamp flashes when all Outstations on that channel

•

are unplugged.

Flashing Fault lamps can be reset by pressing both the Beep and Dimmer The Master Station and Outstations are in continuous communication with each other, enabling prompt detection of cable faults or disconnected Outstations.

on the Master Station.

Built By

09.

Designed and created by:-

16 Channel Master Station

(Continued)

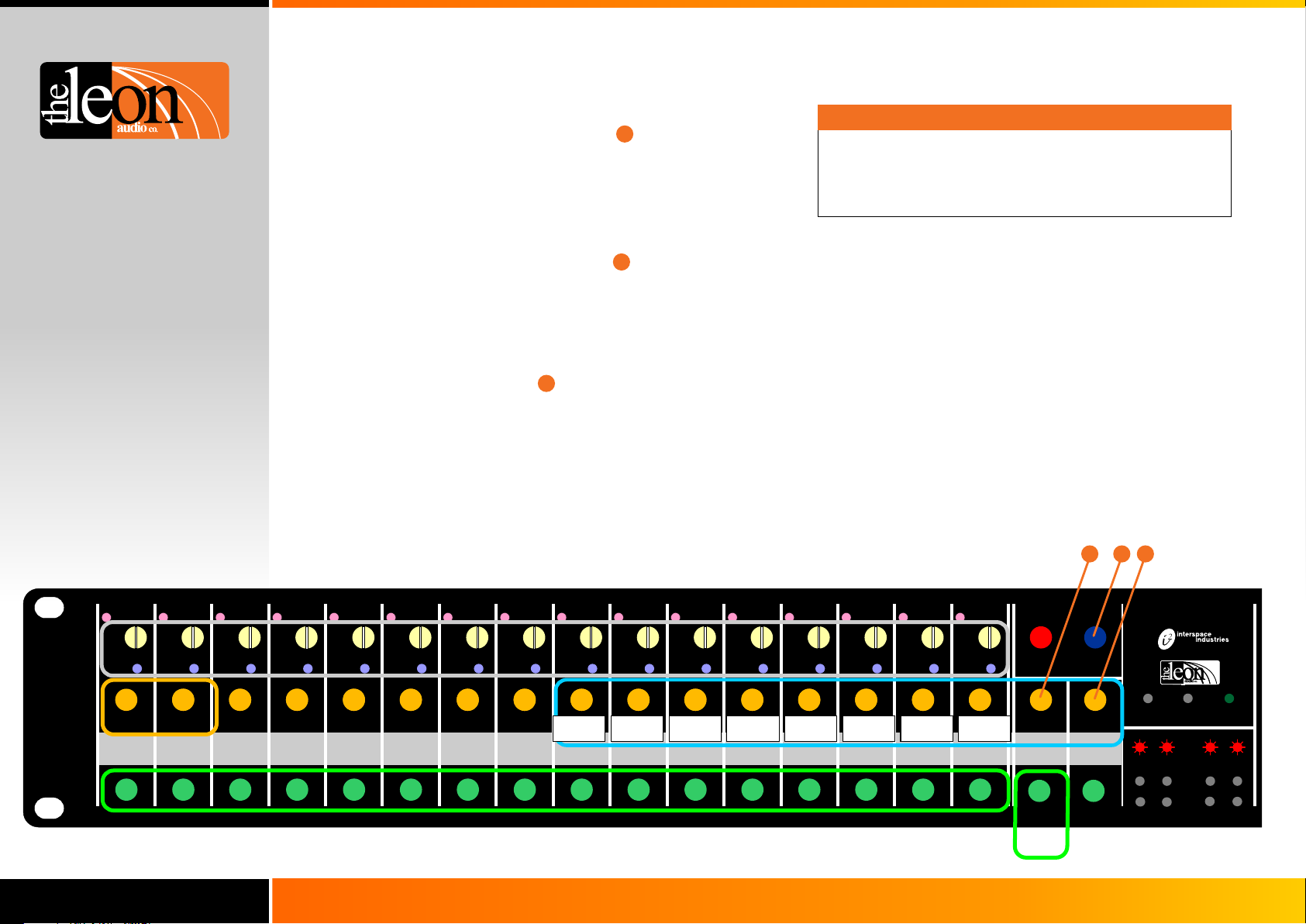

Group buttons

The group feature allows cues across multiple channels to be triggered by the press of a single button. Any channel can be assigned to one of two Group Master buttons Group A and Group B

The group assignment for each channel is controlled by the Group button and its associated amber lamps.

Pressing a Group button cycles through four possible group assignments: A, B, A+B and none. Pressing either of the Group Master Go or Standby buttons is exactly the same as pressing the corresponding Go or Standby button on any channel that has been assigned to that group master.

The channel's Go and Standby buttons still remain fully operational independent of any group assignment. The status of each channel’s Group button is saved in memory and is restored when the Master Station is powered up.

Power. 36V DC 1.9A

Parallel XLR

connectors for

Outstations

Parallel Expansion Ports

for PC Interface and the linking of Master

Stations

Master Station Mode switch. Used when 2 Master Stations are connected

Linking Multiple Masters Stations

When multiple Master Stations are used, the 4 Group Master buttons can be linked across the Master

Stations via an expansion port on the rear panel. Up to 6 Master Stations can be linked.

Pressing any of the four Group Master buttons on any Master Station will electronically press the corresponding Group Master button on all linked Master Stations. This allows cues across multiple Master Stations to be triggered by the press of a single button.

Built By

To quickly clear group assignments across multiple channels, press and hold any two Group buttons for 0.5 seconds. All channels between (and including) those two buttons will have their Group assignments set to off.

10.

Designed and created by:-

16 Channel Master Station

(Continued)

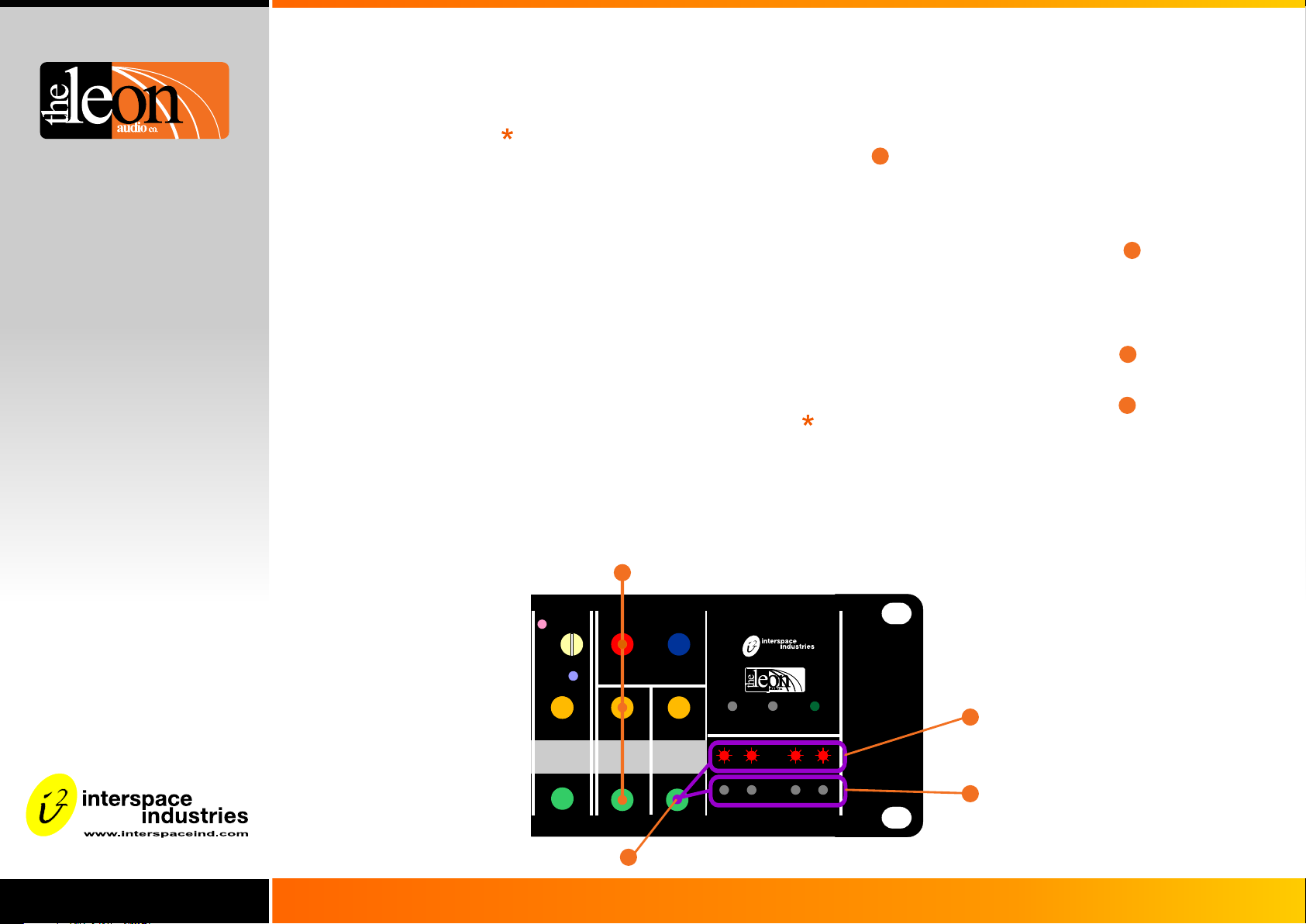

Short Lamp

The Short lamp indicates short circuits on the external XLR wiring. Fault current is electronically limited to approximately

1.6 amps. If the short is maintained for more than 400mS, the power supply enters a hiccup mode where power to the Outstations is turned off and reapplied once every few seconds until the fault is cleared. If the short is persistent, the period before reapplying power

increases from 2 seconds to 8 seconds.

Beep button

The red Beep button works like a shift key in conjunction with a channel’s Go and Standby buttons. The Beep function requires a Beeper Outstation (Model QLSi2-B) which is basically a standard Cue Light outstation fitted with a beeper. This Outstation functions just like a standard Outstation when the Master Station’s beep button isn’t pressed. The beeper can be triggered to emit either a very short beep (which sounds like a click), or beep for as long as the button is pressed, up to a maximum of one second.

Beep button + Standby button = very short beep. Beep button + Go button = long beep.

The beep is accompanied by the flashing of the Standby lamp on the triggered Outstation(s). The Beep button can also be used in conjunction with the group master buttons. The beep function can be disabled on a channel by channel basis via the Master Station Configuration Editor. (page

34)

Dimmer button

The Outstation lamps can be dimmed in five steps from 5% to 100%. Press and hold the Blue Dimmer button on the Master Station. Use the Standby button to increase intensity or the Go button to decrease intensity. Once 5% or 100% is reached, further presses are ignored. Four presses of the Standby button will set an Outstation to 100% irrespective of its initial setting. The Dimmer button can also be used in conjunction with the group master buttons. The Go and Standby lamps on the selected Outstation flash alternately as the intensity is adjusted.

The intensity can also be adjusted from an Outstation. Press and hold the Dimmer button on the Master Station. Pressing the Confirm button on an Outstation starts the Go and Standby lamps flashing alternately. Subsequent presses of the Confirm button increase the intensity by 1 step. When 100% is reached, it rolls back to 5%. The lamps flash faster when at 100%.

The dimmer settings for each channel are saved in the Master Station memory and are restored when the Master Station is powered up.

Built By

The Beep command is ignored by Outstations not fitted with a beeper.

Tip:

Multiple channels can be dimmed simultaneously by assigning channels to one of the 2 Groups and then using that Group’s Master Go and Standby buttons to increase or decrease the dimmer intensity.

11.

Designed and created by:-

16 Channel Master Station

(Continued)

Built By

Power. 36V DC 1.9A

Parallel Expansion Ports for PC Interface and the linking of Master Stations

Expansion Port

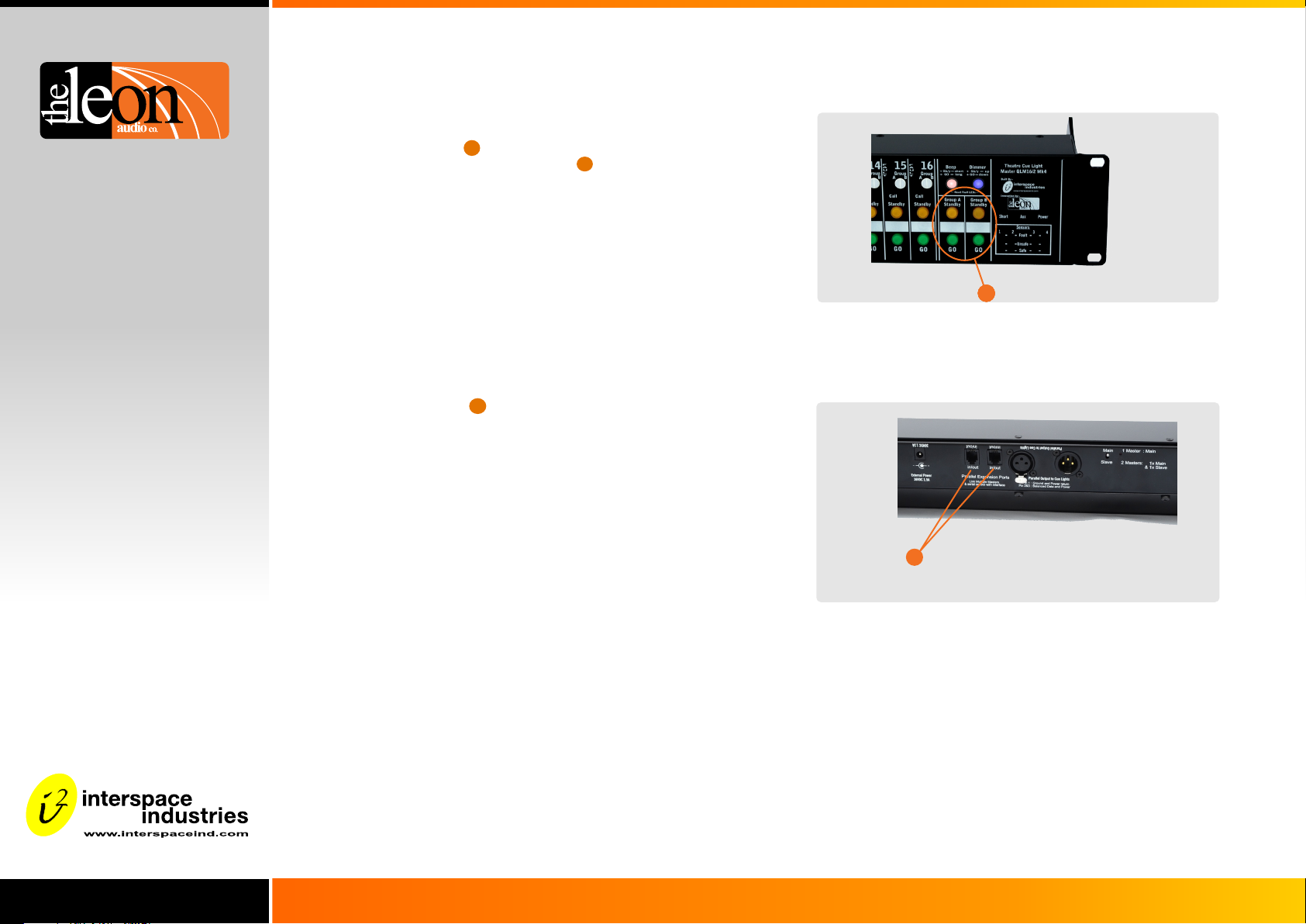

An Expansion Port consisting of

two parallel RJ12

Parallel XLR

connectors for

Outstations

Master Station Mode switch. Used when 2 Master Stations are connected

connectors allows for the linking of multiple Master Stations (see page 10) and also for connection of the PC Interface

(see page 5)

unit . The cable is of the 6 core flat telephone type. Suitable cables are supplied with the PC Interface and multiple Master Station purchases. These cables are intended to be short patch leads because they are unscreened and untwisted, however, lengths up to 100m (300 ft) will work. RJ12 cables with only 4 of the 6 pins wired can also be used. (pins 1 & 6 not wired)

RJ12

654321

Pins 1&2: Ground Pins 3 & 4: RS485 data Pins 5&6: +30V power

Expansion Port wiring

(looking at the socket on the rear of the Master Station)

(This feature coming soon

Master Mode Switch

- not yet available)

When two Master Stations are connected to the same wiring

universe for dual control of 16 channels, set the Master Mode switch on one Master Station to Main and the other

to Slave. The configuration settings stored in the Main Master Station will be those used to run the Cue Lights. These configuration settings will also be copied across to the Slave Master Station so that either Master Station can then run the show.

If only one Master Station is connected, set the mode switch to the Main position.

Master

Mode

Main

Slave

Main: Single or 1st Master Slave: 2nd Master

Master Mode switch

Power Connector

The Master Station is powered from an external AC adaptor rated at 36V DC and 1.9 amps. Input to the adaptor is 90 to 264 volts 50/60Hz The Master Station provides power to all Outstations via the interconnecting 3 pin XLR cables. The Master Station can be powered from a supply as low as 24 volts DC although the cable length to the Outstations may need to be reduced as there are less volts available to overcome losses in the interconnecting cables.

12.

Designed and created by:-

Outstation types and configuration

Different Types: Same channelOutstation Configuration

There are currently 2 main different types of Outstation that can be connected to the Cue Light Master Station. Standard Outstation (QLSi2 Mk4)

•

Relay Outstation (QLRi2 Mk4) There are a number of options that can be configured for

•

each type of Outstation. Details of these options can be found in the following pages describing each type of Outstation. All options can be changed using the Master Station Configuration Editor.

Any of the two Outstation can be connected to any channel. The Master Station stores configuration (option) settings for each type of Outstation for each channel. When an Outstation is connected, the configuration data for that specific type of Outstation is used to configure that channel. When an Outstation is swapped for a different type the configuration data for the newly connected type of Outstation is used by the Master Station to reconfigure that channel.

The Relay Outstation (QLRi2 Mk4) also allows for their configurations to be changed from their front panel. Any configuration changes made this way are sent to the Master Station and saved in the Master Station’s memory for recall next time the system is powered up.

Variants: Beeper (QLSi2-B Mk4)

(page 34)

types

Different types of Outstation (QLSi2 or QLRi2) can be connected to the same channel at the same time but only one type will be operational. The first Outstation type to be connected will become operational. Other Outstation type(s) added later will be non-operational until the first (operational) Outstation is unplugged.

When 2 or more different types of Outstation are connected at power up, the type with the highest precedence will become operational. Types with lower precedence will be non-operational until the operational type is unplugged. The order of precedence is:Standard outstation QLSi2 (highest) Relay Outstation QLRi2 (lowest)

Built By

The Master Station has seven files (presets) that can be recalled by the user. There are two Factory Default , one Installer Default and four User

The configuration settings stay with the channel and do not follow the Outstation. If an Outstation is re-addressed to a different channel, it will take on the configuration settings assigned to the new channel. When an additional Outstation (in Eavesdrop Mode) is added to a channel it will take on the configuration settings assigned to that channel.

file files.

files

13.

Designed and created by:-

Cue Light Outstations

Standard

With beeper

Standard Cue Light Outstation QLSi2 Mk4

Outstation with Beeper QLSi2-B Mk4

QLSi2 Mk4 QLSi2 -B Mk4

The Beeper Outstations can be used as a Standard Outstation. They only beep when the red button on the Master Station is pressed in conjunction with the Go or Standby button on the required channel. Beep button + Standby button = very short beep. Beep button + Go button = long beep. They beep independently of whether a cue is active or not.

Beeper Outstations can also be programmed to beep when ever a Go cue is received. See Beep-on-Go on page 39.

Typical Operation

Press a Standby button on the Master Station.

•

Standby lamps on both the Master Station and

Press the Outstation’s Confirm button.

•

The Standby lamps burn steadily.

Press a Go button on the Master Station.

•

The Go lamp lights. The Standby lamp goes out if it was on. After 3 seconds the Go lamp flashes. After 15 seconds, the Go lamp turns off.

(with factory default settings)

Cue Light Outstation flash.

Beep

Built By

It is not necessary to give a Standby cue before giving a Go

Go and Standby cues can be given at any time

cue. regardless of any previous cue state.

The Go or Standby lights can be turned off or cancelled at any time by pressing their respective buttons a second time. Multiple Go cues are simply done by using the Go button only. Press Go to turn the Go Light on, press it again to turn it off. The Go lamp is also programmable (on a per channel basis) between latching or non-latching (momentary acting) to allow for even faster cueing. Op the Master Station Configuration Editor. (page 34)

tions can be changed using

14.

Designed and created by:-

Cue Light Outstations

(Continued)

Anywhere from 1 to 40 Outstations can be connected to the Master Station.

Rectangular 25mm/10mm Go and Standby lamps are bright, wide angle and dimmable in 5 steps from 5 to 100%.

The Go and Standby lamps consist of four LEDs for each colour. The LEDs are fed from 2 drive circuits with two LEDs per circuit to provide redundancy should any of the LEDs or drive circuits fail.

The Confirm button is back lit so you can find it in the dark. The back light only comes on when error free communication is established with the Master Station. The backlight winks slowly if data is lost as can happen if the 2 data conductors are shorted together.

Any Outstation can Call the Master Station. An Outstation’s Confirm button has 2 functions. If a Standby cue is waiting to be acknowledged (Standby lamp flashing), pressing the Confirm button will cause the Standby lamps to burn steadily. Pressing the Confirm button at any other time will light the Call lamp on the Master Station.

The address of any Outstation can be changed in a few seconds without the use of any tools or fiddly DIP switches. See Changing an Outstation’s address (page 22).

Multiple Outstations can be used on the same channel by setting additional Outstations to Eavesdrop Mode. See Multiple Outstations per channel (page 18).

Outstations can be added or removed while the power is on.

Flush mounted Confirm button, Go and Standby lamps are virtually impossible to break or shear off.

The 2mm steel outer case has a total of 6 mounting holes including a 10mm hole for attaching a hook clamp. A 3/8" microphone stand mount is at the centre of the rear cover. When mounted to a microphone stand with the front of the Outstation facing the ceiling, the Outstation can be viewed from 360 degrees.

Built By

Outstations may be connected using either daisy chain, star and/or loop wiring topologies. Outstations can be wired up in any order. Outstation #2 does not have to follow #1 in a daisy chain.

Technical note

The Outstation data is balanced and uses transformer isolated RS485. (RS485 is what DMX uses.) The data uses a Group Encoding scheme with digital FM modulation for excellent noise immunity and error detection. Data is slew rate limited to reduce radiated electrical noise to a minimum. Outstations are powered by the Phantom Power principle where power is sent down the data pair with a ground return.

15.

Designed and created by:-

Cue Light Outstations

(Continued)

The following options can be programmed individually for each channel from the Master Station. To change any of these settings, see the Master Station Configuration Editor on page 34.

Option

S/by colour S/by Flash on S/by Flash on S/by latches S/by Dim on ACK Go Flickers Go times out Go flashes Go latches Go & S/by interlocked Call LED enabled Call LED Flashes ACK button backlight Beeper (QLS-B only) Beep on Go (QLS-B only) Dimmer

Cue Light options for the following Outstation types: Standard (QLSi2), Beeper (QLSi2-B).

Outstation

Outstation Master

Factory

Default

Yellow Flashes Flashes Latches No Steady Times out Flashes Latches Interlocked Enabled Flashes On Enabled Silent 100%

User Selectable Option

Red Steady Steady Momentary Dims on ACK Flickers Stays on Steady Momentary Independent Call LED off Steady Off Disabled Beeps on Go

5-100%5 steps:

Standby Flash on Master Station

•

Default setting is to flash. If the Outstation’s standby lamp is set to not flash, it is desirable to have the Master Station’s lamp flash so that an indication of a Confirm cue can be seen. Some applications use the Outstations to indicate a safe/unsafe condition. In this situation the Standby lamps on both the Master Station and Outstation are set to not flash.

Standby Latches

•

Default setting is to latch. If set to unlatched (momentary action), the Standby lamp will only be lit for as long as the Master Station’s Standby button is pressed.

Standby Dim on Confirm

•

Default setting is not to dim. When an Outstation’s Standby lamp is set to not flash, the Outstation can be set to dim its Standby lamp to indicate a confirm cue.

Go lamp flickers

•

Default setting is not to flicker. As an aid for colour blind users, the Go lamp can be set to flicker instead of burning steadily. The flicker rate is approximately 30Hz.

Built By

These 16 options can be combined in 48,152 different ways for each channel. Hopefully there is a combination that suits any special applications that may arise. Please let us know if there are any options that you would like but are not provided.

Standby Colour

•

Selectable between red and yellow (default).

Standby Flash on Outstation

•

Default setting is to flash. Some users prefer a non-flashing standby lamp. The Outstation’s standby lamp can be set to flash or not independently of the standby lamp on the Master Station. To indicate an acknowledged cue on the Outstation, the Outstation can be set to DIM on Confirm if required.

Go lamp times out

•

Default setting is to time out after 15 seconds. Once a Go button on the Master Station has been pressed, the cue will cancel itself after 15 seconds allowing the stage manager to attend to other duties. It can be set to not time out and will stay on until either the Go or Standby button is pressed.

Go lamp flashes

•

Default setting is to flash. Once a Go button on the Master Station has been pressed, the Go lamp will initially burn steadily but will flash after 3 seconds. It can be set to not flash and will burn steadily until it times out or is cancelled.

Beeper and Beep-On-Go options only apply when a Beeper Outstation (QLSi2-B) is connected to that channel. Outstations without a beeper ignore the beeper settings.

16.

Designed and created by:-

Built By

Standard Outstations

Go Latches

•

Default setting is to latch. If set to unlatched (momentary action), the Go lamp will only be lit for as long as the Master Station’s Go button is pressed. Handy for rapid fire cues.

•

Go and Standby Interlocked

Default setting is interlocked. When interlocked, pressing the Go button will cancel a Standby cue if it is active. Likewise, pressing the Standby button will cancel a Go cue if it is active. If set to non-interlocked, both Go and Standby lamps can be on at the same time. One application is when Outstations are used as under stage path lights where the Cue light system can also be easily fed from a battery backed supply for added under stage safety.

•

Call Lamps enabled

Default setting is enabled. If disabled, the Call lamp on the Master Station will not light. If a Standby cue is waiting to be confirmed (Standby lamp flashing), pressing the Outstation’s Confirm button will cause the Standby lamps to burn steadily. Pressing the Confirm button at any other time will light the blue Call LED on the Master Station.

Call Lamps flash

•

Default setting is to flash. The blue Call lamp on the Master Station can be set to flash or burn steadily.

(Continued)

Confirm button back light

•

Default setting is to be lit. The Confirm button’s back light can be turned off. One well known circus uses the Outstations to indicate the safety status of acrobatic equipment. In this case the back light is turned off.

Beeper (QLSi2-B Outstation only)

•

Default setting is to beep. Beeper Outstations can have their beeper disabled. This is not normally required as the beeper only sounds when the red Beep button on the Master station is pressed.

Beep-on-Go (QLSi2-B Outstation only)

•

Default setting is to not beep. Beeper Outstations can be set to beep whenever a Go cue is received. The beep can be programmed to be off, 5mS, 50mS or 200mS duration. Changes are made by using the Master Station Configuration Editor (see page 34). A 5mS beep is heard as a discreet click rather than a beep. Handy for sound and lighting operators.

•

Dimmer

The Outstation’s lamp intensity can be dimmed in 5 steps from 5 to 100%

17.

Designed and created by:-

Multiple Outstations per channel

Eavesdrop Mode

One might use multiple Outstations assigned to the same channel for some permanent function such as the fly floor, leaving the two groups free on the Master Station for other uses.

When there is only one Outstation on a channel, set the

•

Outstation‘s Mode switch to Normal. This Outstation will send return monitoring to the Master Station for driving the and Standby buttons.

•

When there is more than one Outstation on a channel, set additional Outstations to Eavesdrop Mode. These Outstations do not send return monitoring to the Master Station for driving the Go and Standby lamps.

Cues can be Acknowledged from both Normal and

•

Eavesdrop mode Outstations.

If more than one Outstation on any one channel is set to Normal mode, incorrect operation may result but no damage will be done.

illuminated

Important:

On any one channel:

Set one Outstation to Normal Mode.

Set the additional Outstation to Eavesdrop Mode.

Should only Eavesdrop Mode Outstations be connected to a channel, the Outstations will respond to Go and Standby cues but the Go and Standby lamps on the Master Station will not light as there is no return monitoring. The Fault LED on that channel will light steadily to show that only Eavesdrop Mode Outstations are connected.

Any number of Outstations ( up to the system maximum of

40) may be assigned to a single channel.

Built By

Up: Normal mode

Down: Eavesdrop mode

The Outstation’s Mode switch selects between Normal and Eavesdrop modes.

Tip:

If an Eavesdrop Mode Outstation is on the end of a cable run and it is disconnected, there will be no indication on the Master Station as there will be no loss of return monitoring to be detected.

If possible, arrange the Outstations so that a Normal Mode Outstation (of any channel) is on the far end of a cable run. Should the cable break or become disconnected, the return monitoring from Normal Mode Outstation will stop. This loss of return monitoring will be indicated by flashing Fault lamp on the Master Station.

18.

Designed and created by:-

Relay Outstation QLRi2 Mk4

The Relay Outstation provides two voltage free changeover relay contacts controlled by the Master Station.

Relay A is controlled by the Standby button. Relay B is controlled by the Go command.

The relay contacts are rated at 2 amps 30 volts AC or DC.

Built By

Relay Outstation QLRi2 Mk4

Pin 1

Relay connections

Pin 8

Pin Relay A Relay B

Common

N.C.

N.O. 6 7 8

pins 4 & 5 not used

Common N.C. N.O.

An external Confirm

normally open momentary acting

button may be connected if required.

The Relay Outstations have 5 modes of operation.

Relay A Relay B

Controlled by Standby button

Momentary Latched Momentary Latched Cue Light Mode

These 5 modes can be programmed via the Master Station

Configuration Editor (page 34) or by using the Setup button on the Relay Outstation.

To prevent accidental mode changes, the Setup button is interlocked with an Enable button To change the mode, press and hold the Enable button After a 500mS delay, the Setup button will light indicating that it is enabled. Pressing the Setup button will step through the modes. Any configuration changes made this way are sent to the Master Station and saved in the Master Station’s memory for recall next time the system is powered up.

Controlled by Go button

Momentary Latched Latched Momentary Cue Light Mode

19.

Designed and created by:-

Relay Outstation

The standard Relay Outstations do not have an Eavesdrop switch. They are available with an Eavesdrop switch to special order, thereby allowing multiple Relay Outstations to be used on the same channel. Changing the mode via the front panel of an Outstation will simultaneously change the mode of all Relay Outstations connected to that channel.

When the Relay’s Cue Light mode is selected, the following options are also available. These features can be programmed individually for each channel via the Master Station Configuration Editor (page 34).

(Continued)

Built By

Option

S/by Flash on Master S/by Flash on Outstation S/by latches Go times out Go flashes Go latches Go & S/by interlocked Call lamp enabled Call lamp Flashes All Outstation lamps

These options function in the same manner as the options on a Standard Cue Light Outstation. See pages for details of these options.16-17

Factory

Default

Flashes Flashes Latches Times out Flashes Latches Interlocked Enabled Flashes Enabled

User Selectable Option

Steady Steady Momentary Stays on Steady Momentary Independent Call LED off Steady Off

20.

Designed and created by:-

Relay Outstation

(Continued)

Wiring examples for the Relay Outstation

Built By

Relay A

12-24V Lamp(s)

Relay B

Relay Outstation

2 Amps max.

Relay Outstation driving a low voltage lamp

12-24V

Relay A

Relay B

Relay Outstation

Relay Coil

Power

Relay

to suit lamp

to suit relay

120/240V

Lamp

Power

Supply

Power

Supply

120/240V

Mains

Bright Outdoor Cue Light Idea

Power supply

QLRi2 Mk4

The relay contacts are NOT to be connected direct to mains wiring

to suit lights

Relay Outstation driving a mains voltage lamp or a high power load

21.

Designed and created by:-

Changing an Outstation’s channel

... without the use of any tools or DIP switches.

An Outstation’s channel is stored in non-volatile EEPROM memory so that it will be remembered even when the power is off.

Press & hold the Confirm button while plugging

in the Outstation’s XLR cable. Release the button when the button lights.

The Outstation will flash its Standby lamp the

number of times corresponding to the unit’s currently programmed channel. It will repeat after a short pause. To leave the unchanged, jump to step 4.channel

Built By

(It is next to me) (It is 100m away)

Press the Go button on the Master Station of the channel who’s number you wish to assign to the Outstation. The Outstation will reboot and be ready for use.

All done.

Yes

Is the Master Station

accessible?

Press the Outstation’s Confirm button the number of times coinciding with the new channel. e.g. 3 times for channel 3. It will flash the newly saved channel after a 2 second pause. Valid channels are 1 to 16 inclusive. More than 16 presses of the button are ignored. If you make a mistake, just repeat step 3.

Exit the channel programming mode by doing any one of the following:

•

Unplug the XLR, wait a few seconds and plug it back in again.

•

Press and hold the Confirm button until it reboots (takes about 3 seconds).

•

Nothing. It will keep flashing its for about 20 seconds and then it will reboot.

All done.

channel

22.

Designed and created by:-

Outstation Cables

Design objective: Wire up the venue in any manner using almost any type of three core cable, and then plug anything in anywhere.

We have come very close to meeting the design objective with only few limitations on cable type when lengths exceed 500m. The Outstations may be wired using either daisy chain, star and/or loop wiring topologies. Any combination is permitted. Even with a cable break in the loop configuration, the system remains 100% operational.

Cue Light

Theatre Cue Light Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Theatre Cue Light Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Theatre Cue Light Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Standby

Confirm

Station #

Confirm

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Cue Light

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Cue Light

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Cue Light

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

Evesdrop

Cue Light

Standby

Confirm

www.interspaceind.com Model QLSi2 Mk4

Normal

Cue Light

Confirm

www.interspaceind.com

Model QLSi2 Mk4

Normal

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Cue Light

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Cue Light

Standby

Confirm

Station #

www.interspaceind.com

Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Daisy chain

Star

Loop

It is suggested that the Cue Light system be restricted to a maximum of about 40 Outstations and a total of 2,000m (6500 ft)

of cable. These numbers can often be exceeded.

See What’s the Limit on page 31.

The Outstations are connected by a one pair screened cable fitted with 3 pin XLR connectors.

All Outstations are powered from the Master Station by the Phantom Power principle where power is sent down the data pair (XLR pins 2&3) and returned through the ground/screen conductor(XLR pin1). Outstations can be connected or disconnected while the power is on.

Star Quad and multicore (snake) cables may be used. Digital snakes cannot be used as they do not pass power or allow bi-directional signals to be sent down the cable.

Even though the system is very resistant to interference, it is good engineering practice to install the Cue Light wiring away from mains wiring. It will also work with cables wired with XLR pins 2 & 3 swapped.

It is permitted to have dozens or even hundreds of sockets spread around a venue. The Master Station can be plugged into any one of these sockets. Outstations are then connected to the nearest convenient socket.

Built By

Cue Light

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Cue Light

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Cue Light

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Standby

Confirm

In/Out

Cue Light

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Cue Light

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Cue Light

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Cue Light

Standby

Confirm

Station #

www.interspaceind.com

Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Permitted Outstation wiring topologies

Cue Light

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Combination

Outstations can be wired up in any physical sequence. Outstation #2 does not have to follow #1.

23.

Designed and created by:-

Outstation Cables

There are literally hundreds of different cable types that are suitable for use with the Cue Light system. The two primary cable characteristics of interest for the Cue Light application are wire size and cable capacitance.

(Continued)

A brief cable guide

Where the total cable length is:-

less than 500m (1640 ft)

Standard XLR microphone cable or virtually any 1 pair 24AWG screened cable can be used.

greater than 500m

18-22 AWG cables with core to core capacitance of less than 80pF/m (24pF/ft) should be selected.

Suitable cables include:-

24 AWG: Belden 9501, 9841

20 AWG: Belden 9463

(1640 ft)

Alphawire 5471C

Wire Size

The size of the copper wire in a cable determines the voltage drop on that cable. Larger copper wires decrease the voltage drop and allow for longer cable runs with more Outstations connected. The size of the copper wire is measured in either cross sectional area such as square mm or by wire gauge such as AWG (American Wire Gauge). Bigger AWG numbers represent smaller wires. 24 AWG is the smallest size that should be used with 18-22 AWG being preferable. The actual wire size required for an installation will depend on the length of the cable runs and the maximum number of Outstations to be connected to each run.

A following table (see page 28) gives a guide as to wire size Vs length Vs number of Outstations that can be connected to each cable run.

cable’s

The screen provides the return path for the Outstation’s power. A screen with low resistance is preferred. A woven copper screen usually has lower resistance than a wrapped foil screen.

Characteristic Impedance (measured in ohms) is a common cable specification. It can be ignored in this application. It is not a measure of a cable’s resistance.

Built By

If many Outstations are placed on the end of a cable run that is either very long and/or very thin, there may be excessive voltage drop for the Outstations to keep working normally. Rather than stop working due to the lack of voltage, the Outstations automatically dim their lamps to reduce power consumption and hence reduce the voltage drop.

Lower cable resistance = longer possible cable runs due to lower voltage drop.

24.

Designed and created by:-

Outstation Cables

(Continued)

Cable Capacitance

Cable capacitance reduces the amplitude of the data signal by storing some of that signal as on electric charge in the cable. Cable branches with nothing plugged into them will also decrease the data signal’s amplitude due to the cable’s capacitance which is still connected to the circuit.

Cable capacitance is measured in pF (Pico Farad) per foot or metre and is determined by the cable’s construction and insulating materials used.

Cable capacitance can be ignored where the total cable length in an installation is less than about 500m (1640 ft). Where more than 500m of cable is used, cables with a core to core capacitance of less than 80pF/m (24pF/ft) should be selected.

Low capacitance cables have core insulation materials like polyethylene or polypropylene. They are often specified as Industrial Twinax or for use in applications such as RS485, AES/EBU digital audio or DMX. Any of these low capacitance cables are suitable for the Cue Light system (but we still need to check that their wire size is adequate for the cable length proposed).

Cables using PVC insulation for the inner conductors have high capacitance and high losses for digital signals. They should be avoided for long cable runs or permanent wiring. PVC outer jackets however are OK. Most analogue microphone cables use PVC insulation and can be used where the total cable length in an installation is less than about 500m (1640 ft). PVC insulated cables are also OK for use as tails between permanently installed 3 pin XLR outlets and the Outstations in large installations. In this case they only form a small percentage of the total cable in the system and do not degrade the overall system performance significantly.

Lower cable capacitance = longer possible cable runs due to less attenuation of the data signal.

Built By

See table on page 28.

25.

Designed and created by:-

Outstation Cables

(Continued)

It is suggested that the Cue Light system be restricted to a maximum of about 40 Outstations and a total of 2,000m (6500 ft)

of cable, however, these numbers can usually be

exceeded. See What’s the Limit on page 31

Unused cable branches must be included in the total cable length because the cable’s capacitance is still connected to the circuit even if no Outstations are connected to that cable run.

There are three basic wiring configurations; these are daisy chain, star and loop. Most installations use a combination of star and daisy chain.

Daisy Chain wiring

Daisy chain wiring uses less cable than star wiring, but it may need to be of a heavier gauge because many Outstations may be connected to any given cable run. As the daisy chain uses the least amount of cable it has the lowest cable capacitance resulting in the strongest possible data signal allowing the recommended total of 2,000 metres to be easily exceeded.

There are two main variations for the daisy chain wiring: Temporary and permanently wired.

In/Out

Standby

Confirm

Cue Light

www.interspaceind.com Model QLSi2 Mk4

Normal

Cue Light

In/Out

Standby

Confirm

www.interspaceind.com Model QLSi2 Mk4

Normal

Evesdrop

Station #

In/Out

Station #

In/Out

Evesdrop

In/Out

Standby

Confirm

Cue Light

www.interspaceind.com Model QLSi2 Mk4

Normal

Station #

In/Out

Evesdrop

Permanent wiring: XLR wall sockets are permanently wired (blue). Unplugging an Outstation does not affect other Outstations.

In/Out

Standby

Confirm

Cue Light

www.interspaceind.com Model QLSi2 Mk4

Normal

Station #

In/Out

Evesdrop

Standby

In/Out

Confirm

Cue Light

www.interspaceind.com Model QLSi2 Mk4

Normal

Cue Light

Station #

In/Out

Evesdrop

In/Out

Standby

Confirm

www.interspaceind.com Model QLSi2 Mk4

Normal

Evesdrop

Station #

In/Out

Built By

In/Out

Standby

Confirm

Cue Light

www.interspaceind.com Model QLSi2 Mk4

Normal

Station #

In/Out

Evesdrop

Cue Light

Standby

Confirm

Station #

www.interspaceind.com Model QLSi2 Mk4

Normal

In/Out

Evesdrop

Temporary wiring:

Unplugging an Outstation disconnects other Outstations.

In/Out

Standby

Confirm

Cue Light

www.interspaceind.com Model QLSi2 Mk4

Normal

Station #

In/Out

Evesdrop

Multiple Outstations may be connected at each wall socket.

26.

Designed and created by:-

Outstation Cables

(Continued)

Star wiring

Star wiring uses more cable than daisy chain wiring, and as a result has higher overall cable capacitance (this is not desirable) . At the star point, all the cables are simply wired in parallel. This is often done at a patch panel. The star configuration also has considerable attenuation for signals travelling from an outer extremity towards the star point. Cable branches with nothing plugged into them will also decrease the data signal’s amplitude due to the cable’s capacitance which is still connected to the circuit. For star wiring, do not exceed the recommended total of 2,000 metres.

In/Out

Standby

Confirm

Cue Light

www.interspaceind.com Model QLSi2 Mk4

Normal

Cue Light

In/Out

Standby

Confirm

www.interspaceind.com Model QLSi2 Mk4

Normal

Evesdrop

Station #

In/Out

Station #

In/Out

Evesdrop

In/Out

Standby

Confirm

Cue Light

www.interspaceind.com Model QLSi2 Mk4

Normal

Station #

In/Out

Evesdrop

Loop wiring

Loop wiring has the advantage that when a cable breaks or becomes disconnected, the system remains 100% operational.

When designing a loop configuration, allow for the worst case scenario where either of the 2 cables are unplugged at the Master Station. The cable gauge needs to be selected such that all of the Outstations can operate on what has now become a single long run. Refer to the table on page 32.

In/Out

Standby

Confirm

Cue Light

www.interspaceind.com Model QLSi2 Mk4

Normal

Station #

In/Out

Evesdrop

In/Out

Standby

Confirm

Cue Light

www.interspaceind.com

Model QLSi2 Mk4

Normal

Cue Light

Station #

In/Out

Evesdrop

In/Out

Standby

Confirm

www.interspaceind.com Model QLSi2 Mk4

Normal

Evesdrop

Station #

In/Out

Theatre Cue Light Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Built By

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Star wiring.

While the star configuration works well and may be convenient, it is not the optimum wiring arrangement due to its increased attenuation of the data signal. It is best used in combination with daisy chain and loop configurations.

Loop wiring

Technical note

The lumped capacitance of all the legs of a star driven in parallel via the impedance of one leg makes a very nice low pass filter which attenuates the data.

27.

Designed and created by:-

Cable Length

Nominal wire size (AWG) Metres 200 400 600 800 1000 1200 1400 1600 1800 2000 3000 4000

Conductor Screen

Feet

650 1300 2000 2600 3300 4000 4600 5200 5900 6500 9850 13100 Notes

Belden 9860 16 12 204 102 68 51 40 34 29 25 22 20 13 10 3 Generic 14 AWG 14 14 171 85 57 42 34 28 24 21 19 17 11 8 3 Belden 9250 (9816) 18 10 165 82 55 41 33 27 23 20 18 16 11 8 3 Mogami 3173 18 14 134 67 44 33 26 22 19 16 14 13 8 6 3 Generic 16 AWG 16 16 108 54 36 27 21 18 15 13 12 10 7 5 3 Belden 9463 20 16 80 40 26 20 16 13 11 10 8 8 5 4 3 Belden 8719 16 18 79 39 26 19 15 13 11 9 8 7 5 3 3 Apollo Scroller cable 22 24 71 35 23 17 14 11 10 8 7 7 4 3 1, 3 Generic 18 AWG 18 18 69 34 23 17 13 11 9 8 7 6 4 3 3 Belden 9463F 20 18 69 34 23 17 13 11 9 8 7 6 4 3 3 Belden 3105A 22 16 68 34 22 17 13 11 9 8 7 6 4 3 3 Belden 8760 (2421C) 18 20 54 27 18 13 10 9 7 6 6 5 3 2 3 Belden 9460 18 20 50 25 16 12 10 8 7 6 5 5 3 2 3 Belden 9841 (6412) 24 16 45 22 15 11 9 7 6 5 5 4 3 2 Belden 8762 20 20 44 22 14 11 8 7 6 5 4 4 2 2 Generic 20 AWG 20 20 44 22 14 11 8 7 6 5 4 4 2 2 CAT5 (3 pairs as gnd) 24 20 equiv 38 19 12 9 7 6 5 4 4 3 2 1 2 Mogami 3159 24 20 35 17 11 8 7 5 5 4 3 3 2 1 Generic 22 AWG 22 22 27 13 9 6 5 4 3 3 3 2 1 1 Belden 1419A & 9729 24 24 25 12 8 6 5 4 3 3 2 2 1 1 Canare L-2E5AT 24 24 24 12 8 6 4 4 3 3 2 2 1 1 Electra EAS7201P 24 24 19 9 6 4 3 3 2 2 2 1 1 0 Olex JD1PS485A3 24 24 18 9 6 4 3 3 2 2 2 1 1 0 Klotz OT206 24 24 17 8 5 4 3 2 2 2 1 1 1 0 Generic 24 AWG 24 24 17 8 5 4 3 2 2 2 1 1 1 0

Cable Length

650 1300 2000 2600 3300 4000 4600 5200 5900 6500 9850 13100 Notes

Outstation Cables

(Continued)

Built By

Lower loss cables

Alphawire.com equivalent in brackets

An installation usually consists of a number of cable runs of different lengths. Use this table as a guide as to how many Outstations may be connected on the end of each run for various cable types and lengths. Most covered by cables in the shaded area. If a cable is not listed here, it does not mean it is not suitable. All of these cables are of the low capacitance variety and consist of a mix of generic, general purpose data, and types used by various customers. For cable lengths not shown, halving a given length will allow double the number of Outstations shown. If in doubt about your favourite cable, please contact your distributor.

Number of Outstations connected Vs Cable Length and Size

AWG (American Wire Gauge) is the nominal size of the conductors. The screen (shield) might be bigger or smaller than the

installations would be

conductor size. A bigger screen will move a cable towards the top of the table (this is desirable).

Note 1: Scroller cable.

2 x 14 AWG power cores wired in parallel with the 24 AWG screen to XLR pin 1.

Note 2: Cat5/6 cable. One pair wired to XLR pins 2 & 3.

Remaining 3 pairs wired to XLR pin 1.

Note 3:

Red numbers are outside the system’s power supply capability and cannot be achieved. Restrict the number of Outstations to 45 or less.

Bigger AWG numbers represent smaller wires.

22 AWG data pair wired to XLR pins 2 & 3.

28.

Designed and created by:-

Outstation Cables

Cat 5/6 cables

(Continued)

CAT5/6 cable can be used but the screened variety is preferred to reduce noise pickup from adjacent cables. If the CAT5/6 cable has a screen, tie it to XLR pin 1 at both ends.

It is suggested that any CAT5/6 cables used for the Cue Light wiring be terminated in 3 pin XLR connectors so that they cannot be accidentally cross patched with PC network cabling as power from the Cue Light system may damage computer network components.

Screen (if present)

2 1

CAT5/6 cable

A termination suggestion to allow the Cue Lights to use an available CAT5/6 cable. It is not a converter to enable the Cue Light system to be connected to the Internet or a PC network. And you can’t use this to network two PCs via a microphone cable either!

XLR Connector

The star configuration is often wired using CAT5/6 cable as this follows the convention used for computer networks. There is no technical reason to do this. The Cue Light system is also not bound by the 100m (330 ft) limit imposed on computer networks. It also does not use (or need) a hub at the star point. Cables at the star point are simply wired in parallel. This is often done at a patch panel.

By limiting the maximum length of all legs of a star wired using CAT5/6 to 200m (650 ft), a Master Station and up to 19 Outstations can be placed anywhere on the star. The Master Station does not need to be at the star (common) point. The 200m figure is derived from the cable table on the previous page where it can be seen that 19 Outstations can be connected at the end of 400m (1,300 ft) of CAT5/6. The distance between any 2 extremities on a star with a 200m per leg limit is 400m.

Built By

Suggested Cue Light XLR to CAT5/6 wiring

29.

Designed and created by:-

Outstation Cables

(Continued)

A wiring example

This example shows how a theatre might be permanently wired using a mix of daisy chain and star wiring. Backbone cable segments in green are wired with a thicker cable as these have a larger number of outlets attached to them. The Master Station unit could be located at XLR point #8 during rehearsals. The cable between the patch panel and points #8 would have to carry 100% of the Outstation load, hence the thicker cable. Small venues, or those using 8 or less Outstations, could be cabled entirely in 24 AWG.

Typical cables would be:-

24 AWG - Belden 9841 20 AWG - Belden 9463

1 1 1

332 2 2

Stage

3 2 2 2

1 1 1

3 3

Permanently wired Cue Light XLRs

1: Fly Gallery 2: Stage traps 3: Stage 4: Orchestra Pit

5: Balcony 6: Lighting & spots 7: Doors 8: Sound & Rehearsal desk.

Theatre wiring example.

Pit

Patch Panel

Stalls

Balcony

24 AWG cable 20 AWG cable

Built By

30.

Designed and created by:-

Outstation Cables

(Continued)

200m 200m 200m 200m 200m

6 6 6 6 6

A A A A A

What’s the cable Limit?

There is no magic cable length at which the Cue Light system suddenly stops operating. We have suggested to a maximum of about 40 Outstations and a total of 2,000m (6500 ft)

of cable. These numbers are fairly conservative and provide a reasonable safety margin. You should not experience any trouble wiring up the network with the sing cable lengths

architecture of your choice by u

and Outstation numbers as per the table on page 28.

We have included a few examples of test setups to the right to give an idea of what the system’s limits actually are.

200m A

Master Station Cable segment length (metres)

Cable type Number of Outstations at this mode.

Cable types

20AWG

A: Belden 9463

24AWG

B: Electra C: CAT5 (

One pair wired to XLR pins 2 & 3.

Remaining 3 pairs wired to XLR Pin 1)

The limit in Figure 1 was voltage drop on the cable. A thicker cable would be needed to allow for a longer cable run.

that the Cue Light system be restricted

EAS7201P

Fig 1. Cable total: 1,000m Outstations: 36

100m 100m 100m

2 22 2

A A B

100m 100m 100m

2 22 2

A A B

100m 100m

Fig 2. Cable total: 3,800m Outstations: 50

A: 100m A: 100m A: 100m A: 100m A: 600m

2 22 2

A A

100m 100m

2 22 2

A A

100m 100m

2 22 2

A A

300m 500m

2 2 2

B C

100m 100m 100m 100m B

100m

500m

B B B

100m

300m

6 6 6 6

500m B

Fig 3. Cable total: 3,700m Outstations: 60

500m 500m 200m 100m 300m C

C B B B

6 6 6

4 x B: 50m (no Outstations connected)

B: 50m

1 1 1 1

Built By

In Figures 2-4, connection to the Master Station was via a patch panel with parallel wired connectors.

The limit for Figures 2-4 is the power supply’s ability to provide the inrush current that the Outstations draw when power is first applied. The “worst case” situation occurs when the cable lengths are very short. In this case the inrush current is at its highest and the power supply can only drive 40 Outstations. As the cable lengths are increased, the inrush currents are reduced due to the cables’s resistance, allowing more than 40 Outstations to be connected.

Network architecture: star, daisy chain, loop or combination of these.

C: 500m

B: 300m

B: 200m

B: 100m

B: 50m

Fig 4. Cable total: 4,000m Outstations: 43

A: 200m

B: 150m

B: 100m

2 2 2 2 2 2 2 2 2 2

31.

Designed and created by:-

Multiple Master Stations

More than 16 channels

The wiring between a Master Station and its Outstations is known as a wiring universe. A Master Station and its associated universe supports a maximum of 16 channels. With multiple Outstations per channel, there may be up to 40 Outstations connected to these 16 channels.

Where more than 16 channels are required, multiple Master Stations must be used. A separate universe (cable run) is required for each Master Station.

A 2 pair cable can be used but avoid foil screened cables that use one drain wire for the whole cable. We need a screen with a low resistance as this is the return path for power from the Outstations.

Master A

Master B

Universe A

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Universe B

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Cue Light

Standby

Station #

In/Out

Confirm

www.interspaceind.com

Model QLSi2 Mk4

Evesdrop

Normal

In/Out

Outstation #1A

Cue Light

Standby

Station #

In/Out

Confirm

www.interspaceind.com Model QLSi2 Mk4

Evesdrop

Normal

In/Out

Outstation #1B

Cue Light

Standby

Station #

In/Out

Confirm

www.interspaceind.com Model QLSi2 Mk4

Evesdrop

Normal

In/Out

Outstation #16A

Built By

A separate universe is required for each Master Station.

(cable run)

Outstation #16B

Multiple Master Stations require one wiring UNIVERSE per Master Station

Cue Light

Standby

Station #

In/Out

Confirm

www.interspaceind.com

Model QLSi2 Mk4

Evesdrop

Normal

In/Out

32.

Designed and created by:-

Multiple Master Stations (continued)

When multiple Master Stations are used, the 4 Group Master buttons can be linked across the Master

Stations via an Expansion Port on the Master Stations’ rear panels. (The group feature allows cues across multiple channels to be triggered by the press of a single button). Up to 6 Master Stations can be linked.

Pressing any of the four Group Master buttons on any linked Master Station, will electronically press the corresponding Group Master button on all other linked Master Stations. This allows cues across multiple Master Stations to be triggered by the press of a single button. Group buttons are discussed in detail on

page 10.

121111

The 4 Group A & B Master buttons are linked.

Built By

Multiple Master Stations are linked by daisy chaining their Expansion Ports with the supplied RJ12 patch leads.

Either Expansion Port can be used as they are simply wired in parallel.

The cable is of the 6 core flat telephone type. These cables are intended to be short patch leads because they are unscreened and untwisted, however, lengths up to 100m (300 ft) will work.

The Expansion ports are also used for connection of the PC Interface unit.

RJ12 Expansion Ports

33.

Designed and created by:-

Master Station Configuration Editor

The Configuration Editor allows the Master Station and individual Outstations to be customized to suit specific needs.

The Configuration Editor is very simple to use once you have read the instructions. These instructions should be read in conjunction with having a Master Station in front of you. Read at leas t or you may waste a lot of time.

Two alternate button overlays are used when the editor is active. These overlays are on the following page and will be the only page you will need to refer to for all common configuration changes, once you are familiar with how the Configuration Editor works.

The Cue Light system’s settings are stored in an internal file called ShowTime which can be edited by the user. When shipped from the factory, the file contains factory default settings so that the Cue Lights are ready to run straight out of the box. . Changed settings can be saved to one of 4 internal user files which can be recalled as needed. Two sets of Factory default settings and set of Installer’s default settings can also be recalled. To recall any one of these files to run the Cue Light system, open the required file in the Configuration Editor, save to the ShowTime file and then exit the Editor.

t pages 36 and 37 firs

ShowTime

1: ShowTime file (read/write) When the Master Station powers up, it reads the ShowTime file to run the Cue Light system. After editing any file, changes must be saved to the ShowTime file if you want those settings to run the Cue Light system. Temporary changes to the system can be made by editing the ShowTime file (and saving changes to it) without saving changes to any of the 4 User files. The ShowTime and 4 User files are stored in non-volatile EEPROM memory within the Master Station so that their contents will be remembered even when the power is off.

2 & 3: Factory Defaults (read only) These 2 files contain a standard setup. Both files are identical except that one configures the Outstation Standby lamps to red and the other to yellow. To recall the Factory Default settings, open one of the two Factory Default files in the Configuration Editor, save to the ShowTime file and then exit the Editor.

4: Installer’s Defaults (read only) This file contains settings that the installer decided should be the default for your system. You may edit these settings and save changes to the ShowTime file and/or one of the four User files. Changes cannot be saved by the user to the Installer’s Default file. To recall the Installer’s Default settings, open the Installer’s Default file in the Configuration Editor, save to the ShowTime file and then exit the editor.

Built By

There are 8 files that can be opened and edited. Changes can be saved to 5 of them.

1: ShowTime file (read/write) 2: Factory Defaults with red Standby lamps. (read only) 3: Factory Defaults with yellow Standby lamps. (read only) 4: Installer’s Defaults (read only) 5: User settings #1 (read/write) 6: User settings #2 (read/write) 7: User settings #3 (read/write) 8: User settings #4 (read/write)

(If you are an installer or system integrator, please contact us for details on how to save your custom settings to the Installer’s Default file)

5 - 8: User settings 1 to 4 (read/write) These 4 files are used to save any configurations that the user creates. To recall saved User settings, open one of the four User files in the Configuration Editor, save to the ShowTime file and then exit the editor.

34.

Designed and created by:-

Configuration Editor

Alternate button overlays

Read page rst or you may waste a lot of time. These pages will walk you through the basic steps of using the Editor.

s 36 & 37 fi

Start the Configuration Editor.

Editor starts with the ShowTime file opened and option #1 selected.

Open one of 8 files

Select options page 1 or 2

Select an Option to edit

from the grey & yellow boxes

Edit options on a channel by channel basis

Green button lit = option active

Save to the Show Time file if you want those settings to run the Cue Light system.

Save to User files 1-4 (optional)

Exit the Editor

To start the Editor

press 3 buttons

for 4 seconds

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Master

Edit

Standby

Master’s Address

Yellow

S/by flash on Master

Group btns

linked

S/by flash on Outstn

Standby Latches

Dim on

ACK

flickers

times out

flashes

Cue Light

Options

Channel

Page 1: Cue Light Outstation and Master Station configuration

5 modes for each Relay

Options for Relay’s Cue Light Mode More Relay Options

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Relay

Options

A: Mom B: Mom

A: Latch B: Latch

A: Mom B: Latch

A: Latch B: Mom

Cue Light

Mode

S/by flash on Master

S/by flash on Outstn

S/by

latchesGotimes outGoflashesGolatches

Sensor

Options

Safe when

open

Unsafe flashes

EOL

All lamps

enabled

Built By

Edit

Channel

Page 2: configurationRelay & Sensor

latches

Installer defaults

Go & S/by

interlocked

User 1 User 2 User 3 User 4

Call lamp

enabled

defaults

Call lamp

flashes

ACK back-

light on

Read only files Read/write files

Go & S/by

interlocked

Call lamp

enabled

Beepers enabled

Show

Time

Call lamp

flashes

Show

Time

Beep

on Go

Factory

default red

All lamps

enabled

Factory

default red

Dimmers

to 100%

Factory

default yel

Factory

default yel

Open

Edit all

16 ch.

Open

Edit all

16 ch.

Exit

Save

Select

page

Exit

Save

Select

page

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Power

Page 1

Cue Light & Master.

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Power

Page 2

Relay & Sensor.

35.

Designed and created by:-

Master Station’s Configuration Editor

(continued)

The editing sequence is: 1: Start the

Configuration Editor

2: Open one of 8 files 3:

Select an option to edit Edit that option on a channel by channel basis using

the Green buttons. (Green button lit = option active)

5: Save changes to 1 of 5 files

(Save to the ShowTime file if you want those settings to run the Cue Light system)

6: Exit the Editor

Configuration settings for each of the 3 types of Outstation:QLSi2: Cue Light Outstation QLRi2: Relay Outstation QTSi2: Sensor Outstation (future product) are stored in each channel’s settings. The Master Station uses the appropriate configuration data for the type of Outstation that is connected.

It is not necessary to have any Outstations connected to be able to edit the Cue Light’s settings.

To start the Editor

press these 3 buttons

for 4 seconds

Starting the Configuration Editor

To start the Configuration Editor, press and hold these 3 buttons until the 16 blue Call lamps light (takes about 4 seconds). Release the 3 buttons.

The Configuration Editor has 2 pages. Toggle between the 2 pages with this button

Page 1: Settings for the Master Station and Cue Light Outstations: Standard Outstation (QLSi2) Beeper Outstation (QLSi2-B) When page 1 is selected, these lamps flash

Page 2: Settings for the Relay (QLRi2) When page 2 is selected, these lamps flash

The Editor starts with the ShowTime file opened at page 1 and with option #1 (Yellow Standby) selected. If you wish to edit the ShowTime file, there is no need to reopen it but no harm is done should you do so.

Built By

Toggle Pages

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Power

Page 1. Cue Light Outstation and Master Station configuration.

Page 2.

Relay & Sensor configuration.

Select

page

36.

Designed and created by:-

Master Station Configuration Editor

(continued)

To Open a file.

Press and hold the File Open button

•

Eight yellow buttons will light showing the 8 files that can be opened. Select one of these 8 files by pressing its yellow button.

•

Release the buttons.

•

To Save a file.

Press and hold the File Save button

•

5 Yellow buttons will light showing the 5 files that can be written to. These are User 1-4 and ShowTime files. Select one of these 5 files by pressing its yellow button.

•

Release the buttons.

•

Save to the ShowTime file if you want those settings to run

•

the Cue Light system. Exit the Editor once done

•

Any unsaved changes will be lost when exiting.

Restoring default or previously saved settings.

Start the Editor

•

Open the required file.

•

Save to the ShowTime file.

•

Exit the Editor.

•

Important!

After editing or opening any file, the file must be saved to the ShowTime file if you want those settings to run the Cue Light system.

Configuration settings for each of the 3 types of Outstation:QLSi2: Standard Cue Light Outstation QLRi2: Relay Outstation are stored in each channel’s settings. The Master Station uses the appropriate configuration data for the type of Outstation that is connected.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Cue Light

Options

Master

Options

Built By

Edit

Channel

File controls. Common to pages 1 and 2

Installer defaults

User 1 User 2 User 3 User 4

Show

Time

Factory

default red

Factory

default yel

Edit all

16 ch.

SaveOpen

Select

page

Exit

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Power

37.

Designed and created by:-

Master Station Configuration Editor

(continued)

Cue Light Outstation options

Each Outstation has a number of options that can be edited. Outstations do not need to be connected to be able to edit a channel's options.

the buttons within the top grey outline to s

Use elect a Cue Light to be edited. When any of these buttons

option are pressed, two adjacent orange lamps will light to indicate the selected

option.

Edit that option on a channel by channel basis using the Green buttons (Green button lit = option active)

Toggle all 16 channels at once by using the Edit all 16 ch button

Example: Change the Outstation’s Standby colour

Start the Configuration Editor. Select Page 1 Select Yellow Standby option When Green button (1-16) is lit, Standby colour = yellow. When it is not lit, Standby colour = red. Save to the ShowTime file. Save to User file 1-4 (optional). Exit the Configuration Editor.

Options

S/by colour

S/by Flash on Master

S/by Flash on Outstation

S/by latches

S/by Dim on ACK

5 6

Go Flickers

Go times out

Go flashes

Go latches

Go & S/by interlocked

Call enabled

lamp

Call lashes

lamp f

ACK button back-light

Beeper

Beep-on-Go

Dimmer

Factory Default

Yellow Flashes Flashes Latches No Steady Times out Flashes Latches Interlocked Enabled Flashes On Enabled Silent 100%

User Selectable Option

Red Steady Steady Momentary Dims on ACK Flickers Stays on Steady Momentary Independent Call lamp off Steady Off Disabled Beeps (4 choices) 5-100% in 5 steps

Cue Light options for the following Outstation types: Standard (QLSi2), Beeper (QLSi2-B) and Small (QLSi2-SM)

Beeper and Beep-On-Go options only apply when a Beeper Outstation (QLSi2-B) is connected to that channel. Outstations without a beeper ignore the beeper settings.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Cue Light

Options

Master

Options

Built By

Edit

Channel

Cue Light Outstation options

Yellow

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Standby

S/by flash on Master

Group btns

linked

S/by flash on Outstn

Standby Latches

Dim on

ACK

flickersGotimes outGoflashesGolatches

Installer defaults

Go & S/by

interlocked

User 1 User 2 User 3 User 4

Call lamp

enabled

Call lamp

flashes

ACK back-

light on

Beepers

enabled

Show

Time

Beep

on Go

Factory

default red

Dimmers

to 100%

Factory

default yel

Edit all

16 ch.

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Exit

SaveOpen

Power

Select

page

Cue Light & Master Station.

Page 1

Power

38.

Designed and created by:-

Master Station Configuration Editor

(continued)

Beep-On-Go option

There are 3 beep durations that can be programmed for each channel as well as an off option. The Beep-On-Go Modes are: 1= off, 2 = 1mS, 3 = 50mS, 4 = 200mS The Fault lamps at the top of channels 1 to 4 are used as

an indicator of the Beep-On-Go mode.

Example: Edit Beep-on-Go (single channel)

Start the Configuration Editor. Select Page 1 Select Beep-On-Go Press a Green button (1-16) for the channel to be edited. Use the red button to cycle through the four Beep-On-Go modes as indicated on 1 = off, 2 = 1mS, 3 = 50mS, 4 = 200mS Save to the ShowTime file. Save to User file 1-4 (optional). Exit the Configuration Editor.

4 4

option

red lamps 1-4

Editing multiple channels

When more than one channel (green buttons 1-16) is initially selected, the red mode indicator lamps will be

off. This is done to prevent an ambiguous display should the channels be set to different modes. Pressing the red button will cause a mode lamp to light as all selected channels are now set to the same mode.

Example: Edit Beep-on-Go (multiple channels)

Start the Configuration Editor. Select Page 1 Select Beep-On-Go

option Press multiple Green buttons (1-16) for the channels to be edited.

Using the red button cycle through the four Beep-On-Go modes as indicated on 1 = off, 2 = 1mS, 3 = 50mS, 4 = 200mS Save to the ShowTime file. Save to User file 1-4 (optional). Exit the Configuration Editor.

The editor will only allow you to review the mode settings for the channels one channel at a time. If more than one channel is selected, the red lamps will be off.

red lamps 1-4

Cue Light

Options

Master

Options

Built By

Edit

Channel

2 3

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Yellow

Standby

Master’s Address

S/by flash on Master

Group btns

linked

S/by flash on Outstn

Standby

Latches

Dim on

ACK

flickers

times out

flashes

latches

Installer defaults

Go & S/by

interlocked

User 1 User 2 User 3 User 4

Call lamp

enabled

Call lamp

flashes

ACK back-

light on

Beepers enabled

Show

Time

Beep

on Go

Factory

default red

Dimmers

to 100%

Factory

default yel

Open

Edit all 16 ch.

Exit

Save

Select

page

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Power

Cue Light & Master.

Page 1

39.

Designed and created by:-

Master Station Configuration Editor

Dimmer option

Dimmers to 100% button resets the dimmer

The intensity for all 16 channels to 100%. The green Edit Channel buttons are not used. There is no provision to set individual channels to intensities lower than 100%.

(continued)

Cue Light

Options

If dimmer intensities other than 100% need to be saved to

Tip:

one of the User files, do the following: Save your initial configuration to the ShowTime file.

•

Exit the Editor. The file will be loaded by the

•

ShowTime

Master Stations’ operating system to run the Cue Lights. Press and hold the blue Dimmer button. Now press either

•

the Standby (increase) or Go (decrease) button on the

Multiple channels can be dimmed simultaneously by assigning channels to one of the 2 Groups and then using that Group’s Master Go and Standby buttons to increase or decrease the dimmer intensities. ( This tip only applies when the Editor is not active)

desired channel to adjust the dimmer intensity to that required. Any changes made are written to the file. Start the Editor.

•

The Editor starts with the file already loaded.

ShowTime

This will also include the dimmer changes just made. Save to one of the four User files.

•

Exit the Editor.

•

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Yellow

Standby

S/by flash on Master

S/by flash on Outstn

Standby Latches

Dim on

ACK

flickersGotimes outGoflashesGolatches

Go & S/by

interlocked

Call lamp

enabled

Call lamp

flashes

ACK back-

light on

Beepers

enabled

Beep

on Go

Dimmers

to 100%

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Exit

Innovation by:-

Master

Options

Built By

Master’s Address

Group btns

linked

Edit

Channel

Cue Light Outstation options

Installer defaults

User 1 User 2 User 3 User 4

Show

Time

Factory

default red

Factory

default yel

Open

Edit all

16 ch.

Save

Select

page

Power

Cue Light & Master.

Page 1

40.

Designed and created by:-

Master Station’s Configuration Editor

(continued)

Master Station options

There are only 2 options specifically for the Master

Station

1: Master Station’s address. When multiple Master Stations are used with the PC Interface unit (QL-PCi2 Mk4), each Master Station must be set to a different address in the range of 1-6. The Master Station’s address setting is ignored if the PC Interface is not connected.

Example: Change the Master Station’s address

Start the Configuration Editor Select Page 1 Select Master Station’s Address option Using the red button cycle through the addresses 1-6 as indicated on red lamps 1-6 Save to the ShowTime file Save to User file 1-4 (optional) Exit the Configuration Editor

2: Group Master buttons linked. Multiple Master Stations can be linked so that a press of one of the Group Master buttons (just to the right of channel

16) can trigger multiple cues across multiple Master Stations. This setting is ignored by a single unlinked Master Station. (Master Stations are linked via the RJ12 Expansion Port) on the Master’s rear panel).

Example: Linking the Group Master buttons

Start the Configuration Editor Select Page 1 Select the Group btns linked option The button will light to indicate the selection. Press the green button immediately beneath it to toggle the option. Green button lit = linked Green button off = unlinked. Save to the ShowTime file Save to User file 1-4 (optional) Exit the Configuration Editor

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Cue Light

Options

Master

Options

Built By

Edit

Channel

Master Station options

Yellow

Standby

Master’s

Address

S/by flash on Master

Group btns

linked

S/by flash on Outstn

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Standby Latches

Dim on

ACK

flickers

times out

flashes

latches

Installer defaults

Go & S/by interlocked

User 1 User 2 User 3 User 4

Call lamp

enabled

Call lamp

flashes

ACK back-

light on

Beepers

enabled

Show

Time

Beep

on Go

Factory

default red

Dimmers

to 100%

Factory

default yel

Exit

Open Save

Select

page

Edit all

16 ch.

Innovation by:-

Power

Cue Light & Master.

Page 1

41.

Designed and created by:-

Master Station Configuration Editor

Relay Outstation options

(continued)

5 modes for each Relay

Each Relay Outstation has a number of options that can be edited. Outstations do not need to be connected to be able to edit a channel's options.

The Relay Outstation has 5 operating modes which can be changed from either the Relay Outstation’s front panel or from the Configuration Editor. When a mode is changed by using the Outstation’s front

Configuration settings for each of the 2 types of Outstation:QLSi2: Cue Light Outstation QLRi2: Relay Outstation are stored in each channel’s settings. The Master Station uses the appropriate configuration data for the type of

panel buttons, the change is sent to the Master Station and saved in the Master Station ShowTime file for recall next time the system is turned on. To save ShowTime file changes to one of the 4 User files, follow the steps in the example below.

Outstation that is connected.

Example: Saving changes made to the ShowTime file

The Relay Outstation’s options can be grouped into 3 different classes. 1: Five modes determine how the Relay Station contacts

operate

2: Seven additional options for when the Cue Light mode is

selected

3: Three miscellaneous options

Options for Relay’s Cue Light Mode More Relay Options

2 3

Start the Configuration Editor. The Editor opens with the ShowTime file already loaded. Save the ShowTime file to User file 1-4. Exit the Configuration Editor.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Relay

Options

A: Mom B: Mom

A: Latch B: Latch

Sensor

Options

Safe when

open

Unsafe flashesNoEOL

Built By

Edit

Channel

Relay options (grey buttons)

A: Mom B: Latch

A: Latch B: Mom

All lamps

enabled

Cue Light

Mode

S/by flash on Master

S/by flash on Outstn

S/by

latchesGotimes outGoflashesGolatches

Installer defaults

User 1 User 2 User 3 User 4

Go & S/by interlocked

Call lamp

enabled

Call lamp

flashes

Show

Time

All lamps

enabled

Factory

default red

Factory

default yel

Open

Edit all

16 ch.

Exit

Save

Select

page

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Power

Relay & Sensor.

Page 2

42.

Designed and created by:-

Master Station Configuration Editor

Relay Outstation options

(continued)

Example: Change mode for Relay #12

Assign Relay #12 to A:momentary B:Latch mode.

Relay Mode

Each Relay must be assigned to one of 5 modes. Select a Relay Mode from these 5 buttons When any of these buttons are pressed, two buttons will illuminate yellow lamps to indicate the selected option.

Start the Configuration Editor Select Page 2

Select A:momentary B:Latch mode Press green button for channel 12

Save to the ShowTime file

Save to User file 1-4 (optional)

The green buttons indicate the status of the selected

Exit the Configuration Editor

mode for each of the 16 channels. When a green button is illuminated, that channel is assigned to the selected mode.

Pressing a green button assigns that Relay to the selected mode. Once assigned to a particular mode, that channel cannot be deselected by pressing its green button a second time. To deselect a Relay from a particular mode, just assign it to the required mode and that action will deselect it from all other modes.

Relay A Relay B

Momentary

Latched

Momentary

Latched

Cue Light Mode

Standby button

The 5 Relay Modes

Controlled by

Momentary Latched Latched Momentary Cue Light Mode

Controlled by Go button

Momentary: Relay operates only while the button is pressed. Latching: Press the button to set (turn on) the Relay.

Press it again to reset (turn off) the Relay.

5 modes for each Relay

Options for Relay’s Cue Light Mode More Relay Options

2 3

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Relay

Options

A: Mom B: Mom

A: Latch B: Latch

Sensor

Options

Built By

Safe when

open

Unsafe flashesNoEOL

Edit

Channel

Relay options (grey buttons)

A: Mom B: Latch

A: Latch B: Mom

All lamps

enabled

Cue Light

Mode

S/by flash

on Master

S/by flash on Outstn

S/by

latchesGotimes outGoflashesGolatches

Installer defaults

User 1 User 2 User 3 User 4

6 7

Go & S/by interlocked

Call lamp

enabled

Call lamp

flashes

Show

Time

All lamps

enabled

Factory

default red

Factory

default yel

Exit

Open Save

Select

page

Edit all

16 ch.

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

Innovation by:-

Relay & Sensor.

www.interspaceind.com

Page 2

Power

43.

Designed and created by:-

Master Station Configuration Editor

(continued)

Cue Light Mode

The Cue Light mode is one of five possible modes that a Relay can be assigned to. There are seven additional options for this mode which only come into effect when the Relay is assigned to the Cue Light mode.

Select a Cue Light mode option to be edited using the buttons The green buttons indicate the status of this option for

each of the 16 channels. When a green button is illuminated, the option for that channel is active/selected. Toggle all 16 channels at once by using the Edit all 16 ch button

More Relay Options

There are three additional options for the Relay Outstation that are independent of the Relay’s mode settings. Two of these options control the behaviour of the Call lamp on the Master Station. The third option, All lamps enabled blanks all lamps on the Relay Outstation. This is useful when the Relay Outstation needs to hide from public view. When the lamps are disabled, pressing the Enable button on the Relay Outstation will momentarily light the Outstation’s lamps so that its operation can be monitored or its mode changed.

When the Cue Light mode is selected, the following 7 options are available. All options can be programmed individually for each channel.

Options

S/by Flash on Master S/by Flash on Outstation S/by latches Go times out Go flashes Go latches Go & S/by interlocked

Cue Light Mode options for the Relay (QLRi2) Outstation

Default

Flashes Flashes Latches Times out Flashes Latches Interlocked

Factory

User Selectable Option

Steady Steady Momentary Stays on Steady Momentary Independent

There are three more Relay options:

Options

Call lamps enabled Call lamp Flashes All lamps enabled

More options available for all 5 modes

Default

Enabled Flashes Enabled

Factory

User Selectable Option

lamp

Call off Steady Off

Relay

Options

Sensor

Options

Built By

Edit

Channel

Relay options

5 modes for each Relay

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A: Mom B: Mom

Safe when

open

A: Latch B: Latch

Unsafe flashesNoEOL

A: Mom B: Latch

A: Latch B: Mom

All lamps

enabled

Cue Light

Mode

S/by flash on Master

Options for Relay’s Cue Light Mode More Relay Options

S/by flash

on Outstn

S/by

latchesGotimes outGoflashesGolatches

Installer defaults

User 1 User 2 User 3 User 4

2 3

Go & S/by

interlocked

Call lamp

enabled

Call lamp

flashes

Show

Time

All lamps

enabled

Factory

default red

Factory

default yel

Edit all

16 ch.

Exit

SaveOpen

Select

page

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Power

Relay & Sensor.

Page 2

44.

Designed and created by:-

Master Station Configuration Editor

(continued)

Sensor options ( this feature coming soon- not yet available)

The Sensor Outstation has 4 options ,3 of which are programmable from the Outstation’s front panel. When an option is changed from the Outstation, the change is sent to the Master Station and saved in the Master Station’s ShowTime file for recall next time the system is turned on. To save ShowTime file changes to one of the 4 User files, follow the steps in the example below.

Example: Saving changes made to the ShowTime file

Start the Configuration Editor. The Editor opens with the ShowTime file already loaded. Save the ShowTime file to User file 1-4. Exit the Configuration Editor.

Options

Safe when open Unsafe lamp Flashes No End-of-Line resistors All lamps enabled

Sensor Outstation options

Factory Default

when open Flashes No resistors Enabled

User Selectable Option

Safe when closed Steady 2 EOL resistors Off

Select an option to edit by using the yellow buttons

The button will light to indicate the selection. Edit that option on a channel by channel basis using the Green buttons (Green button lit = option active)

Toggle all 16 channels at once by using the Edit all 16 ch button

The All lamps enabled option can only be edited by using the Master Station Configuration Editor. This option blanks all lamps on the Sensor Outstation which is useful when the Sensor Outstation needs to hide from public view. When the lamps are disabled, pressing the Grey Enable button on the Outstation will momentarily light the Outstation’s lamps so that its operation can be monitored or its mode changed.

Example: (set Sensor #4 to use 2 End-of-Line resistors)

Start the Configuration Editor Select Page 2 Select No EOL option Press the green button for channel 4 to deselect the No EOL option. (Green button lit = no EOL resistors) (Green button not lit = 2 EOL resistors) Save to the ShowTime file Save to User file 1-4 (optional) Exit the Configuration Editor

Relay

Options

Sensor

Options

Built By

Edit

Channel

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A: Mom B: Mom

Safe when

open

A: Latch B: Latch

Unsafe flashes

A: Mom B: Latch

EOL

A: Latch B: Mom

All lamps

enabled

Cue Light

Mode

S/by flash on Master

S/by flash on Outstn

S/by

latchesGotimes outGoflashesGolatches

Installer defaults

User 1 User 2 User 3 User 4

Go & S/by

interlocked

Call lamp

enabled

Call lamp

flashes

Show

Time

All lamps

enabled

Factory

default red

Factory

default yel

Open

Edit all

16 ch.

Exit

Save

Select

page

Theatre Cue Light

Cue Light

Master QLM16i2 Mk4

Master

Built By:-

QLM16 Mk4

www.interspaceind.com

Innovation by:-

www.LeonAudio.com.au

Power

Relay & Sensor.

Page 2

45.

Designed and created by:-

Diagnostics

Outstation test

This test is used to check operation of Outstation lamps, communication to and from the Master Station and cable voltage drop. Press 2 buttons until all lamps on the Master Station’s front panel light (takes about 4 seconds), then release the buttons. To exit this test, press either of the 2 buttons or cycle the mains power.

The Go and Standby lamps on all outstations flash alternately. Outstation Standby colour changes between red & yellow on every 2nd flash of the Standby lamp. As all Outstations are active, this provides the maximum voltage drop on the interconnecting cables. When the number of Outstations placed on the end of a cable run exceeds the number specified in the table on page 28, the excessive voltage drop will cause the Outstations to automatically dim their lamps to reduce power consumption and hence reduce the voltage drop. The automatic dimming of the Outstation lamps is an indicator that the limits of the cable run are being approached.

The maximum voltage drop will be higher if Outstations are configured to allow both Go and Standby lamps to be on at the same time.

Button & Lamp test

This test is used to check the operation of buttons and lamps on the Master Station. Press 3 buttons until all lamps on the Master Station’s front panel light (takes about 4 seconds), then release the buttons. To exit this test, press the 3 buttons again or cycle the mains power.

lamps

The on channels 1-16 will chase sequentially in rows. The sequence is followed by and on together but dimmed. The sequence then repeats. Lamps

to the right of channel 16 also flash sequentially.

Pressing any button will halt the chase sequence and light lamp(s)

adjacent to the button that was pressed. Pressing the Go or Standby buttons on channels 1-16 will light the button pressed. channels 1-16 will light the Fault, Group A & B and Call lamps for the channel pressed.

Pressing the 6 buttons to the right of channel 16:Pressing the red Beep button will light lamps on channels 1 to 8. Pressing the blue Dimmer button will light the same lamps on channels 9 to 16. Pressing Group A Standby or Go button lights the button of same name on channels 1-8. Pressing Group B Standby or Go button lights the button of same name on channels 9-16.

2 43

Pressing the Group button on

2 43

Built By

Beep

+ Go = long

Reset Faults

Dimmer

+ Sb/y = up

+ Go = down

Group B

StandbyStandby

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1 2

Fault

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Group

Call

4 5

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

Fault

Group

Call

Standby

+ Sb/y = short

Group A

Theatre Cue Light

Master QLM16i2 Mk4

Built By:-

www.interspaceind.com

Innovation by:-

Power

Short Power

Sensors

Fault

2 3 4

Unsafe

Safe

46.

Designed and created by:-

System Design Suggestions

For Cue Light designers and consultants

The Master Station has 16 channels for , but you can connect any number of Outstations from 1 to 40. Using the ability to connect more than one Outstation to the same channel will free up the Groups which are used to trigger cues on multiple Outstations.

The Beeper Outstation QLSi2-B Mk4 can be used as a standard Outstation as it only beeps when specifically commanded to do so. Some customers order Beeper Outstations exclusively. The advantage is that the end user doesn’t need to keep track of which Outstations have beepers and which don’t.

The Relay Outstation QLRi2 Mk4 adds versatility to a system. One would be sufficient for a small system while 2 or 3 may be in order for a large system. Systems with specific needs may have a dozen or more. The standard Relay Outstations do not have an Eavesdrop switch. They are available with an Eavesdrop switch to special order, thereby allowing multiple Relay Outstations to be used on the same channel.

Future Product

The Sensor Outstation QTSi2 Mk4 also adds versatility to a system. The Master Station has a dedicated display for 4 Sensor Outstations. These Sensor Outstations are numbered 1 to 4. More than 4 Sensor Outstations can also be included in a system. Sensor Outstations 5 to 16 use Cue Light channels 5 to16. Other Outstations can not share a channel with a Sensor Outstation on channels 5 to 16. If used, Sensor Outstations count towards the system total of 40 Outstations.

Cue Lights

Some typical systems

Here are some suggested systems based on customer orders.

Basic systems

4-12 Channels 1 x Master Station QLM16i2 Mk4 4-12 x Standard Outstation QLSi2 Mk4 1-4 x Beeper Outstation QLSi2-B Mk4

16 Channels (16 Outstations) 1 x Master Station QLM16i2 Mk4 12 x Standard Outstation QLSi2 Mk4 4 x Beeper Outstation QLSi2-B Mk4

Not so basic systems

12-16 Channels (16-22 Outstations) 1 x Master Station QLM16i2 Mk4 12-20 x Beeper Outstation QLSi2-B Mk4 (multiple Outstations per channel) 1 x Relay Outstation QLRi2 Mk4 1 x Sensor Outstation QTSi2 Mk4 (TBC)

16 Channels (26-38 Outstations) 1 x Master Station QLM16i2 Mk4 16-30 x Beeper Outstation QLSi2-B Mk4 (multiple Outstations per channel) 4 x Relay Outstation QLRi2 Mk4 4 x Sensor Outstation QTSi2 Mk4 (TBC)

Executive Summary:

Built By

Specify Beeper Outstations in preference to

•

Standard Outstations.

•

Include some Relay & Sensor Outstations.

47.

Designed and created by:-

Specifications

Built By

Master Station QLM16i2 Mk4

Outstation Connectors

XLRs. 3 pin male and female

Power

70 watts maximum. 10 to 30 watts typical. External universal power supply:Input: 90 to 264 volts 50/60Hz Output: 36V DC 1.9 amps. Continuous short circuit protection (Auto recovery). Over-voltage protection.

Dimensions

Width: Standard 483mm(19") rack mount chassis. Height: 2 units high. 88mm (3.5”) Depth (excluding connectors): 90mm (3.6”)

The unit can be table or rack mount depending on how the brackets are mounted.

Chassis

2mm aluminium front panel with 1.6mm sub chassis.

1.6mm welded aluminium rear cover. Black powder coat finish.

Weight

2.7kg (5.95 lbs) including power supply.

in parallel

Standard Outstation QLSi2 Mk4

Lamps

Long Life high brightness Yellow indication.

Connectors

XLRs. 3 pin male and female in parallel

Power

Powered from the Master Station via the XLR data cable

Dimensions

Width: 92mm (3.7”) Length (excluding connectors): 148mm (5.8”) Height: 38mm (1.5”)

Chassis

2mm steel rear and sides. 1.6mm aluminium front and ends. Black powder coat finish. 7 mounting points

Weight

505g (1.11 lbs)

LEDs used for Green, Red and

Beeper Outstation QLSi2-B Mk4

Lamps

Long Life high brightness LEDs used for Green, Red and Yellow indication.

Connectors

XLRs. 3 pin male and female in parallel

Power

Powered from the Master Station via the XLR data cable

Dimensions.

Width: 92mm (3.7”) Length (excluding connectors): 148m (5.8”) Height: 38mm (1.5”)

Chassis

2mm steel rear and sides. 1.6mm aluminium front and ends. Black powder coat finish. 7 mounting points

Weight

510g (1.12 lbs)

48.

Designed and created by:-

Specifications

Relay Outstation QLRi2 Mk4

Connectors

XLRs. 3 pin male and female in parallel

Power

Powered from the Master Station via the XLR data cable

Dimensions

Width: 92mm (3.7”) Length (excluding connectors): 143mm (5.6”) Height: 43mm (1.7”)

Chassis

2mm steel rear and sides. 1.6mm aluminium front and ends. Black powder coat finish. 6

mounting points

Weight

540g (1.19 lbs)

Sensor Outstation QTSi2 Mk4 (Future product)

Connectors

XLRs. 3 pin male and female in parallel

Power

Powered from the Master Station via the XLR data cable

Dimensions

Width: 92mm (3.7”) Length (excluding connectors): 143mm (5.6”) Height: 43mm (1.7”)

Chassis

2mm steel rear and sides. 1.6mm aluminium front and ends. Black powder coat finish. 6 mounting points

Weight

530g (1.17 lbs)

Built By

49.

Designed and created by:-

DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product

Interspace Industries TheatreCue V4 system

To which this declaration relates is in conformity with the following standards or other normative documents:

EN55103-1 & EN55103-2 1966 (Specific for professional Audio Visual Products). Used in environment as defined under E2 Commercial and Light industry (example Theatres)

EN 60950 2006/A1: 2010

Following the provisions of the EEC Directive 89/336/EEC and 73/23/EEC

Dave Humphrys Managing Director, Interspace Industries Ltd Issued: June 2012

Environmental

WEEE and RoHS Compliance. TheatreCue and its associated accessories have been manufactured and sold in accordance with the requirements of the EC WEEE and RoHS directives. Please return all end-of-life items to your supplier, or Interspace Industries directly, for appropriate disposal.

Packaging Materials:

Cardboard box: Grade 150 K/T ‘B’ (Single Walled Corrugated - Brown Kraft) Foam:

Electrical

CE Mark. TheatreCue and its associated accessories have been designed, manufactured and certified to comply with all requirements of the European CE standard. Including EN 550103

Technical Support or Sales Enquiries

Interspace Industries Head Office:

+44 (0) 870 770 8088

Emergency Technical Support Hot Line:

+44 (0) 7976 385 046

Built By

All Interspace Industries products carry a 3 year limited factory warranty.

Website:

www.interspaceind.com

50.

Interspace Industries TheatreCue 16 Way V4 System User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
