intersil PX3511D DATA SHEET

®

PX3511D

Data Sheet February 26, 2007

Advanced Synchronous Rectified Buck
MOSFET Driver with Protection Features

The PX3511D is high frequency MOSFET driver specifically
designed to drive upper and lower power N-Channel
MOSFETs in a synchronous rectified buck converter
topology. This driver combined with the PX3511D Digital
Multi-Phase Buck PWM controller and N-Channel MOSFETs
forms a complete core-voltage regulator solution for
advanced microprocessors.

The PX3511D drives both upper and lower gates over a
range of 4.5V to 13.2V. This drive-voltage provides the
flexibility necessary to optimize applications involving trade­offs between gate charge and conduction losses.

An advanced adaptive zero shoot-through protection is
integrated to prevent both the upper and lower MOSFETs
from conducting simultaneously and to minimize the dead
time. The PX3511D includes an overvoltage protection
feature operational before VCC exceeds its turn-on
threshold, at which the PHASE node is connected to the
gate of the low side MOSFET (LGATE). The output voltage
of the converter is then limited by the threshold of the low
side MOSFET, which provides some protection to the
microprocessor if the upper MOSFET(s) is shorted.

The PX3511D also features an input that recognizes a high­impedance state, working together with Intersil multi-phase
PWM controllers to prevent negative transients on the
controlled output voltage when operation is suspended. This
feature eliminates the need for the schottky diode that may
be utilized in a power system to protect the load from
negative output voltage damage.

FN6463.0

Features

• Dual MOSFET Drives for Synchronous Rectified Bridge

• Pin-to-pin Compatible with ISL6596

• Advanced Adaptive Zero Shoot-Through Protection

- Body Diode Detection

- Auto-zero of r

Conduction Offset Effect

DS(ON)

• Adjustable Gate Voltage for Optimal Efficiency

• 36V Internal Bootstrap Schottky Diode

• Bootstrap Capacitor Overcharging Prevention

• Supports High Switching Frequency (up to 2MHz)

- 3A Sinking Current Capability

- Fast Rise/Fall Times and Low Propagation Delays

• Optimized for 3.3V PWM Input

• Three-State PWM Input for Output Stage Shutdown

• Three-State PWM Input Hysteresis for Applications With
Power Sequencing Requirement

• Pre-POR Overvoltage Protection

• VCC Undervoltage Protection

• Expandable Bottom Copper Pad for Enhanced Heat
Sinking

• Dual Flat No-Lead (DFN) Package

- Near Chip-Scale Package Footprint; Improves PCB

Efficiency and Thinner in Profile

• Pb-Free Plus Anneal Available (RoHS Compliant)

Applications

Ordering Information

TEMP.

PART NUMBER

(Note)

PX3511DDDG-RA 11DD 0 to +85 10 Ld 3x3 DFN

NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100%
matte tin plate termination finish, which are RoHS compliant and
compatible with both SnPb and Pb-free soldering operations. Intersil
Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of
IPC/JEDEC J STD-020.

PART

MARKING

RANGE

(°C)

1

PACKAGE

(Pb-free)

Tape and Reel

PKG.

DWG. #

L10.3X3

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

• Optimized for POL DC/DC Converters for IBA Systems

• Core Regulators for Intel® and AMD® Microprocessors

• High Current DC/DC Converters

• High Frequency and High Efficiency VRM and VRD

Related Literature

Technical Brief TB363 “Guidelines for Handling and
Processing Moisture Sensitive Surface Mount Devices
(SMDs)”

Technical Brief TB389 “PCB Land Pattern Design and
Surface Mount Guidelines for QFN (MLFP) Packages”

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Copyright Intersil Americas Inc. 2006. All Rights Reserved

PX3511D

Pinouts

Block Diagram

VCC

PWM

+5V

13.6K

6.4K

UVCC

Pre-POR OVP

FEATURES

POR/

CONTROL

LOGIC

UGATE

BOOT

N/C

PWM

GND

PX3511D

(10 LD 3x3 DFN)

TOP VIEW

1

2

GND

3

4

5

PX3511D

SHOOT-

THROUGH

PROTECTION

10

9
8
7

6

PHASE
PVCC

N/C
VCC

LGATE

(LVCC)

BOOT

UGATE

PHASE

PVCC

UVCC = PVCC FOR PX3511D

LGATE

PAD

GND

FOR DFN DEVICES, THE PAD ON THE BOTTOM SIDE OF
THE PACKAGE MUST BE SOLDERED TO THE CIRCUIT’S GROUND.

2

FN6463.0

February 26, 2007

Typical Application - 4 Channel Converter Using ISL6595 and PX3511D Gate Drivers

+12V

+5V

3

+3.3V

VDD

ISL6595

VID4
VID3
VID2
VID1

FROM µP

TO µP

FAULT

OUTPUTS

February 26, 2007

FN6463.0

I2C I/F

BUS

VID0
VID5
LL0
LL1
OUTEN

VCC_PWRGD

RESET_N

FAULT1

FAULT2

SDA

SCL
SADDR

V12_SEN

GND

OUT1

OUT2

ISEN1

OUT3
OUT4

ISEN2

OUT5

OUT6

ISEN3

OUT7

OUT8

ISEN4

OUT9

OUT10

ISEN5

ISEN5

OUT11

OUT12

ISEN6

TEMP_SEN

CAL_CUR_EN

CAL_CUR_SEN

VSENP
VSENN

1

UGATE

2

BOOT

3

PWM

4

GND

1

UGATE

2

BOOT

3

PWM

4

GND

1

UGATE

2

BOOT

3

PWM

4

GND

1

UGATE

2

BOOT

3

PWM

4

GND

PX3511D

PHASE

LGATE

PX3511D

PHASE

LGATE

PX3511D

PHASE

LGATE

PX3511D

PHASE

LGATE

PVCC

VCC

PVCC

VCC

PVCC

VCC

PVCC

VCC

8

7

6

5

8

7

6

5

PX3511D

Vout

8

7

6

5

RTN

8

7

6

5

RTHERM

PX3511D

Absolute Maximum Ratings Thermal Information

Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15V

Supply Voltage (PVCC) . . . . . . . . . . . . . . . . . . . . . . . . . VCC + 0.3V

BOOT Voltage (V
Input Voltage (V

UGATE. . . . . . . . . . . . . . . . . . . V

V

BOOT-GND

PWM

- 3.5V (<100ns Pulse Width, 2µJ) to V

PHASE

LGATE. . . . . . . . . . . . . . . . . . . . . . GND - 0.3V

GND - 5V (<100ns Pulse Width, 2µJ) to V

PHASE. . . . . . . . . . . . . . . . . . . . . . . . . . . . GND - 0.3V

GND - 8V (<400ns, 20µJ) to 30V (<200ns, V

ESD Rating

). . . . . . . . . . . . . . . . . . . . . . . . . . . .36V

) . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to 7V

PHASE

- 0.3VDC to V

to V

DC

BOOT-GND

BOOT
BOOT
PVCC
PVCC

to 15V

DC

+ 0.3V
+ 0.3V
+ 0.3V
+ 0.3V

DC

<36V))

Human Body Model . . . . . . . . . . . . . . . . . . . .Class I JEDEC STD

Recommended Operating Conditions

Ambient Temperature Range. . . . . . . . . . . . . . . . . . . . 0°C to +85°C

Maximum Operating Junction Temperature. . . . . . . . . . . . . +125°C

Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . . .6.8V to 13.2V

Supply Voltage Range, PVCC . . . . . . . . . . . . . . . .5V to 12V ±10%

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

NOTES:

is measured with the component mounted on a high effective thermal conductivity test board in free air.

1. θ

JA

is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See

2. θ

JA

Tech Brief TB379.

3. For θ

, the “case temp” location is the center of the exposed metal pad on the package underside.

JC

Thermal Resistance θ

(°C/W) θJC (°C/W)

JA

SOIC Package (Note 1) . . . . . . . . . . . . 100 N/A

DFN Package (Notes 2, 3). . . . . . . . . . 48 7

Maximum Junction Temperature (Plastic Package) . . . . . . .+150°C

Maximum Storage Temperature Range. . . . . . . . . .-65°C to +150°C

Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . .+300°C

(SOIC - Lead Tips Only)

Electrical Specifications Recommended Operating Conditions, Unless Otherwise Noted.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS

VCC SUPPLY CURRENT

Bias Supply Current I

Gate Drive Bias Current I

VCC

I

VCC

PVCC

I

PVCC

POWER-ON RESET AND ENABLE

VCC Rising Threshold 6.1 6.4 6.7 V
VCC Falling Threshold 4.7 5.0 5.3 V

PWM INPUT (See Timing Diagram on Page 6)

Input Current I

PWM

PWM Rising Threshold (Note 4) VCC = 12V - 1.70 - V
PWM Falling Threshold (Note 4) VCC = 12V - 1.30 - V
Typical Three-State Shutdown Window VCC = 12V 1.23 - 1.82 V
Three-State Lower Gate Falling Threshold VCC = 12V - 1.18 - V
Three-State Lower Gate Rising Threshold VCC = 12V - 0.76 - V
Three-State Upper Gate Rising Threshold VCC = 12V - 2.36 - V
Three-State Upper Gate Falling Threshold VCC = 12V - 1.96 - V
Shutdown Holdoff Time t
UGATE Rise Time (Note 4) t
LGATE Rise Time (Note 4) t

TSSHD

RU
RL

PX3511D, f
PX3511D, f
PX3511D, f

PX3511D, f

V

= 3.3V - 400 - µA

PWM

V

= 0V - -350 - µA

PWM

V

= 12V, 3nF Load, 10% to 90% - 26 - ns

PVCC

V

= 12V, 3nF Load, 10% to 90% - 18 - ns

PVCC

= 300kHz, V

PWM

= 1MHz, V

PWM

= 300kHz, V

PWM

= 1MHz, V

PWM

= 12V - 4.5 - mA

VCC

= 12V - 5 - mA

VCC

= 12V - 7.5 - mA

PVCC

= 12V - 8.5 - mA

PVCC

- 245 - ns

4

FN6463.0

February 26, 2007

PX3511D

Electrical Specifications Recommended Operating Conditions, Unless Otherwise Noted. (Continued)

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS

UGATE Fall Time (Note 4) t
LGATE Fall Time (Note 4) t
UGATE Turn-On Propagation Delay (Note 4) t
LGATE Turn-On Propagation Delay (Note 4) t
UGATE Turn-Off Propagation Delay (Note 4) t
LGATE Turn-Off Propagation Delay (Note 4) t
LG/UG Three-State Propagation Delay (Note 4) t

FU

FL

PDHU

PDHL
PDLU

PDLL

PDTS

OUTPUT (Note 4)

Upper Drive Source Current I
Upper Drive Source Impedance R
Upper Drive Sink Current I
Upper Drive Sink Impedance R
Lower Drive Source Current I
Lower Drive Source Impedance R
Lower Drive Sink Current I
Lower Drive Sink Impedance R

U_SOURCEVPVCC

U_SOURCE

U_SINK

U_SINK

L_SOURCEVPVCC

L_SOURCE

L_SINK

L_SINK

NOTE:

4. Guaranteed by Characterization. Not 100% tested in production.

V

= 12V, 3nF Load, 90% to 10% - 18 - ns

PVCC

V

= 12V, 3nF Load, 90% to 10% - 12 - ns

PVCC

V

= 12V, 3nF Load, Adaptive - 10 - ns

PVCC

V

= 12V, 3nF Load, Adaptive - 10 - ns

PVCC

V

= 12V, 3nF Load - 10 - ns

PVCC

V

= 12V, 3nF Load - 10 - ns

PVCC

V

= 12V, 3nF Load - 10 - ns

PVCC

= 12V, 3nF Load - 1.25 - A
150mA Source Current 1.4 2.0 3.0 Ω
V

= 12V, 3nF Load - 2 - A

PVCC

150mA Sink Current 0.9 1.65 3.0 Ω

= 12V, 3nF Load - 2 - A
150mA Source Current 0.85 1.3 2.2 Ω
V

= 12V, 3nF Load - 3 - A

PVCC

150mA Sink Current 0.60 0.94 1.35 Ω

Functional Pin Description

PACKAGE PIN #

1 1 UGATE Upper gate drive output. Connect to gate of high-side power N-Channel MOSFET.
2 2 BOOT Floating bootstrap supply pin for the upper gate drive. Connect the bootstrap capacitor between this pin and the

- 3, 8 N/C No Connection.

3 4 PWM The PWM signal is the control input for the driver. The PWM signal can enter three distinct states during operation, see

4 5 GND Bias and reference ground. All signals are referenced to this node. It is also the power ground return of the driver.
5 6 LGATE Lower gate drive output. Connect to gate of the low-side power N-Channel MOSFET.
6 7 VCC Its operating range is +6.8V to 13.2V. Place a high quality low ESR ceramic capacitor from this pin to GND.
7 9 PVCC This pin supplies power to both upper and lower gate drives. Its operating range is +4.5V to 13.2V. Place a high

8 10 PHASE Connect this pin to the SOURCE of the upper MOSFET and the DRAIN of the lower MOSFET . This pin provides

9 11 PAD Connect this pad to the power ground plane (GND) via thermally enhanced connection.

PIN

SYMBOL FUNCTIONSOIC DFN

PHASE pin. The bootstrap capacitor provides the charge to turn on the upper MOSFET. See the Internal Bootstrap
Device section under Description for guidance in choosing the capacitor value.

the three-state PWM Input section under Description for further details. Connect this pin to the PWM output of the
controller.

quality low ESR ceramic capacitor from this pin to GND.

a return path for the upper gate drive.

5

FN6463.0

February 26, 2007

Description

PX3511D

PWM

t

PDLU

t

FU

t

RL

FIGURE 1. TIMING DIAGRAM

UGATE

LGATE

t

PDLL

t

PDHU

t

RU

t

FL

t

PDHL

Operation

Designed for versatility and speed, the PX3511D MOSFET
driver control both high-side and low-side N-Channel FETs
of a half-bridge power train from one externally provided
PWM signal.

Prior to VCC exceeding its POR level, the Pre-POR
overvoltage protection function is activated during initial
startup; the upper gate (UGATE) is held low and the lower
gate (LGATE), controlled by the Pre-POR overvoltage
protection circuits, is connected to the PHASE. Once the
VCC voltage surpasses the VCC Rising Threshold (See
Electrical Specifications), the PWM signal takes control of
gate transitions. A rising edge on PWM initiates the turn-off
of the lower MOSFET (see Timing Diagram). After a short
propagation delay [t
Typical fall times [t
Specifications section. Adaptive shoot-through circuitry
monitors the LGATE voltage and determines the upper gate
delay time [t

PDHU

MOSFETs from conducting simultaneously. Once this delay
period is complete, the upper gate drive begins to rise [t
and the upper MOSFET turns on.

A falling transition on PWM results in the turn-off of the
upper MOSFET and the turn-on of the lower MOSFET. A
short propagation delay [t
upper gate begins to fall [t
through circuitry determines the lower gate delay time,
t

. The PHASE voltage and the UGATE voltage are

PDHL

monitored, and the lower gate is allowed to rise after PHASE
drops below a level or the voltage of UGATE to PHASE
reaches a level depending upon the current direction (See
next section for details). The lower gate then rises [t
turning on the lower MOSFET.

], the lower gate begins to fall.

PDLL

] are provided in the Electrical

FL

]. This prevents both the lower and upper

RU

] is encountered before the

PDLU

]. Again, the adaptive shoot-

FU

],

RL

1.18V<PWM<2.36V

Advanced Adaptive Zero Shoot-Through Deadtime
Control (Patent Pending)

The PX3511D driver incorporates a unique adaptive
deadtime control technique to minimize deadtime, resulting
in high efficiency from the reduced freewheeling time of the
lower MOSFETs’ body-diode conduction, and to prevent the
upper and lower MOSFETs from conducting simultaneously.
This is accomplished by ensuring either rising gate turns on
its MOSFET with minimum and sufficient delay after the
other has turned off.

During turn-off of the lower MOSFET, the PHASE voltage is
monitored until it reaches a -0.2V/+0.8V trip point within
15ns for a forward/reverse current, at which time the UGATE
turns on after 10ns propagation delay. An auto-zero
comparator is used to correct the r
voltage preventing from false detection of the -0.2V phase
level during r
current and/or 15ns phase detect expired, the UGATE turns
on after 10ns propagation delay. During the phase detection,

]

the disturbance of LGATE’s falling transition on the PHASE
node is blanked out to prevent falsely tripping. Once the
PHASE is high, the advanced adaptive shoot-through
circuitry monitors the PHASE and UGATE voltages during a
PWM falling edge and the subsequent UGATE turn-off. If
either the UGATE falls to less than 1.75V above the PHASE
or the PHASE falls to less than +0.8V, the LGATE is
released to turn on after 10ns propagation delay.

Three-State PWM Input

A unique feature of these drivers and other Intersil drivers is
the addition of a shutdown window to the PWM input. If the
PWM signal enters and remains within the shutdown window
for a set holdoff time, the driver outputs are disabled and
both MOSFET gates are pulled and held low. The shutdown
state is removed when the PWM signal moves outside the
shutdown window. Otherwise, the PWM rising and falling

t

TSSHD

0.76V<PWM<1.96V

t

TSSHD

t

PDTS

drop in the phase

DS(ON)

conduction period. In the case of zero

DS(ON

t

PDTS

6

FN6463.0

February 26, 2007

PX3511D

thresholds outlined in the Electrical Specifications determine
when the lower and upper gates are enabled.

This feature helps prevent a negative transient on the output
voltage when the output is shut down, eliminating the
Schottky diode that is used in some systems for protecting
the load from reversed output voltage events.

In addition, more than 400mV hysteresis also incorporates
into the three-state shutdown window to eliminate PWM
input oscillations due to the capacitive load seen by the
PWM input through the body diode of the controller’s PWM
output when the power-up and/or power-down sequence of
bias supplies of the driver and PWM controller are required.

Power-On Reset (POR) Function

During initial startup, the VCC voltage rise is monitored.
Once the rising VCC voltage exceeds 6.4V (typically),
operation of the driver is enabled and the PWM input signal
takes control of the gate drives. If VCC drops below the
falling threshold of 5.0V (typically), operation of the driver is
disabled.

Pre-POR Overvoltage Protection

Prior to VCC exceeding its POR level, the upper gate is held
low and the lower gate is controlled by the overvoltage
protection circuits. The PHASE is connected to the gate of
the low side MOSFET (LGATE), which provides some
protection to the microprocessor if the upper MOSFET(s) is
shorted during startup, normal, or shutdown conditions. For
complete protection, the low side MOSFET should have a
gate threshold well below the maximum voltage rating of the
load/microprocessor.

Internal Bootstrap Device

Both drivers feature an internal bootstrap Schottky diode.
Simply adding an external capacitor across the BOOT and
PHASE pins completes the bootstrap circuit. The bootstrap
function is also designed to prevent the bootstrap capacitor
from overcharging due to the large negative swing at the
trailing-edge of the PHASE node. This reduces voltage
stress on the boot to phase pins.

The bootstrap capacitor must have a maximum voltage
rating above PVCC + 5V and its capacitance value can be
chosen from the following equation:

Q

GATE

C

BOOT_CAP

Q

GATE

where Q
at V

GS1

control MOSFETs. The DV
allowable droop in the rail of the upper gate drive.

--------------------------------------

≥

ΔV

BOOT_CAP

QG1PVCC•

----------------------------------- -

V

GS1

is the amount of gate charge per upper MOSFET

G1

•=

N

Q1

gate-source voltage and NQ1 is the number of

BOOT_CAP

term is defined as the

(EQ. 1)

As an example, suppose two IRLR7821 FETs are chosen as
the upper MOSFETs. The gate charge, Q
sheet is 10nC at 4.5V (V
Q

is calculated to be 53nC for PVCC = 12V. We will

GATE

) gate-source voltage. Then the

GS

, from the data

G

assume a 200mV droop in drive voltage over the PWM
cycle. We find that a bootstrap capacitance of at least

0.267

µF is required.

1.6

1.4

1.2

1.

(µF)

0.8

0.6

BOOT_CAP

C

0.4

0.2
20nC

0.0

FIGURE 2. BOOTSTRAP CAPACITANCE vs BOOT RIPPLE

Q

50nC

VOLTAGE

= 100nC

GATE

0.30.0 0.1 0.2 0.4 0.5 0.6 0.90.7 0.8 1.0
ΔV

BOOT_CAP

(V)

Gate Drive Voltage Versatility

The PX3511D provides the user flexibility in choosing the
gate drive voltage for efficiency optimization. The PX3511D
ties the upper and lower drive rails together. Simply applying
a voltage from +4.5V up to 13.2V on PVCC sets both gate
drive rail voltages simultaneously, while VCC’s operating
range is from +6.8V up to 13.2V. For 5V operation,
ISL6596/ISL6609 is recommended.

Power Dissipation

Package power dissipation is mainly a function of the
switching frequency (F
external gate resistance, and the selected MOSFET’s
internal gate resistance and total gate charge. Calculating
the power dissipation in the driver for a desired application is
critical to ensure safe operation. Exceeding the maximum
allowable power dissipation level will push the IC beyond the
maximum recommended operating junction temperature of
125°C. The maximum allowable IC power dissipation for the
SO8 package is approximately 800mW at room
temperature, while the power dissipation capacity in the DFN
package, with an exposed heat escape pad, is more than

1.5W. The DFN package is more suitable for high frequency
applications. See Layout Considerations paragraph for
thermal transfer improvement suggestions. When designing
the driver into an application, it is recommended that the
following calculation is used to ensure safe operation at the
desired frequency for the selected MOSFETs. The total gate
drive power losses due to the gate charge of MOSFETs and

), the output drive impedance, the

SW

7

FN6463.0

February 26, 2007

PX3511D

the driver’s internal circuitry and their corresponding average
driver current can be estimated with Equations 2 and 3,
respectively,

P

Qg_TOTPQg_Q1PQg_Q2IQ

•

GS1

GS2

2

2

+

G1

QG1PVCC

P

Qg_Q1

P

Qg_Q2

⎛⎞

I

⎜⎟

DR

⎝⎠

---------------------------------------

V

QG2PVCC

•

---------------------------------------

V

QG1PVCC NQ1••

-----------------------------------------------------

V

GS1

where the gate charge (Q
particular gate to source voltage (V
corresponding MOSFET datasheet; I

VCC•++=

F

• NQ1•=

SW

• NQ2•=

F

SW

Q

PVCC NQ2••

G2

-----------------------------------------------------

V

GS2

and QG2) is defined at a

and V

GS1

Q

GS2

is the driver’s total
quiescent current with no load at both drive outputs; N
and N

are number of upper and lower MOSFETs,

Q2

(EQ. 2)

+•=

F

SWIQ

(EQ. 3)

) in the

Q1

respectively; PVCC is the drive voltage for both upper and
lower FETs. The I

VCC product is the quiescent power of

Q*

the driver without capacitive load and is typically 116mW at
300kHz and VCC = PVCC = 12V.

The total gate drive power losses are dissipated among the
resistive components along the transition path. The drive
resistance dissipates a portion of the total gate drive power
losses, the rest will be dissipated by the external gate
resistors (R
(R

and R

GI1

and RG2) and the internal gate resistors

G1

) of MOSFETs. Figures 3 and 4 show the

GI2

typical upper and lower gate drives turn-on transition path.
The power dissipation on the driver can be roughly
estimated as:

P

DRPDR_UPPDR_LOWIQ

R

⎛⎞

HI1

P

DR_UP

P

DR_LOW

R

EXT1RG1

--------------------------------------

⎜⎟

R

+

⎝⎠

HI1REXT1

R

⎛⎞

HI2

--------------------------------------

⎜⎟

R

+

⎝⎠

HI2REXT2

R

GI1

-------------

+=

N

Q1

VCC•++=

R

LO1

----------------------------------------

+

R

+

LO1REXT1

R

LO2

----------------------------------------

+

R

+

LO2REXT2

R

EXT2RG2

P

Qg_Q1

---------------------

•=

P

---------------------

•=

R

-------------

+=

N

(EQ. 4)

2

Qg_Q2

2

GI2

Q2

Application Information

Layout Considerations

The parasitic inductances of the PCB and of the power
devices’ packaging (both upper and lower MOSFETs) can
cause serious ringing, exceeding absolute maximum rating
of the devices. Careful layout can help minimize such
unwanted stress. The following advice is meant to lead to an
optimized layout:

• Keep decoupling loops (PVCC-GND and BOOT-PHASE)

• Minimize trace inductance, especially on low-impedance

• Minimize the inductance of the PHASE node. Ideally, the

• Minimize the current loop of the output and input power

In addition, for heat spreading, place copper underneath the
IC whether it has an exposed pad or not. The copper area
can be extended beyond the bottom area of the IC and/or
connected to buried power ground plane(s) with thermal
vias. This combination of vias for vertical heat escape,

PVCC

BOOT

R

PHASE

R

HI1

LO1

D

C

GD

G

R

GI1

R

G1

C

GS

S

Q1

C

DS

FIGURE 3. TYPICAL UPPER-GATE DRIVE TURN-ON PATH

PVCC

D

C

GD

R

HI2

R

LO2

G

R

GI2

R

G2

C

GS

S

Q2

C

DS

FIGURE 4. TYPICAL LOWER-GATE DRIVE TURN-ON PATH

as short as possible.

lines. All power traces (UGATE, PHASE, LGATE, GND,
PVCC) should be short and wide, as much as possible.

source of the upper and the drain of the lower MOSFET
should be as close as thermally allowable.

trains. Short the source connection of the lower MOSFET
to ground as close to the transistor pin as feasible. Input
capacitors (especially ceramic decoupling) should be
placed as close to the drain of upper and source of lower
MOSFETs as possible.

8

FN6463.0

February 26, 2007

extended copper plane, and buried planes for heat
spreading allows the IC to achieve its full thermal potential.

Upper MOSFET Self Turn-On Effects At Start-up

Should the driver have insufficient bias voltage applied, its
outputs are floating. If the input bus is energized at a high
dV/dt rate while the driver outputs are floating, because of
self-coupling via the internal C
UGATE could momentarily rise up to a level greater than the
threshold voltage of the MOSFET. This could potentially turn
on the upper switch and result in damaging inrush energy.
Therefore, if such a situation (when input bus powered up
before the bias of the controller and driver is ready) could
conceivably be encountered, it is a common practice to
place a resistor (R

) across the gate and source of the

UGPH

upper MOSFET to suppress the Miller coupling effect. The
value of the resistor depends mainly on the input voltage’s
rate of rise, the C

GD/CGS

ratio, as well as the gate-source
threshold of the upper MOSFET. A higher dV/dt, a lower
C

DS/CGS

ratio, and a lower gate-source threshold upper
FET will require a smaller resistor to diminish the effect of
the internal capacitive coupling. For most applications, a 5k
to 10kΩ resistor is typically sufficient, not affecting normal
performance and efficiency.

of the MOSFET, the

GD

PX3511D

PVCC

PX3511D

DU

DL

BOOT

C

BOOT

UGATE

PHASE

C

GD

G

R

GI

UGPH

R

VIN

D

C

GS

Q

UPPER

S

FIGURE 5. GATE TO SOURCE RESISTOR T O REDUCE

UPPER MOSFET MILLER COUPLING

C

DS

The coupling effect can be roughly estimated with the
following equations, which assume a fixed linear input ramp
and neglect the clamping effect of the body diode of the
upper drive and the bootstrap capacitor. Other parasitic
components such as lead inductances and PCB
capacitances are also not taken into account. These
equations are provided for guidance purpose only.
Therefore, the actual coupling effect should be examined
using a very high impedance (10MΩ or greater) probe to
ensure a safe design margin.

V–

DS

--------------------------------- -

dV

-------

RC⋅

⋅

iss

dt

(EQ. 5)

C

issCGDCGS

+=

V

GS_MILLER

RR

UGPHRGI

⎛⎞

dV

-------

⋅⋅=

dt

+=

⎜⎟
⎜⎟

1e

RC

–

rss

⎜⎟
⎜⎟
⎝⎠

C

=

rssCGD

9

FN6463.0

February 26, 2007

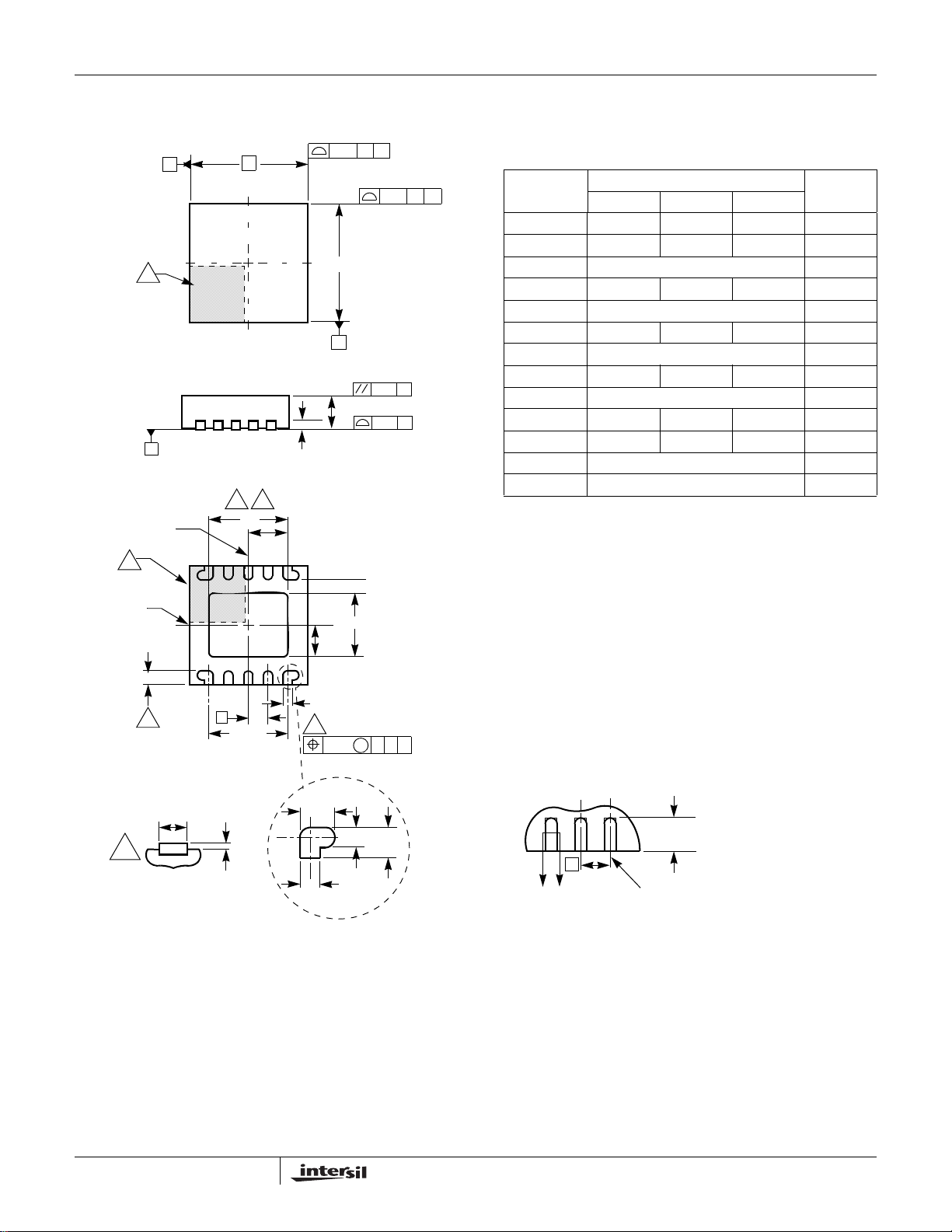

Dual Flat No-Lead Plastic Package (DFN)

PX3511D

INDEX

SEATING

(DATUM B)

6

INDEX

AREA

(DATUM A)

NX (b)

5

SECTION "C-C"

6

AREA

C

PLANE

NX L

8

A

D

TOP VIEW

SIDE VIEW

7

D2

12

BOTTOM VIEW

D2/2

N-1N
e

(Nd-1)Xe

REF.

(A1)

2X

0.15

C

A

L10.3x3

10 LEAD DUAL FLAT NO-LEAD PLASTIC PACKAGE

MILLIMETERS

0.152XB

C

SYMBOL

NOTESMIN NOMINAL MAX

A 0.80 0.90 1.00 -

A1 - - 0.05 -

E

A3 0.20 REF -

b 0.18 0.23 0.28 5,8

D 3.00 BSC -

B

D2 1.95 2.00 2.05 7,8

E 3.00 BSC -

E2 1.55 1.60 1.65 7,8

0.10 C

A

0.08

C

e 0.50 BSC -

k0.25 - - ­L0.300.35 0.40 8

A3

N102

Nd 5 3

8

Rev. 3 6/04

NOTES:

1. Dimensioning and tolerancing conform to ASME Y14.5-1994.

2. N is the number of terminals.

3. Nd refers to the number of terminals on D.

4. All dimensions are in millimeters. Angles are in degrees.

5. Dimension b applies to the metallized terminal and is measured
between 0.15mm and 0.30mm from the terminal tip.

6. The configuration of the pin #1 identifier is optional, but must be

E2/2

NX

E2

k

located within the zone indicated. The pin #1 identifier may be
either a mold or mark feature.

NX b
5

0.10 MC

0.415

C

0.200

NX b

AB

NX L

7. Dimensions D2 and E2 are for the exposed pads which provide
improved electrical and thermal performance.

8. Nominal dimensions are provided to assist with PCB Land
Pattern Design efforts, see Intersil Technical Brief TB389.

C

L

L

e

CC

FOR ODD TERMINAL/SIDE

TERMINAL TIP

10

FN6463.0

February 26, 2007
